Toyota CAMRY 制动助力器和真空管 — Figure 4703

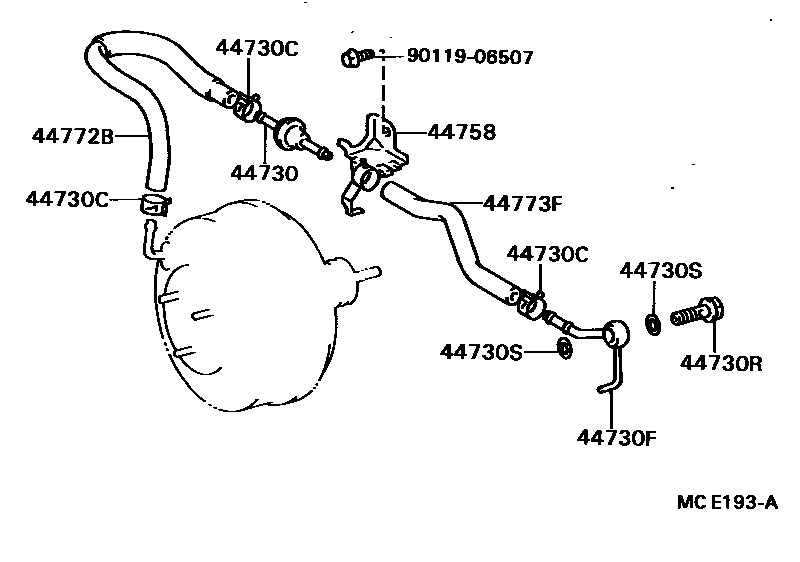

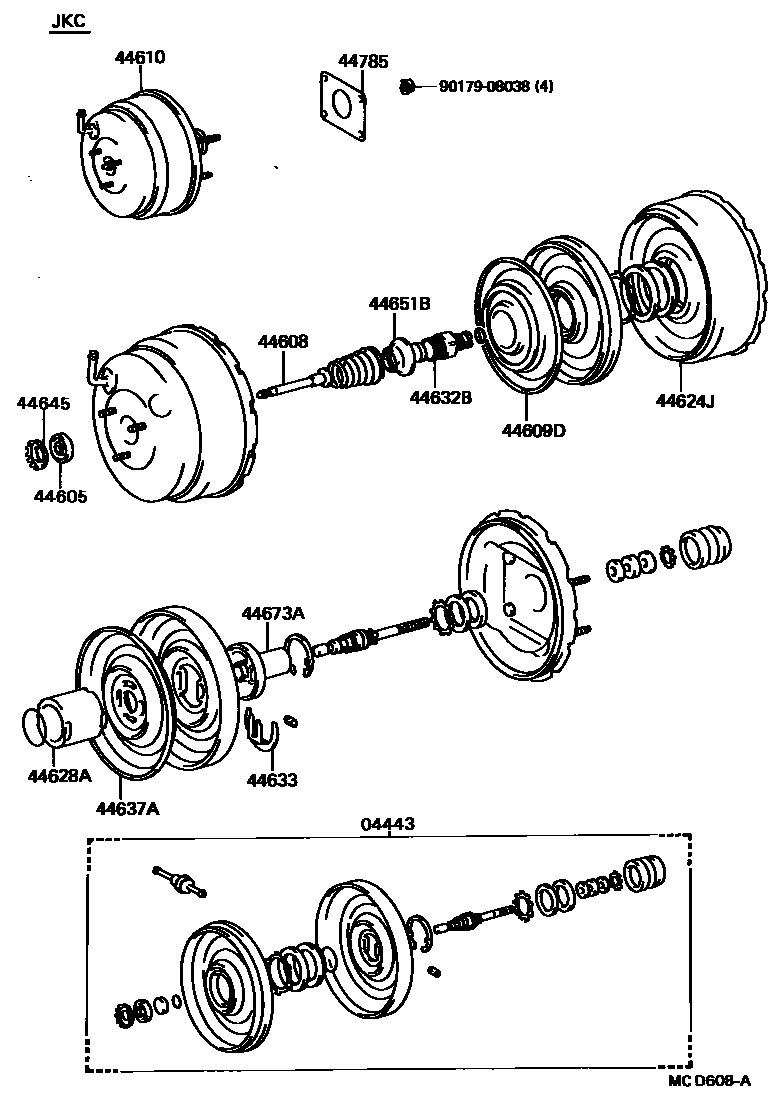

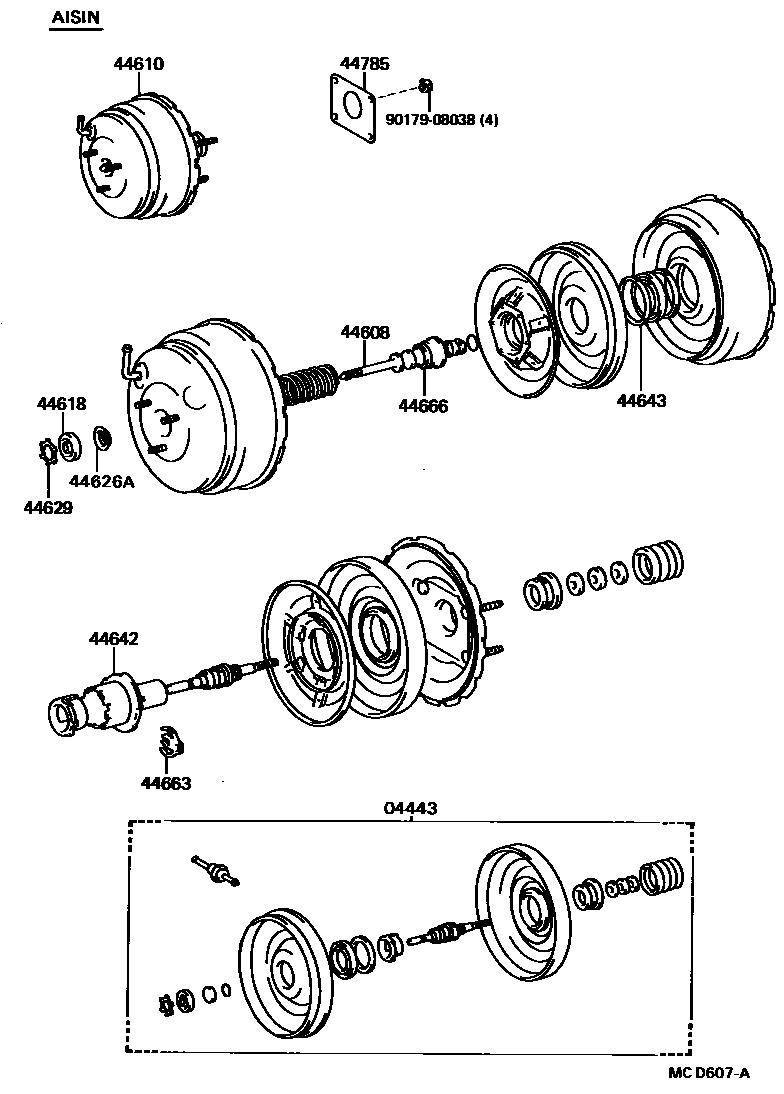

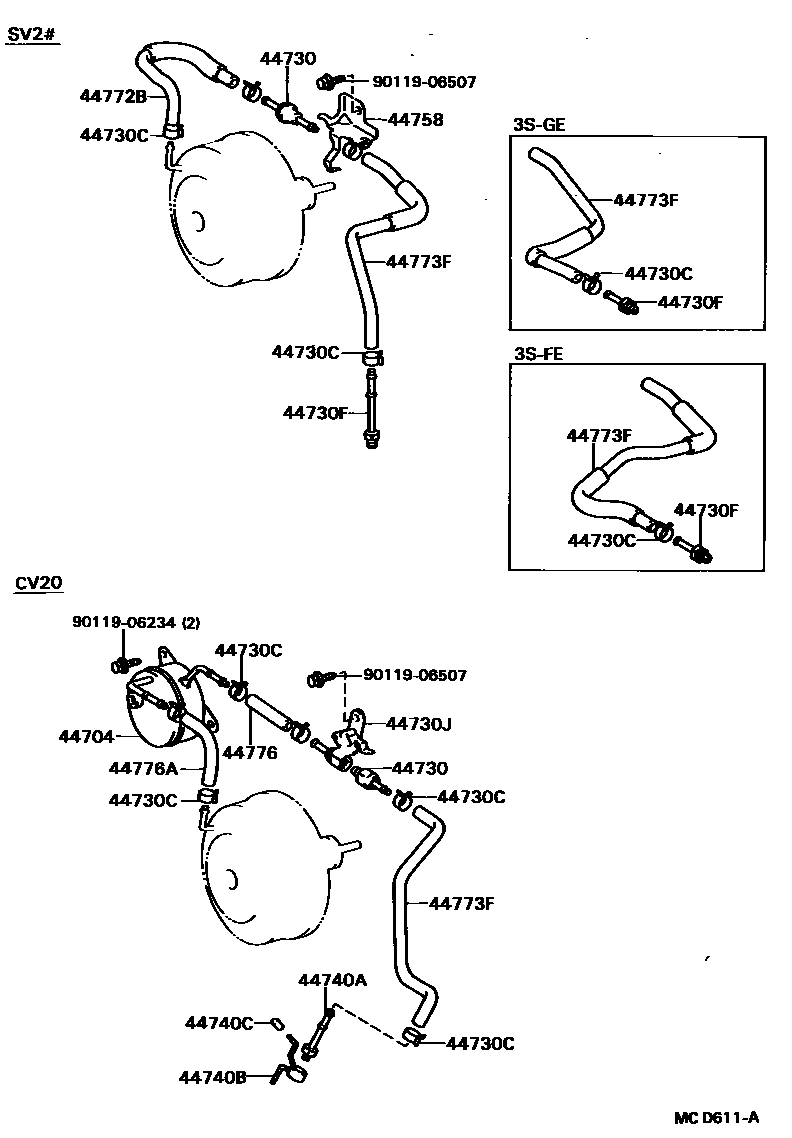

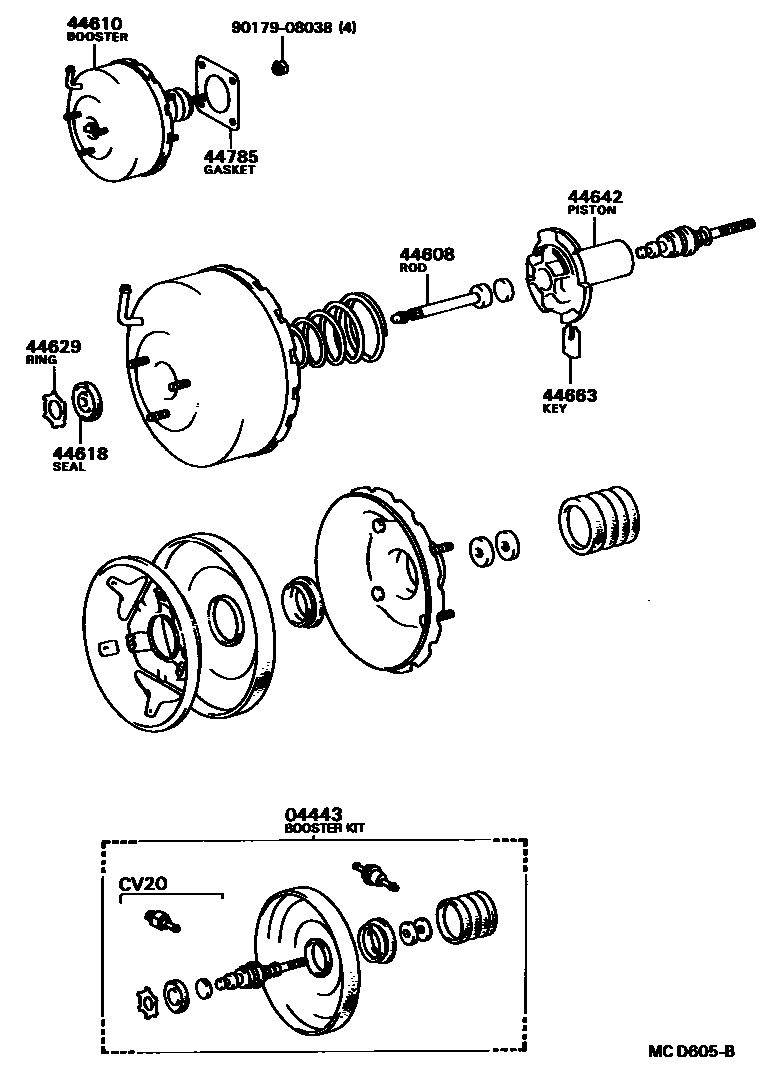

Toyota CAMRY EPC diagram 4703, 制动助力器和真空管, with 5 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04443 | brake booster components | 04443-32390 · 04443-32400 · 04443-32410 · 04443-32420 · 04443-32430 |
| 44605 | Booster plate and sealing ring sub-assembly | 44605-32170 |
| 44608 | Booster push rod sub-assembly | 44606-12520 · 44606-20800 · 44608-17090 |
| 44609D | Booster plate and retaining ring sub-assembly | 44609-17090 |
| 44610 | brake booster assembly | 44610-32311 · 44610-32480 · 44610-32490 |
| 44618 | Booster body sealing ring | 44621-14030 · 44621-28120 |
| 44624J | booster center disc | 44624-20800 · 44624-20810 |
| 44626A | Booster body sealing ring | 44626-60010 |
| 44628A | Booster center body | 44628-20810 |
| 44629 | annular inner ring | 44628-28120 · 44628-60010 |
| 44632B | Booster reaction disc hub | 44632-28300 |
| 44633 | booster valve plunger key | 44633-20811 · 44635-20800 |
| 44637A | booster diaphragm disc | 44637-20810 |
| 44642 | brake booster piston | 44641-30560 · 44642-20800 · 44642-2B210 |
| 44643 | Diaphragm retaining ring | 44643-20800 |
| 44645 | Booster push rod sealing ring | 44645-22020 |
| 44651B | booster nut | 44651-20810 |
| 44663 | valve stop key | 44635-20800 · 44635-28120 |
| 44666 | reaction disk housing | 44657-28370 · 44657-32490 |
| 44673A | booster valve body | 44673-20810 · 44673-22120 · 44673-26140 |
| 44704 | Vacuum liquid tank sub-assembly | 44704-32030 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-10010 · 44730-60050 |
| 44730C | Clip (for vacuum hose) | 90467-16002 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51031 · 90404-51061 · 90404-51319 · 90405-09125 |
| 44730J | Pipe fitting (for booster vacuum) | 90412-52006 |
| 44730R | Connector bolts (for vacuum hose connectors) | 90401-12012 |
| 44730S | Gasket (for vacuum hose coupling) | 90430-12005 |
| 44740A | Connector No. 1 (for vacuum pump) | 90404-09006 |
| 44740B | Connector No. 2 (for vacuum pump) | 90405-04003 |
| 44740C | Screw plug (for connector) | 90339-03005 |
| 44758 | Vacuum check valve bracket | 44758-20141 |
| 44772B | Hoses (check valve to brake booster) | 44772-32060 |
| 44773F | Hoses (connector to check valve) | 44773-32060 · 44773-32070 · 44773-32080 · 44773-32090 · 44773-32110 |
| 44776 | brake booster hose | 90445-17039 |
| 44776A | Hoses (vacuum reservoir to brake booster) | 44776-32030 |
| 44785 | brake booster pad | 44785-32010 |
