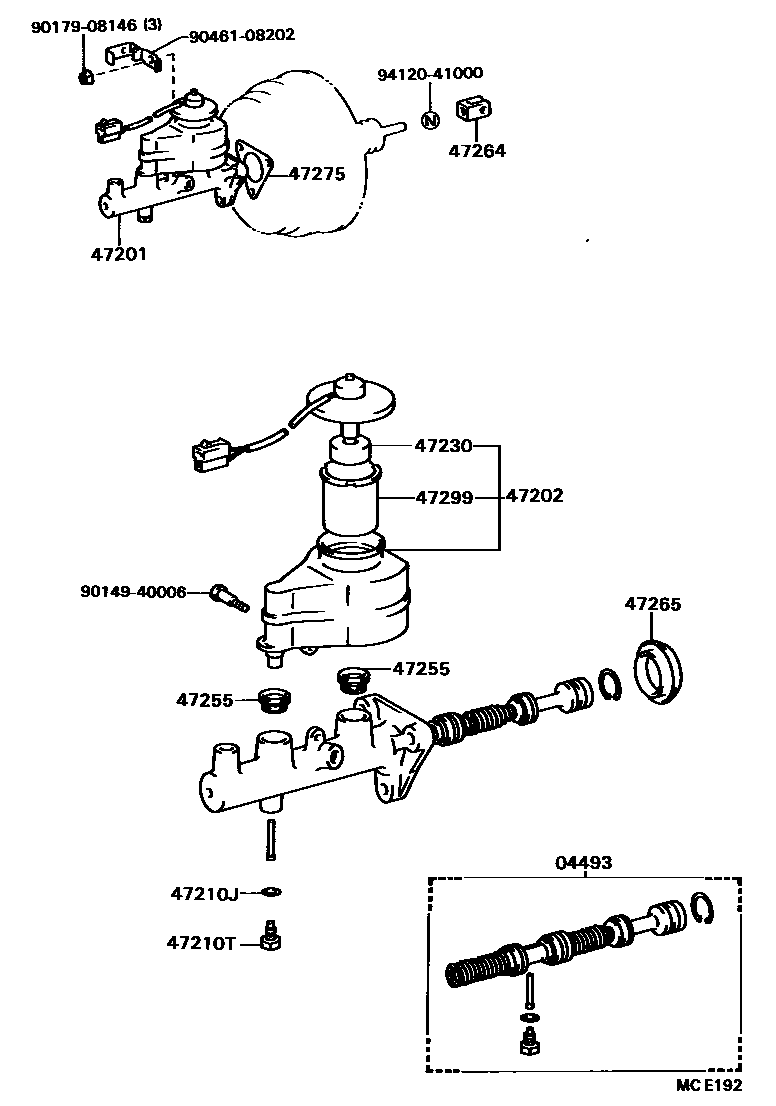

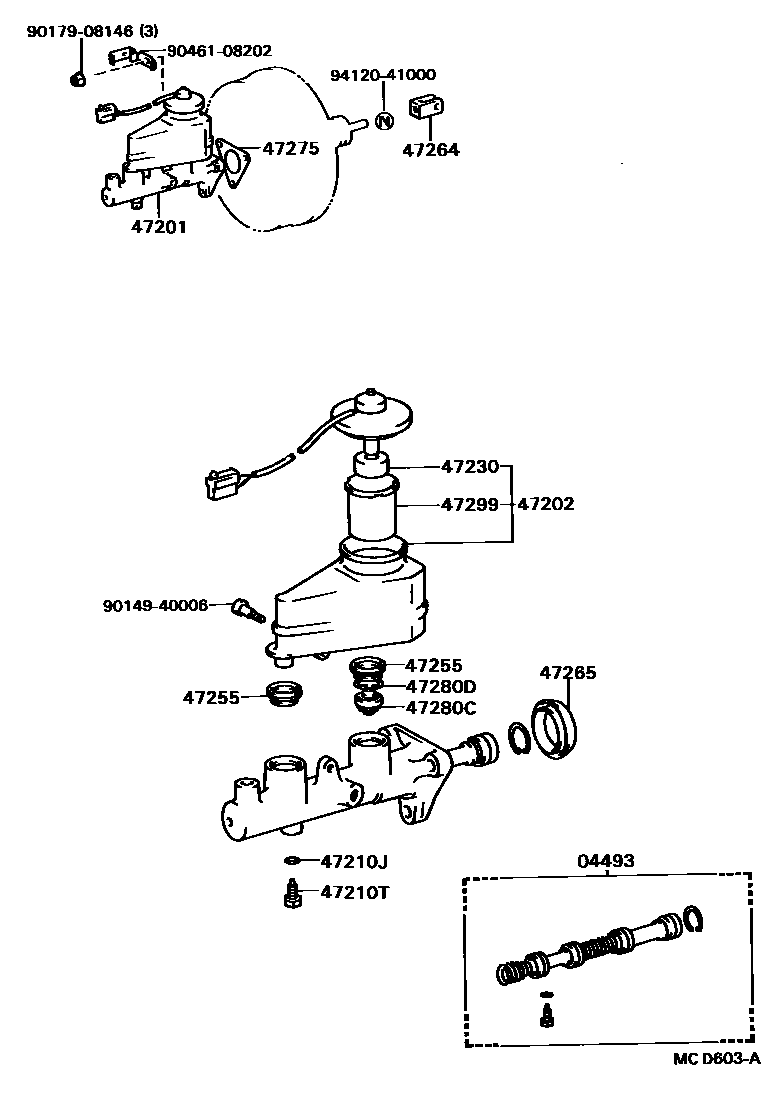

Toyota CAMRY 制动总泵 — Figure 4702
Toyota CAMRY EPC diagram 4702, 制动总泵, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04493 | Brake master cylinder assembly | 04493-32030 · 04493-32040 · 04493-32061 |
| 47201 | Brake master cylinder sub-assembly | 47201-32130 · 47201-32140 · 47201-32200 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47202-32070 · 47202-32080 |
| 47210J | Gasket (for master cylinder) | 90430-06104 |
| 47210T | Bolt (for brake master cylinder) | 90109-06008 · 90109-06077 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 84460-20110 |
| 47255 | Master pump reservoir seal | 47255-10010 · 47255-16010 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-10080 · 47264-20040 |
| 47265 | Master pump dust jacket | 47265-20050 · 47265-32010 |
| 47275 | brake master cylinder gasket | 47275-32010 |
| 47280C | Quick supply valve assembly | 47280-32010 |
| 47280D | Snap ring (for quick supply valve) | 96151-02000 |
| 47299 | Brake master cylinder reservoir filter | 47299-32010 |
