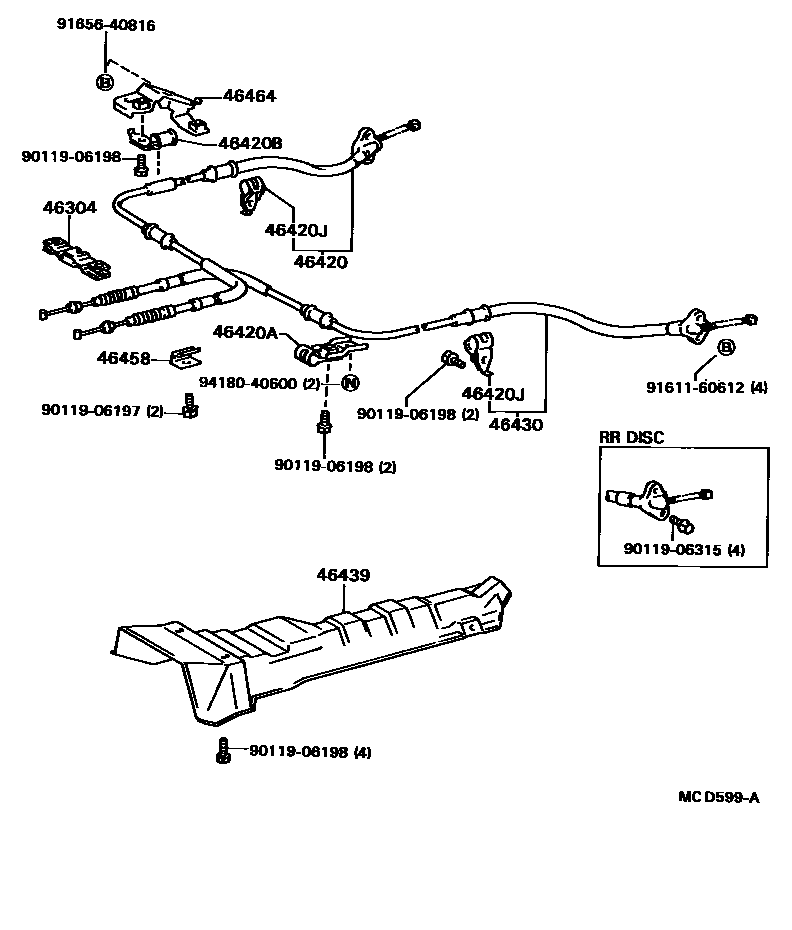

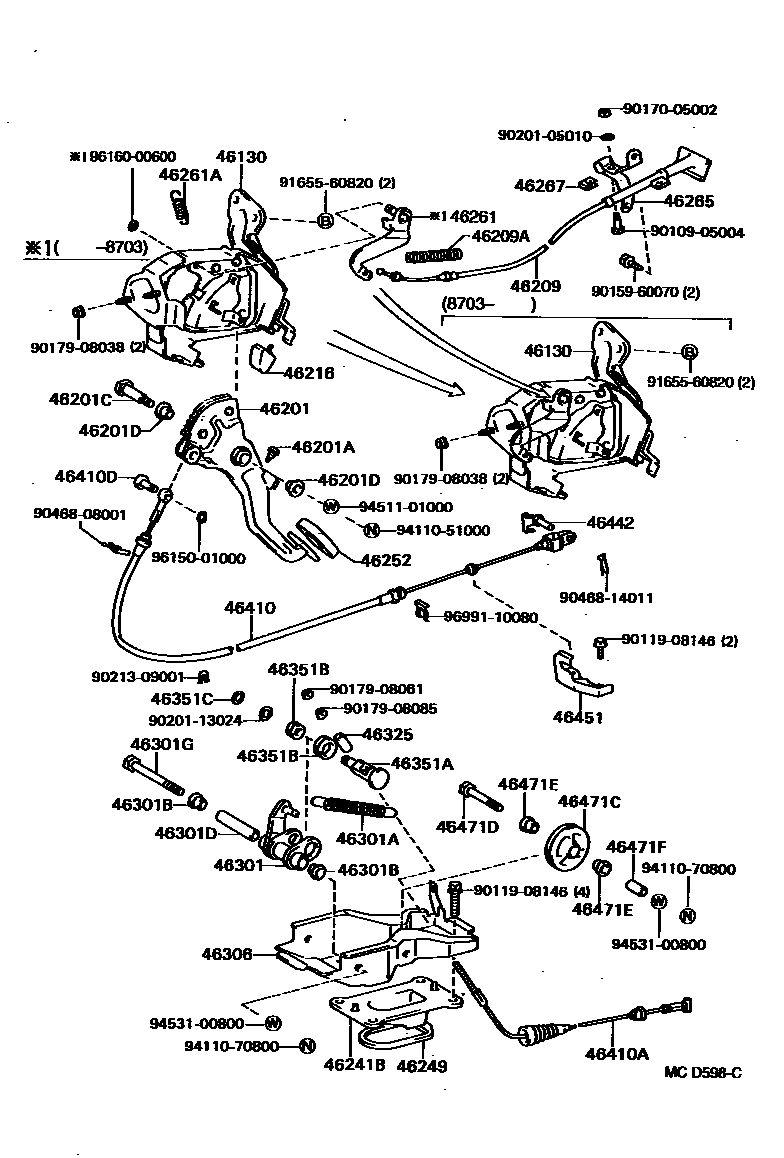

Toyota CAMRY Parking Brake & Cable — Figure 4601
Toyota CAMRY EPC diagram 4601, Parking Brake & Cable, with 4 images and 68 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46130 | Parking brake pedal bracket assembly | 46130-32020 |
| 46201 | Parking brake pedal sub-assembly | 46201-32070 |
| 46201A | Cushion pad (for parking brake pedal) | 90541-01001 |
| 46201C | pedal shaft | 90109-10033 |
| 46201D | Bushing (for parking brake pedal) | 90386-16022 |
| 46209 | Parking brake release cable sub-assembly | 46209-32020 |
| 46209A | Compression spring (for parking brake release cable) | 90501-08030 |
| 46216 | Parking pedal cushion | 90541-07008 |
| 46225A | Compression spring (for parking brake pawl lever) | 90501-10069 |
| 46241 | Parking brake lever dust cover | 46241-32010 · 46241-32030 |
| 46241B | Middle lever dust cover | 46241-32020 |
| 46249 | Parking brake hole cover | 46249-32010 |
| 46252 | Parking brake pedal pad | 46252-20010 |
| 46261A | Spring (for parking brake release intermediate lever) | 90506-07007 |
| 46265 | Parking brake release lever guide bush | 46265-32020 |
| 46266A | Release lever guide bushing intermediate cushion | 46266-30010 |
| 46301 | Parking brake intermediate lever sub-assembly | 46301-32020 |
| 46301A | Tension spring (for middle lever) | 90507-12019 |
| 46301B | Bushing (for intermediate lever) | 90386-13011 |
| 46301D | Collar (for intermediate lever) | 90387-08044 |
| 46301G | Bolt (for center lever) | 90101-08111 |
| 46304 | Parking brake balancer sub-assembly | 46341-32010 · 46341-32020 |
| 46306 | Intermediate lever bracket sub-assembly (for parking brake) | 46306-32020 |
| 46325 | Parking brake cable sleeve | 46325-32010 |
| 46351A | intermediate lever shaft | 46351-32010 |
| 46351B | Bushing (for intermediate lever shaft) | 90386-13013 · 90386-20003 |
| 46351C | Spacer (for intermediate lever shaft) | 90564-13002 · 90564-13003 · 90564-13005 · 90564-13006 · 90564-13007 · 90564-13008 |
| 46410 | Parking brake cable assembly No. 1 | 46410-32010 · 46410-32080 |
| 46410A | Parking brake No. 5 cable assembly | 46440-32010 |
| 46410D | Pin (for front parking brake cable) | 90249-10012 |
| 46420 | Parking brake No. 2 cable assembly | 46420-32130 · 46420-39045 · 46420-39055 |
| 46420A | Clamp No. 1 (for parking brake cable) | 90949-01331 · 90949-01368 · 90949-01369 · 90949-01605 |
| 46420B | Clamp No. 2 (for parking brake cable) | 90949-01332 · 90949-01370 · 90949-01371 · 90949-01606 |
| 46420J | Clamp No. 3 (for parking brake cable) | 90949-01330 · 90949-01604 |
| 46430 | Parking brake No. 3 cable assembly | 46430-32130 · 46430-39045 · 46430-39055 |
| 46439 | Parking brake cable insulation pad | 46439-32020 |
| 46442 | Harness Pivot Pin | 46442-32010 |
| 46451 | cable bracket | 46451-32020 |
| 46458 | Cable fixings | 46458-20020 · 46458-50010 |
| 46464 | Pull cable clip support plate | 46464-32010 · 46464-32020 |
| 46471C | Intermediate lever pulley | 46471-32010 |
| 46471D | Bolt (for center lever pulley) | 90101-08112 |
| 46471E | Bushing (for center lever pulley) | 90386-13011 |
| 46471F | Shaft collar (for intermediate lever pulley) | 90387-08045 |
| 46503 | Right parking brake pad sub-assembly | 46503-20010 · 46503-20020 · 46503-32010 |
| 46504 | Left parking brake pad sub-assembly | 46504-20010 · 46504-20020 · 46504-32010 |
| 46540 | No. 1 right or middle parking brake shoe assembly | 46540-20010 · 46540-32010 |
| 46550 | No. 2 right or middle parking brake shoe assembly | 46550-20010 · 46550-32010 |
| 46550A | No. 1 tension spring (used for parking brake shoe return) | 90507-16009 · 90507-18015 |
| 46550C | C-shaped washer (for parking brake shoe) | 90213-07018 |
| 46550E | No. 2 tension spring (used for parking brake shoe return) | 90506-12010 |
| 46550G | No. 3 tension spring (used for parking brake shoe return) | 90507-16009 · 90507-18016 |
| 46550H | Spacer (for parking brake shoe) | 90564-09184 · 90564-09185 · 90564-09186 |
| 46580 | No. 1 left parking brake shoe assembly | 46540-20010 · 46540-32010 |
| 46590 | No. 2 left parking brake shoe assembly | 46590-20010 · 46590-32010 |
| 47405A | Right brake shoe adjustment screw assembly (for parking brake) | 47405-30040 |
| 47406A | Left brake shoe adjustment screw assembly (for parking brake) | 47406-30040 |
| 47447D | Compression spring (for parking brake shoe limit) | 90501-14049 |
| 47447E | No. 1 brake shoe limit spring pin (for parking brake) | 47447-20030 |
| 47447F | No. 2 brake shoe limit spring pin (for parking brake) | 47447-22020 |
| 47449A | No. 1 brake shoe limit spring seat (for parking brake) | 47449-22010 · 47449-30030 |
| 47456A | Brake shoe guide (for parking brake) | 47456-20030 |
| 47459B | Brake shoe guide fixing bolt (for parking brake) | 47459-30010 |
| 47611 | Right parking brake shoe lever | 47611-20030 · 47611-32030 |
| 47612 | Left parking brake shoe lever | 47612-20030 · 47612-32030 |
| 47613D | Compression spring (for parking brake shoe push rod) | 90504-14002 · 90504-14004 |
| 47613E | Right parking brake shoe push rod | 47613-20040 · 47613-32020 |
| 47614 | Left parking brake shoe push rod | 47613-32020 · 47614-20010 |
