Toyota CAMRY Transfer Case & Extension Housing — Figure 3609

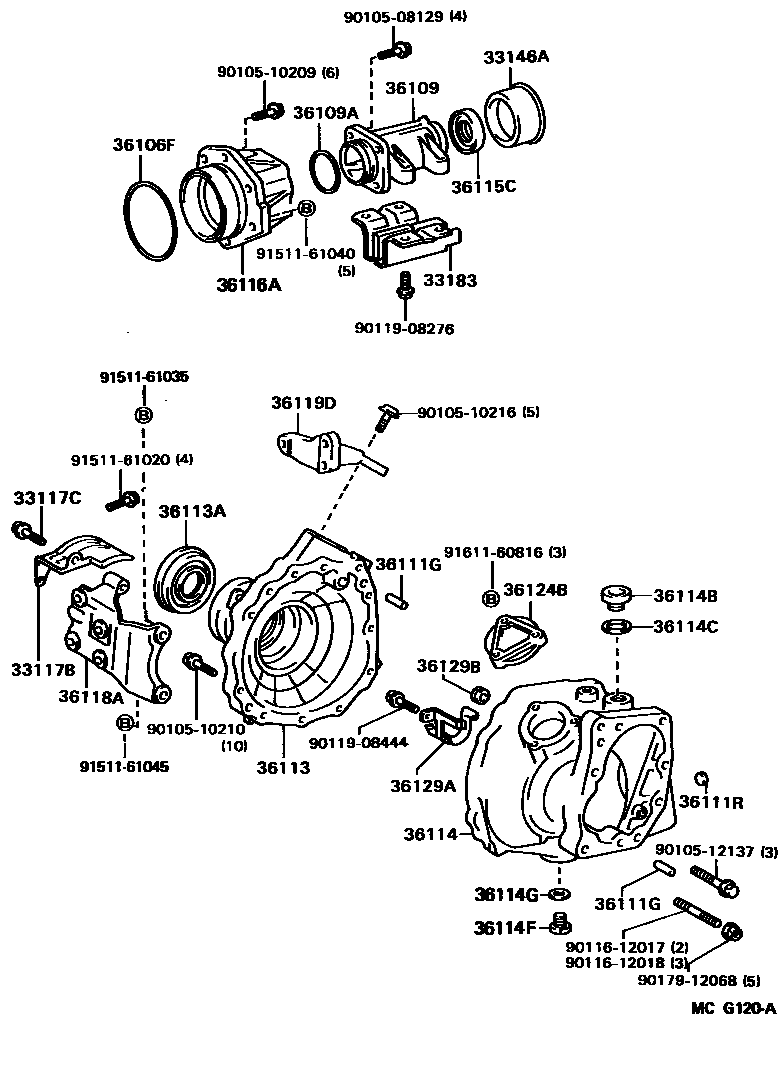

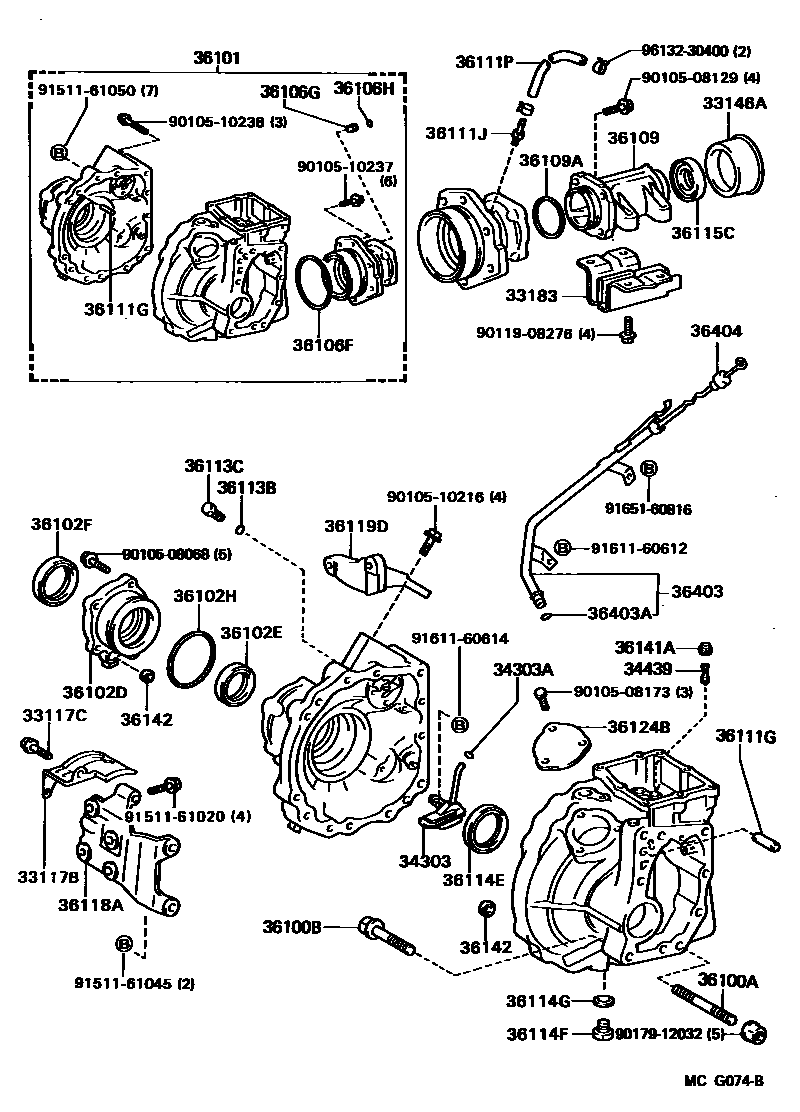

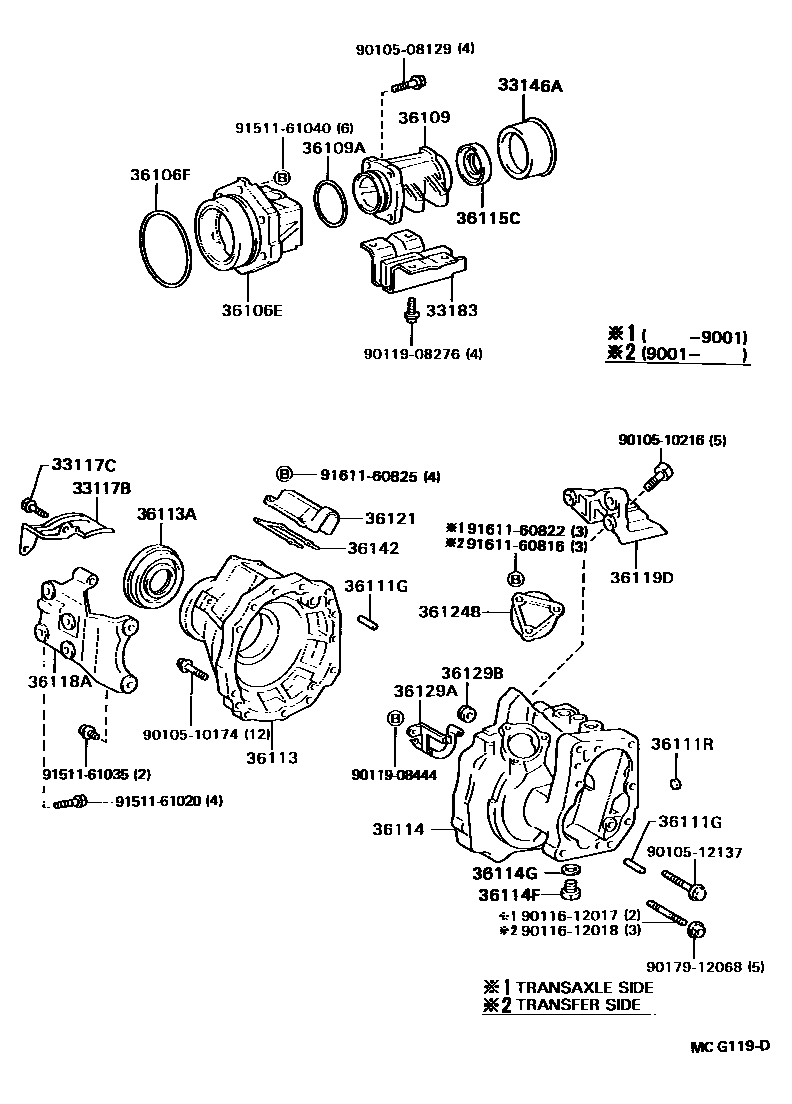

Toyota CAMRY EPC diagram 3609, Transfer Case & Extension Housing, with 3 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33117B | Transfer case guard | 33117-20030 · 33117-32030 |
| 33117C | Bolts (for transfer case guard) | 90105-08040 |
| 33146A | Transfer case extension housing dust cover | 33146-30010 |
| 33183 | Transfer case dynamic damper | 33183-20010 · 33183-32010 |
| 34303 | Transfer case oil filter sub-assembly | 34303-32010 |
| 34303A | O-ring (for transfer case oil filter) | 90301-06008 |
| 34439 | Transfer case valve body oil filter | 34439-32010 |
| 36100A | Stud bolts (for securing transfer case and transaxle) | 90116-12027 · 90116-12028 · 90116-12029 |
| 36100B | Bolts (for securing transfer case and transaxle) | 90105-12137 · 90105-12161 · 90105-12162 |
| 36101 | Transfer case sub-assembly | 36101-32010 · 36101-32011 · 36101-32012 |
| 36102D | Transfer case right bearing retainer sub-assembly | 36102-32010 |
| 36102E | No. 1 oil seal (for transfer case right bearing retainer) | 90316-52001 |
| 36102F | No. 2 oil seal (for transfer case right bearing retainer) | 90310-50002 |
| 36102H | O-ring (for transfer case right bearing retainer) | 90301-85003 |
| 36106E | Transfer case pinion bearing cover sub-assembly | 36106-20010 |
| 36106F | O-ring (for transfer case pinion bearing housing) | 90301-94001 · 90301-99049 |
| 36106G | Straight thread plug (for transfer case pinion bearing housing) | 90334-09004 |
| 36106H | O-shaped plug (for transfer case pinion bearing cover screw plug) | 90301-05002 |
| 36109 | Transfer case extension housing sub-assembly | 36109-20012 · 36109-32010 |
| 36109A | O-ring (for transfer case extension housing) | 90301-63005 |
| 36111G | Direct sales (for transfer case) | 90250-10017 · 90250-12005 · 90254-10003 |
| 36111J | No. 1 breather pipe joint (for transfer case) | 90404-51059 |
| 36111P | Breather hose (for transfer case) | 90447-11025 |
| 36111R | Sealing plug (for transfer case) | 90331-08002 |
| 36113 | Right transfer case | 36113-12010 · 36113-20020 |
| 36113A | Oil seal (for right transfer case) | 90311-47003 |
| 36113B | O-ring (for transfer case plug) | 90301-06196 |
| 36113C | Screw plug (for transfer case) | 90341-08001 |
| 36114 | Left transfer case | 36114-12010 · 36114-12011 · 36114-12030 · 36114-20020 · 36114-20021 |
| 36114B | No. 1 screw plug (for transfer case) | 90341-22001 |
| 36114C | No. 1 gasket (for transfer case) | 90430-22002 |
| 36114E | Oil seal (for left transfer case) | 90316-61001 |
| 36114F | Screw plug (for transfer case oil drain) | 90341-18006 · 90341-18021 |
| 36114G | Gasket (for transfer case drain plug) | 90430-18008 |
| 36115C | T-type oil seal (for transfer case extension case) | 90311-38032 |
| 36116A | Transfer case pinion bearing cover | 36116-12010 |
| 36118A | Transfer case right side reinforcement plate | 36118-20020 · 36118-32011 · 36118-32020 |
| 36119D | Transfer case center reinforcement plate | 36119-20011 · 36119-20012 · 36119-32010 · 36119-32020 |
| 36121 | No. 1 transfer case cover | 36121-20010 |
| 36124B | Transfer case inspection hole cover | 36124-12010 · 36124-20010 · 36124-32010 |
| 36129A | Transfer case oil pipe | 36129-20010 |
| 36129B | Buffer pad (for transfer case oil pipe) | 90540-06027 |
| 36141A | Transfer case gasket | 36141-32010 |
| 36142 | Transfer case cover gasket | 36141-20010 · 36142-12010 |
| 36403 | Transfer case filler pipe sub-assembly | 36403-32010 |
| 36403A | O-ring (for transfer case filler pipe) | 90301-09173 |
| 36404 | Transfer case oil level scoring assembly | 36404-32010 |
