Toyota CAMRY 变速器壳和油底壳(ATM) — Figure 3503

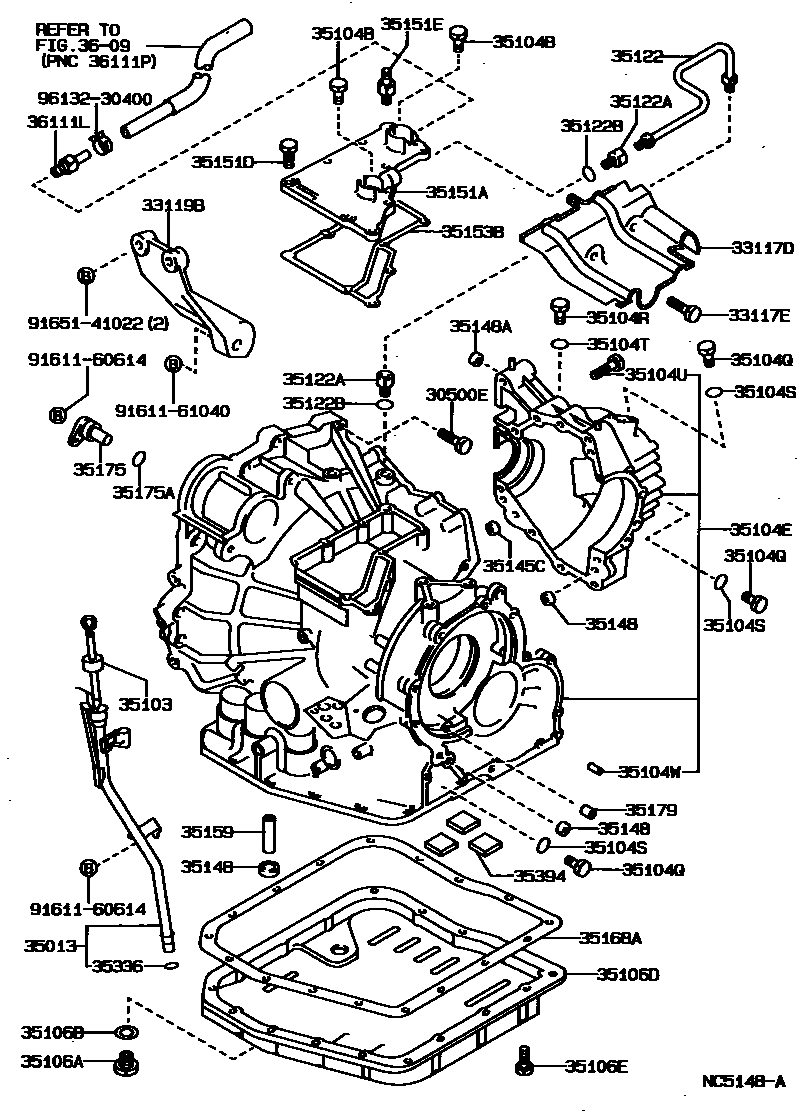

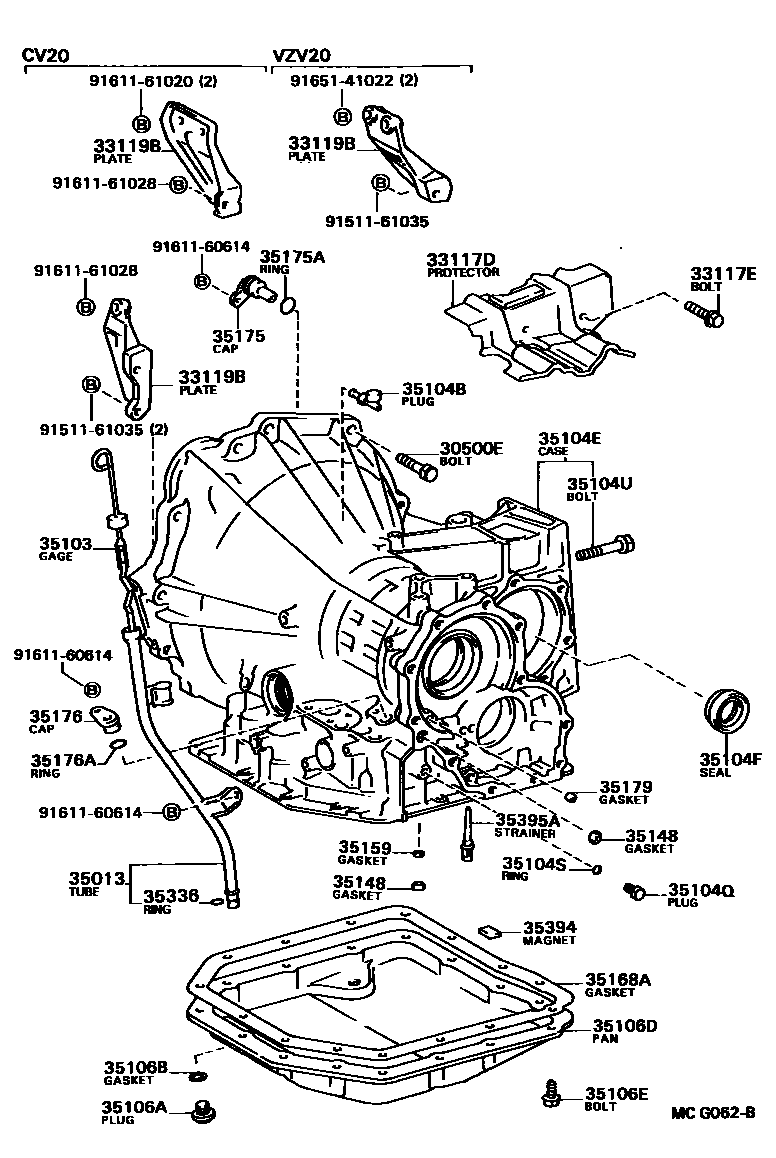

Toyota CAMRY EPC diagram 3503, 变速器壳和油底壳(ATM), with 2 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30500E | Bolts (for securing transaxle and engine) | 90105-08040 · 90105-10077 · 91619-61245 · 91619-61260 · 91651-41022 |
| 33117D | automatic transmission guard plate | 33117-32022 · 33117-32050 |
| 33117E | Bolts (for automatic transmission guard) | 90105-08040 |
| 33119B | Left reinforcement plate (ATM) | 33119-32010 · 33119-32020 · 33119-32040 |
| 35013 | Transmission oil pipe sub-assembly | 35013-20260 · 35013-32040 · 35013-32050 · 35013-32070 · 35013-32100 |
| 35103 | Transmission oil level scoring assembly | 35103-20120 · 35103-32031 · 35103-32060 · 35103-32070 · 35103-32080 |
| 35104B | Ventilation plug No. 1 (ATM) | 90930-03001 · 90930-03089 |
| 35104E | Automatic transmission axle housing sub-assembly | 35104-20072 · 35104-20073 · 35104-32052 · 35104-32053 · 35104-32060 · 35104-32061 |
| 35104F | Oil seal (for transmission axle housing) | 90311-35019 |
| 35104Q | No. 1 screw plug (for transmission axle housing) | 90341-08001 |
| 35104R | No. 2 screw plug (for transmission axle housing) | 90341-13003 |
| 35104S | O-ring (for transmission axle housing plug No. 1) | 90301-06196 |
| 35104T | O-ring (for transmission axle housing plug No. 2) | 90301-10189 |
| 35104U | Bolts (for transaxle housing) | 90105-10222 · 90105-10223 · 90105-10224 · 90105-12052 |
| 35104W | Direct sales (for transmission axle housing) | 90250-10232 |
| 35106A | Drain plug sub-assembly (ATM) | 90341-18016 |
| 35106B | Drain plug gasket (ATM) | 90430-18008 |
| 35106D | Automatic transmission axle oil pan sub-assembly | 35106-10021 · 35106-32011 · 35106-32030 · 35106-32031 |
| 35106E | Bolts (for transaxle oil pan) | 90119-06173 |
| 35122 | Snorkel (for automatic transaxle) | 35122-32010 |
| 35122A | Connector (for automatic transaxle breather pipe) | 90404-14007 |
| 35122B | O-ring (for automatic transmission axle breather pipe joint) | 90301-10189 |
| 35145C | Transmission axle housing gasket | 35145-32020 |
| 35148 | Governor oil supply pipe No. 1 gasket | 35148-16010 |
| 35148A | Governor oil supply pipe gasket No. 2 | 35148-12010 |
| 35151A | Transmission axle housing upper cover | 35151-32021 · 35151-32022 |
| 35151D | Bolts (for transmission axle housing upper cover) | 90105-06113 · 90105-08174 · 91511-61030 |
| 35151E | Bolts (for transmission axle housing upper cover) | 90109-08179 |
| 35153B | Transmission axle housing upper cover gasket | 35153-32010 |
| 35159 | brake drum gasket | 35159-32011 |
| 35168A | Automatic transaxle oil pan gasket | 35168-32010 · 35168-32020 |
| 35175 | No. 2 transmission axle housing cover | 35175-32010 |
| 35175A | O-ring (for transmission axle housing cover) | 90301-21002 |
| 35176 | Wire harness cover | 35176-32010 |
| 35176A | O-ring (for wire harness cover) | 96721-24013 |
| 35179 | overdrive brake pad | 35179-32010 |
| 35336 | O-ring (for transmission filler pipe) | 90301-09173 |
| 35394 | Oil filter magnet (for transmission) | 35394-30011 |
| 35395A | governor oil filter | 35395-32020 |
| 36111L | Breather pipe joint No. 2 (for transfer case) | 90404-51059 |
