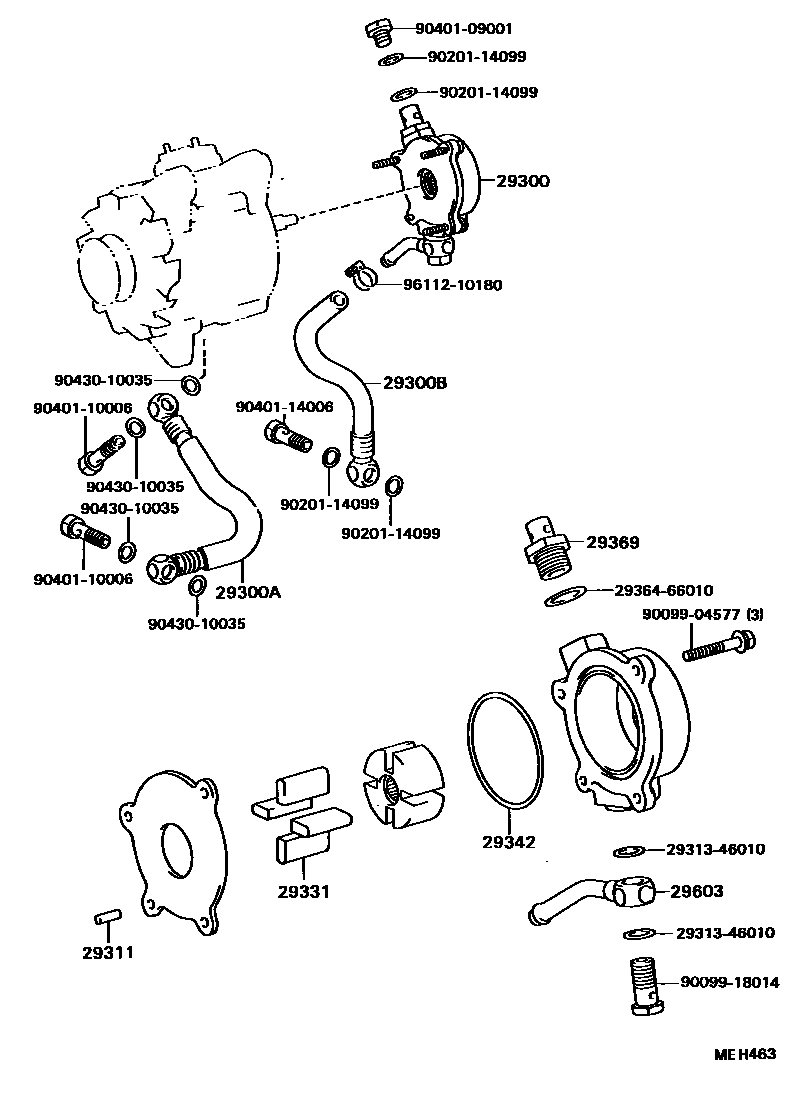

Toyota CAMRY 真空泵 — Figure 1905
Toyota CAMRY EPC diagram 1905, 真空泵, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 29300 | Vacuum pump assembly | 29300-64040 |
| 29300A | Vacuum pump oil inlet hose | 90923-02106 |
| 29300B | Vacuum pump oil hose | 90923-02104 |
| 29311 | No. 1 vacuum pump positioning pin | 29311-76010 |
| 29331 | Vacuum pump A blade | 29331-56070 |
| 29342 | Vacuum pump seals | 96740-02063 |
| 29369 | One-way valve sub-assembly | 29369-56070 |
| 29603 | Vacuum pump oil pipe | 29365-64040 |
