Toyota CAMRY 分电器 — Figure 1902

Toyota CAMRY EPC diagram 1902, 分电器, with 3 images and 11 PNC and OE references.

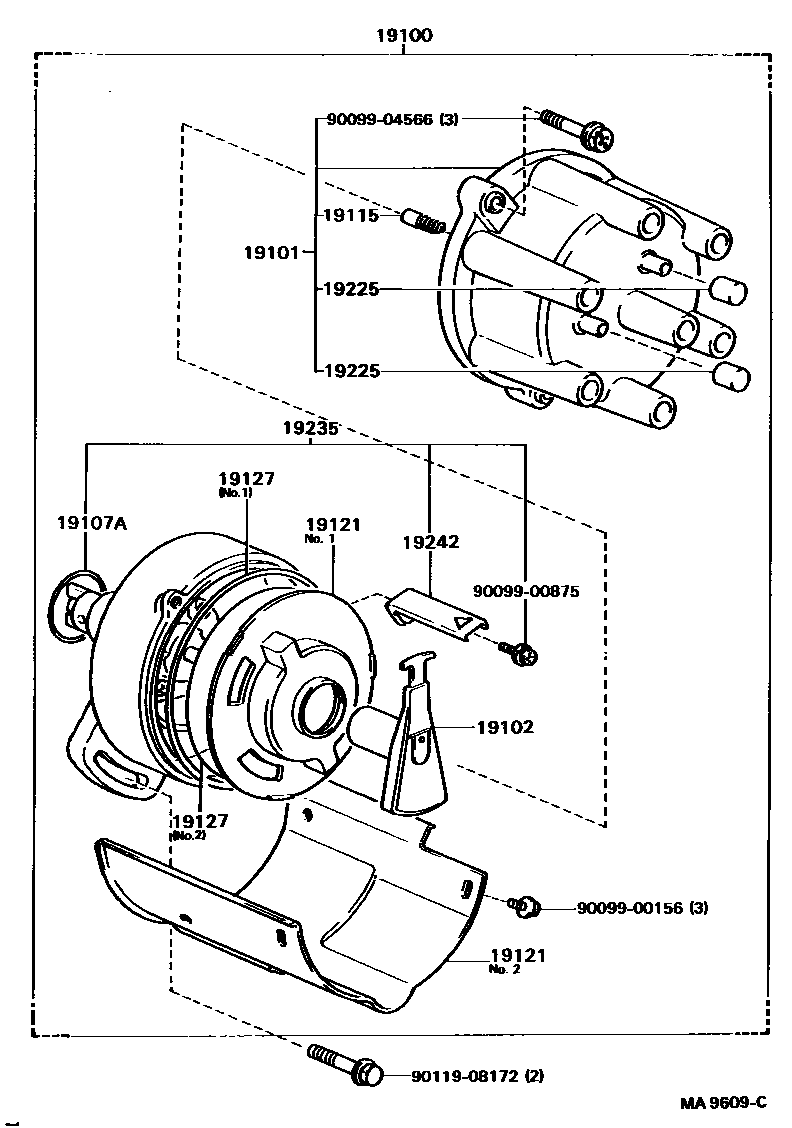

Toyota CAMRY 分电器 EPC diagram — MA9609C
分电器 — MA9609C (198808 – 999999)

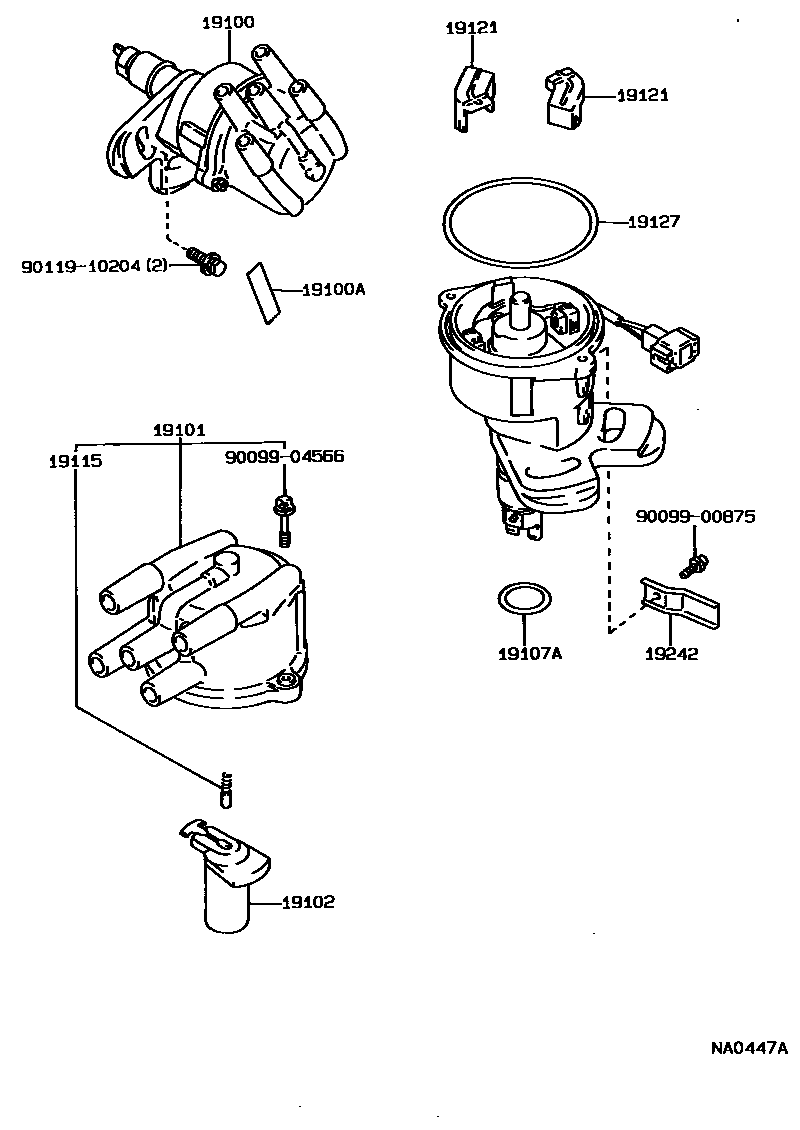

Toyota CAMRY 分电器 EPC diagram — NA0447A
分电器 — NA0447A (198808 – 999999)

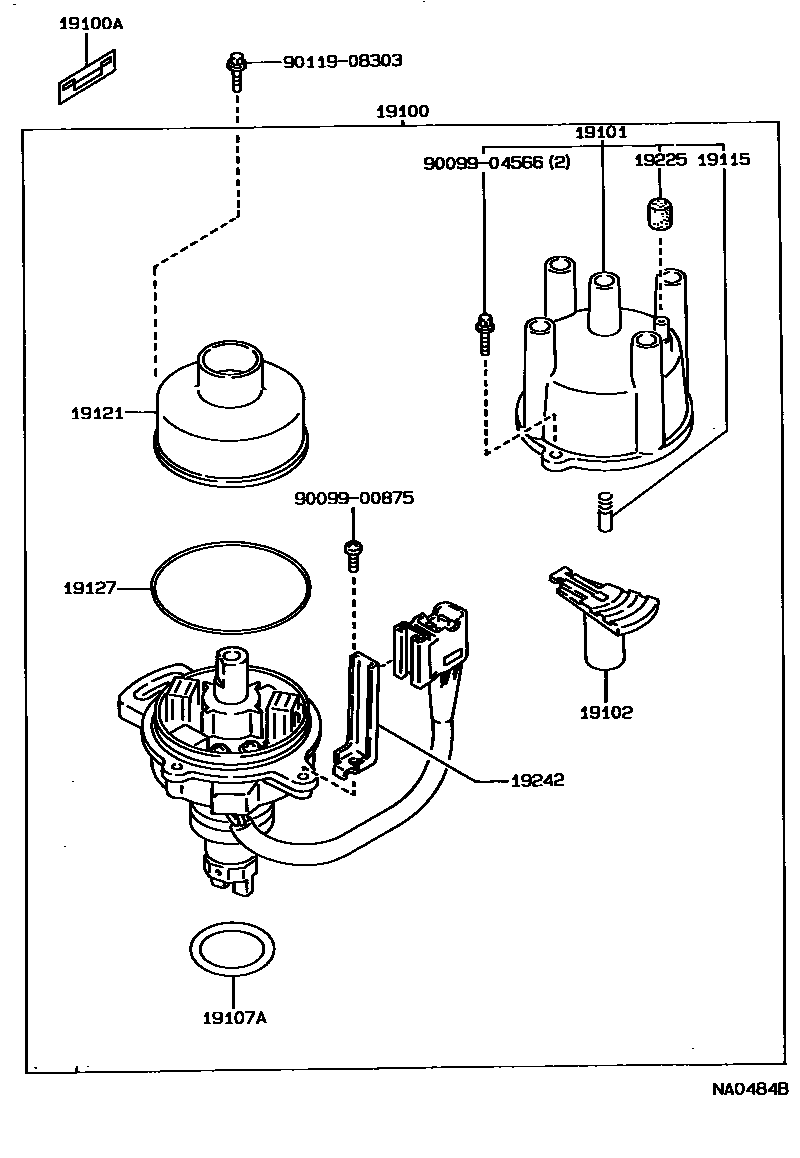

Toyota CAMRY 分电器 EPC diagram — NA0484B
分电器 — NA0484B (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
19100Distributor assembly19100-62010 · 19100-74020 · 19100-88362
19100Asealing tape90919-24004
19101Distributor cover sub-assembly19101-11040 · 19101-62010 · 19101-88360
19102Distributor flame head sub-assembly19102-11010 · 19102-62010 · 19102-73021
19107ADistributor housing O-ring90099-14020 · 90099-14089 · 90099-14091
19115Distributor cover center piece19115-50010
19121dust cover19121-16040 · 19121-16150 · 19121-62010 · 19121-62011
19127Dust seal19127-15021 · 19127-52020 · 19127-62010
19225rubber cap19225-16100 · 19225-62010
19235Distributor housing19235-62010
19242Cable clip19242-62010 · 19242-88361
