Toyota CAMRY Air Cleaner — Figure 1703

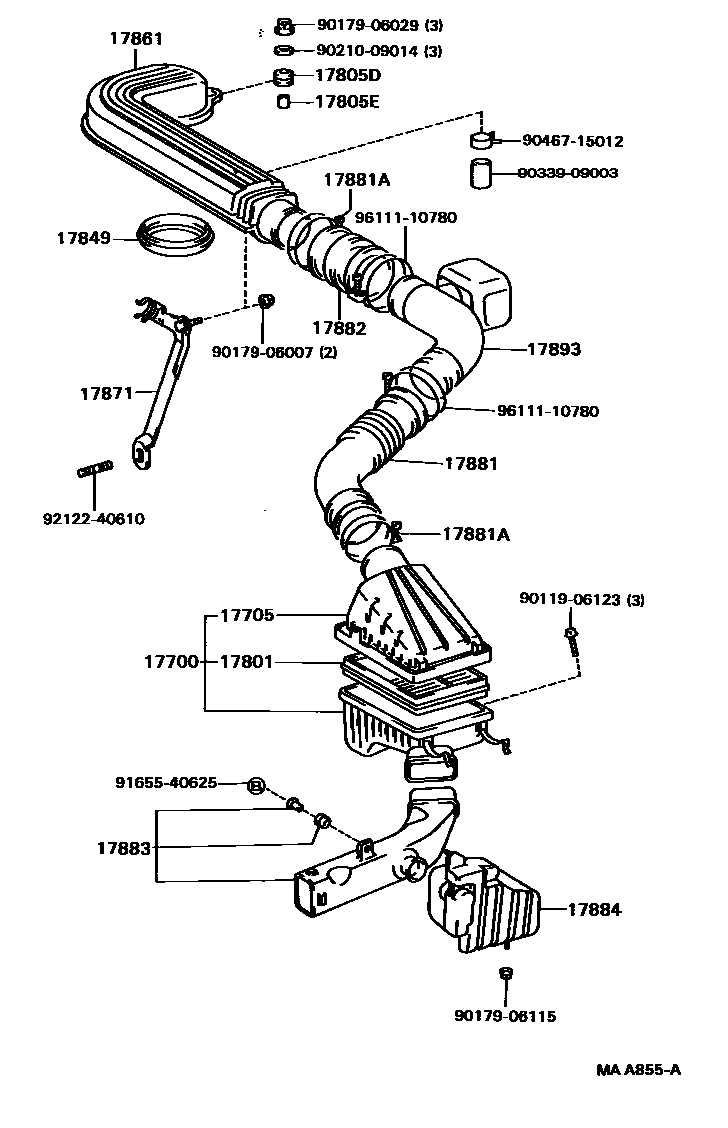

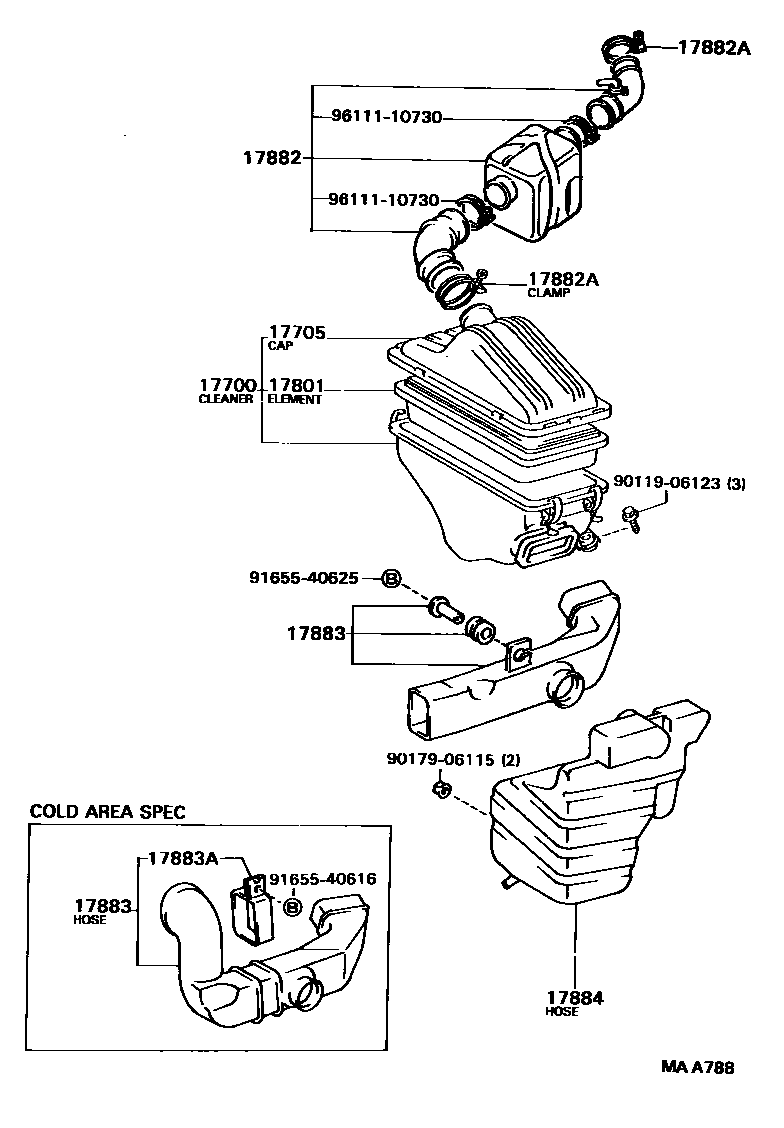

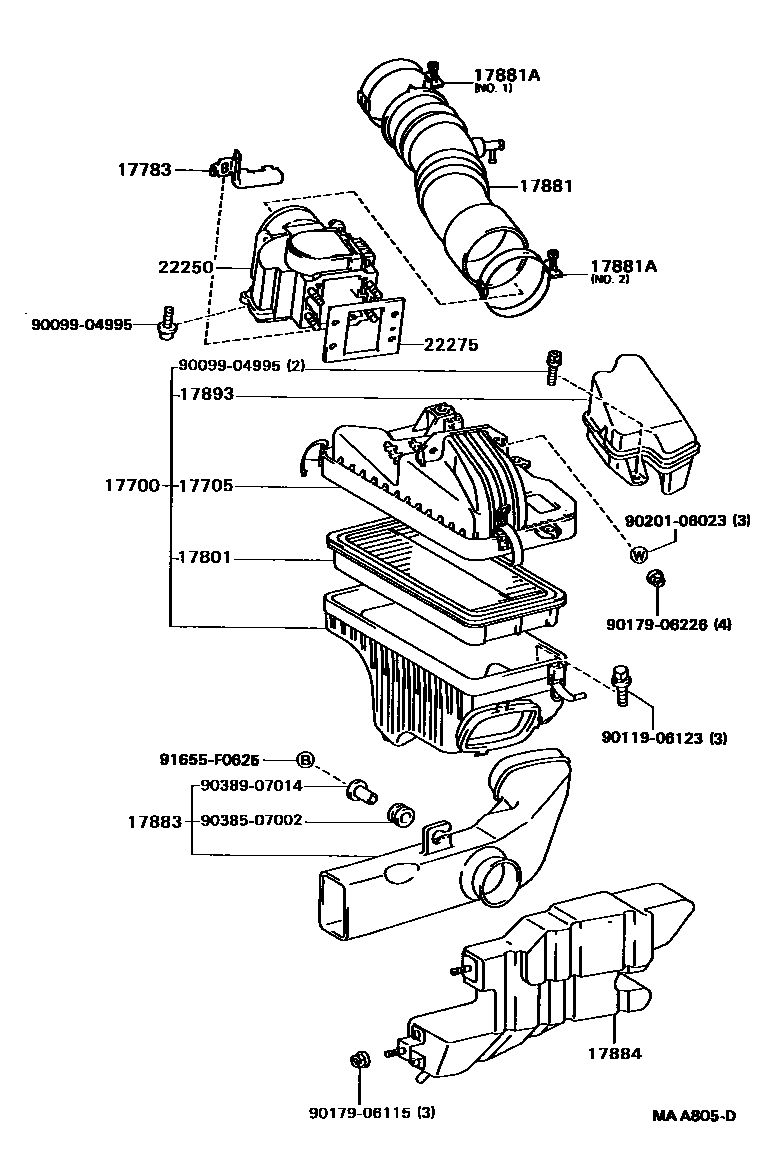

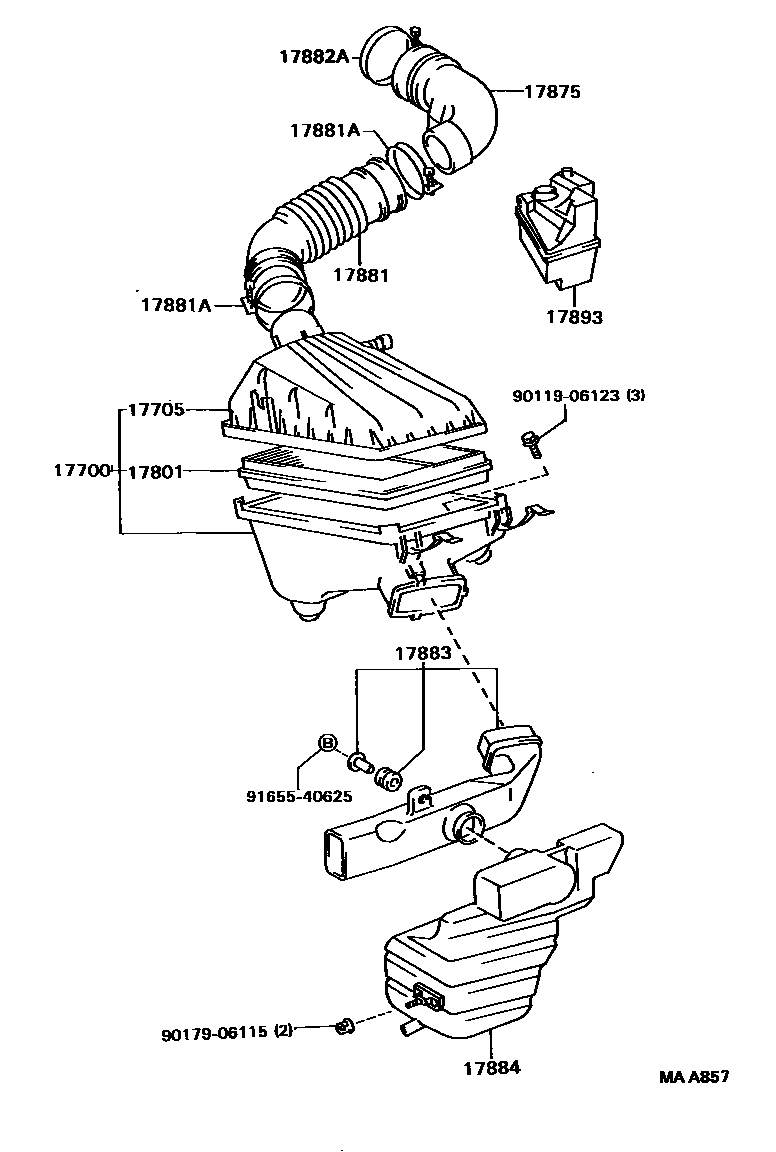

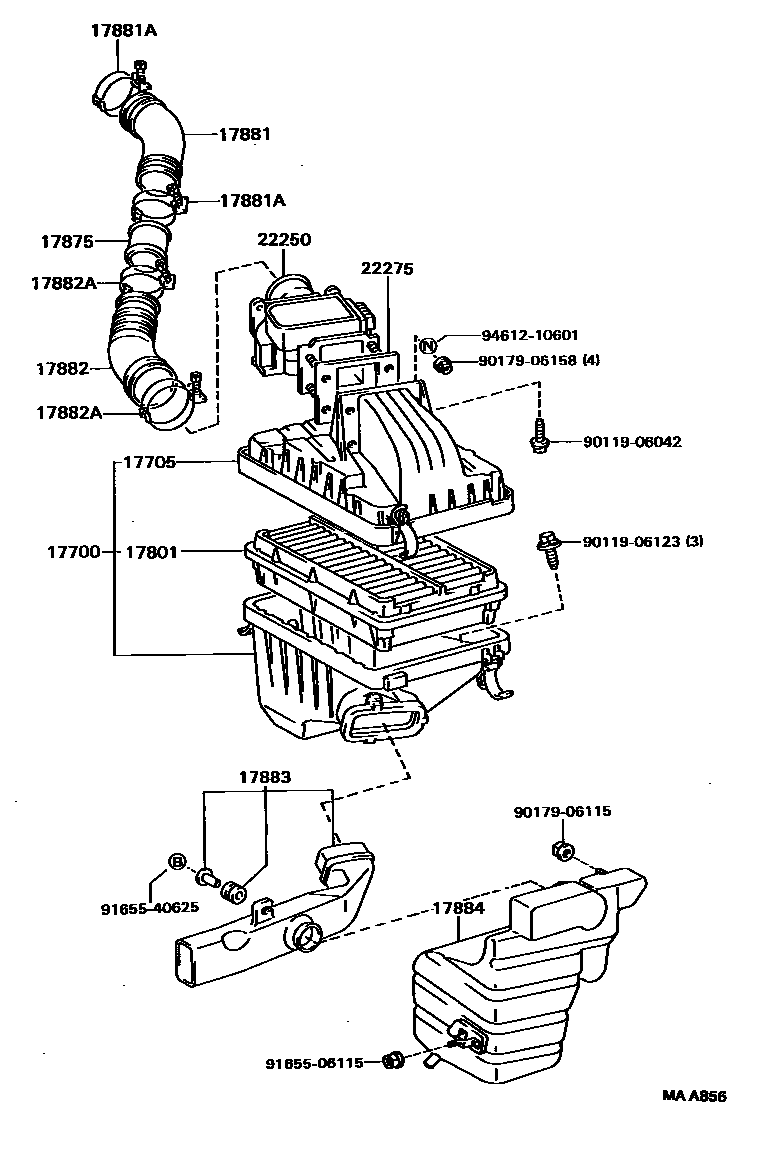

Toyota CAMRY EPC diagram 1703, Air Cleaner, with 5 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17700 | air filter assembly | 17700-62020 · 17700-63130 · 17700-64200 · 17700-74031 · 17700-74090 |
| 17705 | Air filter cover sub-assembly | 17705-62020 · 17705-63060 · 17705-64030 · 17705-74031 · 17705-74090 |
| 17783 | air filter baffle | 17783-74030 |
| 17801 | Air filter element sub-assembly | 17801-64040 · 17801-74010 · 17801-74020 |
| 17805D | Gasket (for air intake connection pipe) | 90480-12014 |
| 17805E | Collar (for intake connecting pipe) | 90387-06040 |
| 17849 | Intake connecting pipe gasket | 17849-74010 |
| 17861 | Intake connecting pipe | 17861-74010 |
| 17871 | Air intake connecting pipe stay | 17871-74010 |
| 17875 | Intake connecting pipe | 17875-74020 · 17875-74030 |
| 17881 | No. 1 air cleaner hose | 17881-62010 · 17881-64190 · 17881-74050 · 17881-74100 · 17881-74220 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10710 · 96111-10750 · 96111-10780 · 96111-10830 · 96111-10900 |
| 17882 | No. 2 air cleaner hose | 17880-64140 · 17882-74031 · 17882-74150 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90460-57002 · 96111-10670 · 96111-10780 · 96111-10800 · 96111-10900 |
| 17883 | No. 3 air cleaner hose | 17882-63110 · 17882-64040 |
| 17883A | Clamp (for No. 3 air cleaner hose) | 90460-01046 |
| 17884 | No. 4 air cleaner hose | 17883-62010 · 17883-62011 · 17883-63030 |
| 17893 | Intake resonator | 17893-62010 · 17893-74010 · 17893-74060 |
| 22250 | Intake air flow meter assembly | 22250-62010 · 22250-74041 |
| 22275 | air flow meter gasket | 22275-43010 |
