Toyota CAMRY Oil Filter — Figure 1502

Toyota CAMRY EPC diagram 1502, Oil Filter, with 2 images and 8 PNC and OE references.

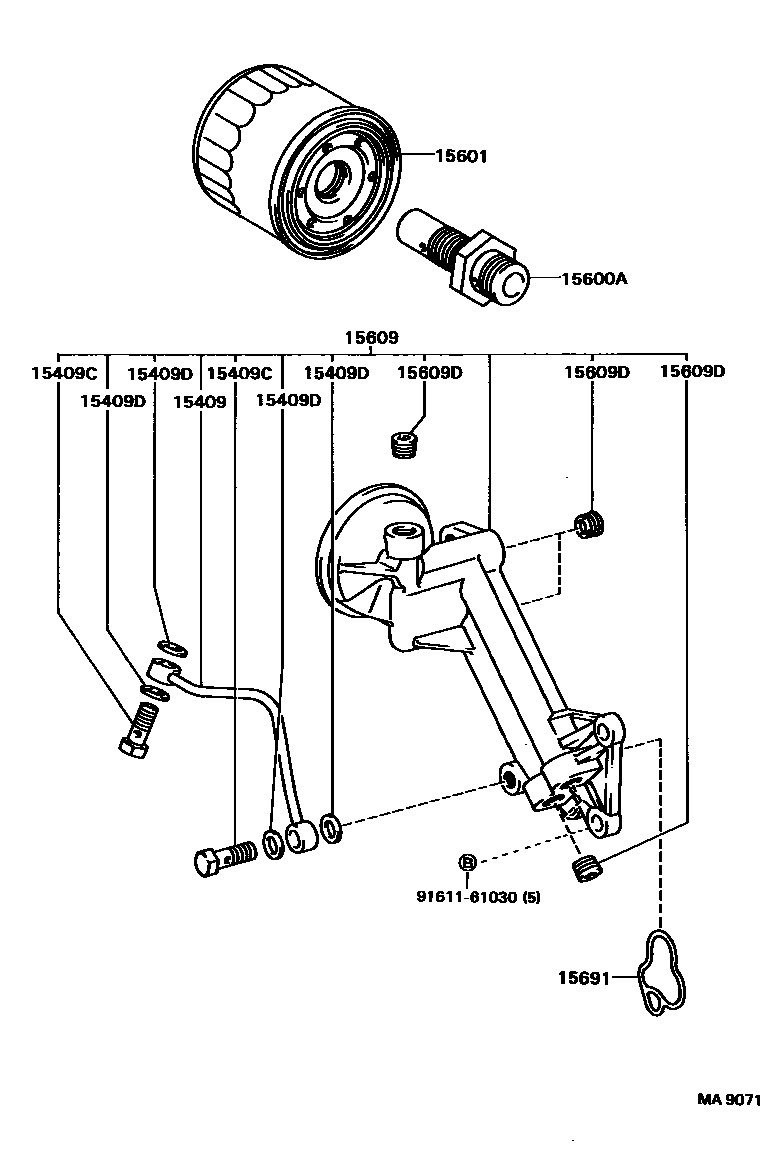

Toyota CAMRY Oil Filter EPC diagram — MA9071
Oil Filter — MA9071 (198808 – 999999)
Toyota CAMRY Oil Filter EPC diagram — NA0439
Oil Filter — NA0439 (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
15409Oil filter outlet pipe or oil outlet hose15431-64030
15409CJoint bolt (for oil filter outlet pipe)90401-10031
15409DGasket (for oil filter outlet pipe)90430-10035
15600AConnector (for oil filter)90404-19002 · 90404-19013 · 90404-27001
15601Oil filter sub-assembly90915-03001 · 90915-03002 · 90915-03003
15609Oil filter bracket sub-assembly15608-64040
15609DStraight threaded plug with head (for oil filter bracket)90344-53002
15691oil filter gasket15691-64030 · 15691-64040
