Toyota CAMRY Ventilation Hose — Figure 1201

Toyota CAMRY EPC diagram 1201, Ventilation Hose, with 3 images and 6 PNC and OE references.

Toyota CAMRY Ventilation Hose EPC diagram — MAA680
Ventilation Hose — MAA680 (198808 – 999999)
Toyota CAMRY Ventilation Hose EPC diagram — MAA780
Ventilation Hose — MAA780 (198808 – 999999)

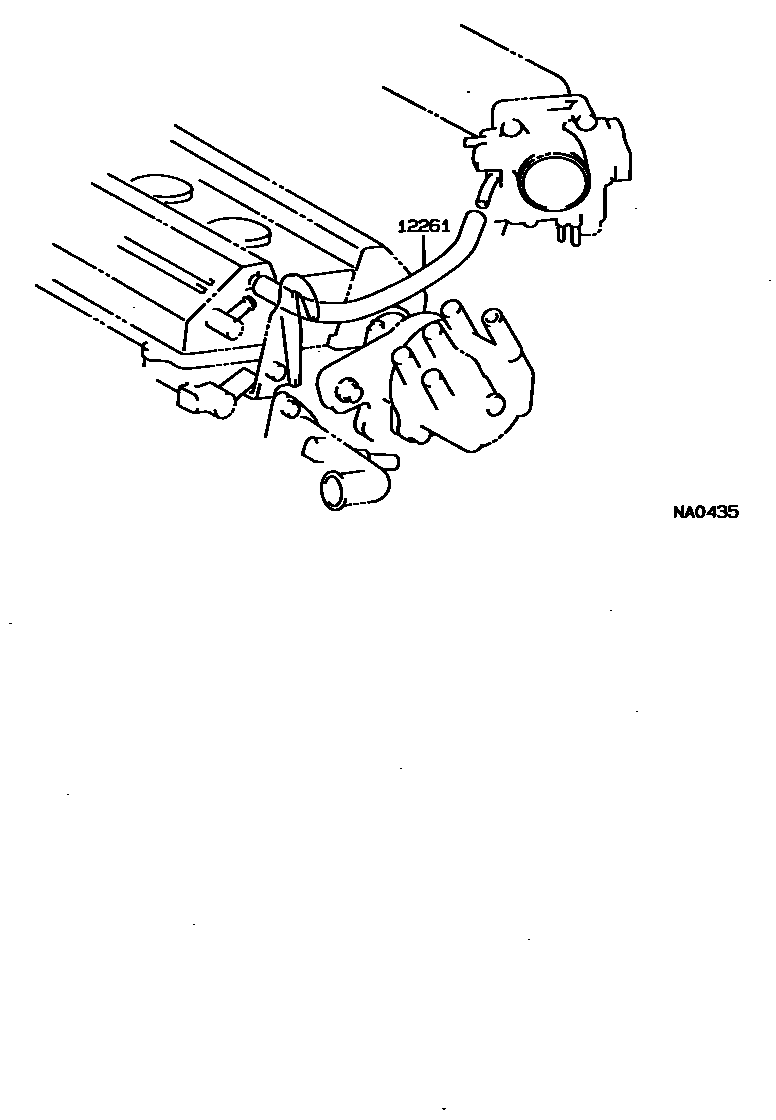

Toyota CAMRY Ventilation Hose EPC diagram — NA0435
Ventilation Hose — NA0435 (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-11040
12204AGasket (for ventilation system)90480-18001
12261Ventilation Hose12261-62020 · 12261-64070 · 12261-74020 · 12261-74040 · 12261-88361
12261AClip or clip (for vent hose)90467-15120 · 90467-17002 · 90467-17011 · 90467-17012 · 90467-17126
12262Ventilation hose No. 212262-62020
12262AClamp (for vent hose No. 2)90467-14017
