Toyota CAMRY Engine Mounting — Figure 1107

Toyota CAMRY EPC diagram 1107, Engine Mounting, with 11 images and 23 PNC and OE references.

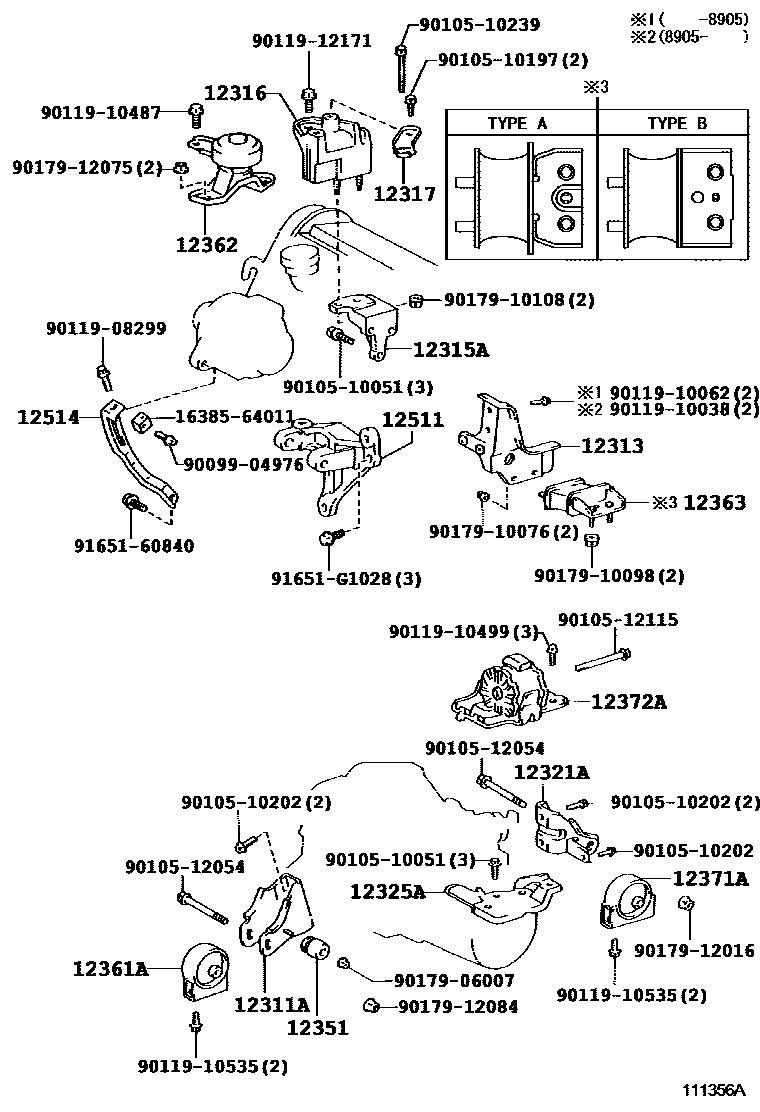

Toyota CAMRY Engine Mounting EPC diagram — 111356A — Engine Mounting — 111356A (198808 – 999999)

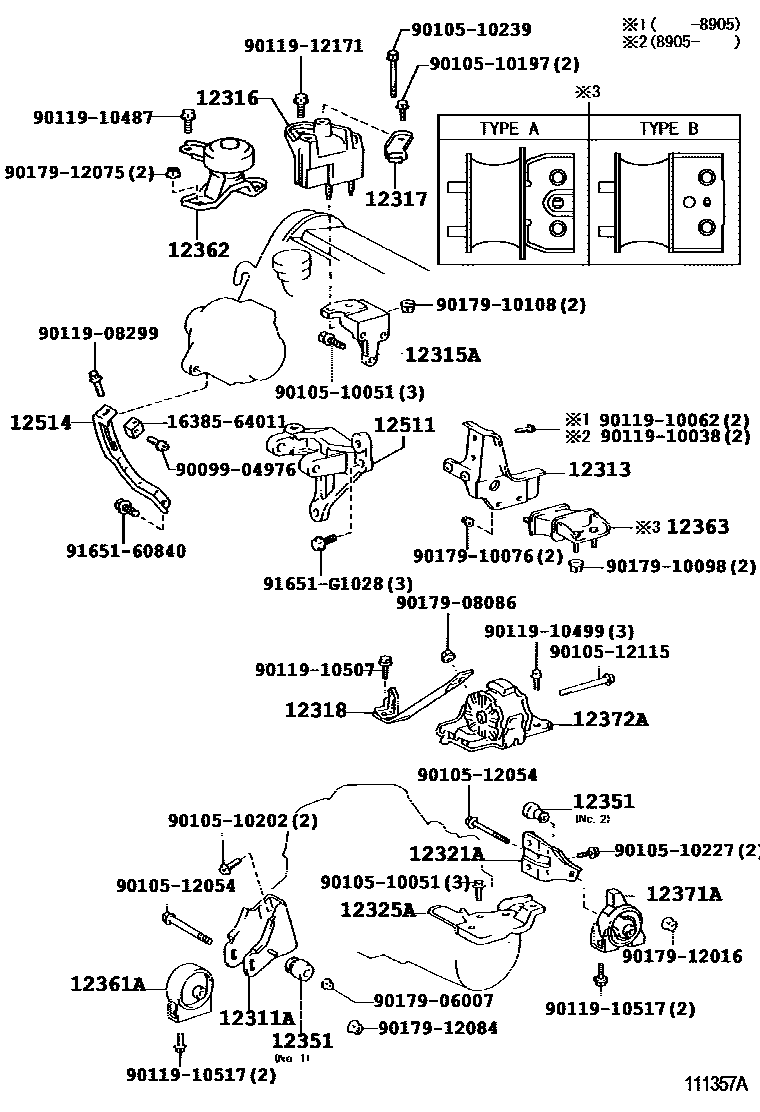

Toyota CAMRY Engine Mounting EPC diagram — 111357A — Engine Mounting — 111357A (198808 – 999999)

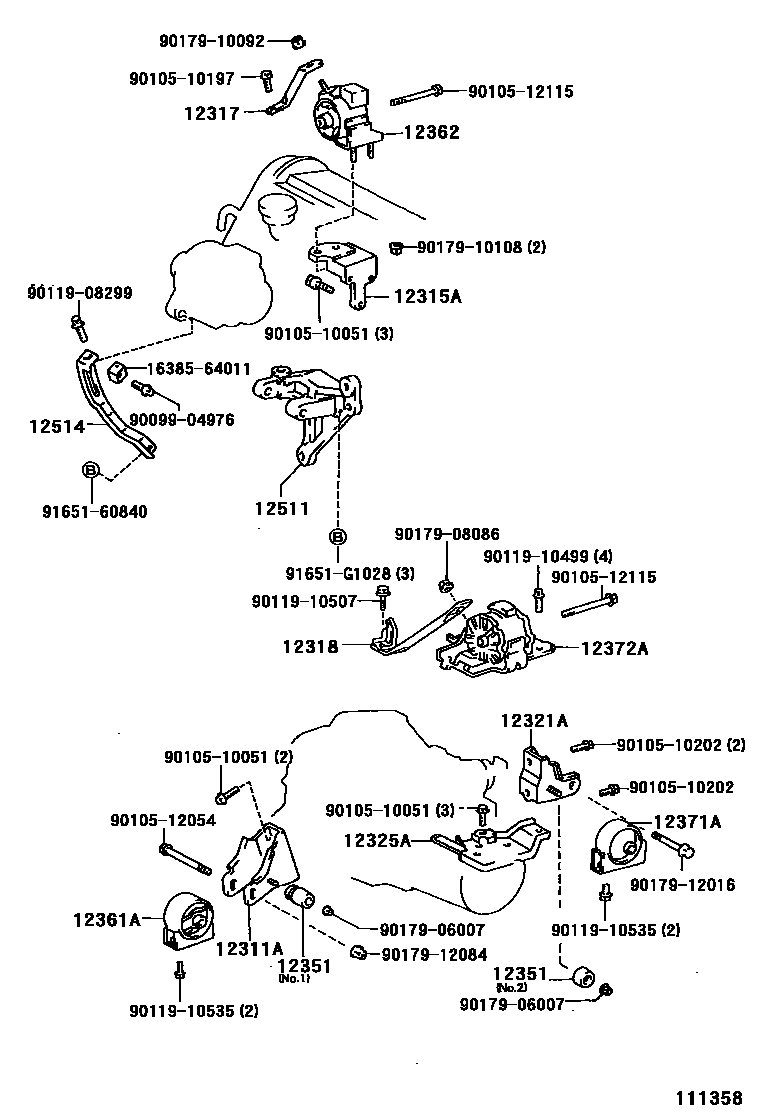

Toyota CAMRY Engine Mounting EPC diagram — 111358 — Engine Mounting — 111358 (198808 – 999999)

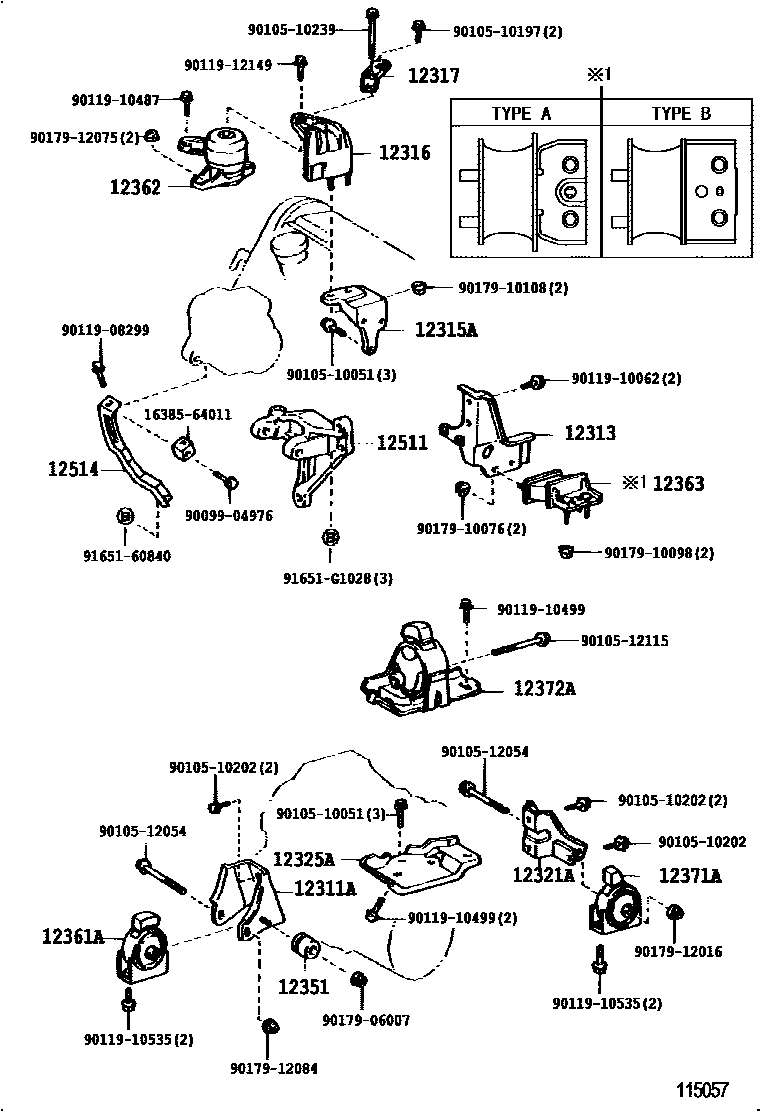

Toyota CAMRY Engine Mounting EPC diagram — 115057 — Engine Mounting — 115057 (198808 – 999999)

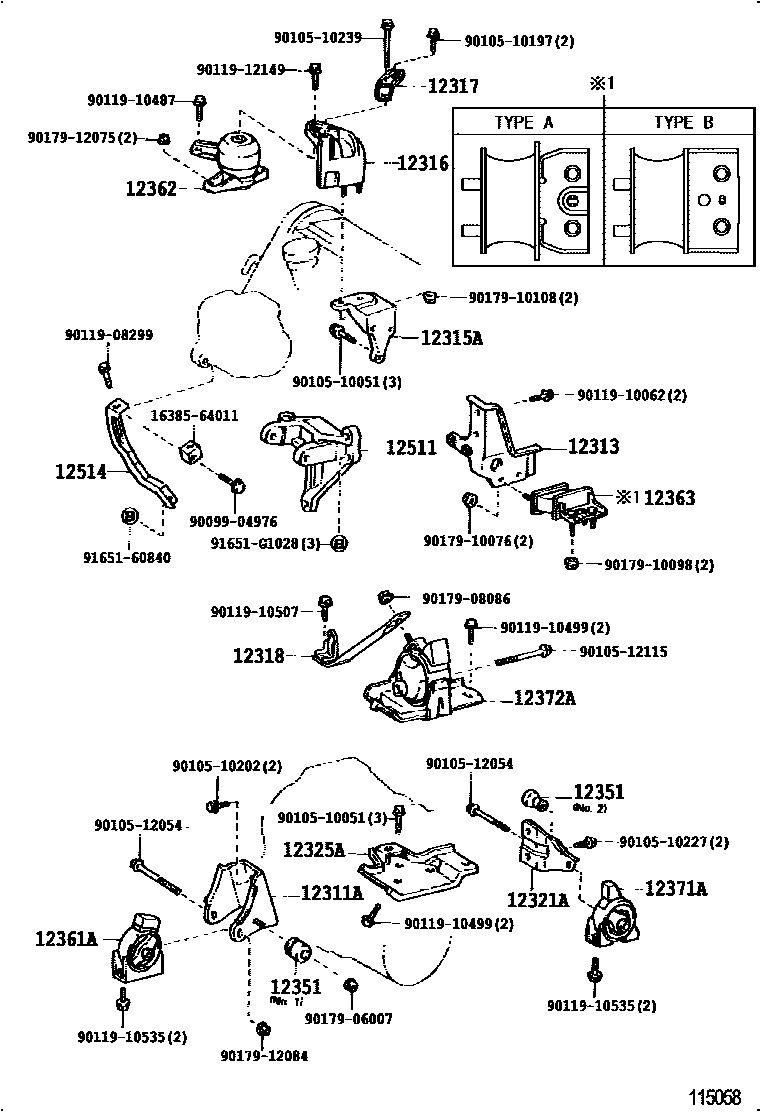

Toyota CAMRY Engine Mounting EPC diagram — 115058 — Engine Mounting — 115058 (198808 – 999999)

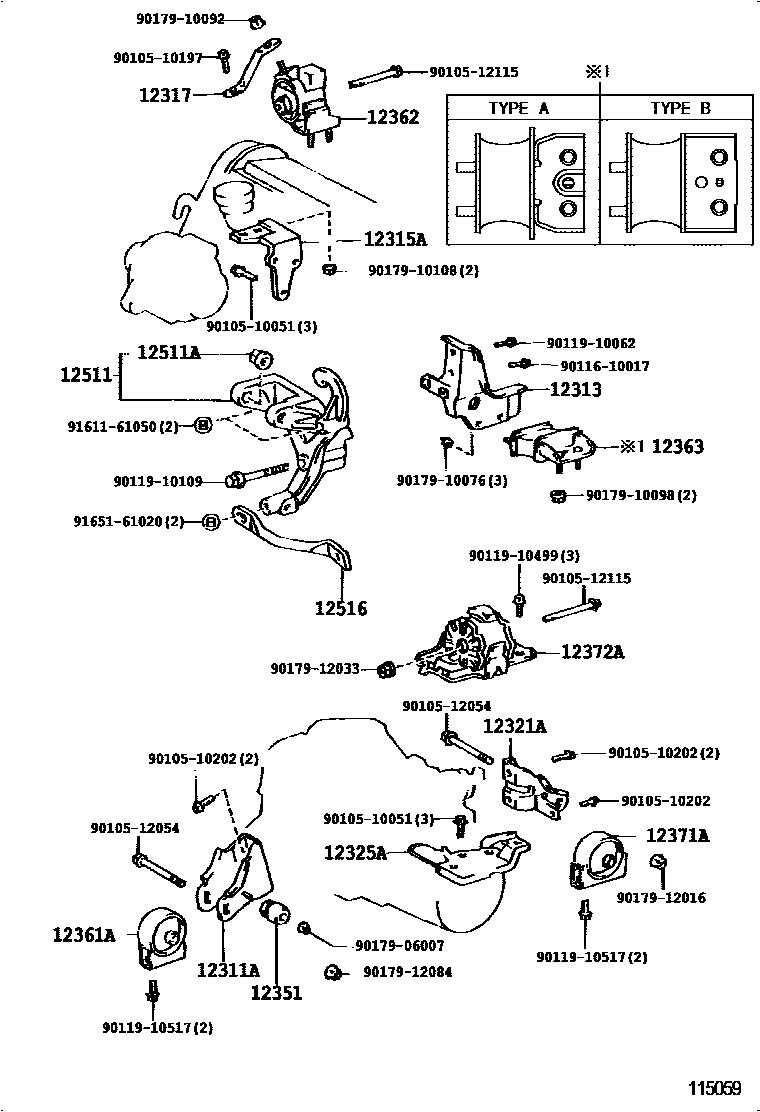

Toyota CAMRY Engine Mounting EPC diagram — 115059 — Engine Mounting — 115059 (198808 – 999999)

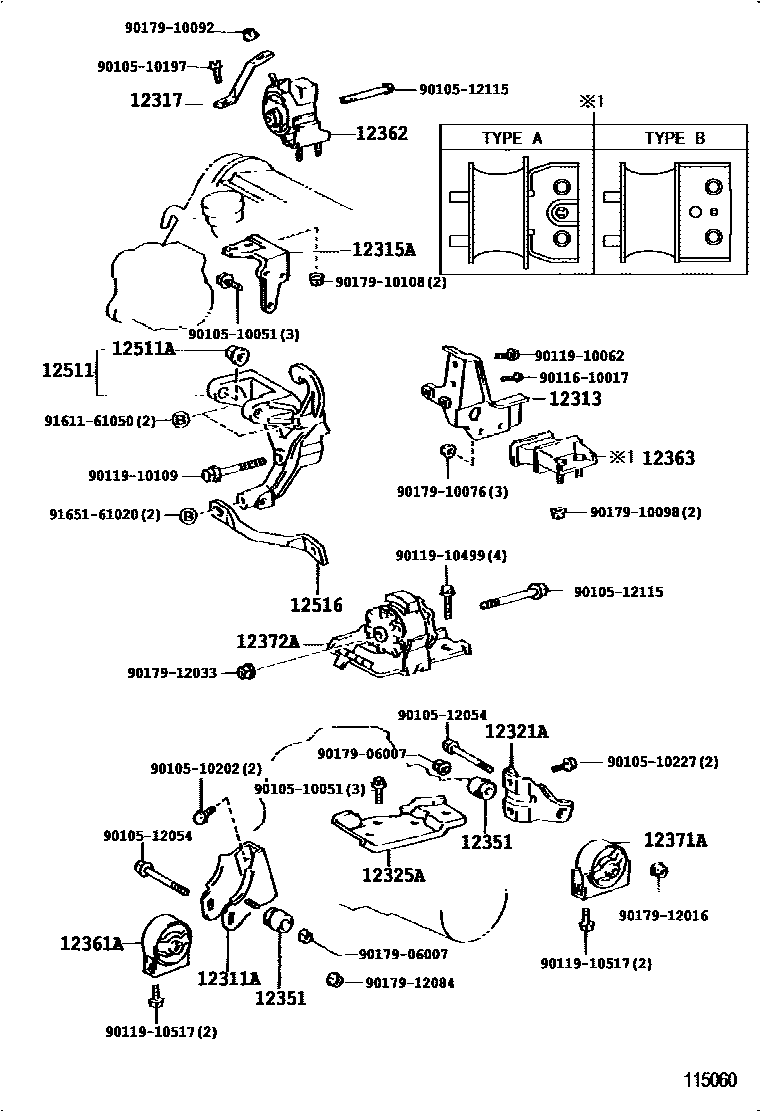

Toyota CAMRY Engine Mounting EPC diagram — 115060 — Engine Mounting — 115060 (198808 – 999999)

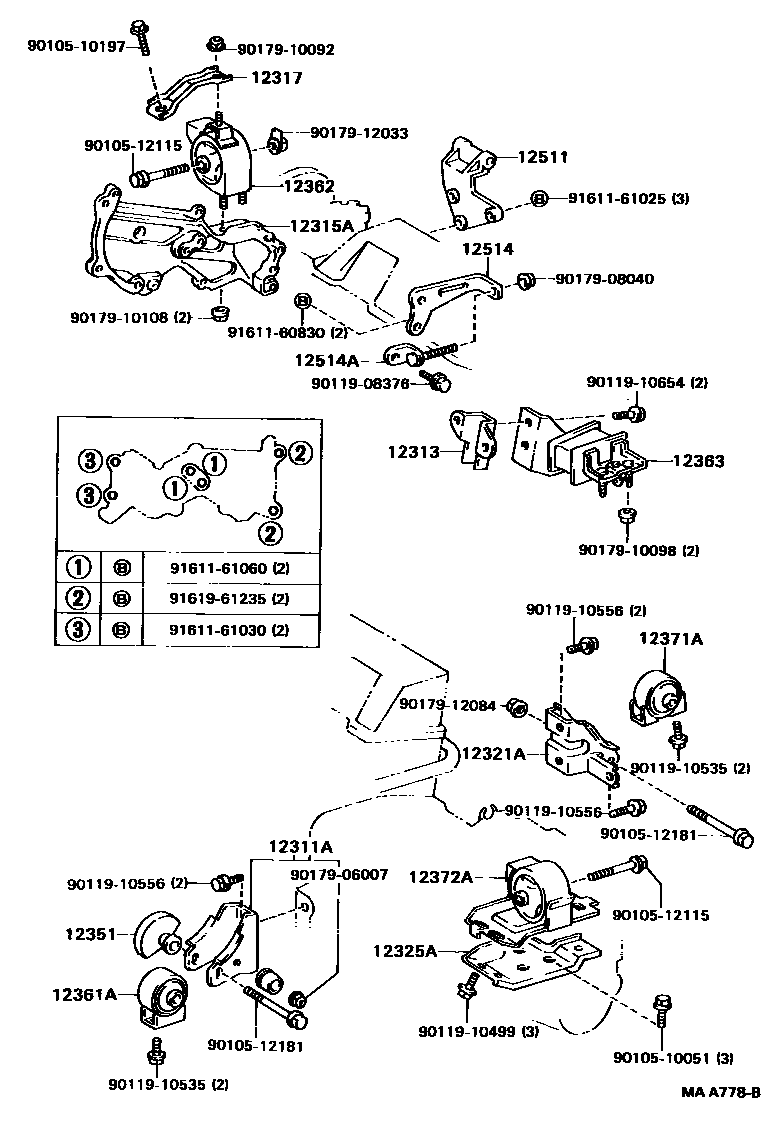

Toyota CAMRY Engine Mounting EPC diagram — MAA778B — Engine Mounting — MAA778B (198808 – 999999)

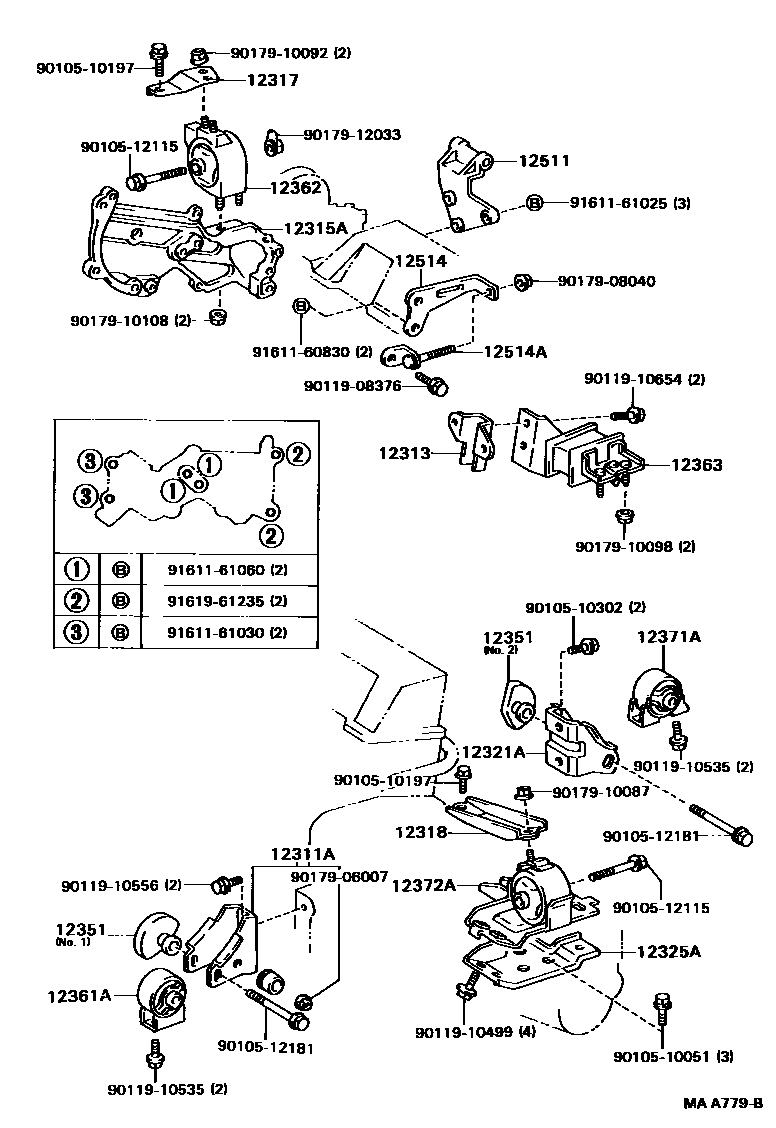

Toyota CAMRY Engine Mounting EPC diagram — MAA779B — Engine Mounting — MAA779B (198808 – 999999)

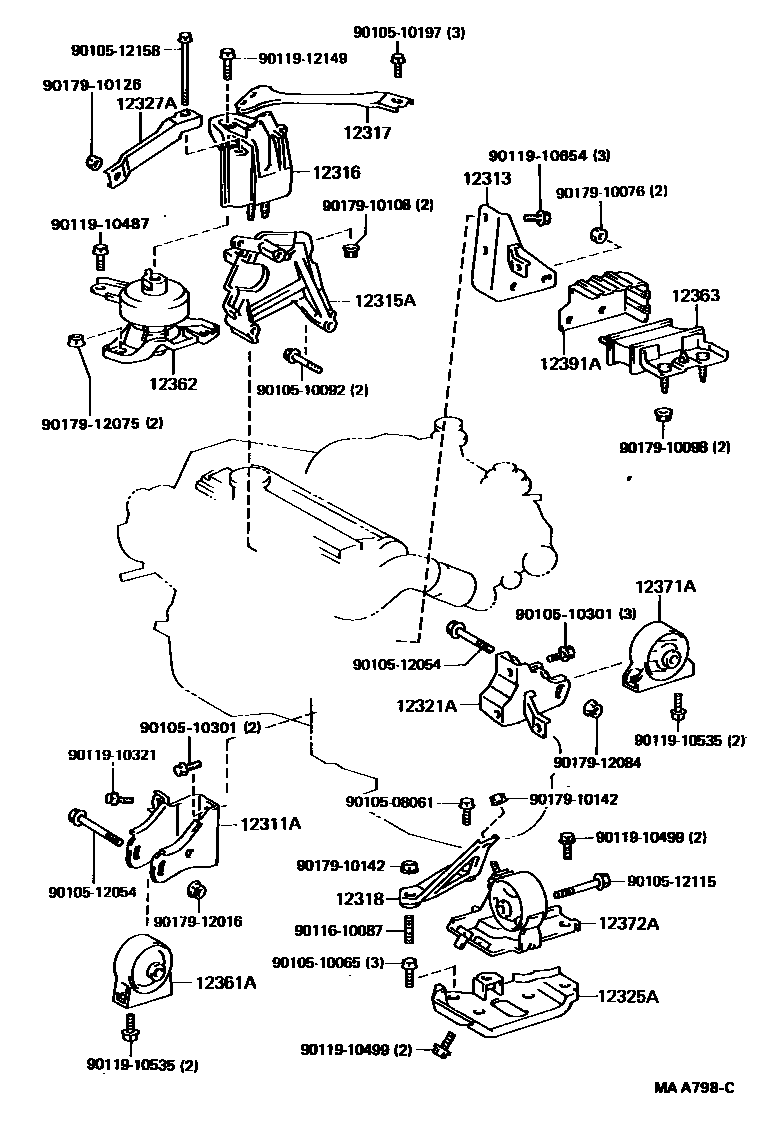

Toyota CAMRY Engine Mounting EPC diagram — MAA798C — Engine Mounting — MAA798C (198808 – 999999)

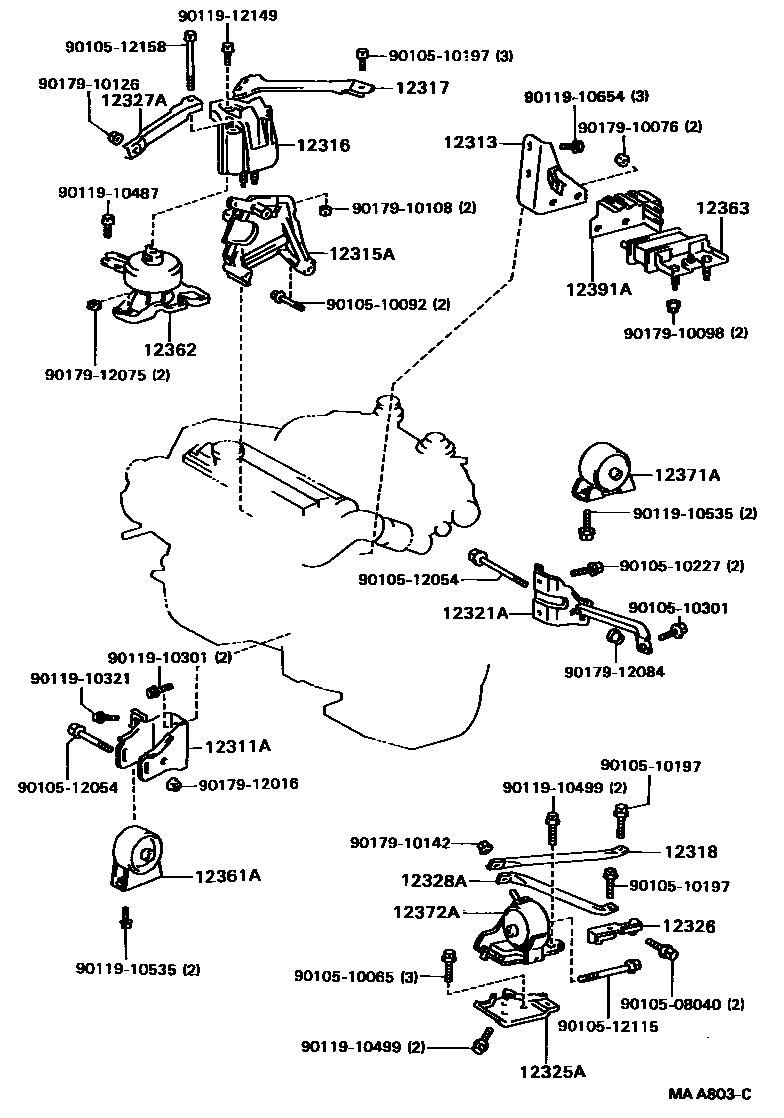

Toyota CAMRY Engine Mounting EPC diagram — MAA803C — Engine Mounting — MAA803C (198808 – 999999)

PNC and OE references

PNC	Part name	OE numbers
12311A	Engine front mounting bracket (for transverse engine)	12311-62010 · 12311-64100 · 12311-74030 · 12311-74050
12313	Engine mount control bracket (for transversely mounted engines)	12313-62010 · 12313-64010 · 12313-74020 · 12313-74021 · 12313-74050
12315A	Engine right side mounting bracket (for transversely mounted engine)	12315-62020 · 12315-64040 · 12315-64050 · 12315-74030 · 12315-74060
12316	Engine No. 2 right side suspension bracket	12316-62010 · 12316-74010
12317	Engine right mounting bracket	12317-62020 · 12317-64010 · 12317-64040 · 12317-74010 · 12317-74020 · 12317-74060
12318	Engine left mounting bracket	12318-62011 · 12318-62020 · 12318-64030 · 12318-74031 · 12318-74040 · 12318-74050
12321A	Rear engine mounting bracket (for transverse engine)	12321-62010 · 12321-62020 · 12321-64110 · 12321-64120 · 12321-74060 · 12321-74110 · 12321-74130
12325A	Engine left side mounting bracket (for transversely mounted engine)	12325-62010 · 12325-62020 · 12325-74031 · 12325-74041
12326	Engine mounting bracket	12326-62010
12327A	Engine No. 2 right side mounting bracket	12327-62020
12328A	Engine No. 2 left side mounting bracket	12328-62010
12351	engine mount shock absorber	12351-63010 · 12351-64020 · 12351-64030 · 12351-64040 · 12351-74020 · 12351-74051
12361A	Engine front mounting vibration isolation pad (for transversely mounted engine)	12361-62011 · 12361-62020 · 12361-64111 · 12361-64120 · 12361-64121 · 12361-64190 · 12361-74010 · 12361-74020 · 12361-74100 · 12361-74120
12362	Engine right side mounting vibration isolation pad (for transversely mounted engine)	12362-62020 · 12362-64050 · 12362-64100 · 12362-74030 · 12362-74060 · 12362-74110
12363	Engine center mount vibration isolation pad	12363-64010 · 12363-74010 · 12363-74030
12371A	Engine rear mount vibration isolation pad	12371-62011 · 12371-64091 · 12371-64100 · 12371-64101 · 12371-74030 · 12371-74130 · 12371-74140 · 12371-74150 · 12371-74170
12372A	Engine left-side mounting vibration isolation pad (for transversely mounted engines)	12372-62010 · 12372-62020 · 12372-64120 · 12372-64130 · 12372-74040 · 12372-74052 · 12372-74080 · 12372-74150 · 12372-74151 · 12372-74160 · 12372-74170
12391A	Engine center mount vibration isolation pad	12391-62010
12511	No. 1 generator bracket	12511-64020 · 12511-74011 · 12511-74020
12511A	Generator bracket bushing	27351-70010
12514	Generator belt adjustment lever	12514-74010 · 16381-64020
12514A	Fan belt adjustment slider	16385-64020
12516	No. 2 generator bracket	12512-88362
