Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103

Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 5 images and 2 PNC and OE references.

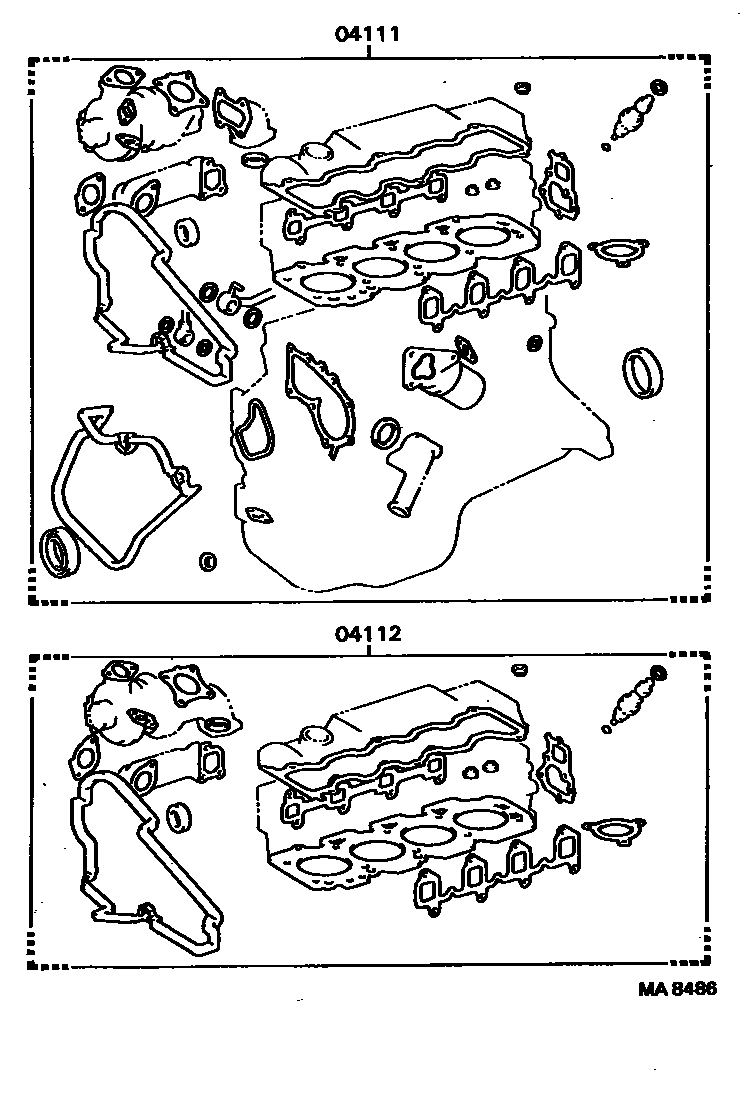

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — MA8486
Engine Overhaul Gasket Kit — MA8486 (198808 – 999999)

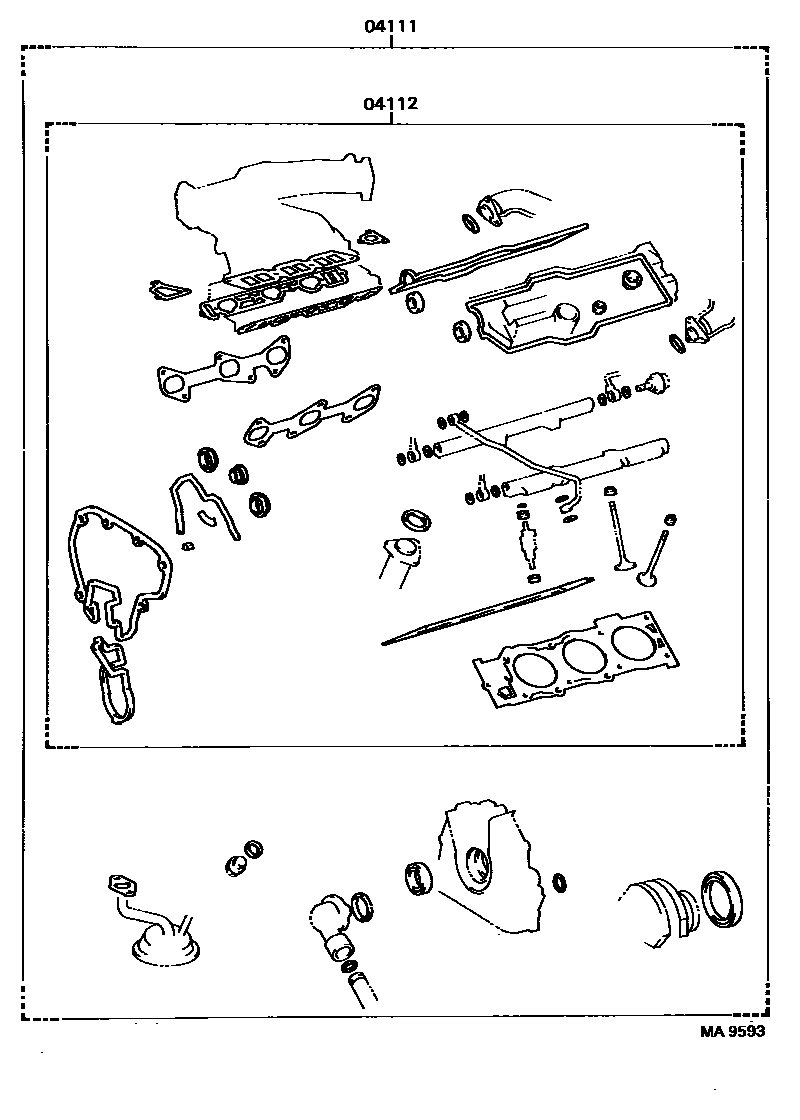

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — MA9593
Engine Overhaul Gasket Kit — MA9593 (198808 – 999999)

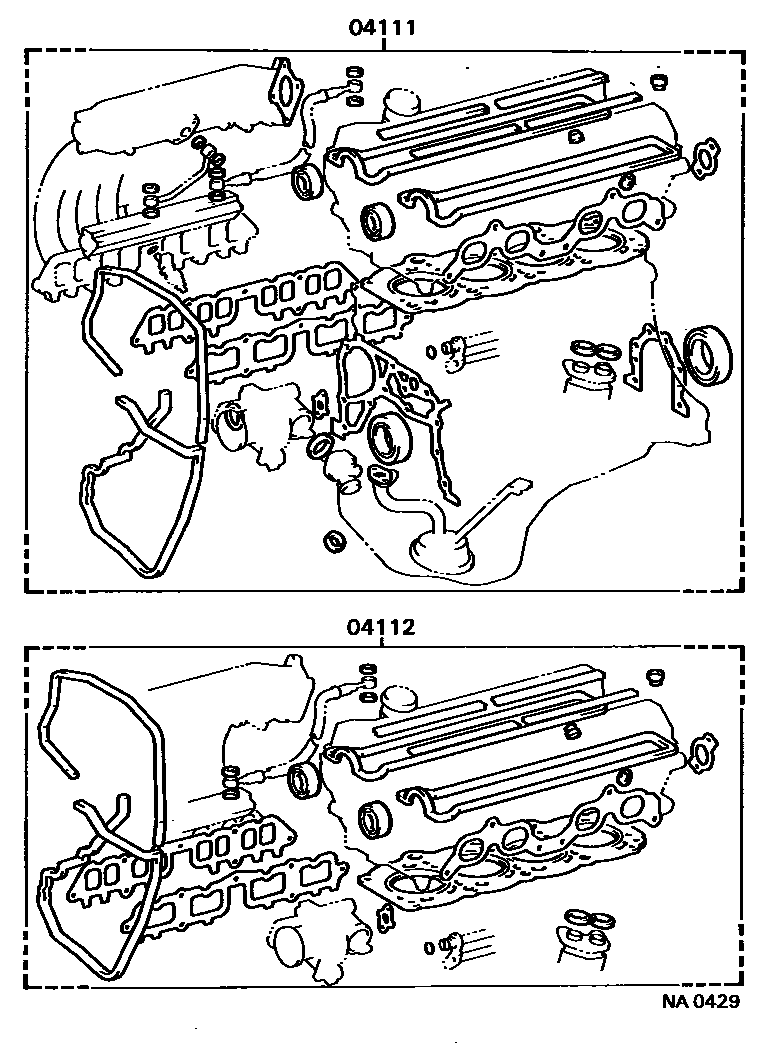

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — NA0429
Engine Overhaul Gasket Kit — NA0429 (198808 – 999999)

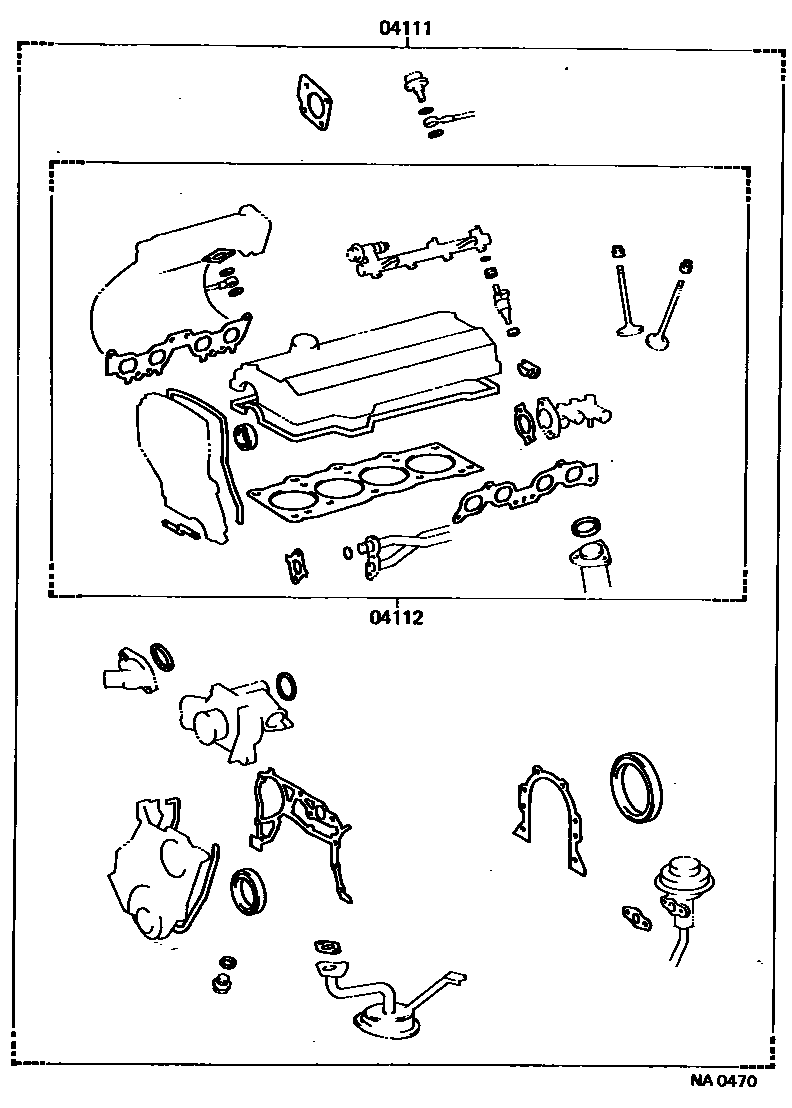

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — NA0470
Engine Overhaul Gasket Kit — NA0470 (198808 – 999999)

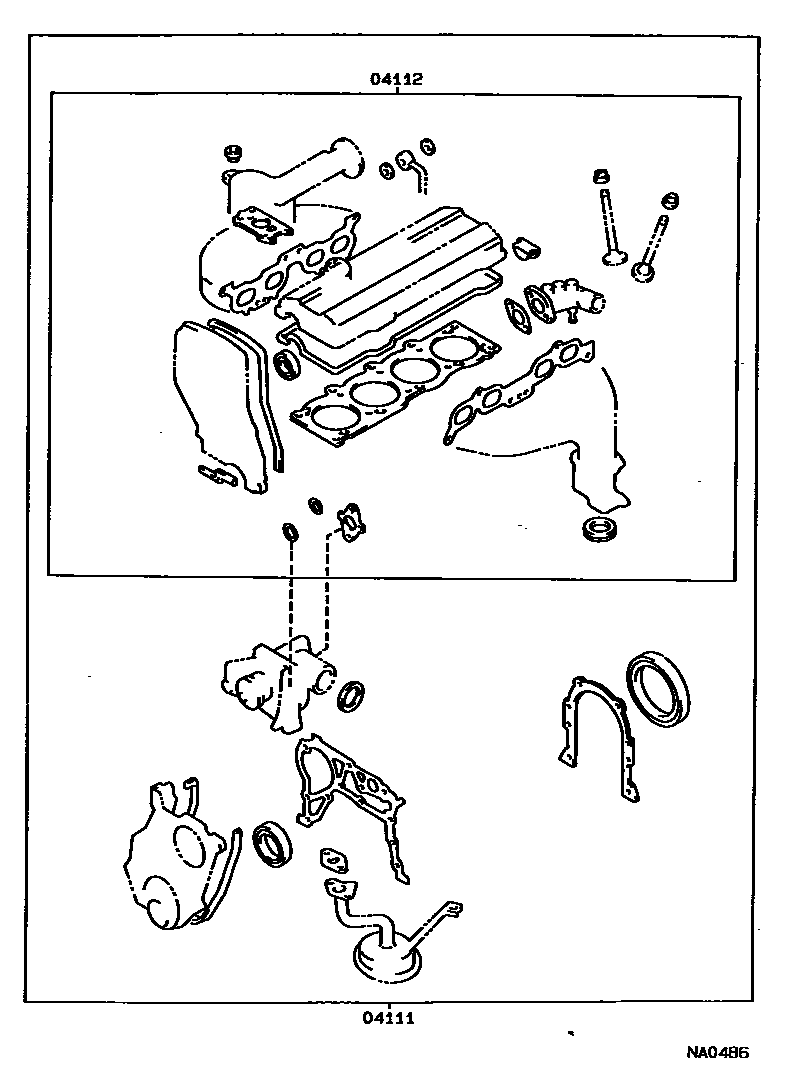

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — NA0486
Engine Overhaul Gasket Kit — NA0486 (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-62030 · 04111-62031 · 04111-64102 · 04111-64104 · 04111-64105 · 04111-64106 · 04111-74033 · 04111-74034 · 04111-74042 · 04111-74043 · 04111-74051 · 04111-74091 · 04111-74092 · 04111-74190 · 04111-74191
04112Engine valve grinding pad assembly04112-62010 · 04112-64083 · 04112-64085 · 04112-64086 · 04112-74032 · 04112-74033 · 04112-74041 · 04112-74042 · 04112-74050 · 04112-74091 · 04112-74092 · 04112-74190
