Toyota CAMRY 空气净化器或离子发生器 — Figure 8724

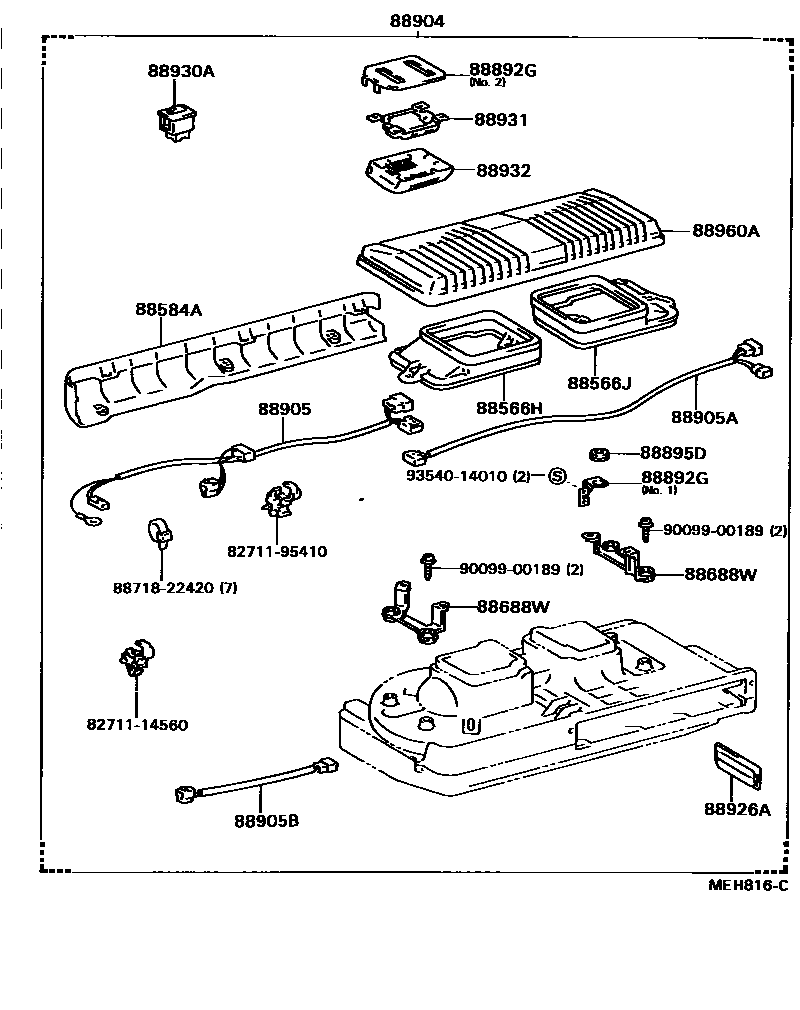

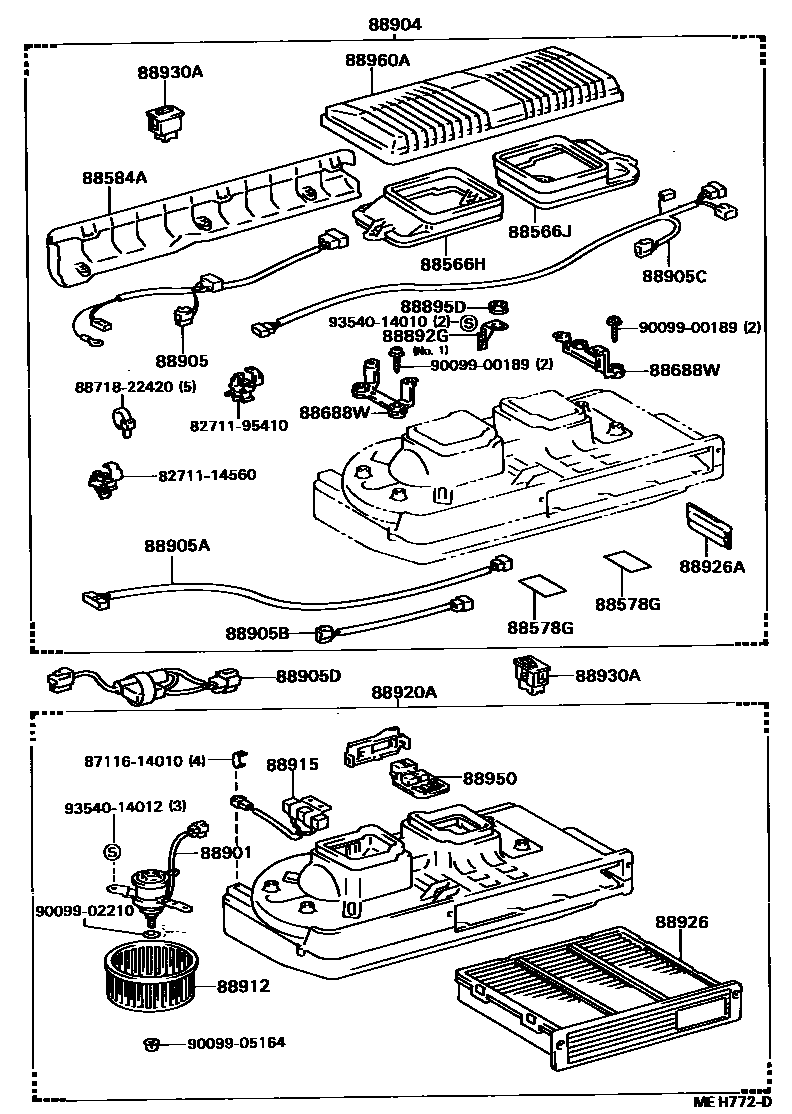

Toyota CAMRY EPC diagram 8724, 空气净化器或离子发生器, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88566H | No. 1 air duct | 88566-32050 |
| 88566J | Duct No. 2 | 88566-32060 |
| 88578G | No. 1 air purifier seal | 88578-30370 |
| 88584A | Deflector | 88584-32010 |
| 88688W | Air purifier bracket No. 1 | 88688-32200 · 88688-32220 · 88688-32230 · 88688-32240 |
| 88892G | Board sub-assembly | 88892-32060 · 88892-32070 · 88892-32080 |
| 88895D | Seals (for air purifiers) | 88895-32020 |
| 88901 | Air purifier motor sub-assembly | 88901-32010 |
| 88905 | Air purifier No. 1 wiring harness sub-assembly | 88905-32010 · 88905-32011 · 88905-32030 · 88905-32031 |
| 88905A | Air purifier No. 2 wiring harness sub-assembly | 88905-32020 · 88905-32040 · 88905-32070 · 88905-32080 |
| 88905B | Air purifier No. 3 wiring harness sub-assembly | 88905-32060 |
| 88905C | Air purifier No. 4 wiring harness sub-assembly | 88905-32050 |
| 88905D | Air purifier No. 4 wiring harness sub-assembly | 88648-32090 |
| 88912 | air purifier fan | 88912-32010 |
| 88915 | air purifier resistor | 88915-32010 |
| 88920A | Air purifier assembly | 88920-22022 · 88920-22042 · 88920-32010 · 88920-32020 |
| 88926 | air purifier filter | 88926-32010 |
| 88926A | Odor filter cartridge | 88926-32020 |
| 88930A | Air purifier switch assembly | 88930-22041 · 88930-32010 · 88930-32020 · 88930-32030 |
| 88931 | smoke sensor | 88931-32010 |
| 88950 | Air purifier amplifier assembly | 88950-32010 |
