Toyota CAMRY Heating & Air Conditioning - Compressor — Figure 8719

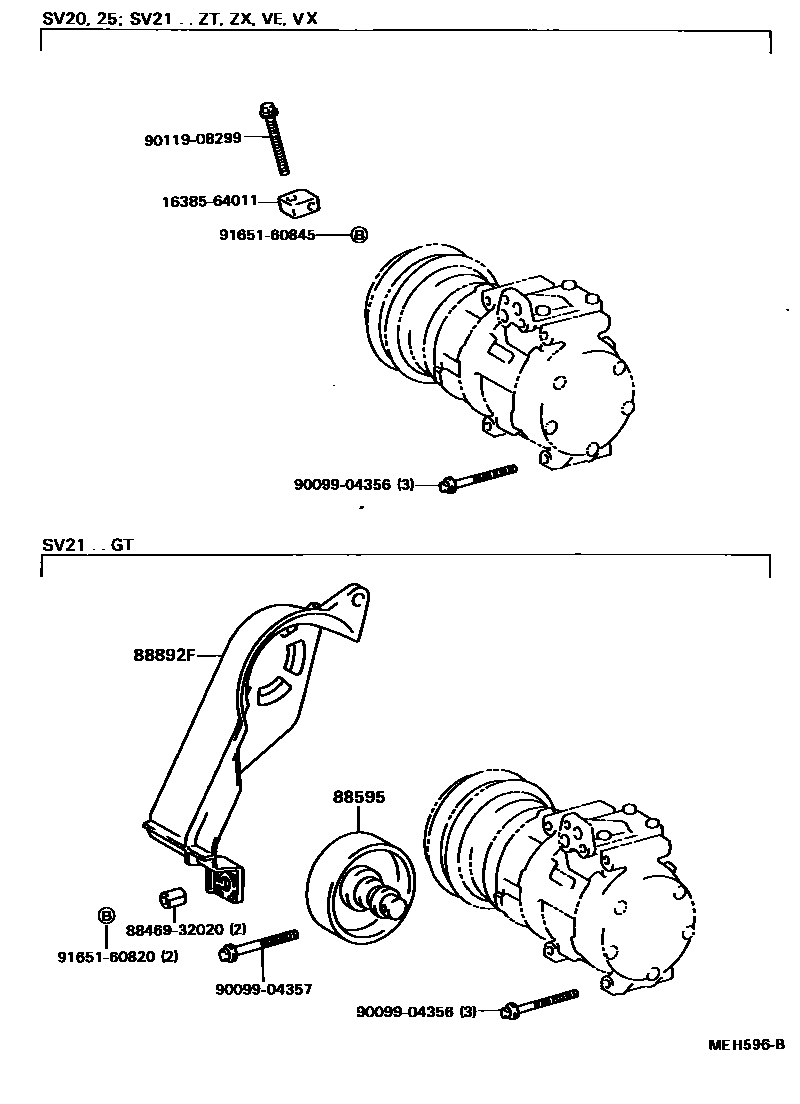

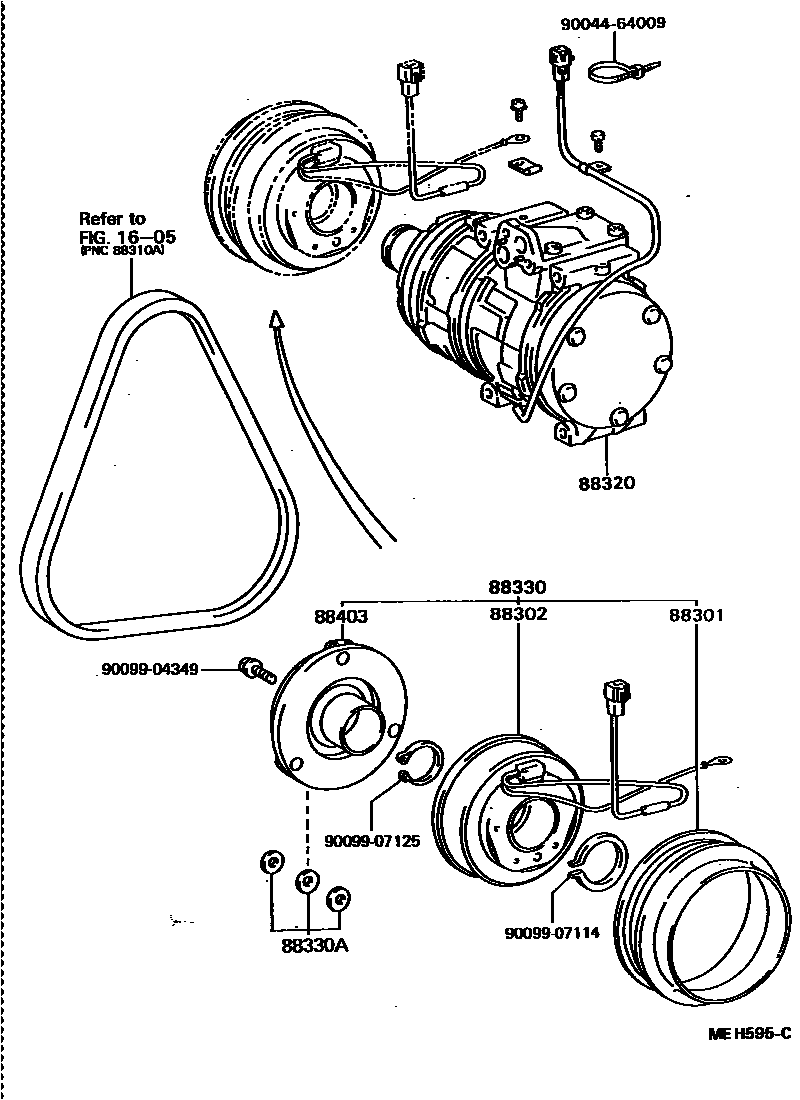

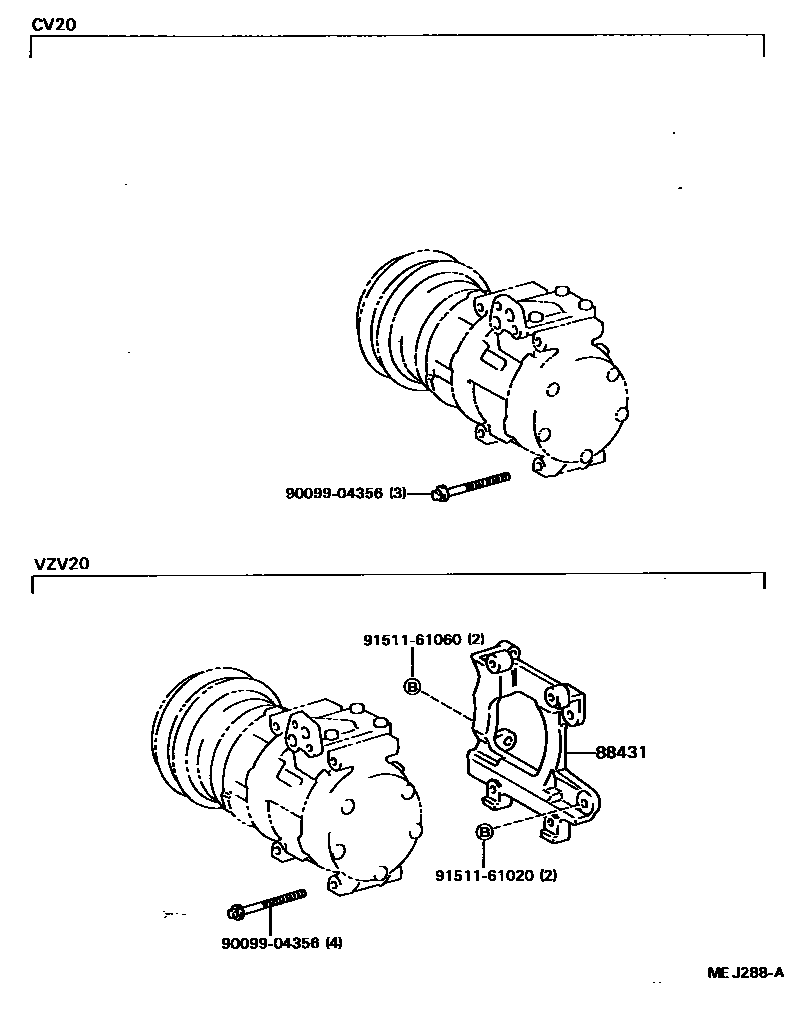

Toyota CAMRY EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-20090 · 88412-32030 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-32020 · 88411-32021 · 88411-32031 |
| 88320 | Cooler Compressor Assembly | 88320-32080 · 88320-32090 |
| 88330 | Magnetic Clutch Assembly | 88410-32030 · 88410-32040 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-16011 |
| 88431 | Compressor No. 1 mounting bracket | 88431-32010 |
| 88595 | Cooler compressor idler pulley | 88440-20110 · 88440-20120 |
| 88892F | Cooler compressor cover | 88892-32050 · 88892-32051 |
