Toyota CAMRY 暖风和空调系统 - 组件 — Figure 8711
Toyota CAMRY EPC diagram 8711, 暖风和空调系统 - 组件, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

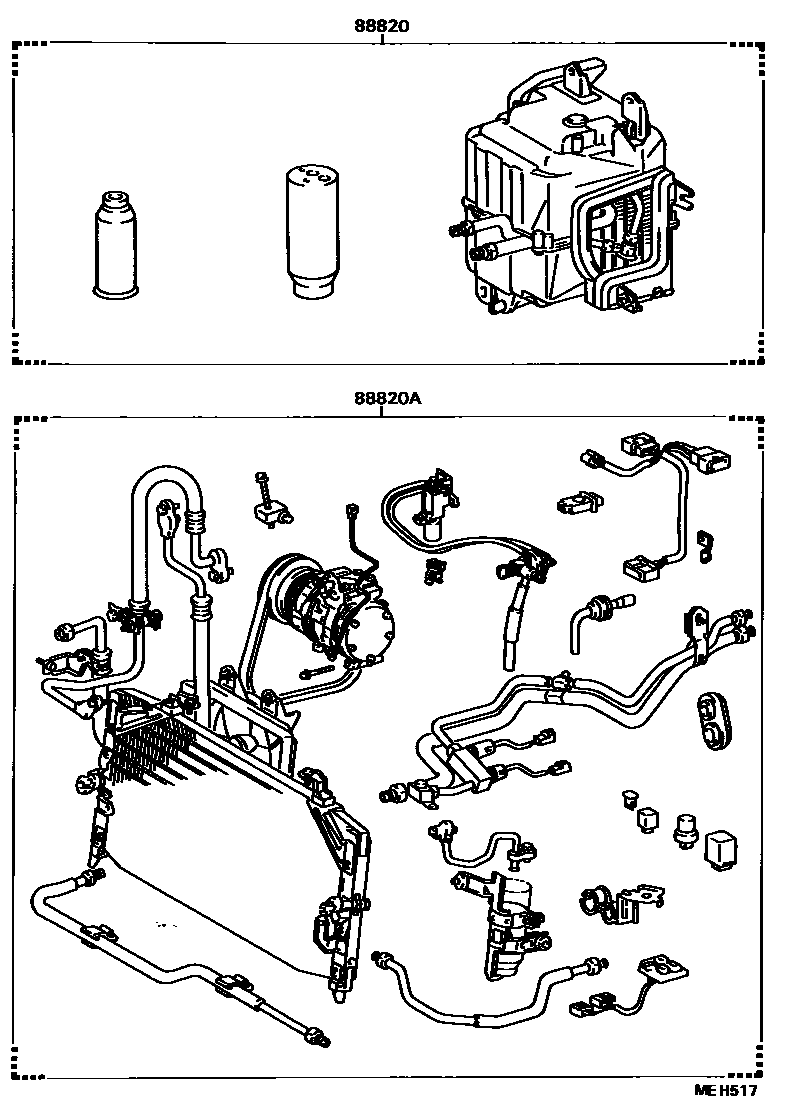

| 88820 | No. 1 air conditioner and accessories sub-assembly | 88820-32050 · 88820-32060 · 88820-32070 |
| 88820A | No. 2 air conditioner and accessories sub-assembly | 88830-32090 · 88830-32120 · 88830-32130 · 88830-32131 · 88830-32132 · 88830-32140 · 88830-32150 |

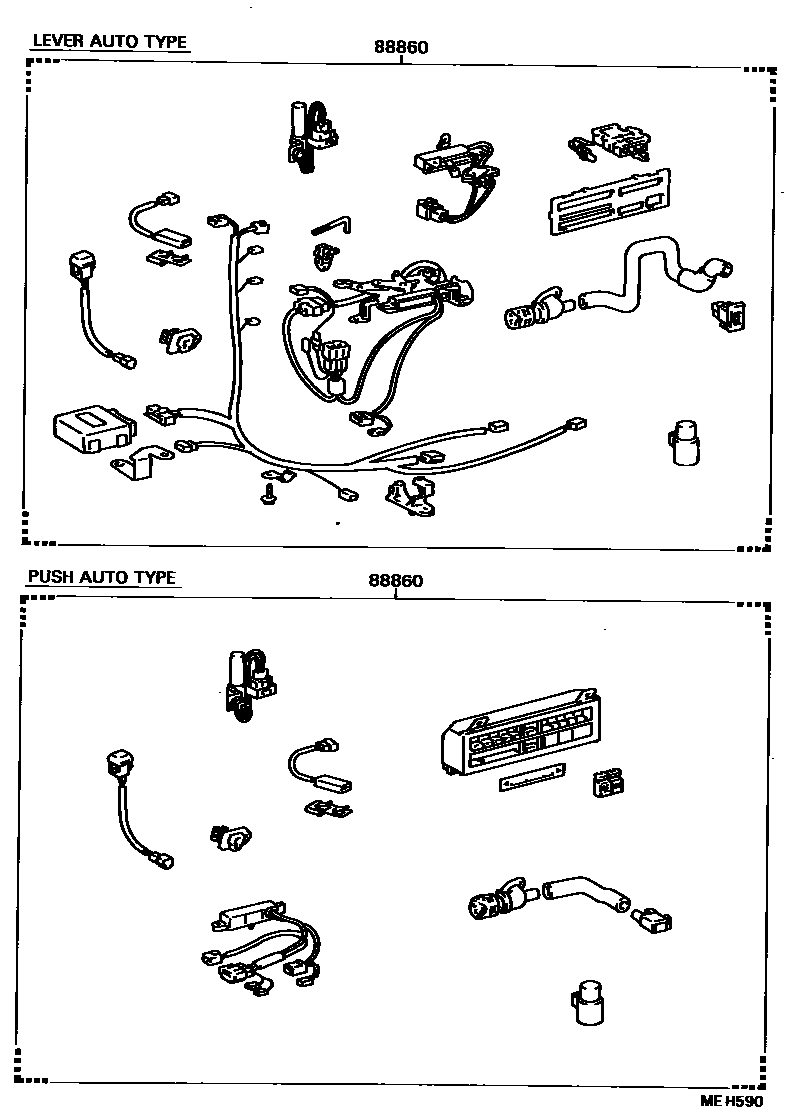

| 88860 | Automatic air conditioning accessory assembly | 88860-32040 · 88860-32050 |
