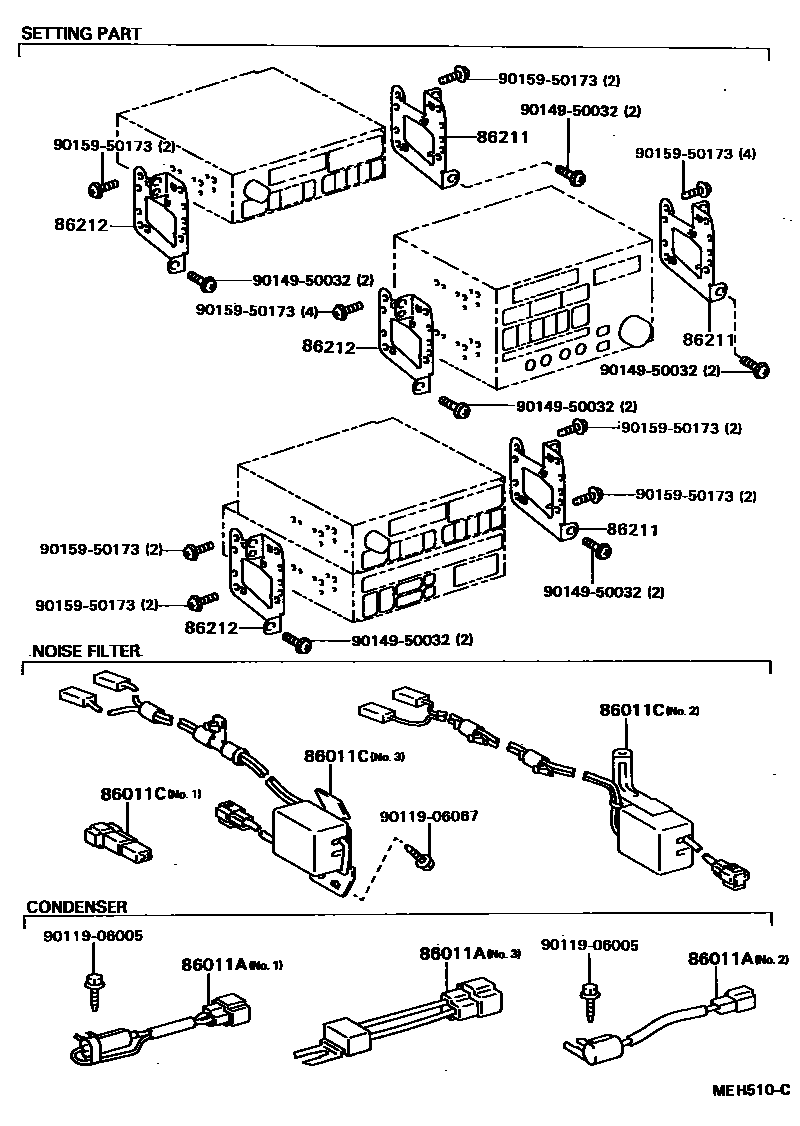

Toyota CAMRY 收音机、放大器和冷凝器 — Figure 8601
Toyota CAMRY EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04041 · 90980-04043 · 90980-04051 |
| 86011C | Noise filter | 90980-05073 · 90980-05123 · 90980-05125 |
| 86120 | Radio assembly | 86120-14720 · 86120-16350 · 86120-32120 · 86120-32170 · 86120-32180 · 86120-32190 · 86120-32200 |
| 86203 | radio wiring harness | 86203-32010 |
| 86211 | No. 1 radio bracket | 86211-32050 |
| 86212 | No. 2 radio bracket | 86212-32050 |
| 86270A | CD player assembly | 86270-32010 · 86270-32011 |
| 86280 | Stereo parts amplifier assembly | 86280-32030 · 86280-32050 |
| 86285 | Amplifier Stand No. 1 | 86285-32010 |
