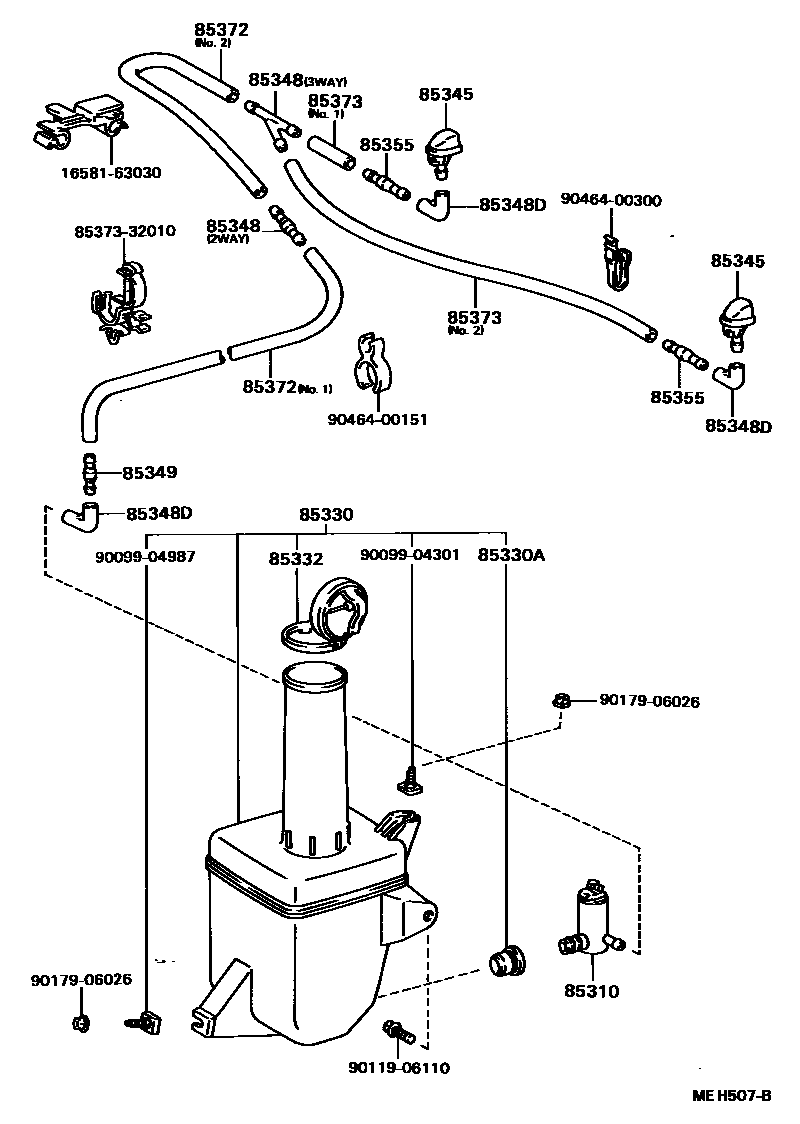

Toyota CAMRY 挡风玻璃清洗器 — Figure 8503
Toyota CAMRY EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85310 | Windshield washer motor and pump assembly | 85310-22080 |
| 85330 | Windshield washer fluid tank assembly | 85331-32130 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85332-32130 |
| 85345 | windshield washer nozzle | 85035-32070 · 85035-32080 · 85035-32090 · 85035-32130 · 85035-32230 · 85035-32240 |
| 85348 | Windshield washer hose connector No. 1 | 85348-12250 · 85349-89122 |
| 85348D | No. 1 windshield washer elbow joint | 85355-14481 · 85355-20070 |
| 85349 | Windshield washer hose connector No. 1 | 85349-89122 |
| 85355 | Windshield washer hose valve | 85031-12250 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90099-33382 |
