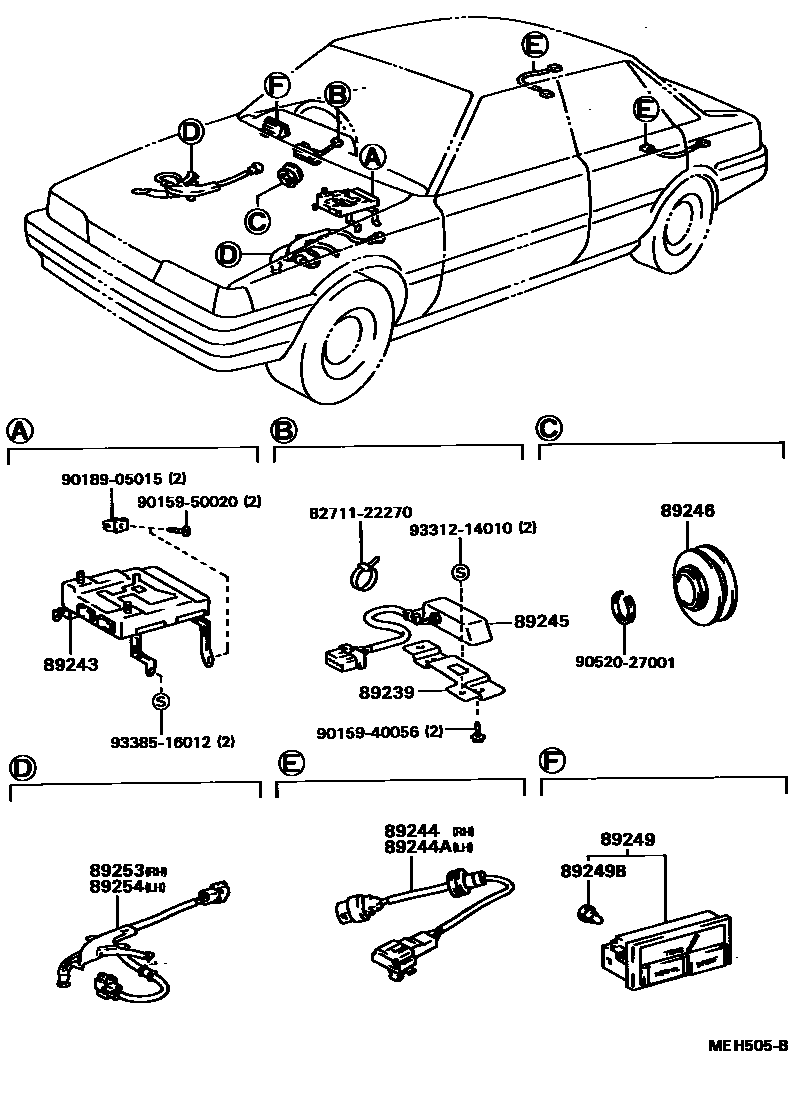

Toyota CAMRY 电子调节悬架 — Figure 8419
Toyota CAMRY EPC diagram 8419, 电子调节悬架, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89239 | Steering sensor bracket | 89239-32010 |
| 89243 | Damper control ECU | 89243-32010 |
| 89244 | Rear shock absorber control harness | 89244-32010 |
| 89244A | Left rear shock absorber control harness | 89244-32010 |
| 89245 | steering sensor | 89245-20010 · 89245-32010 |
| 89246 | Steering sensor disc | 89246-32010 |
| 89249 | Damper control switch | 89249-32010 |
| 89249B | Damper control switch bulb | 84999-10170 |
| 89253 | Right front damper control harness | 89253-32010 |
| 89254 | Left front shock absorber control harness | 89254-32010 |
