Toyota CAMRY 超速档和电子控制变速器 — Figure 8410

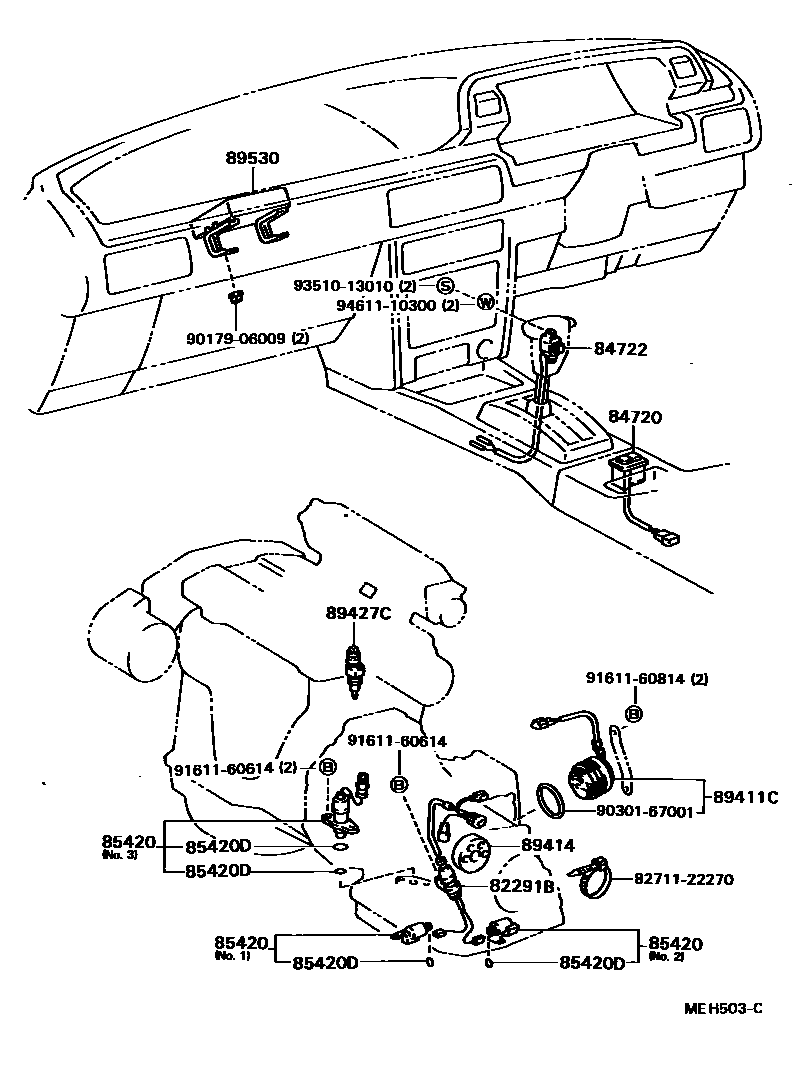

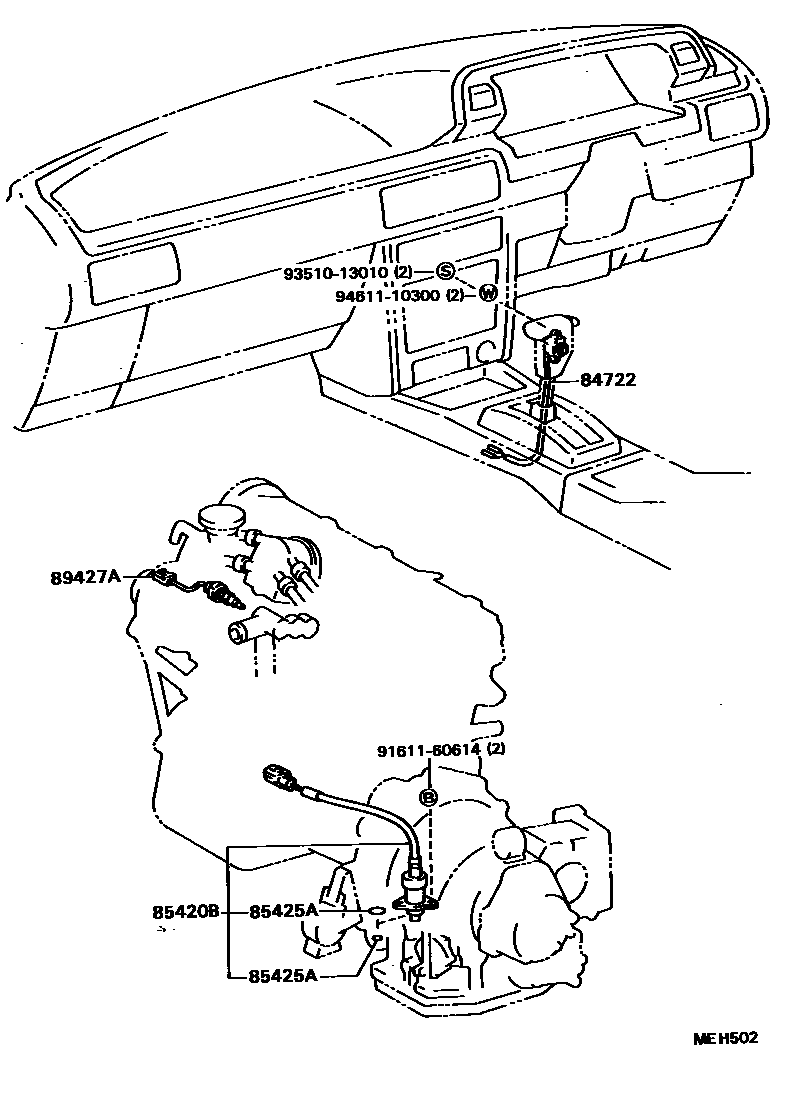

Toyota CAMRY EPC diagram 8410, 超速档和电子控制变速器, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82291B | to solenoid valve harness (for transmission) | 82125-20090 |
| 84720 | Mode selection switch assembly | 84720-32030 · 84720-32040 |
| 85420 | Transmission solenoid valve assembly | 85420-32020 · 85420-32030 · 85420-32040 · 85420-32050 · 85420-32071 · 85420-32130 · 85420-32140 |
| 85420B | Transmission solenoid valve assembly | 85420-32081 |
| 85420D | O-ring (for transmission solenoid valve) | 90301-06004 · 90301-06005 · 96721-19017 |
| 85425A | O-ring (for overspeed solenoid valve) | 90301-06005 · 96721-19017 |
| 89411C | Speed sensor | 89411-20020 |
| 89414 | sensor rotor | 89414-32010 |
| 89427A | temperature switch | 89427-32010 |
| 89427C | Temperature switch (for ECT) | 89427-12070 |
| 89530 | Transmission control ECU assembly | 89530-32210 · 89530-32230 · 89530-32260 |
