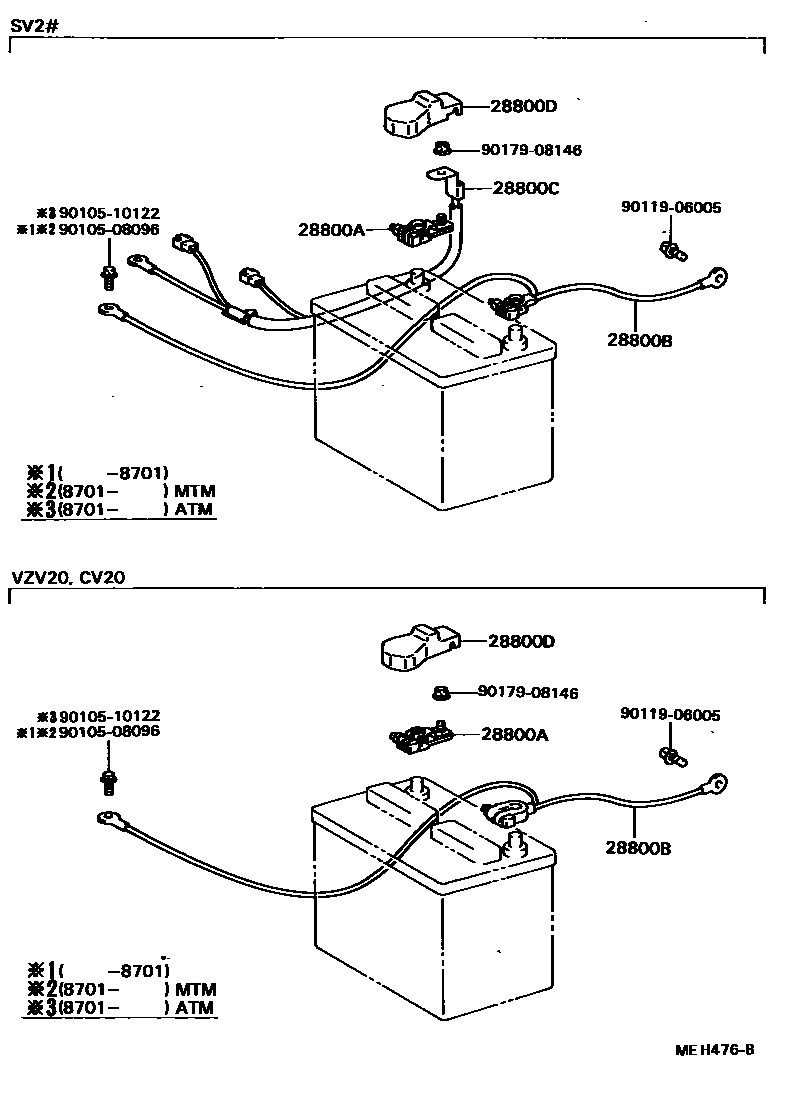

Toyota CAMRY 蓄电池和蓄电池电缆 — Figure 8201
Toyota CAMRY EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800A | battery positive terminal | 90982-05027 · 90982-05028 · 90982-05029 · 90982-05030 · 90982-05034 · 90982-05036 |
| 28800B | Cable between battery and ground | 82123-32040 · 82123-32041 · 82123-32050 · 82123-32051 · 82123-32060 · 82123-32061 · 82123-32090 · 82123-32100 |
| 28800C | Cable between battery and starter (for battery to main switch) | 82122-32200 |
| 28800D | Connector cover (for battery terminals) | 82821-32030 · 82821-32040 |
