Toyota CAMRY 后牌照灯 — Figure 8113

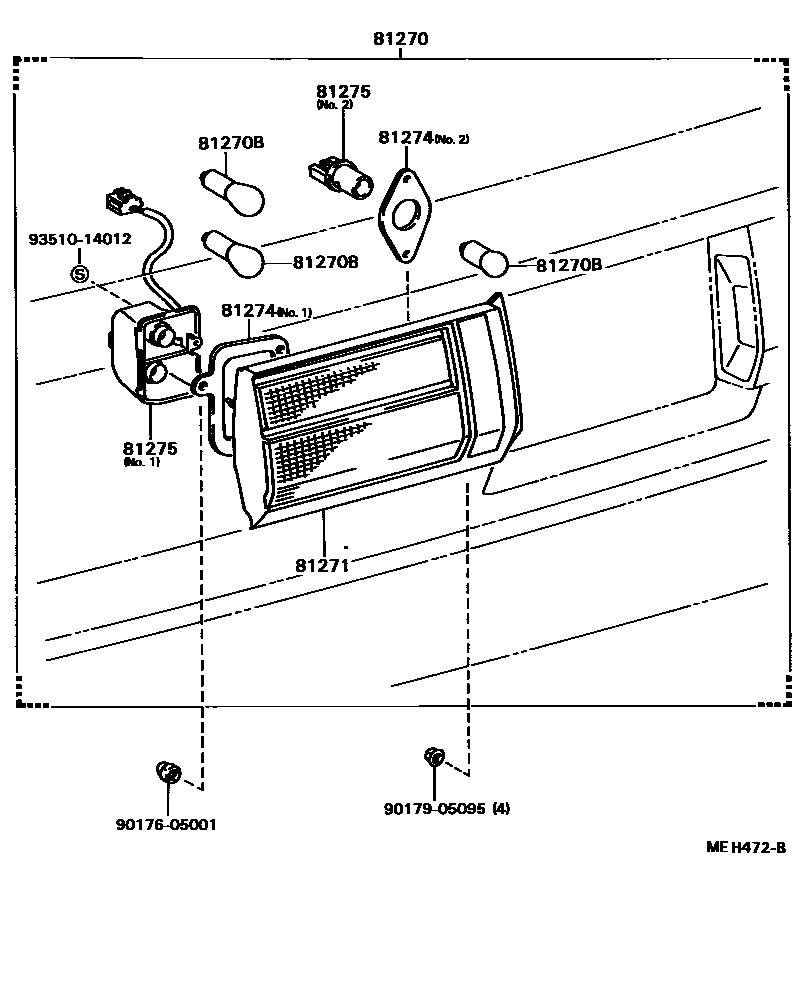

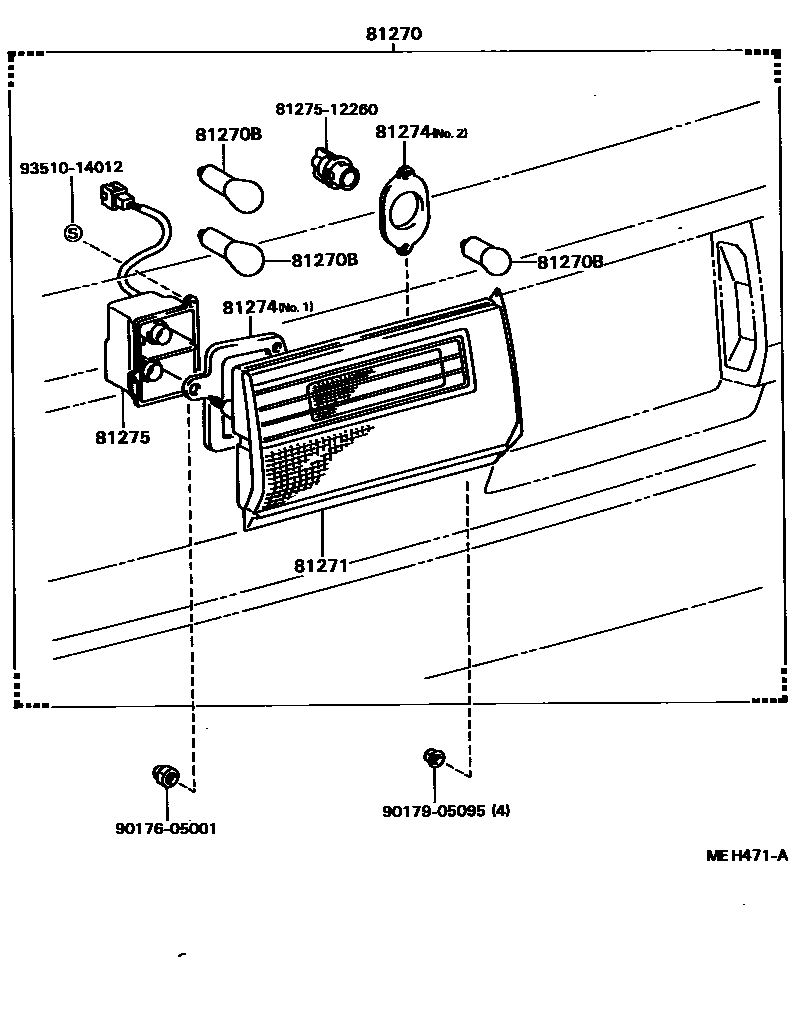

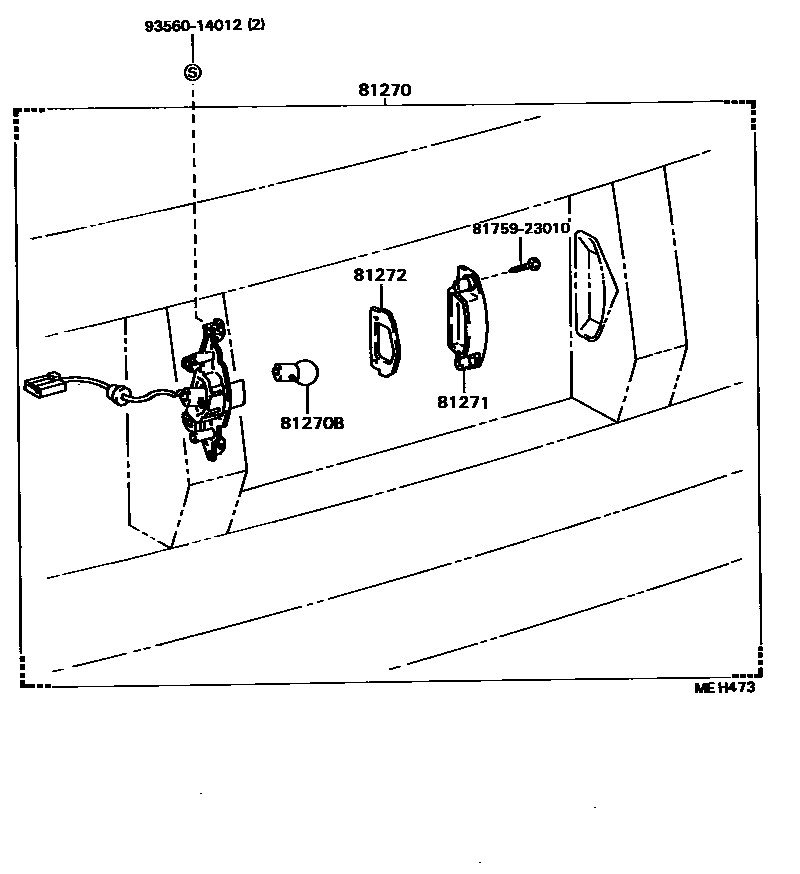

Toyota CAMRY EPC diagram 8113, 后牌照灯, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-32060 · 81270-32110 · 81270-32150 · 81270-32160 · 81690-32030 · 81690-32080 · 81690-32090 |
| 81270B | Bulb (for license plate light) | 90981-12012 · 90981-12019 · 99132-11100 · 99132-11210 · 99132-11230 · 99132-21210 |
| 81271 | license plate lamp shade | 81271-16151 · 81271-32060 · 81271-32110 · 81271-32160 · 81691-32030 · 81691-32080 · 81691-32090 |
| 81272 | License plate lamp shade gasket | 81272-20210 |
| 81274 | License plate light body gasket | 81272-32060 · 81272-32110 · 81274-32060 · 81274-32110 |
| 81275 | License plate lamp holder and wiring harness | 81275-32060 · 81275-32110 · 81278-32110 · 81695-32030 · 81698-32080 |
