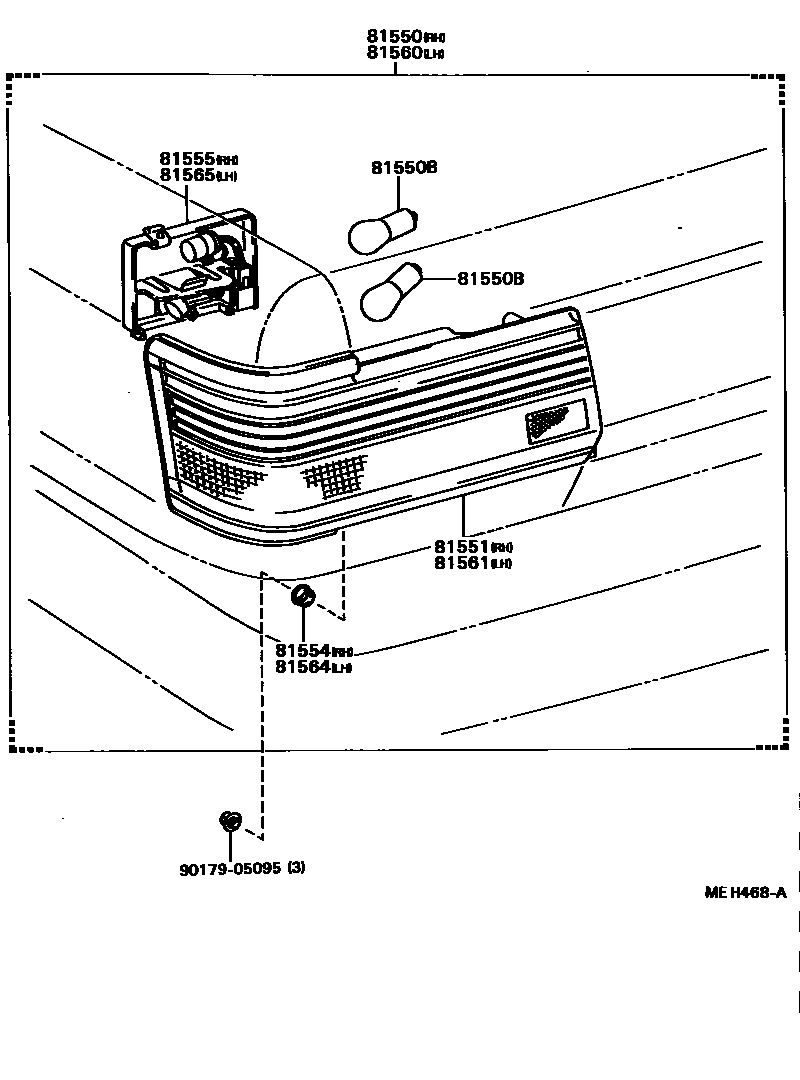

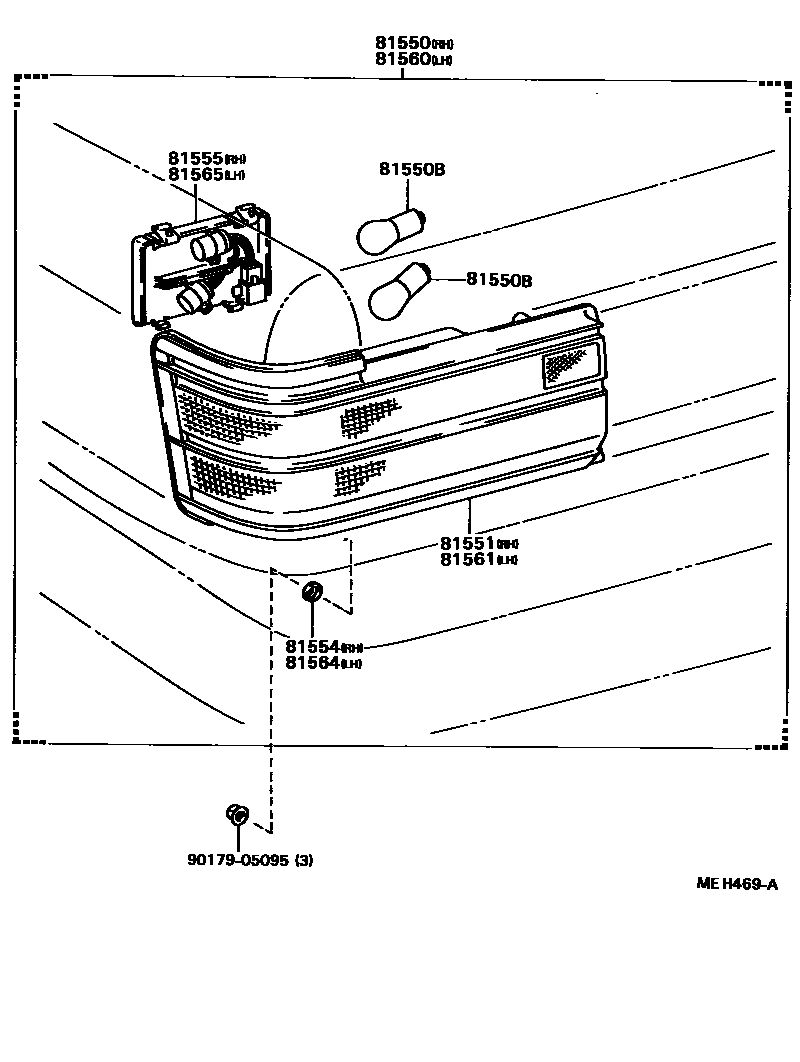

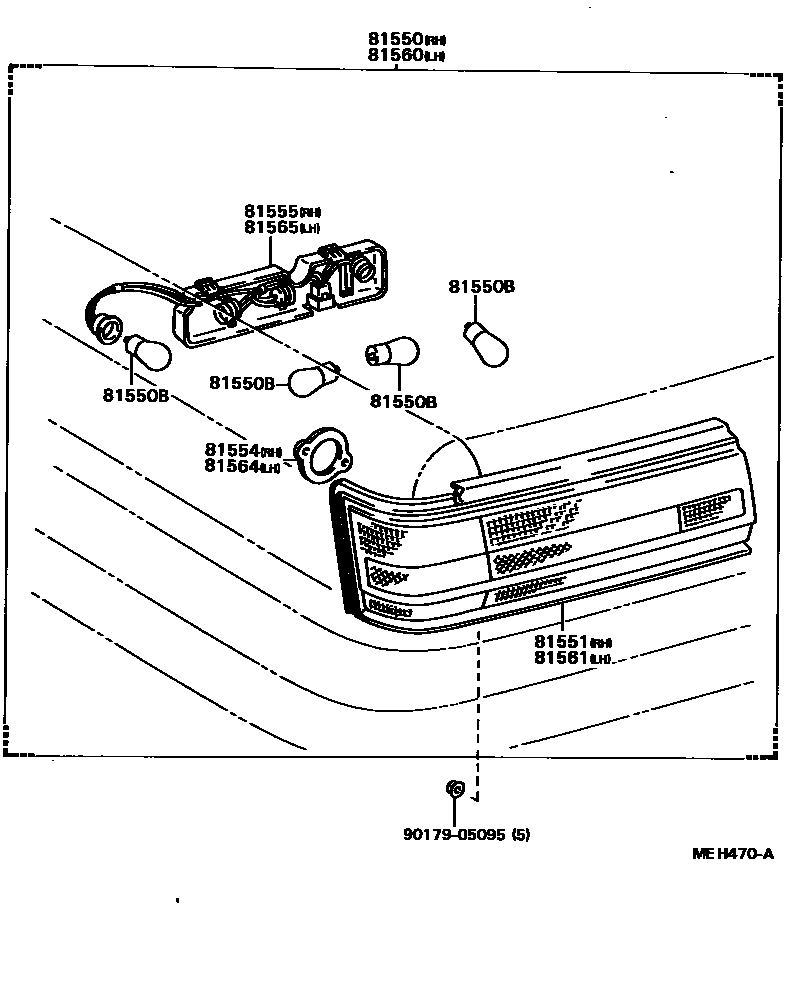

Toyota CAMRY 后组合灯 — Figure 8111
Toyota CAMRY EPC diagram 8111, 后组合灯, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-32050 · 81550-32150 · 81550-32180 · 81550-32190 |
| 81550B | Bulb (for rear combination lights) | 99132-11210 · 99132-11230 · 99132-21210 |
| 81551 | Right rear combination lamp shade | 81551-32050 · 81551-32150 · 81551-32180 · 81551-32190 |
| 81554 | Right rear combination lamp body gasket | 81552-30450 · 81554-32150 · 81558-20720 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-32050 · 81555-32150 · 81555-32180 |
| 81560 | Left rear combination light assembly | 81560-32050 · 81560-32150 · 81560-32180 · 81560-32190 |
| 81561 | Left rear combination lamp shade | 81561-32050 · 81561-32150 · 81561-32180 · 81561-32190 |
| 81564 | Left rear combination lamp body gasket | 81552-30450 · 81554-32150 · 81558-20720 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81565-32050 · 81565-32150 · 81565-32180 |
