Toyota CAMRY 前示宽灯 — Figure 8104

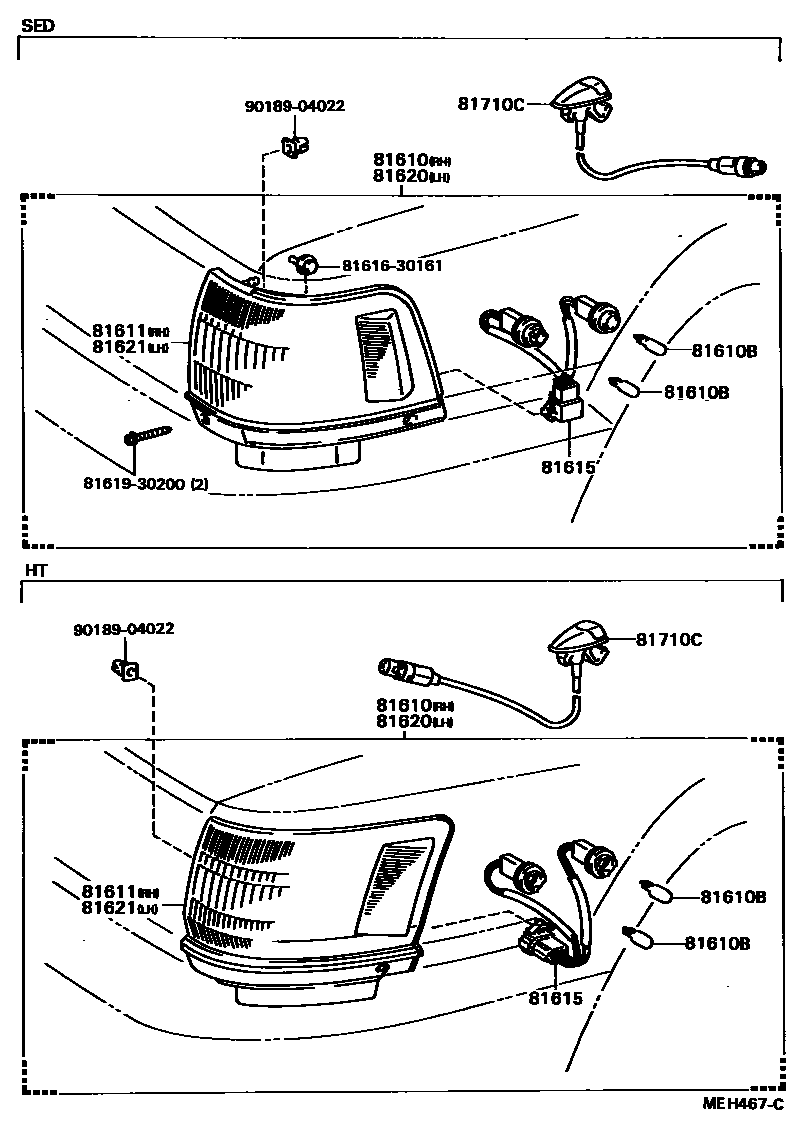

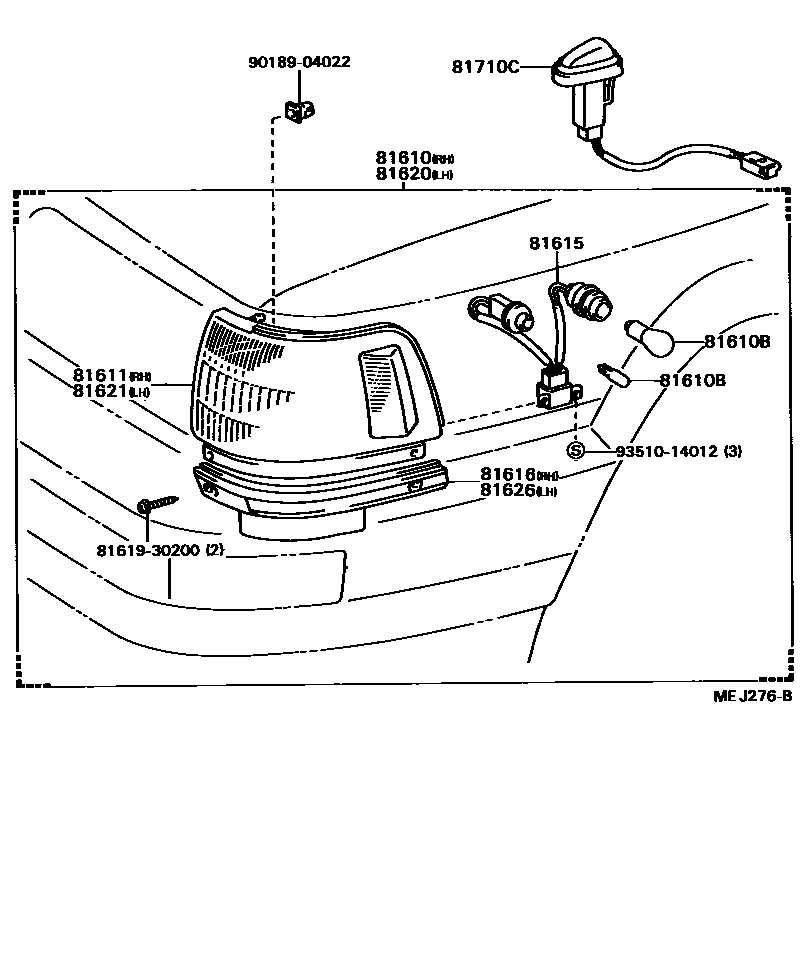

Toyota CAMRY EPC diagram 8104, 前示宽灯, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81610 | Right parking light and width indicator light assembly | 81610-32060 · 81610-32061 · 81610-32090 · 81610-32091 · 81610-32110 · 81610-32111 · 81610-32120 |
| 81610B | Bulbs (for parking lights and side lights) | 90981-11038 · 90981-13036 · 99132-12050 |
| 81611 | Right parking light and width indicator light cover | 81611-32060 · 81611-32061 · 81611-32090 · 81611-32091 · 81611-32110 · 81611-32111 · 81611-32120 |
| 81615 | Width light lamp holder and wiring harness | 81615-32060 · 81615-32090 · 81615-32120 |
| 81616 | Right parking light and width indicator bezel | 81616-32120 |
| 81620 | Left parking light and width indicator light assembly | 81620-32060 · 81620-32061 · 81620-32090 · 81620-32091 · 81620-32110 · 81620-32111 · 81620-32120 |
| 81621 | Left parking light and width indicator light cover | 81621-32060 · 81621-32061 · 81621-32090 · 81621-32091 · 81621-32110 · 81621-32111 · 81621-32120 |
| 81626 | Left parking light and width indicator bezel | 81626-32120 |
| 81710C | Fender width indicator light assembly | 81710-32010 · 81710-32011 · 81710-32020 · 81720-32010 |
