Toyota CAMRY 前转向灯 — Figure 8103

Toyota CAMRY EPC diagram 8103, 前转向灯, with 2 images and 7 PNC and OE references.

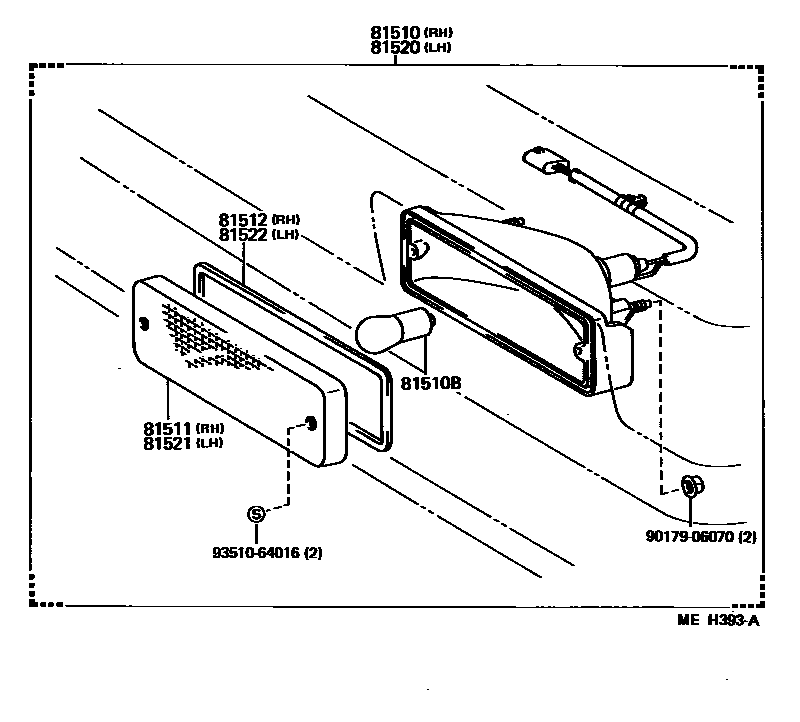

Toyota CAMRY 前转向灯 EPC diagram — MEH393A
前转向灯 — MEH393A (198704 – 999999)

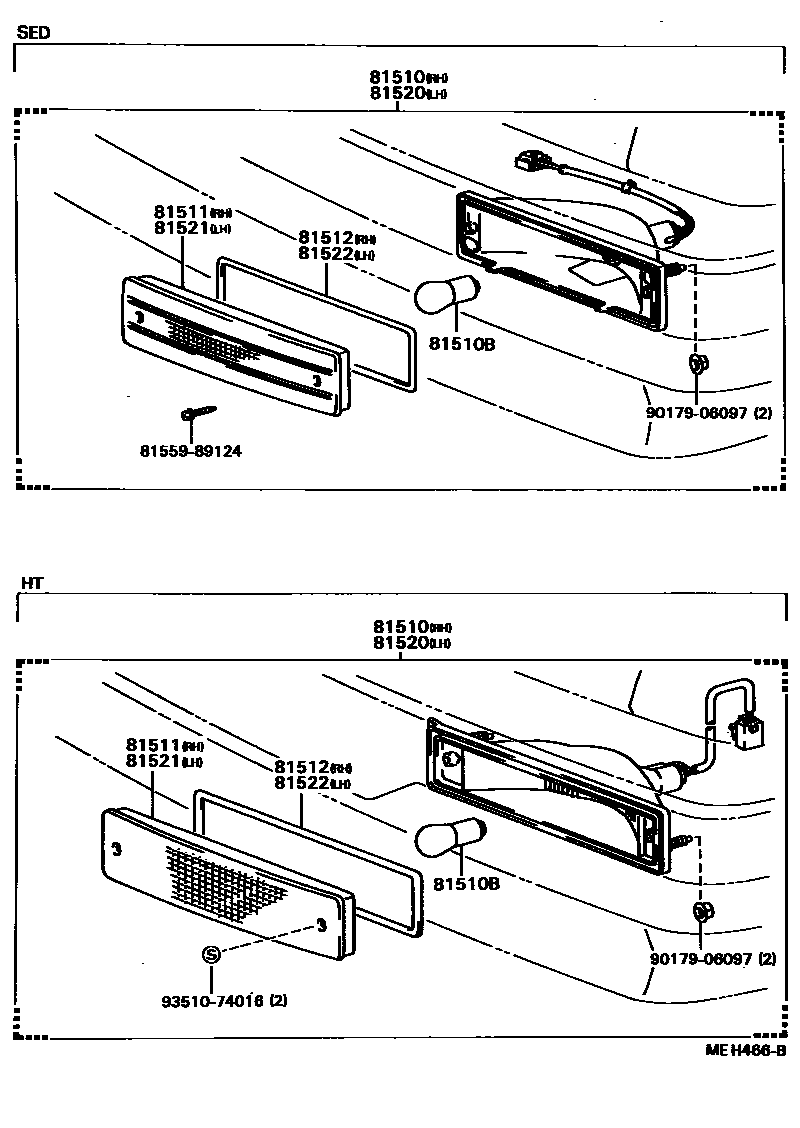

Toyota CAMRY 前转向灯 EPC diagram — MEH466B
前转向灯 — MEH466B (198608 – 999999)

PNC and OE references

PNCPart nameOE numbers
81510Right front turn signal lamp assembly81510-39595 · 81510-39605 · 81510-39635
81510BBulb (for front turn signal lamp)99132-11210 · 99132-11230
81511Right front turn signal lamp cover81511-22221 · 81511-32050 · 81511-32080
81512Right front turn signal lamp housing gasket81512-14140 · 81512-32050 · 81512-32080
81520Left front turn signal lamp assembly81520-39595 · 81520-39605 · 81520-39635
81521Left front turn signal lamp cover81521-22221 · 81521-32050 · 81521-32080
81522Left front turn signal lamp housing gasket81512-14140 · 81512-32050 · 81512-32080
