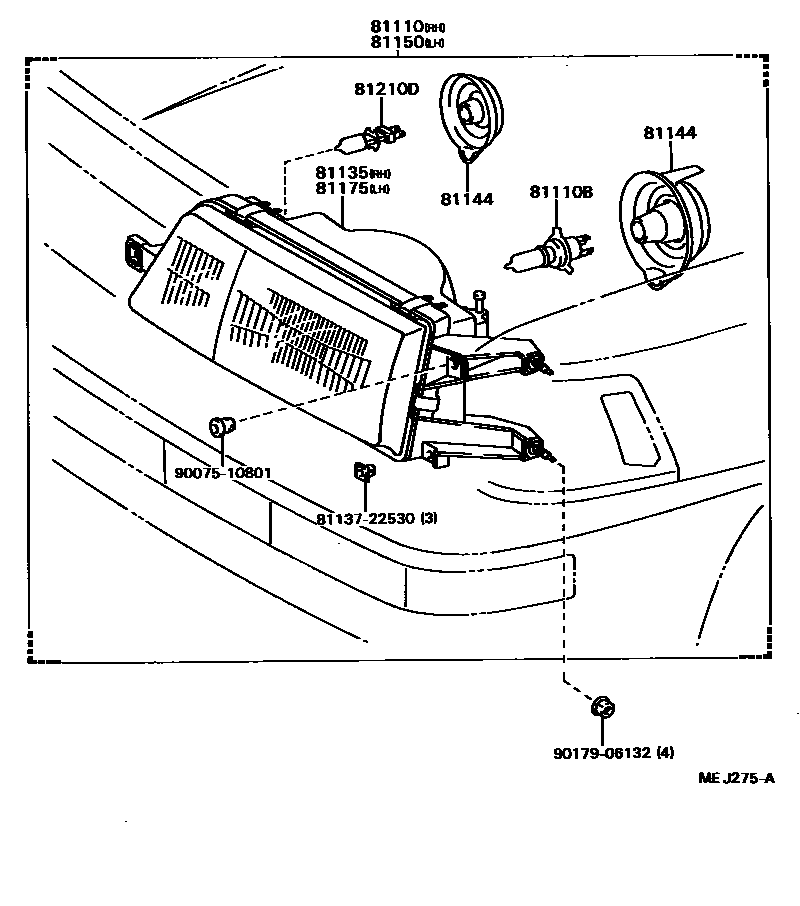

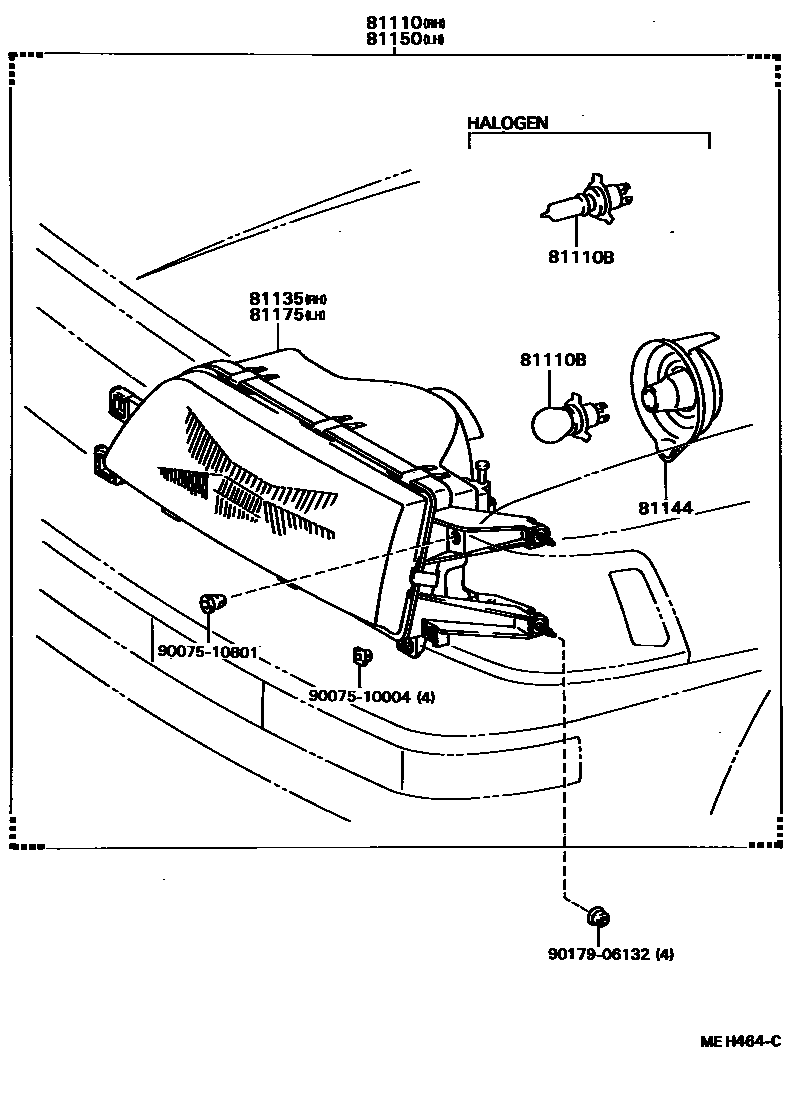

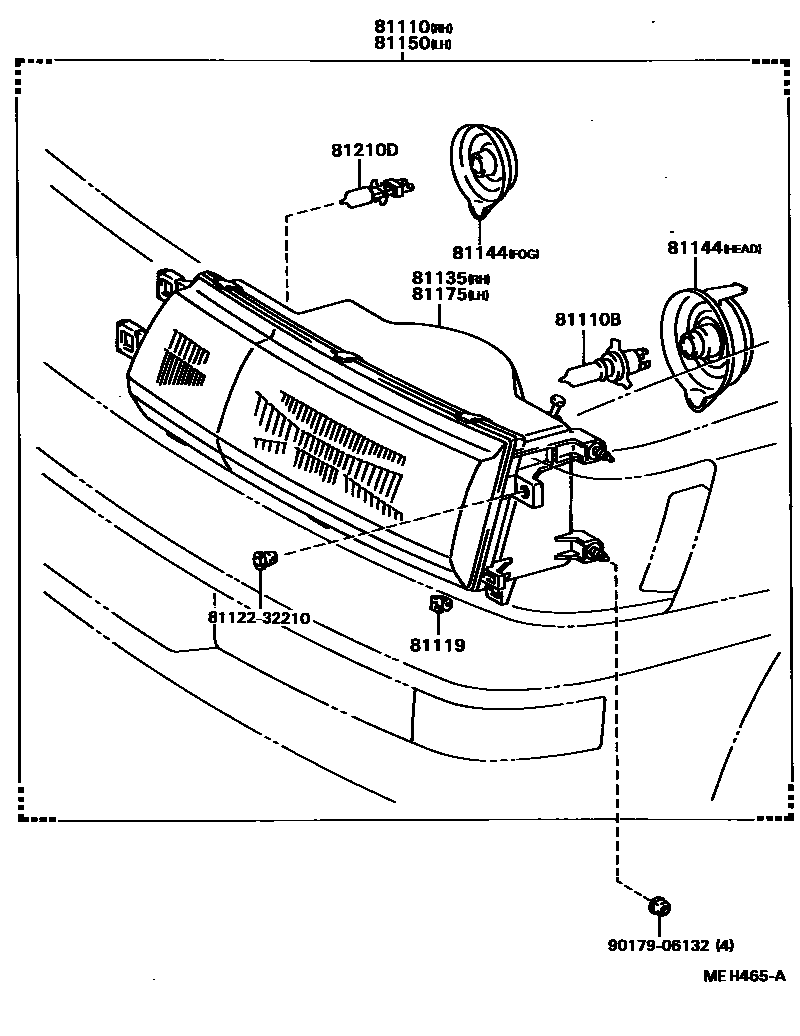

Toyota CAMRY Headlamp — Figure 8101
Toyota CAMRY EPC diagram 8101, Headlamp, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-32140 · 81110-32150 · 81110-32210 · 81110-32220 |
| 81110B | Bulb (for headlight No. 1) | 90981-13015 · 90981-13022 |
| 81119 | headlight screw | 81119-32210 · 81119-32211 |
| 81135 | Right headlight assembly | 81130-32140 · 81130-32150 · 81130-32210 · 81130-32211 · 81130-32220 |
| 81144 | No. 1 headlight cover | 81139-16340 · 81139-20730 · 81139-32210 · 90075-99002 |
| 81150 | Left headlight assembly | 81150-32140 · 81150-32150 · 81150-32210 · 81150-32220 |
| 81175 | Left headlight assembly | 81170-32140 · 81170-32150 · 81170-32210 · 81170-32211 · 81170-32220 |
| 81210D | fog light bulb | 90981-13031 · 90981-13039 |
