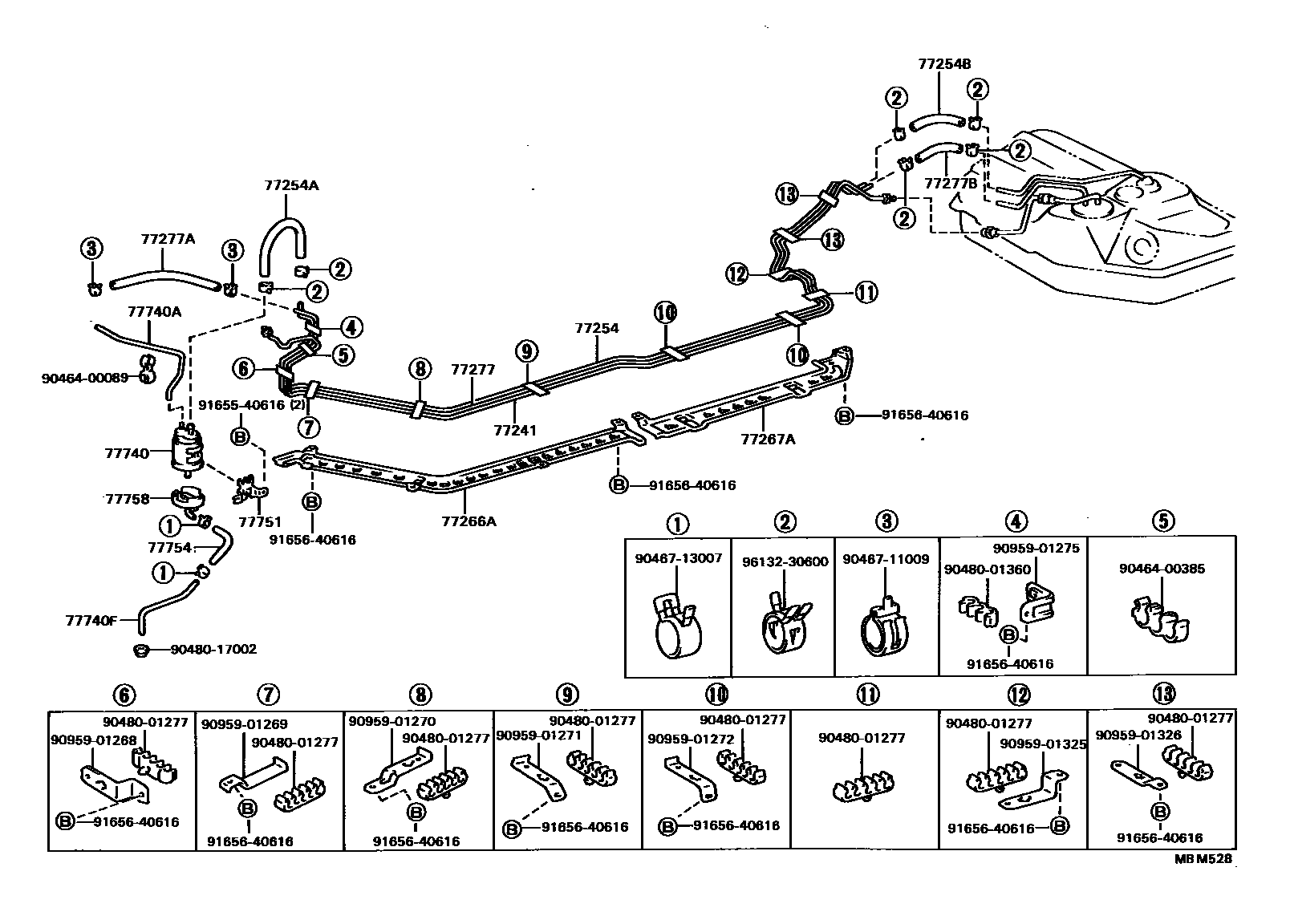

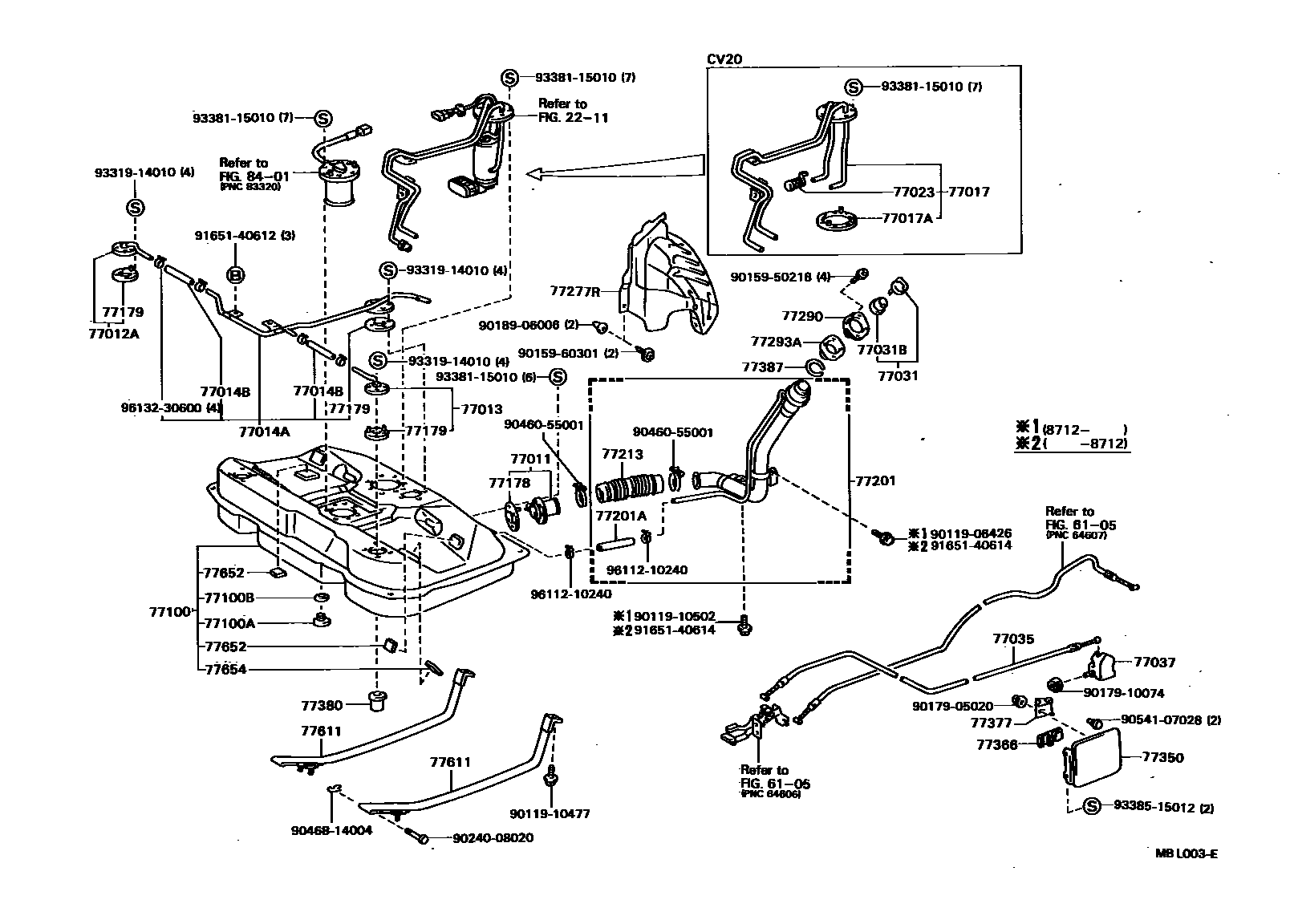

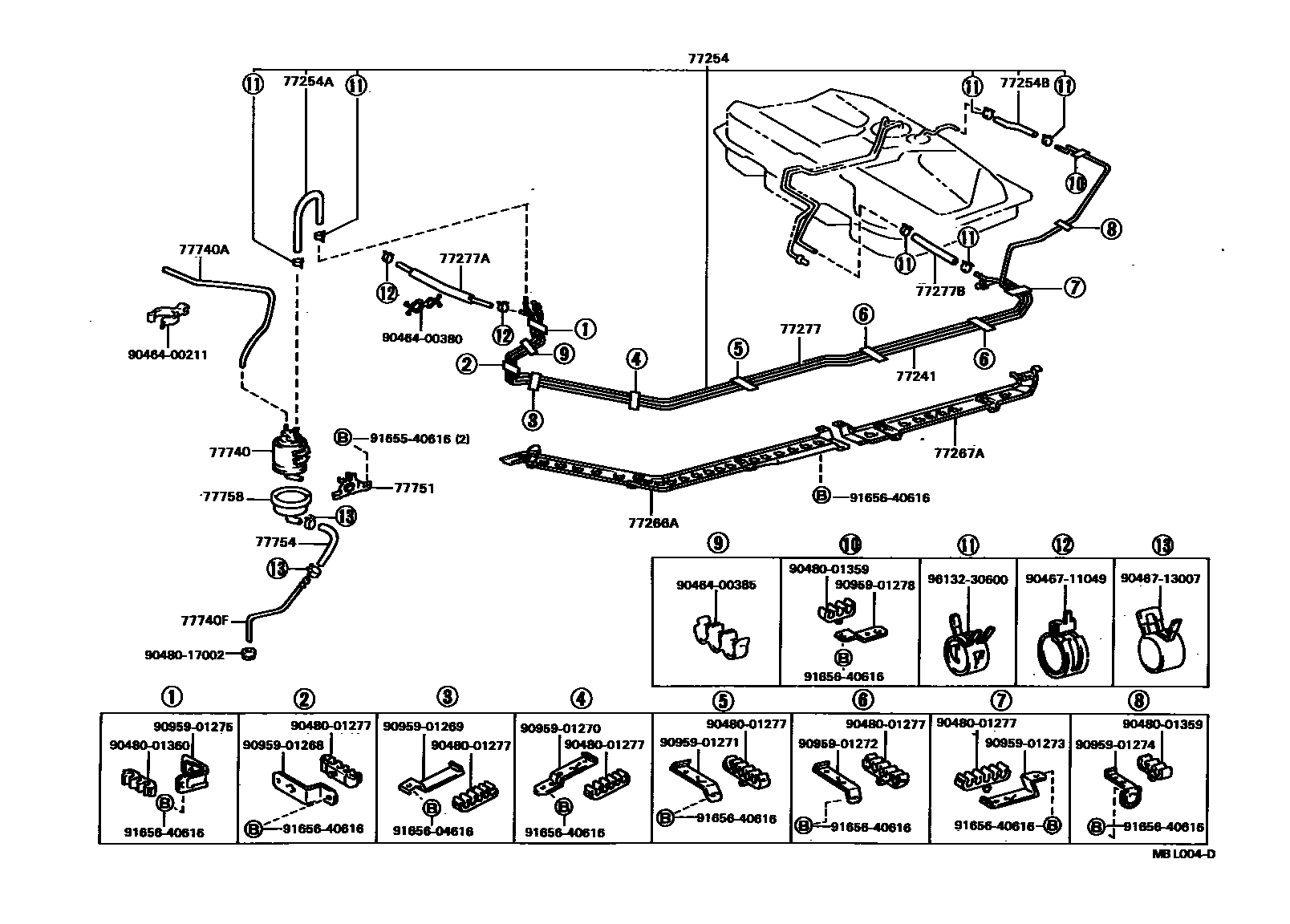

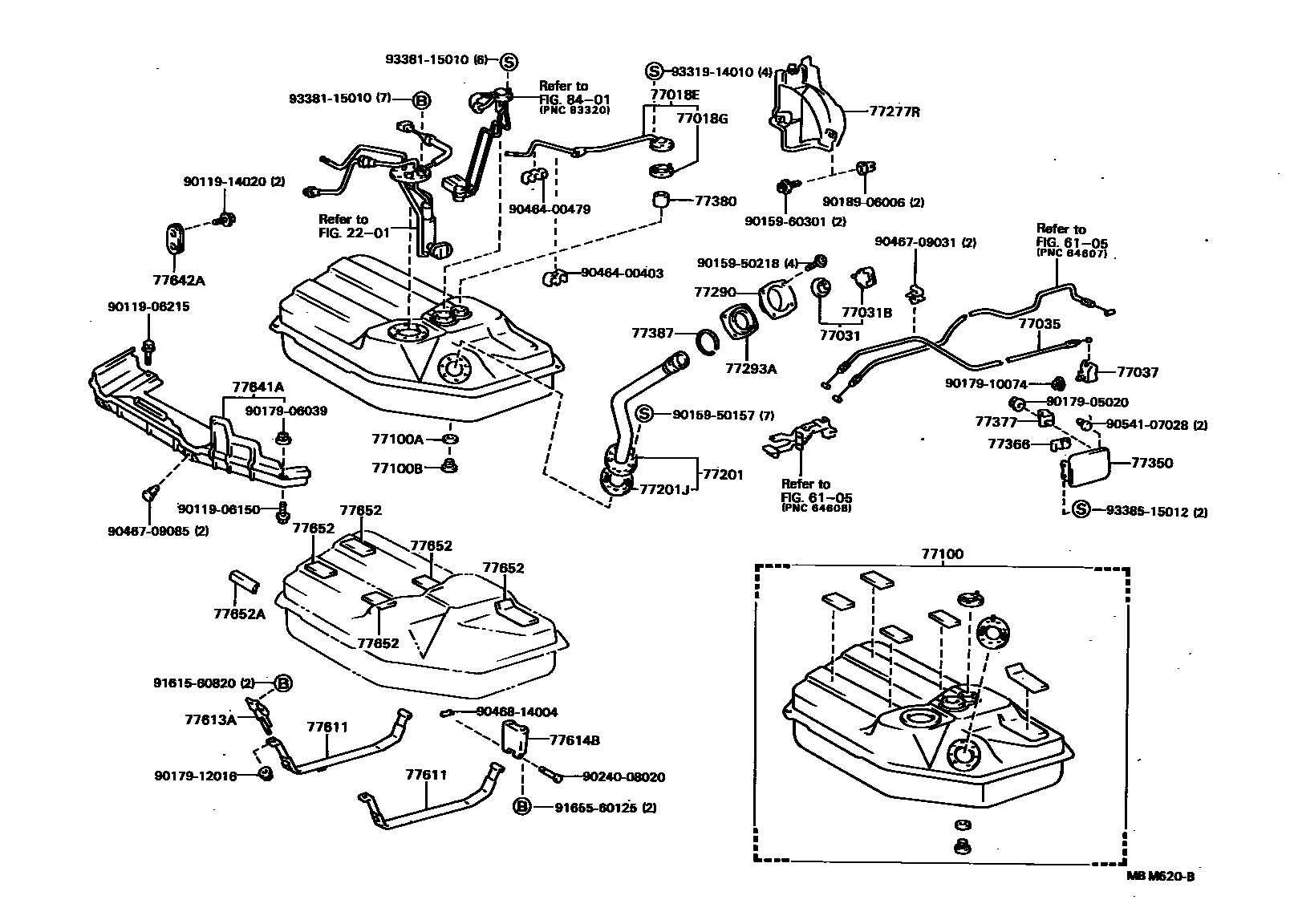

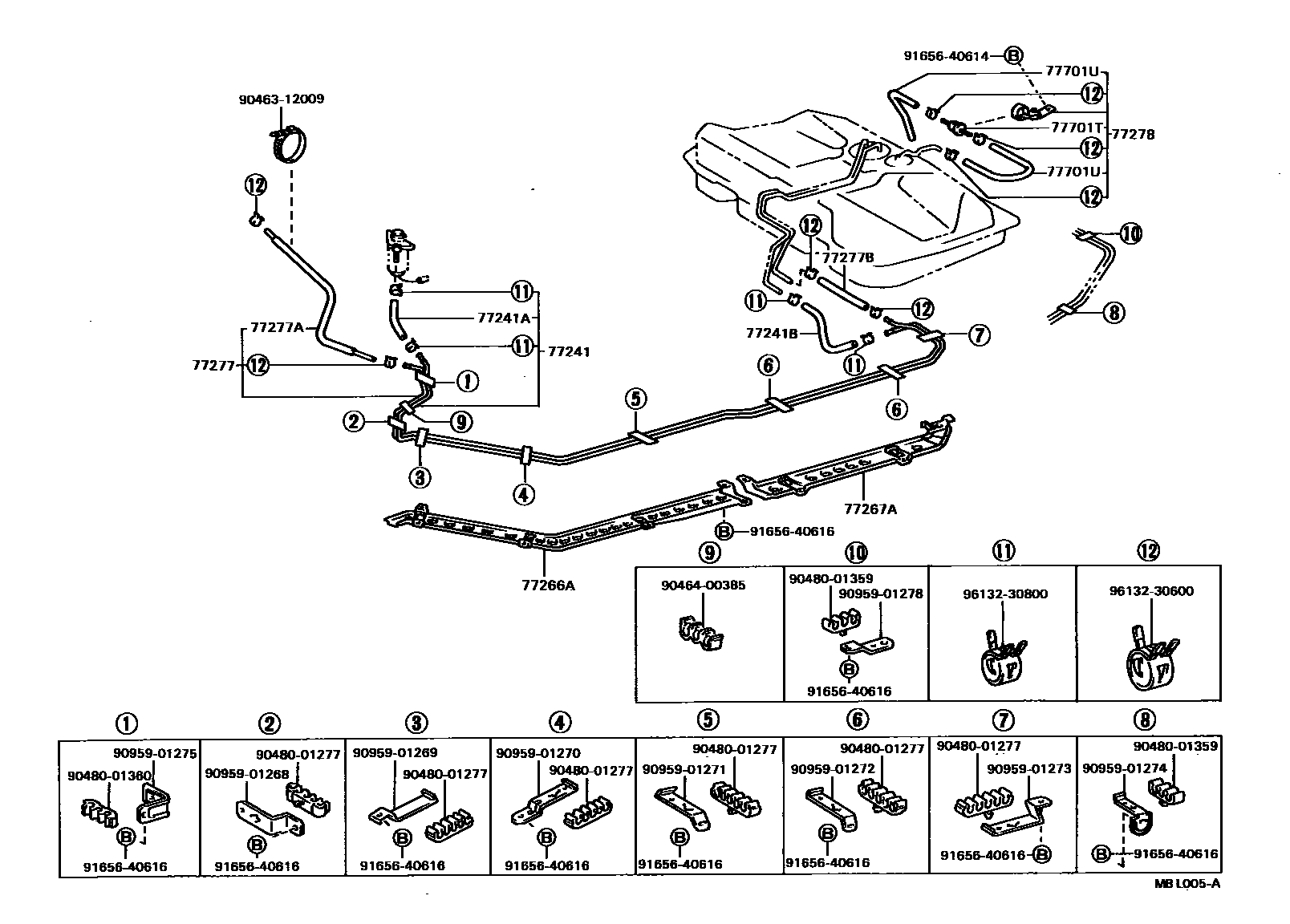

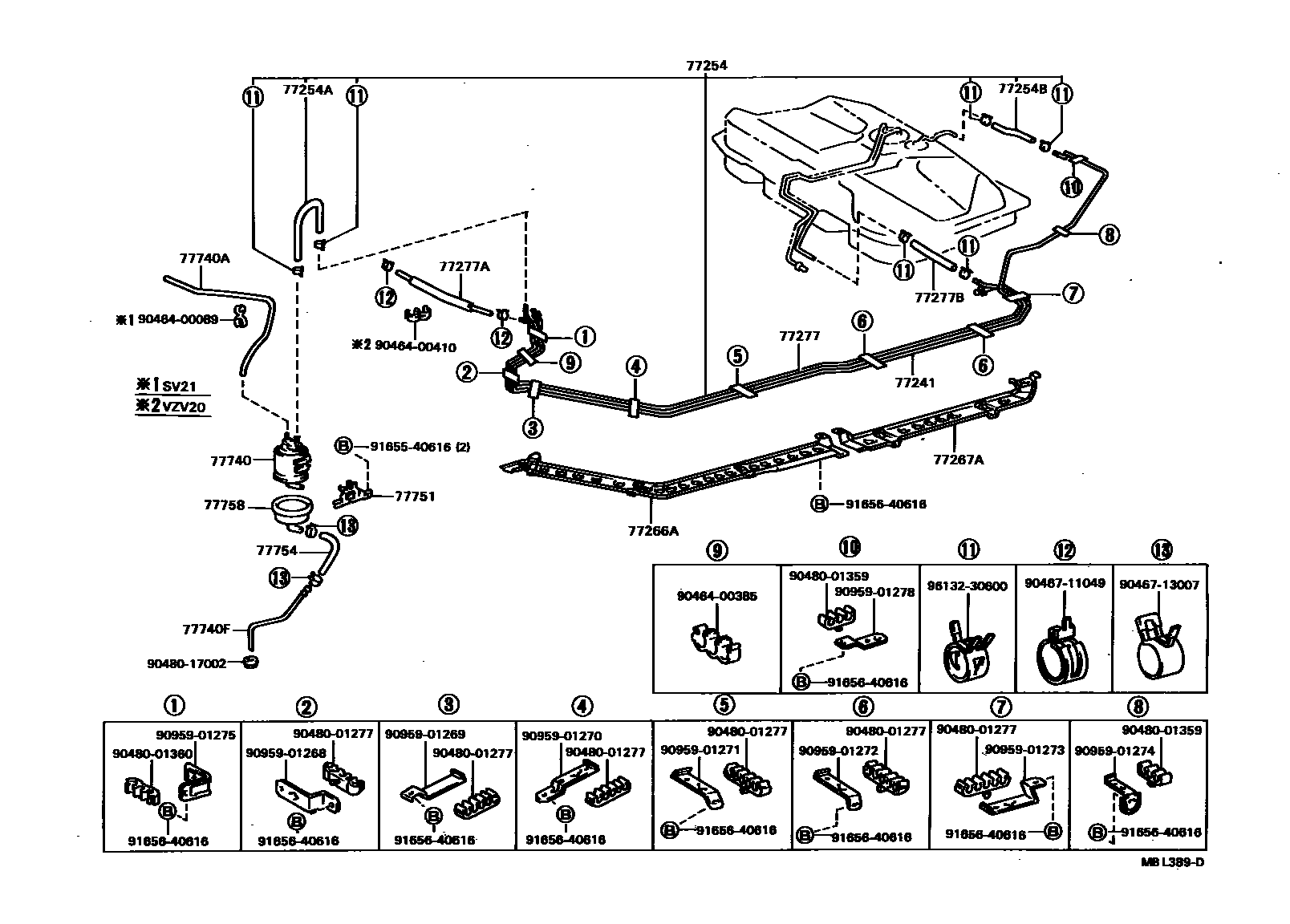

Toyota CAMRY 燃油箱和燃油管 — Figure 7701
Toyota CAMRY EPC diagram 7701, 燃油箱和燃油管, with 6 images and 59 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-20010 · 77011-20020 |
| 77012A | No. 1 fuel tank breather pipe sub-assembly | 77012-32010 · 77012-32020 |
| 77013 | No. 2 fuel tank breather pipe sub-assembly | 77012-32010 · 77012-32020 |
| 77014A | No. 3 fuel tank breather pipe sub-assembly | 77014-32010 · 77014-32020 |
| 77014B | Fuel hose (for fuel tank breather pipe) | 95332-06010 · 95333-06010 |
| 77017 | Fuel and evaporative vent pipe sub-assembly | 77017-32050 · 77017-32060 · 77017-32061 |
| 77017A | fuel tank vent pipe gasket | 77169-14010 |
| 77018E | Fuel tank evaporation vent pipe sub-assembly | 77018-32050 |
| 77018G | Fuel tank evaporation/vent pipe gasket | 77179-16010 |
| 77023 | Fuel suction pipe filter sub-assembly | 77023-32010 |
| 77031 | Fuel tank cap assembly | 77310-12100 · 77310-35061 |
| 77031B | Gasket (for fuel tank cap) | 77316-12050 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-32060 · 77035-32090 |
| 77037 | Fuel filler cap lock sub-assembly | 77037-12040 |
| 77100 | fuel tank assembly | 77001-39215 · 77001-39265 |
| 77100A | Screw plug (for fuel tank) | 90341-20004 |
| 77100B | Gasket (for fuel tank) | 90430-20007 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-20010 |
| 77179 | Fuel tank front mounting bracket | 77179-16010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-32110 · 77210-32070 · 77210-32090 · 77210-32091 · 77210-32092 |
| 77201A | No. 1 fuel hose (for fuel tank inlet pipe) | 90445-22002 · 90445-22030 |
| 77201J | Gasket (for fuel tank inlet pipe) | 77169-14010 |
| 77213 | Fuel tank auxiliary fuel inlet hose | 77213-32020 |
| 77241 | No. 1 main fuel pipe | 77205-32050 · 77251-32090 · 77251-32140 |
| 77241A | No. 1 fuel hose (for No. 1 main fuel line) | 95333-08020 |
| 77241B | No. 2 fuel hose (for No. 1 main fuel line) | 95332-08020 · 95333-08020 |
| 77254 | No. 1 fuel evaporation exhaust pipe | 77019-32060 · 77261-32080 |
| 77254A | No. 1 fuel hose (for No. 1 drain pipe) | 77259-32020 · 95333-06030 |
| 77254B | No. 2 fuel hose (for No. 1 drain pipe) | 95333-06020 |
| 77266A | No. 1 fuel line protection device | 77266-32020 |
| 77267A | No. 2 fuel pipe protection device | 77267-32020 · 77267-32030 |
| 77277 | No. 1 fuel return pipe | 77207-32040 · 77255-32070 · 77255-32100 |
| 77277A | No. 1 fuel hose (for No. 1 return pipe) | 23271-62010 · 23271-64051 · 90447-12018 · 90447-12040 · 90447-12081 · 90447-12085 |
| 77277B | No. 2 fuel hose (for No. 1 return pipe) | 95333-06017 · 95333-06020 · 95333-06030 |
| 77277R | Fuel tank filler pipe protection device | 77277-32020 · 77277-32030 |
| 77278 | No. 2 fuel return pipe | 77278-32010 |
| 77290 | Fuel tank filler pipe cover assembly | 77290-32020 · 77290-32021 |
| 77293A | No. 3 fuel tank filler pipe cover | 77293-20010 |
| 77350 | Fuel filler cap assembly | 77350-32030 · 77350-32040 |
| 77366 | Fuel filler cap hinge spring | 77360-24010 |
| 77377 | Fuel filler cap lock retainer | 77377-20030 |
| 77380 | Fuel shut-off valve assembly | 77380-14020 |
| 77387 | fuel inlet ring | 77391-16011 |
| 77611 | fuel tank strap | 77601-32050 · 77601-32060 · 77602-32040 · 77602-32050 |
| 77613A | No. 1 fuel tank strap bracket | 77613-20080 |
| 77614B | No. 2 fuel tank strap bracket | 77614-32030 |
| 77641A | No. 1 fuel tank protective shell | 77641-32040 |
| 77642A | No. 2 fuel tank protective shell | 77642-20020 |
| 77652 | No. 1 fuel tank liner | 77651-32040 · 77651-32050 · 77651-32060 |
| 77652A | No. 2 fuel tank liner | 77652-32030 · 77652-32050 |
| 77654 | No. 2 fuel tank liner | 77652-32030 |
| 77701T | Check valve (for main fuel tank) | 90917-10069 |
| 77701U | Fuel hose (for check valve) | 95333-06030 |
| 77740 | Carbon canister assembly | 77704-32020 |
| 77740A | No. 1 fuel hose (for canister) | 90999-92003 · 95411-19960 |
| 77740F | No. 1 fuel pipe (for charcoal canister) | 77264-32030 |
| 77751 | Carbon canister base bracket | 77751-32030 |
| 77754 | No. 1 carbon canister outlet hose | 77754-32020 |
| 77758 | Carbon canister cover | 77758-32010 |
