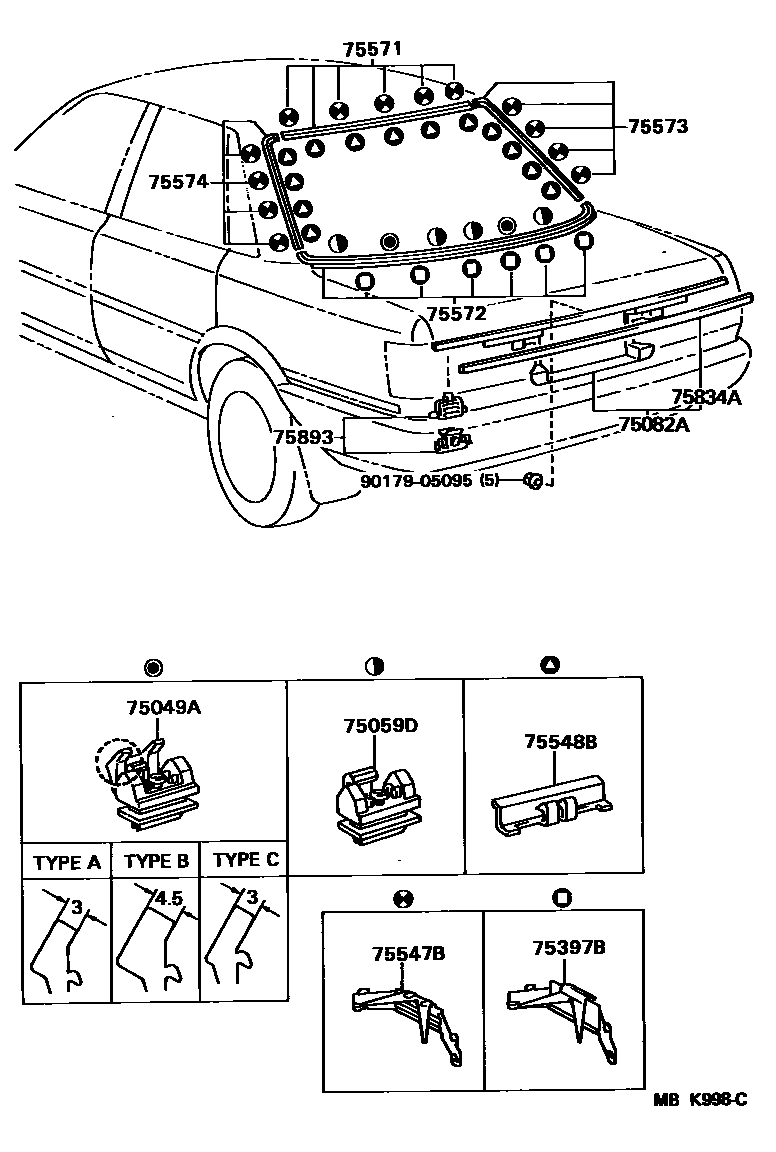

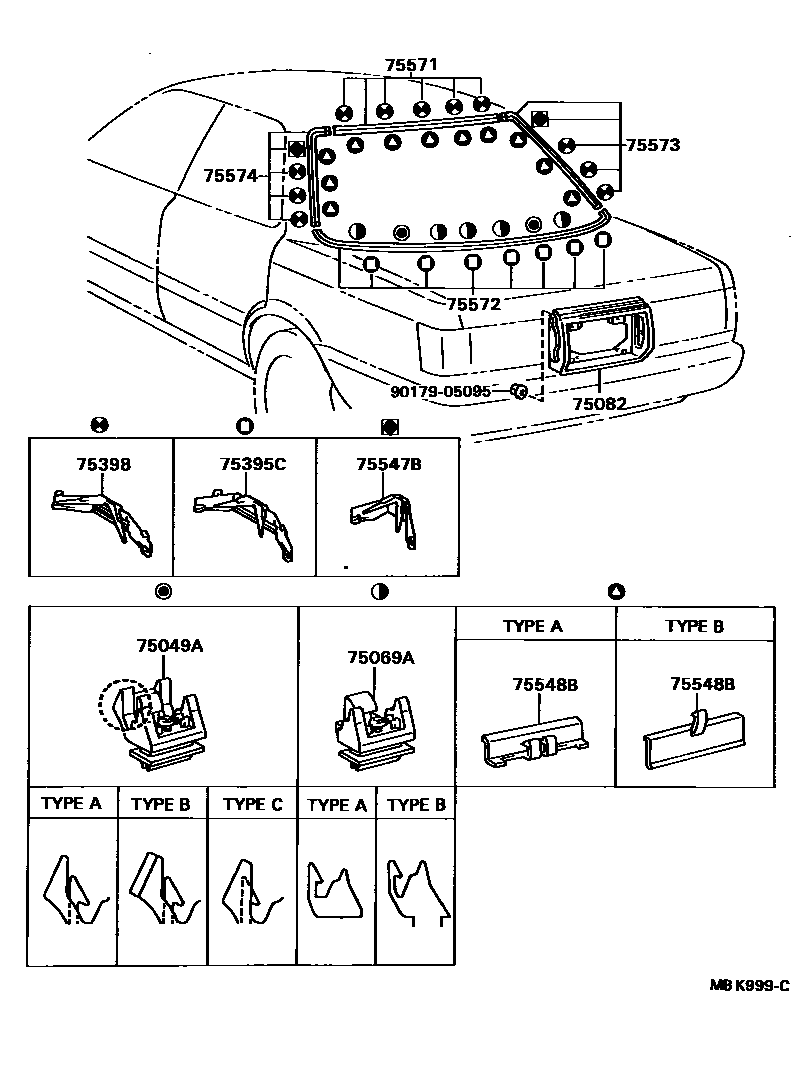

Toyota CAMRY 后防护条 — Figure 7504
Toyota CAMRY EPC diagram 7504, 后防护条, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75049A | No. 2 clip sub-assembly of outer protective strip | 75049-32010 · 75049-32040 · 75049-32041 · 75049-32050 · 75049-32060 · 75049-32070 · 75049-32080 |
| 75059D | No. 3 clip sub-assembly of outer protective strip | 75059-32010 |
| 75069A | No. 4 clip sub-assembly of outer protective strip | 75069-32020 · 75069-32021 · 75069-32030 |
| 75082 | Center rear lower decorative panel sub-assembly | 75082-32110 |
| 75082A | Trunk door decorative panel sub-assembly | 75082-32100 · 75082-32120 |
| 75395A | No. 1 outer protective strip clip | 75395-32020 |
| 75395C | No. 1 outer protective strip clip | 75395-32080 |
| 75397B | No. 3 rear window protective strip clip | 75397-32010 |
| 75398 | No. 5 outer protective strip clip | 75398-32010 |
| 75547B | No. 3 windshield outer protective strip clip | 75547-32010 · 75547-32030 |
| 75548B | Rear window protective strip fasteners | 75548-20060 · 75548-32040 |
| 75571 | Protective strips on the outside of the rear window | 75571-32030 · 75571-32040 |
| 75572 | Protective strip under rear window | 75507-32010 · 75575-32050 |
| 75573 | Right protective strip on rear window side | 75501-32010 · 75501-32020 |
| 75574 | Protective strip on the left side of the rear window | 75502-32010 · 75502-32020 |
| 75834A | Rear lower decorative panel protective strip | 75834-32020 |
| 75893 | Trunk door protective strip fixings | 75893-32010 |
