Toyota CAMRY 侧防护条 — Figure 7503

Toyota CAMRY EPC diagram 7503, 侧防护条, with 2 images and 22 PNC and OE references.

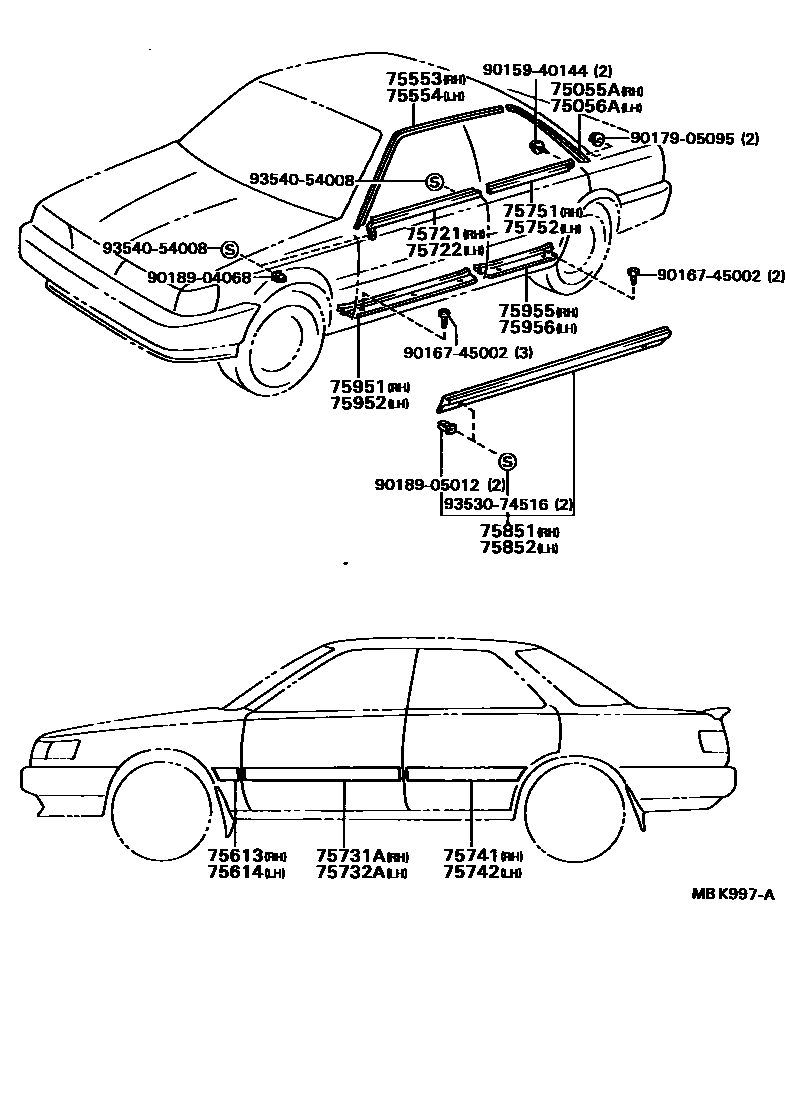

Toyota CAMRY 侧防护条 EPC diagram — MBK997A
侧防护条 — MBK997A (198608 – 999999)

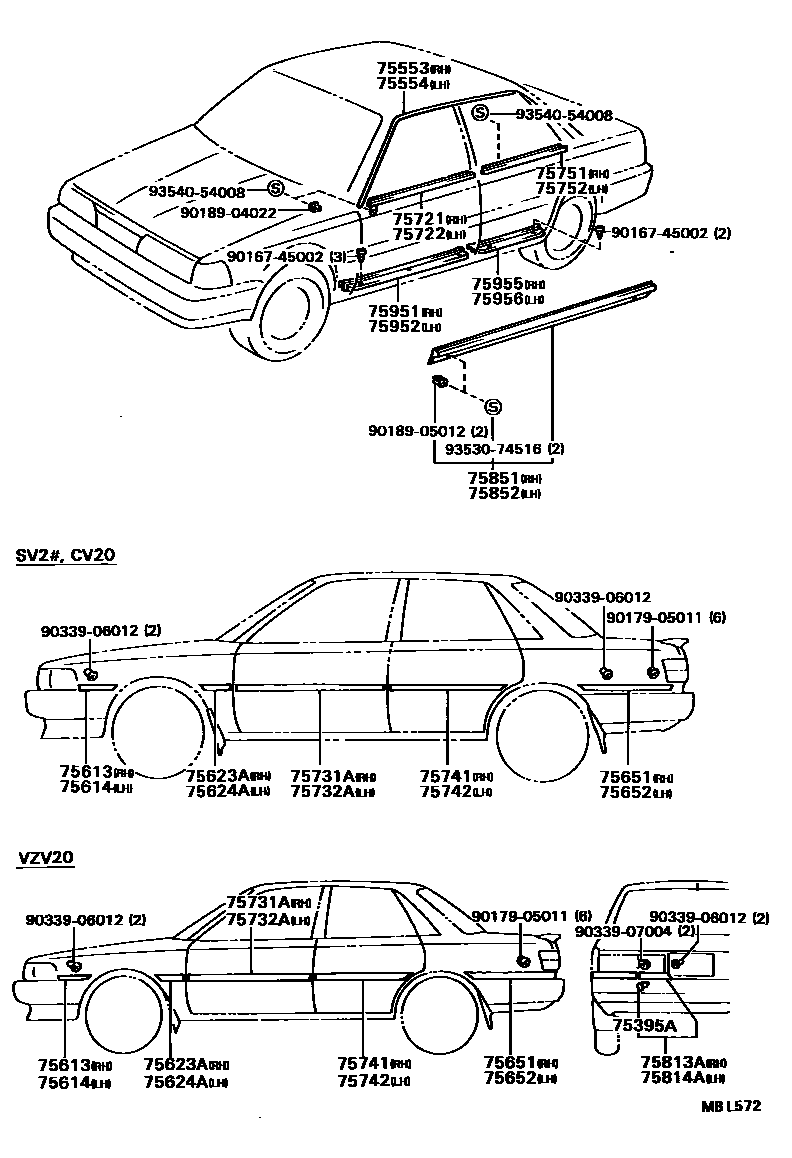

Toyota CAMRY 侧防护条 EPC diagram — MBL572
侧防护条 — MBL572 (198608 – 999999)

PNC and OE references

PNCPart nameOE numbers
75055ARight side enclosure outer decorative panel sub-assembly75055-32010
75056ALeft side enclosure outer decorative panel sub-assembly75056-32010
75553Drainage groove side decorative strip on the right side of the roof75551-32030 · 75551-32050
75554Drainage groove side decorative strip on the left side of the roof75552-32030 · 75552-32050
75613Right front fender outer protective strip75611-32090 · 75613-32010 · 75613-32030
75614Left front fender outer protective strip75612-32090 · 75614-32010 · 75614-32030
75623ARight front fender outer rear protective strip75623-32040 · 75623-32050
75624ALeft front fender outer rear protective strip75624-32040 · 75624-32050
75651Right side outer protective strip75651-32010 · 75651-32060
75652Left side outer protective strip75652-32010 · 75652-32060
75721Right front door waistline protection strip75710-32030 · 75710-32040 · 75710-32050
75722Left front door waistline protection strip75720-32030 · 75720-32040 · 75720-32050
75731ARight front door outer protective strip75731-32120 · 75731-32130 · 75731-32150
75732ALeft front door outer protective strip75732-32120 · 75732-32130 · 75732-32150
75741Right rear door outer protective strip75741-32150 · 75741-32160 · 75741-32180 · 75741-32190
75742Left rear door outer protective strip75742-32150 · 75742-32160 · 75742-32180 · 75742-32190
75751Right rear door waistline protection strip75730-32020 · 75730-32030
75752Left rear door waistline protection strip75740-32020 · 75740-32030
75813ALuggage door right side protective strip75813-32030
75814ALuggage door left protective strip75814-32010
75851Right side door sill panel protective strip75850-39065
75852Left side door sill panel protective strip75850-39065
