Toyota CAMRY 前防护条 — Figure 7502

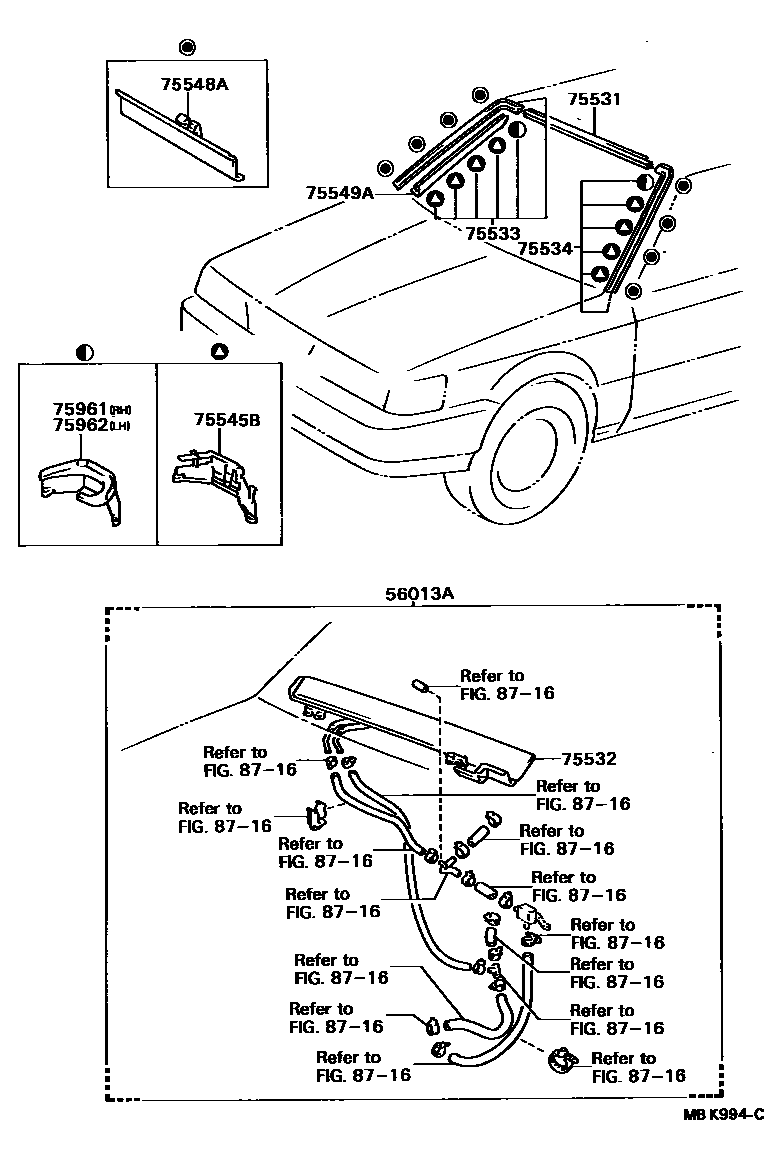

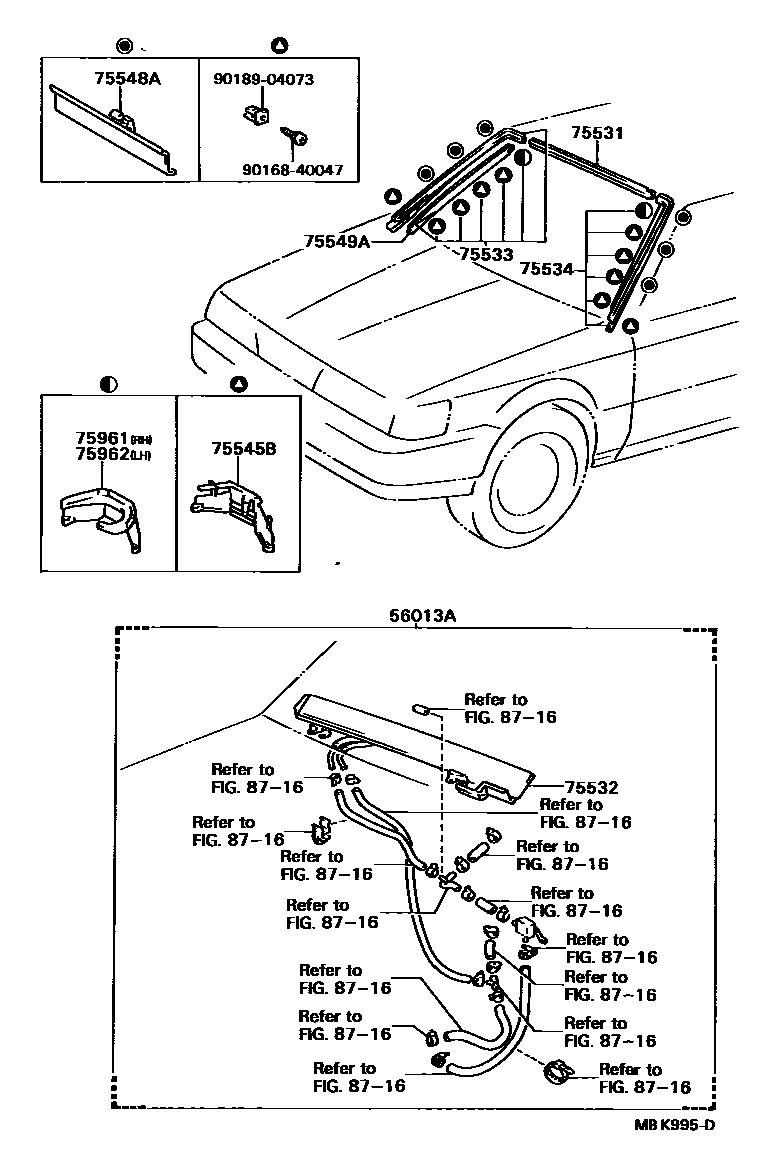

Toyota CAMRY EPC diagram 7502, 前防护条, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56013A | Front center window inner protective strip sub-assembly | 56013-32010 · 56013-32020 |
| 75531 | Windshield outer protective strip | 75531-32030 · 75531-32050 |
| 75532 | Lower windshield protection strip | 75504-32010 |
| 75533 | Windshield right outer protective strip | 75533-32030 · 75533-32040 |
| 75534 | Windshield left outer protective strip | 75534-32030 · 75534-32040 |
| 75545B | No. 1 windshield outer protective strip clip | 75545-32020 |
| 75548A | No. 1 windshield outer protective strip fasteners | 75548-20060 |
| 75549A | Windshield outer auxiliary protective strip | 75549-32020 · 75549-32040 |
| 75961 | No. 4 windshield outer protective strip clip | 75961-32010 · 75961-32020 |
| 75962 | No. 5 windshield outer protective strip clip | 75961-32020 · 75962-32010 |
