Toyota CAMRY 丰田徽标和铭牌(车外和车内) — Figure 7501

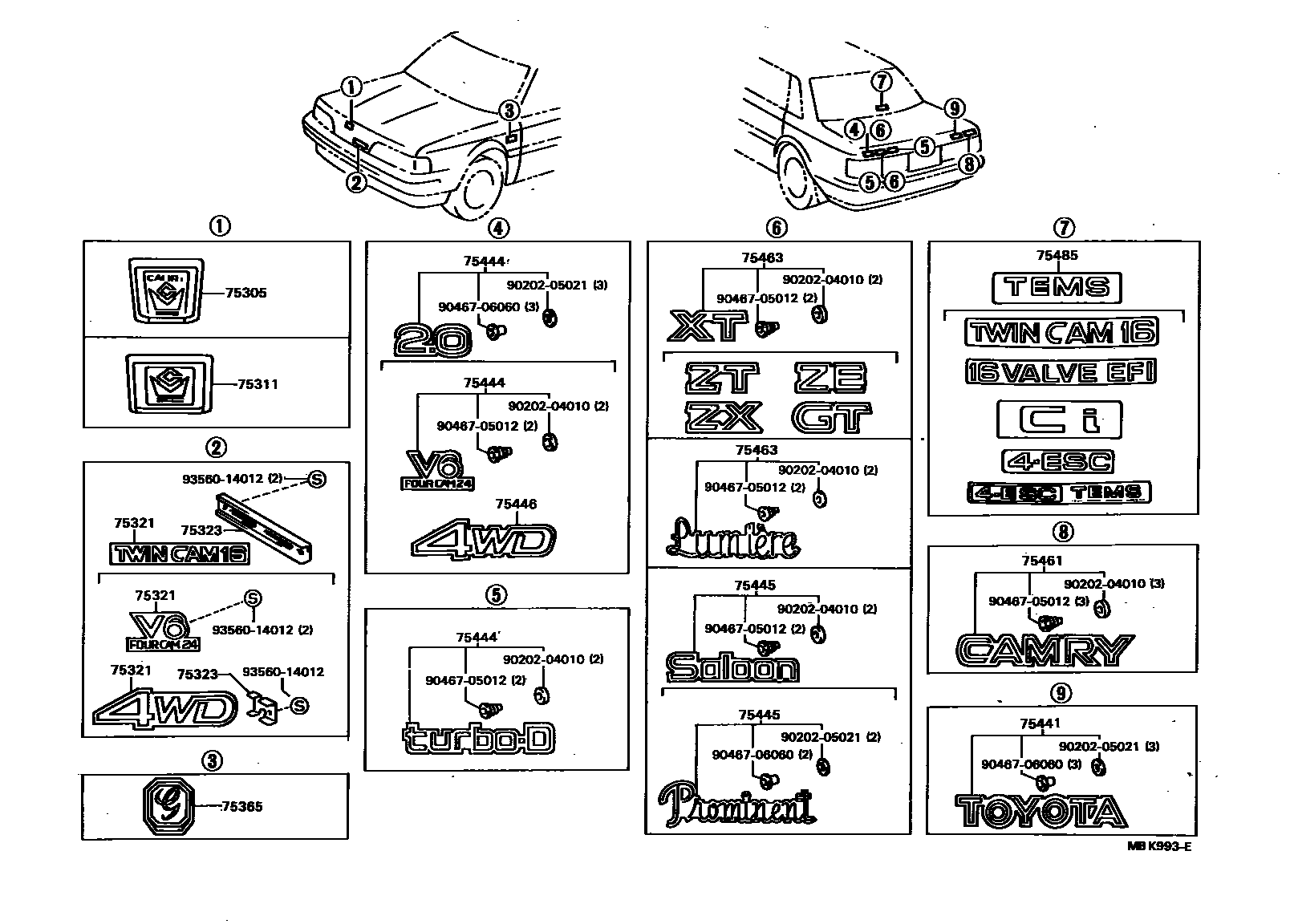

Toyota CAMRY EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75305 | engine cover plate | 75331-32020 |
| 75311 | Radiator grille (or front panel) plate | 75301-32010 · 75301-32020 · 75311-32090 |
| 75321 | Radiator grille or front plate | 75312-32030 · 75312-32070 · 75321-32010 · 75321-32020 · 75321-32040 |
| 75323 | Radiator grille fixings | 75324-32020 · 75324-32030 · 75324-32060 |
| 75365 | Front fender label | 75351-32010 |
| 75441 | Rear No. 1 nameplate (factory mark) | 75441-32020 · 75441-32040 |
| 75444 | Trunk door No. 4 nameplate | 75444-32060 · 75444-32070 · 75444-32090 · 75444-32130 |
| 75445 | Trunk door No. 5 name plate | 75445-32020 · 75445-32030 · 75445-32040 |
| 75446 | Trunk door No. 6 nameplate | 75446-32010 |
| 75461 | Rear No. 2 nameplate (model mark) | 75442-32050 · 75442-32060 · 75442-32080 |
| 75463 | Rear No. 4 nameplate (grade mark) | 75443-32190 · 75443-32200 · 75443-32210 · 75443-32220 · 75443-32230 · 75443-32240 · 75443-32250 · 75443-32260 · 75443-32270 · 75443-32400 · 75443-32410 · 75443-32430 |
| 75485 | Back window nameplate | 75471-32010 · 75485-32030 · 75485-32040 · 75485-32050 · 75485-32060 · 75485-32070 |
