Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101

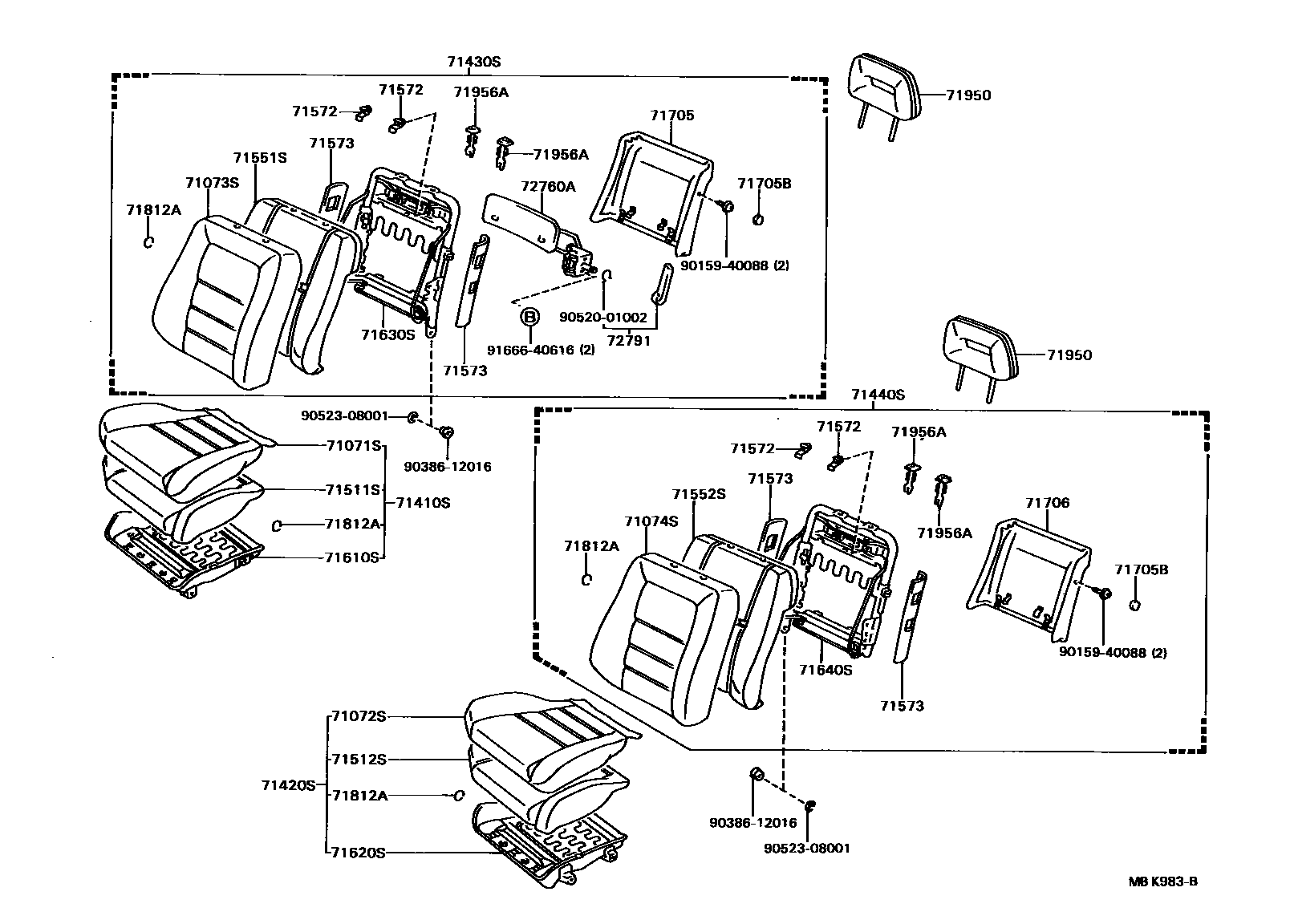

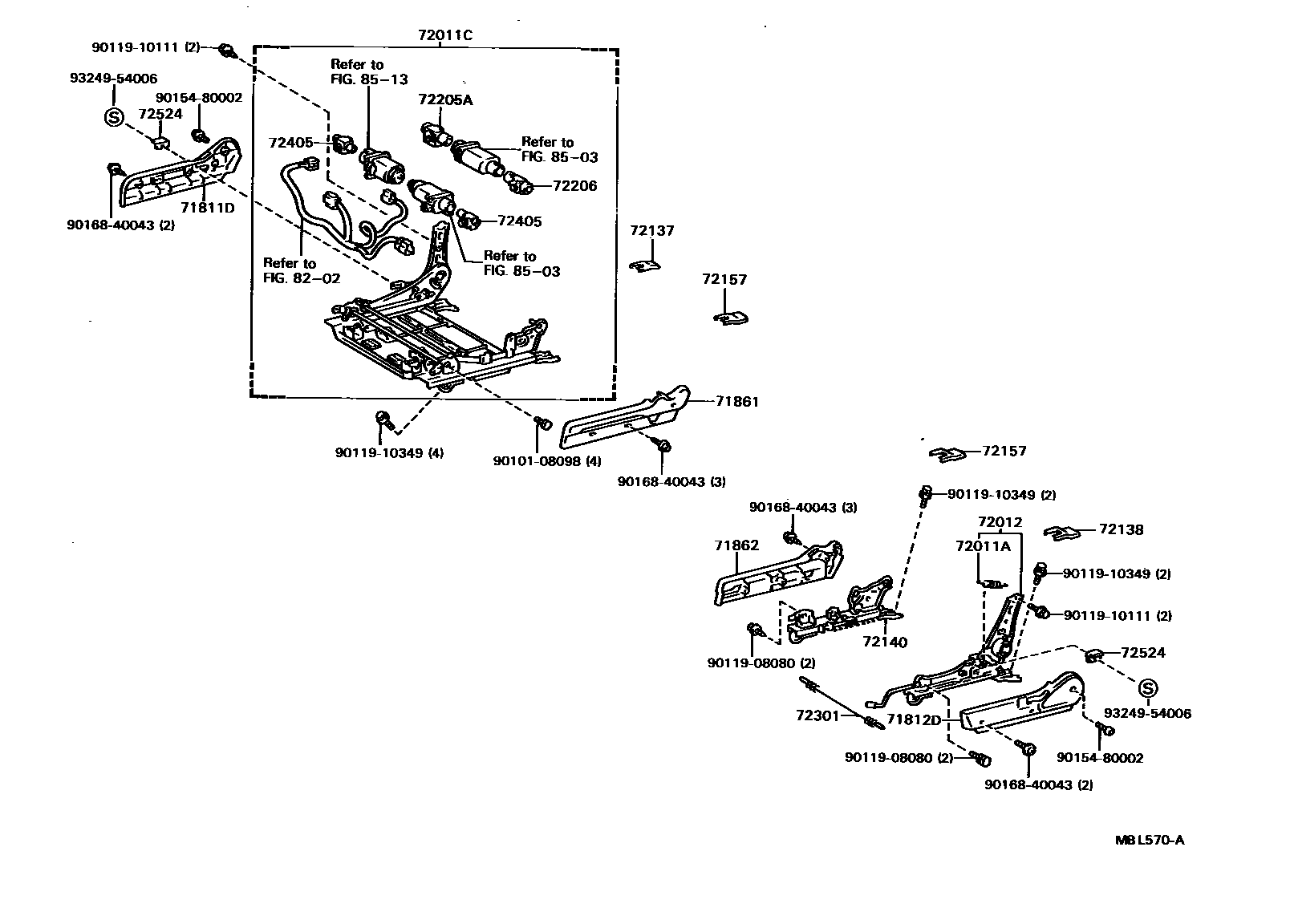

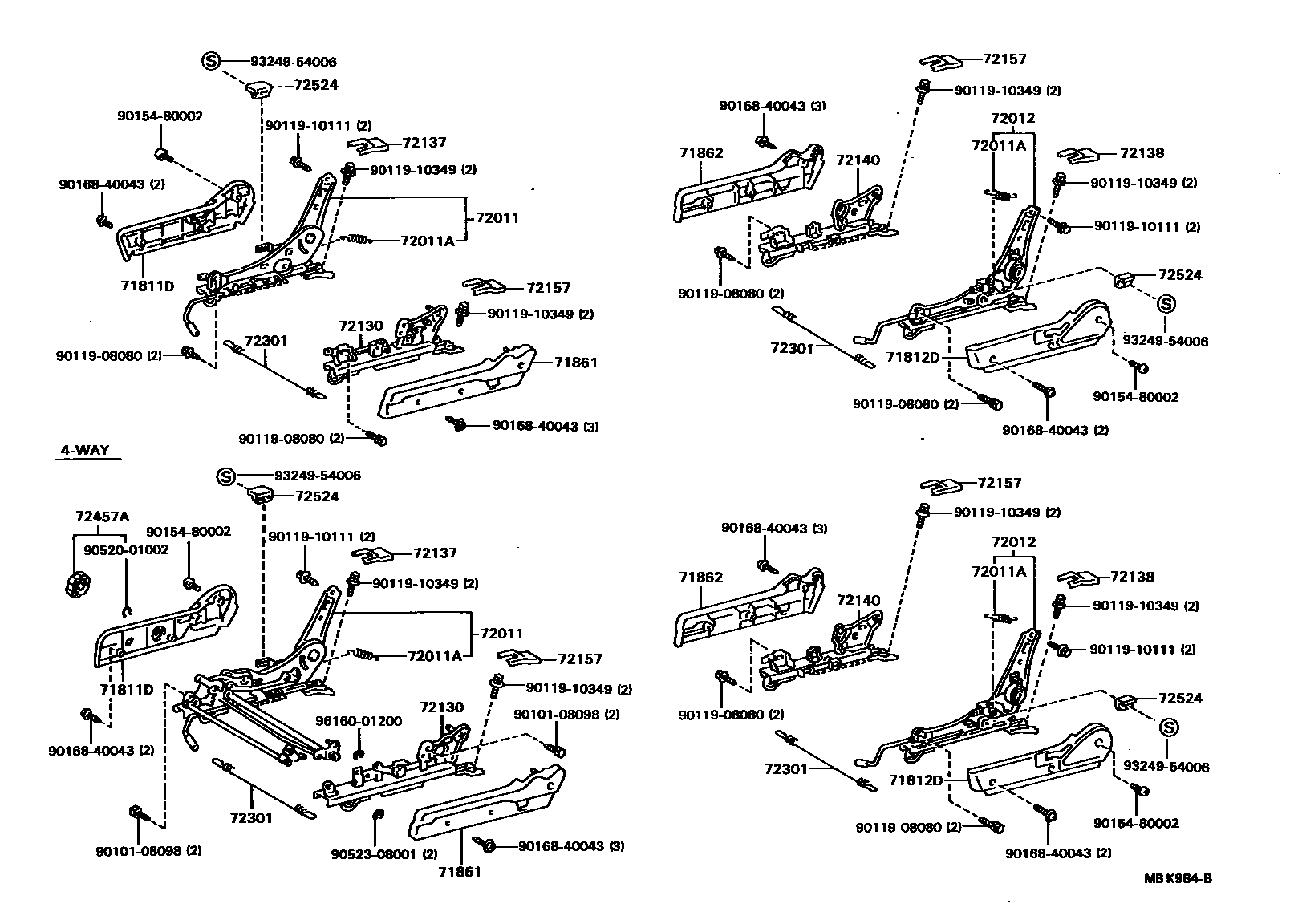

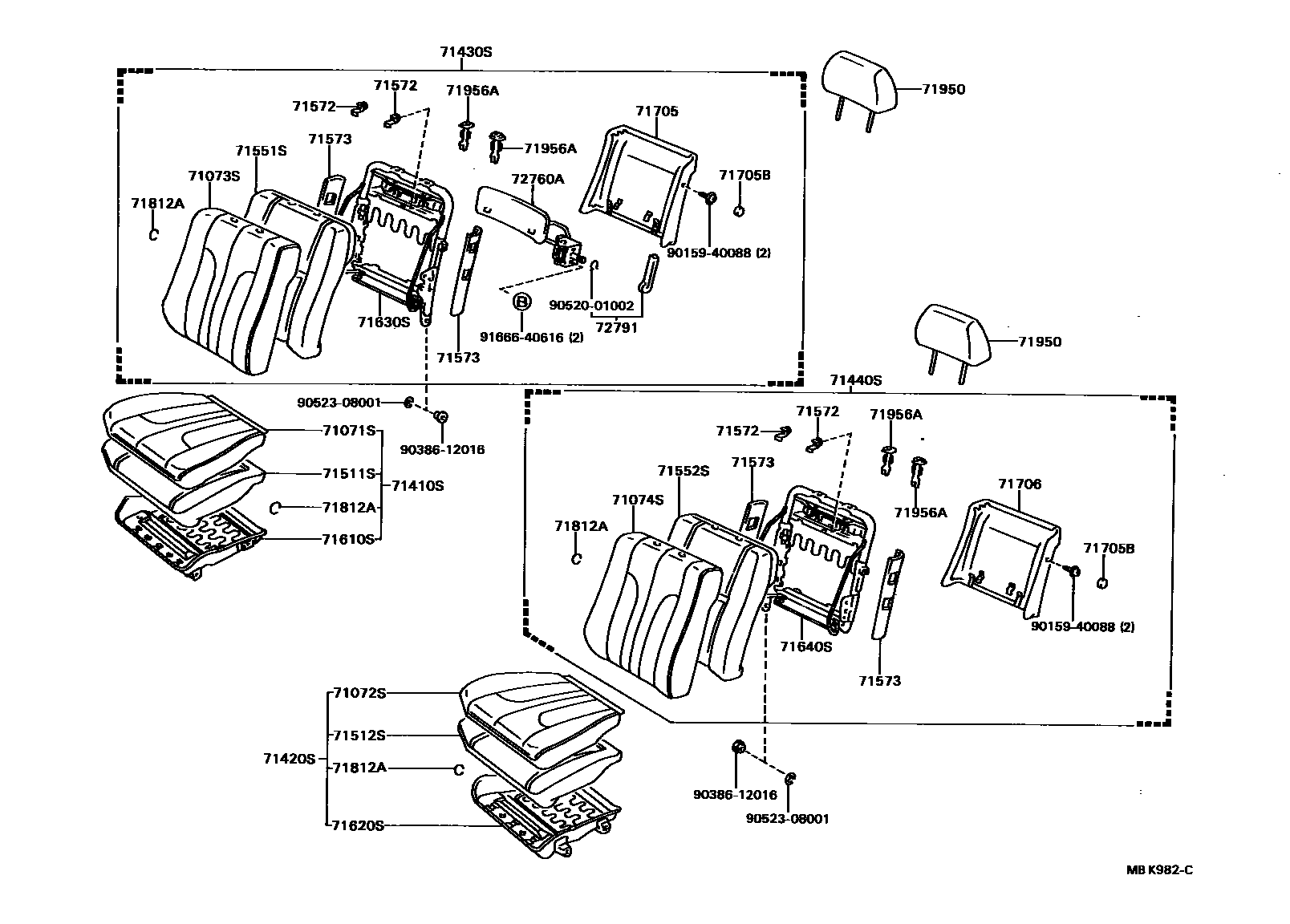

Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71511S | Front right seat cushion cushion (for split seats) | 71511-32080 · 71511-32100 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-32100 · 71511-32130 |
| 71551S | Front right seat back cushion (for split seats) | 71551-32080 · 71551-32090 |
| 71552S | Front left seat back cushion (for split seats) | 71551-32080 · 71551-32090 |
| 71572 | Front B seat back muffler | 71572-30040 |
| 71573 | Front C seat back muffler | 71583-32030 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-32030 · 71610-32040 · 71610-32080 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71610-32030 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-32070 · 71630-32080 · 71630-32090 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-32030 · 71640-32040 |
| 71812A | Small clamp ring (for front seats) | 90468-18071 |
| 72011 | Front right seat outer adjuster sub-assembly | 72010-32020 · 72010-32030 |
| 72011A | Tension spring (for front seat outer adjusters) | 90506-20045 |
| 72011C | Front right seat adjuster sub-assembly | 72010-32010 |
| 72012 | Front left seat outer adjuster sub-assembly | 72020-32010 |
| 72130 | Right seat inner slide rail assembly | 72130-32010 · 72130-32020 |
| 72140 | Left seat inner slide rail assembly | 72140-32010 |
| 72205A | No. 1 electric seat shell sub-assembly | 72205-22010 |
| 72206 | No. 2 electric seat shell sub-assembly | 72206-22010 |
| 72301 | Seat slide rail balance harness sub-assembly | 72301-32020 |
| 72405 | Front vertical seat shell sub-assembly | 72405-22010 |
| 72760A | Lumbar support adjuster assembly | 72750-32020 |
