Toyota CAMRY 前门板和前门玻璃 — Figure 6701

Toyota CAMRY EPC diagram 6701, 前门板和前门玻璃, with 3 images and 40 PNC and OE references.

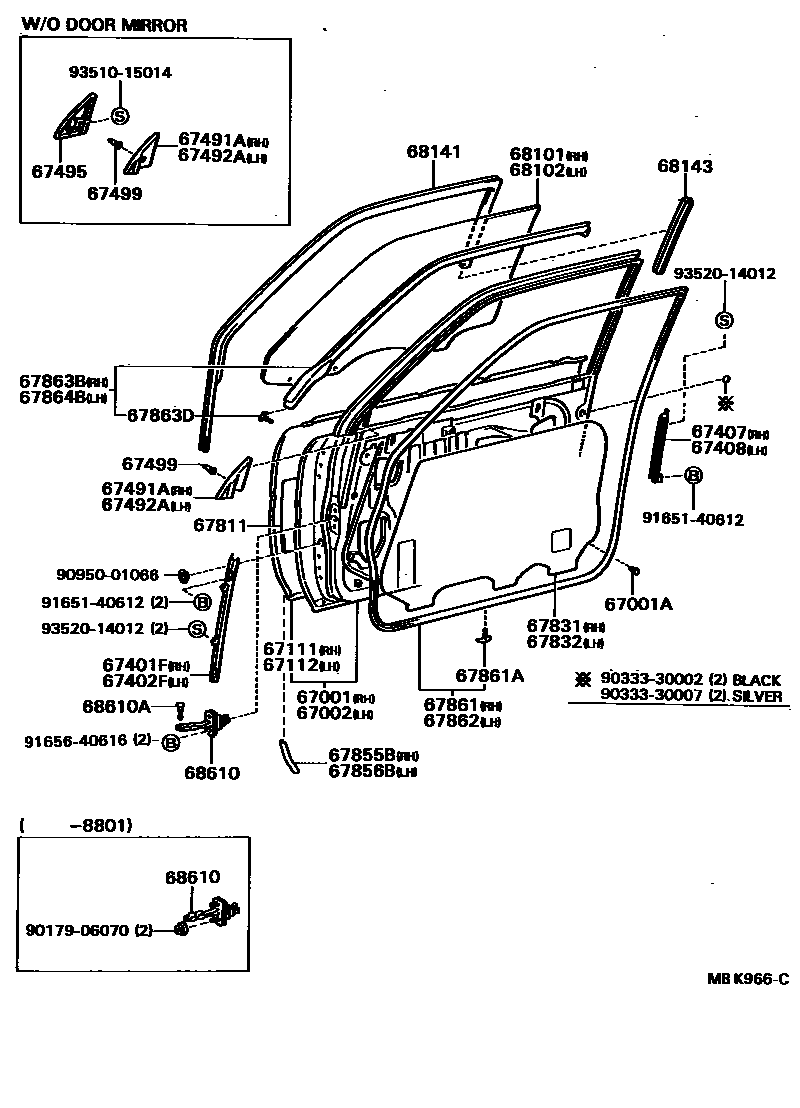

Toyota CAMRY 前门板和前门玻璃 EPC diagram — MBK966C
前门板和前门玻璃 — MBK966C (198608 – 999999)

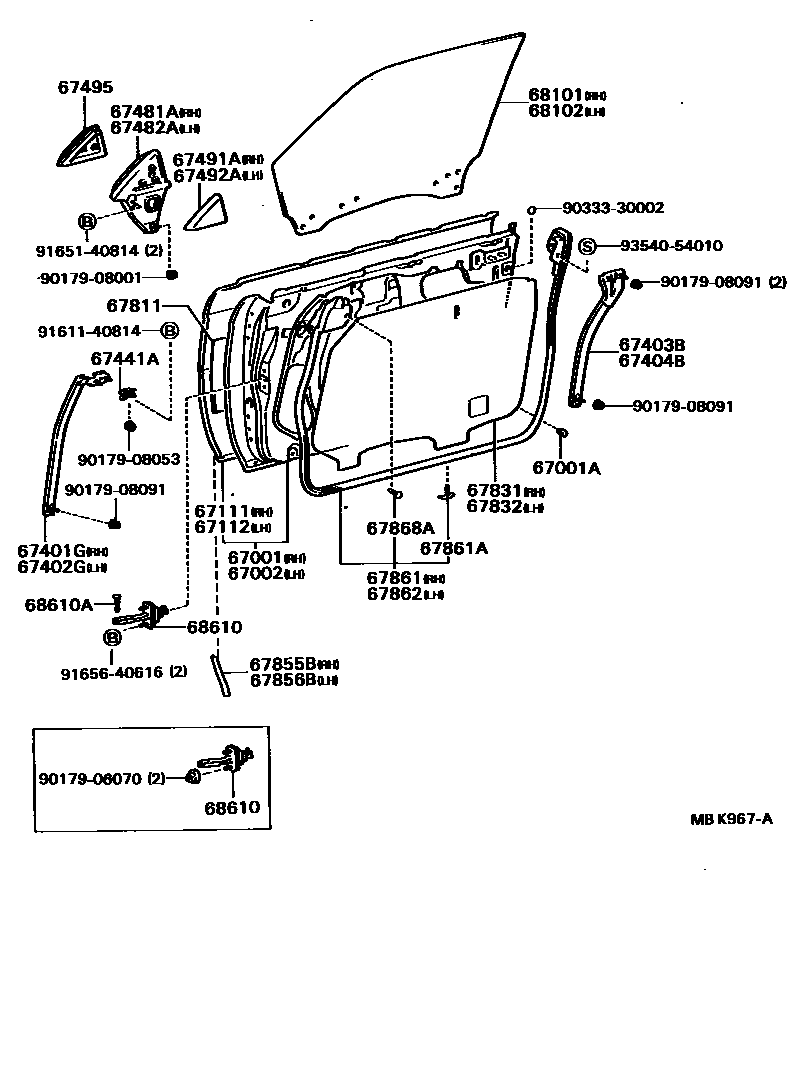

Toyota CAMRY 前门板和前门玻璃 EPC diagram — MBK967A
前门板和前门玻璃 — MBK967A (198608 – 999999)

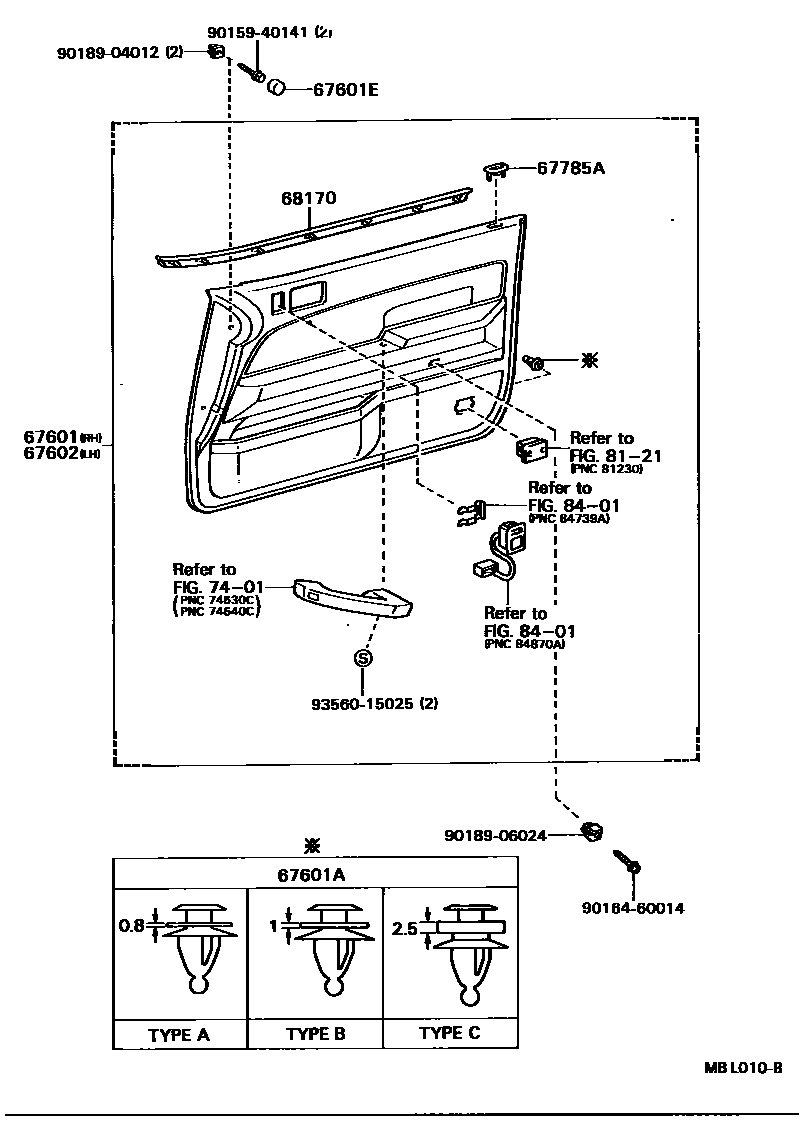

Toyota CAMRY 前门板和前门玻璃 EPC diagram — MBL010B
前门板和前门玻璃 — MBL010B (198608 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-32170 · 67001-32190 · 67001-32200 · 67001-32220 · 67001-32230
67001AFront door panel cushion90541-09006 · 90541-09054
67002Left front door panel sub-assembly67002-32190 · 67002-32220 · 67002-32230
67111Outer right front door panel67111-32040 · 67111-32060
67112Outer left front door panel67112-32040 · 67112-32060
67401FRight front door front lower door frame sub-assembly67401-32070 · 67401-32080
67401GRight front door window glass front guide groove sub-assembly67401-32090
67402FLeft front door front lower door frame sub-assembly67402-32070 · 67402-32080
67402GLeft front door window glass front guide groove sub-assembly67402-32090
67403BRight front door window glass rear guide channel sub-assembly67403-32030
67404BLeft front door window glass rear guide channel sub-assembly67404-32030
67407Right front door rear lower door frame sub-assembly67403-32020
67408Left front door rear lower door frame sub-assembly67404-32020
67441AFront door front guide channel upper plate67441-32020
67481ARight front door front lower door frame seal67481-32080
67482ALeft front door front lower door frame seal67482-32070
67491ARight front door lower door frame bracket decorative strip67491-32060 · 67491-32070 · 67491-32090
67492ALeft front door lower door frame bracket decorative strip67492-32060 · 67492-32070 · 67492-32090
67495Front door lower door frame upper cover67495-32030 · 67495-32050 · 67496-32030 · 67496-32050
67499Front door lower door frame bracket trim strip fixing67499-32010
67601AFixings (for front door trim)67771-14030 · 67771-14040 · 67771-32060
67811Front door silencer pad67812-12010
67831Right front door access hole cover67831-32050 · 67831-32060
67832Left front door access hole cover67831-32060 · 67832-32050
67855BRight front door panel protector58741-12060
67856BLeft front door panel protector58741-12060
67861Right front door seal67861-32090 · 67861-32100
67861AFixing piece (for front door sealing strip)67868-30040 · 67868-30050 · 67868-32010
67862Left front door seal67862-32090 · 67862-32100
67863BRight front door seal No. 267863-32010
67863DRight side fixing piece (for front door seal No. 2)67868-22010 · 67868-30040
67864BLeft front door seal No. 267864-32010
67868ADoor glass seal strip clip (for front door)67869-30020
68101Right front door glass sub-assembly68111-32090 · 68111-32100 · 68111-32110 · 68111-32120 · 68111-32130 · 68111-32140
68102Left front door glass sub-assembly68112-32090 · 68112-32100 · 68112-32110 · 68112-32120 · 68112-32130 · 68112-32140
68141Front door glass lift chute68141-32070 · 68141-32080 · 68151-32010 · 68151-32020
68143Lift chute under front door glass68143-32040
68170Front door glass inner sealing strip assembly68170-32040 · 68170-32050 · 68170-32060 · 68220-32060 · 68220-32070
68610Front door opening limiter assembly68610-32040 · 68610-32041
68610APin (for front door opening limiter)68617-32010
