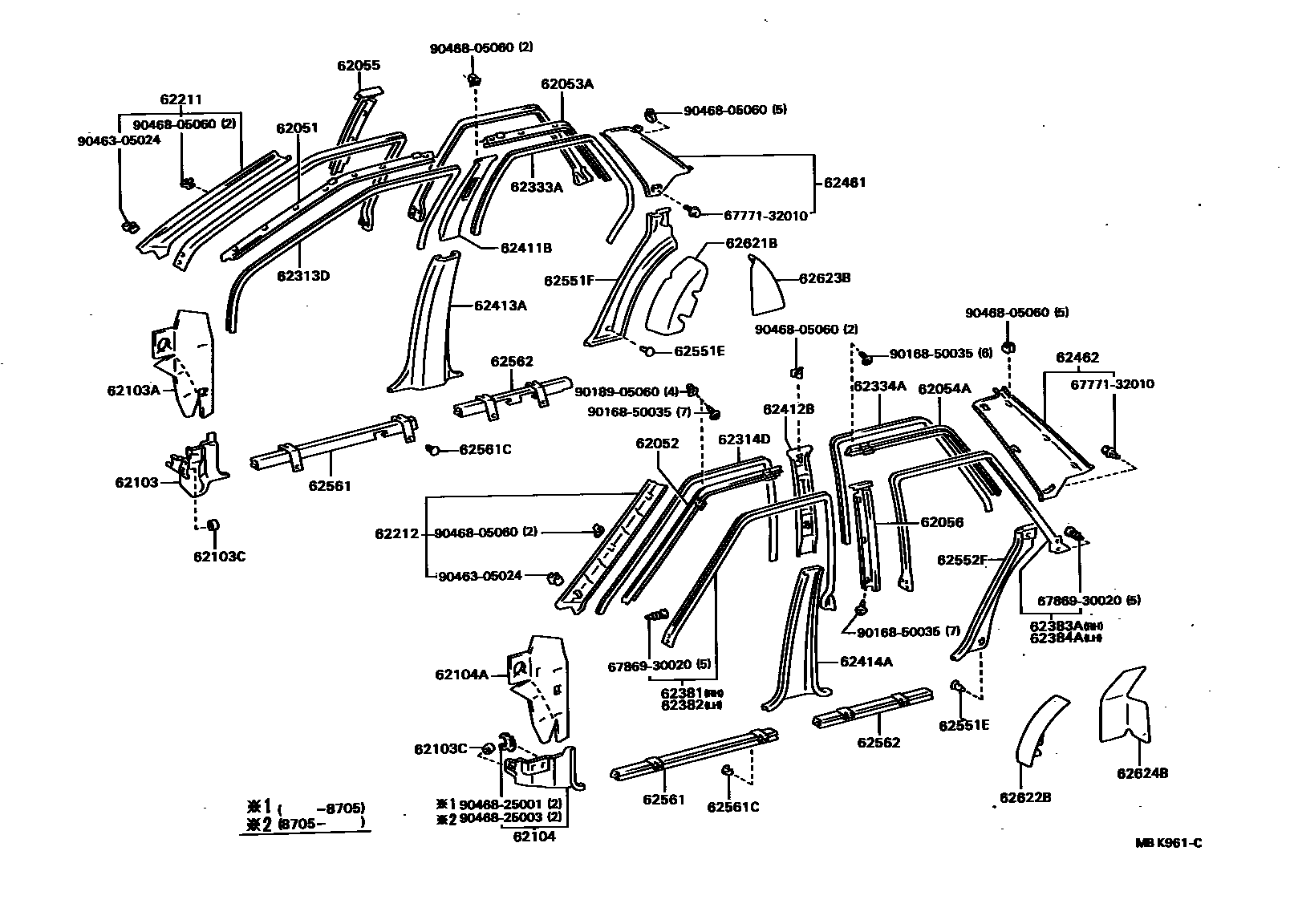

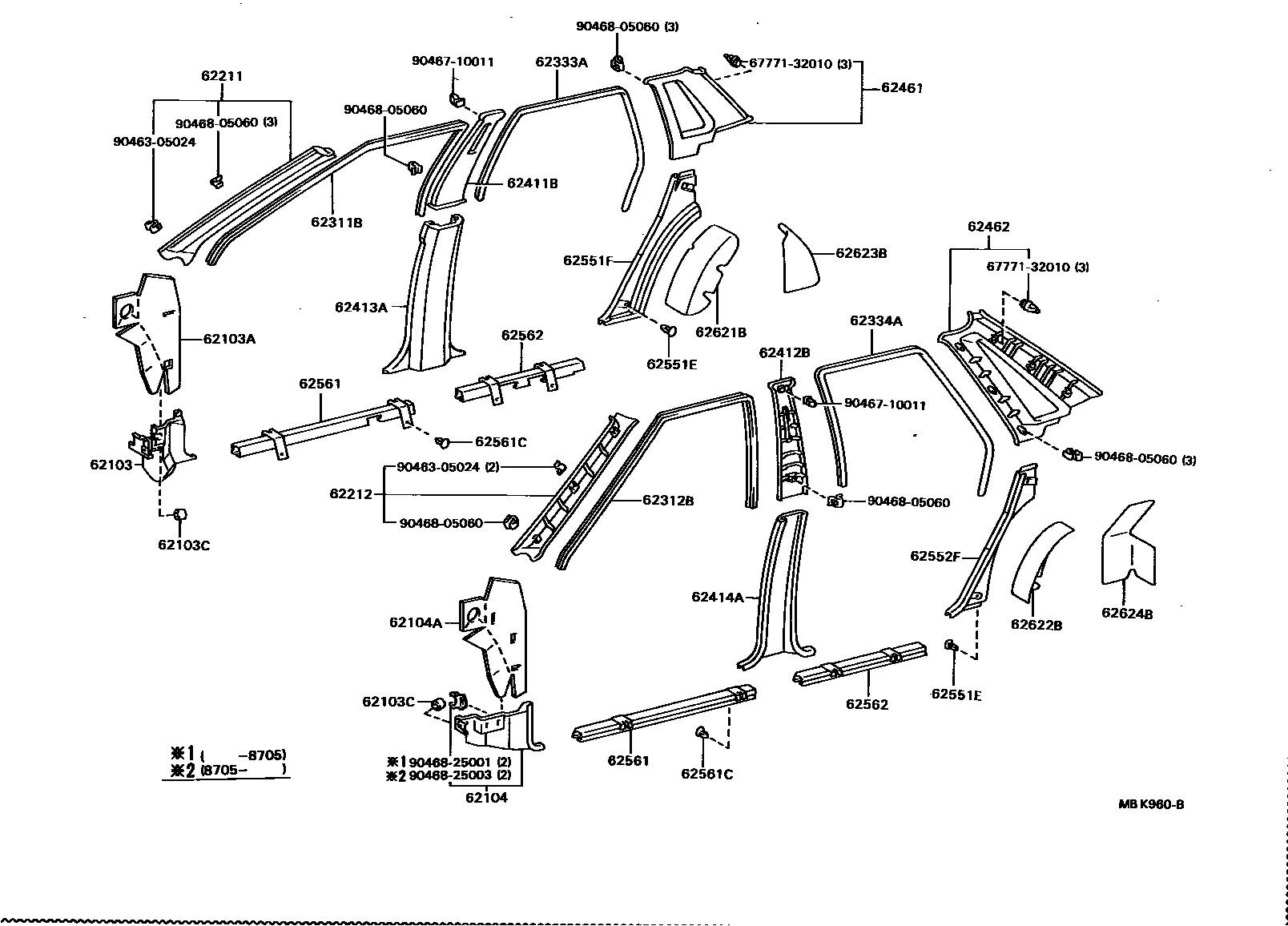

Toyota CAMRY 内饰板和车门防水胶条 — Figure 6401
Toyota CAMRY EPC diagram 6401, 内饰板和车门防水胶条, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62051 | Right front roof side sealing strip fixing sub-assembly | 62051-32010 |
| 62052 | Left front roof side sealing strip fixing sub-assembly | 62052-32010 |
| 62053A | Right rear roof side sealing strip fixing sub-assembly | 62053-32010 |
| 62054A | Left rear roof side sealing strip fixing sub-assembly | 62054-32010 |
| 62055 | Right center pillar sealing strip fixing sub-assembly | 62055-32010 |
| 62056 | Left center pillar sealing strip fixing sub-assembly | 62056-32010 |
| 62103A | Right front wall side heat insulation pad sub-assembly | 62105-32030 |
| 62103C | Front wall side trim panel fixing clips | 90467-06074 |
| 62104A | Left front wall side heat insulation pad sub-assembly | 62106-32030 |
| 62381 | Right front roof rail sealing strip | 62381-32010 |
| 62382 | Left front roof rail sealing strip | 62382-32010 |
| 62383A | Right rear roof rail sealing strip | 62383-32010 |
| 62384A | Left rear roof rail sealing strip | 62384-32010 |
| 62561 | Front door inner sill protection strip | 62561-32020 · 62562-32020 |
| 62562 | Rear door inner sill protection strip | 62563-32020 · 62564-32020 |
| 62621B | Right front side wheel housing lining block | 67812-12010 |
| 62622B | Left front side wheel housing lining block | 67812-12010 |
| 62623B | Right rear side wheel housing lining block | 62623-32010 |
| 62624B | Left rear side wheel housing lining block | 62624-20030 · 62624-32010 |
