Toyota CAMRY 侧梁 — Figure 6101

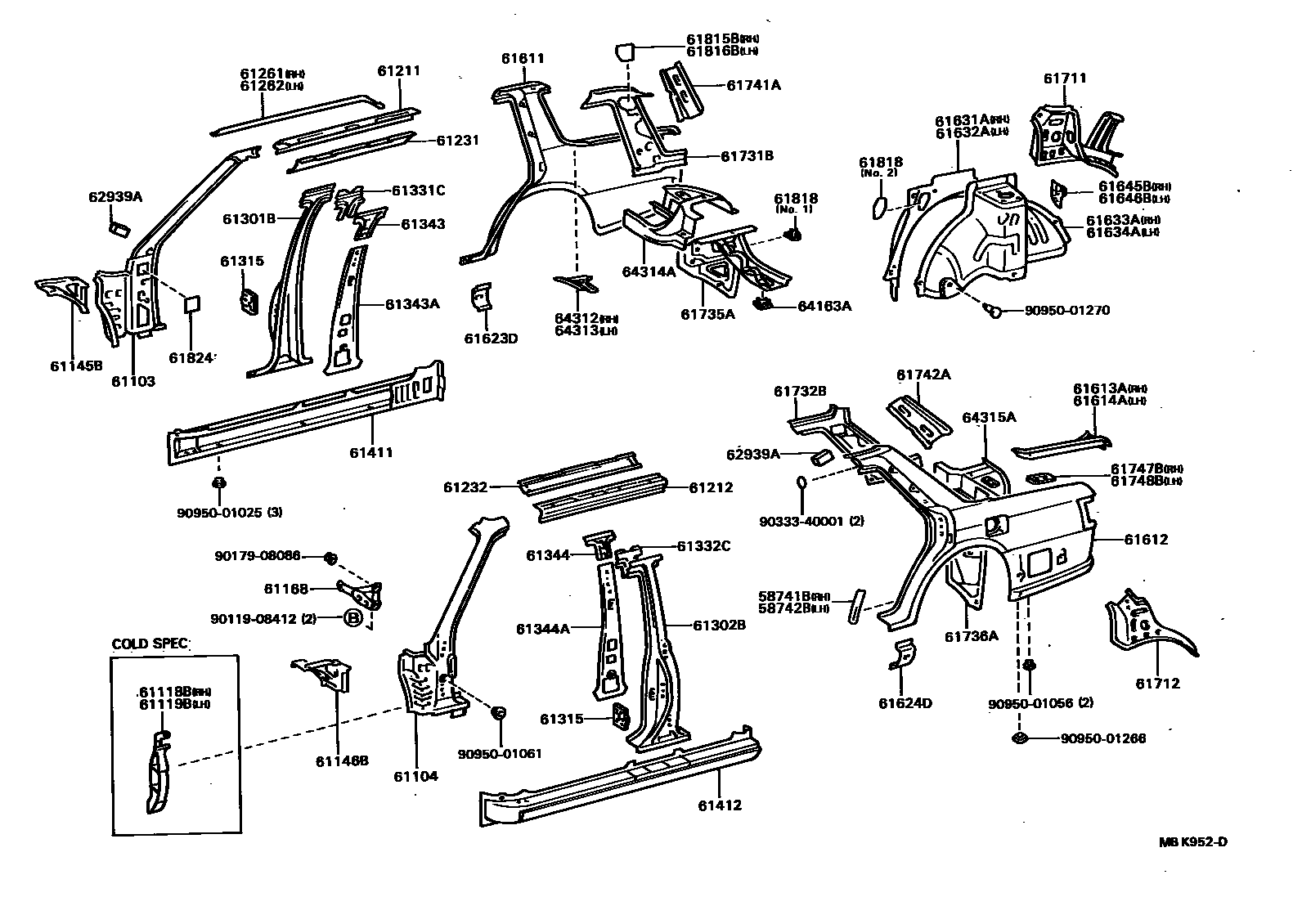

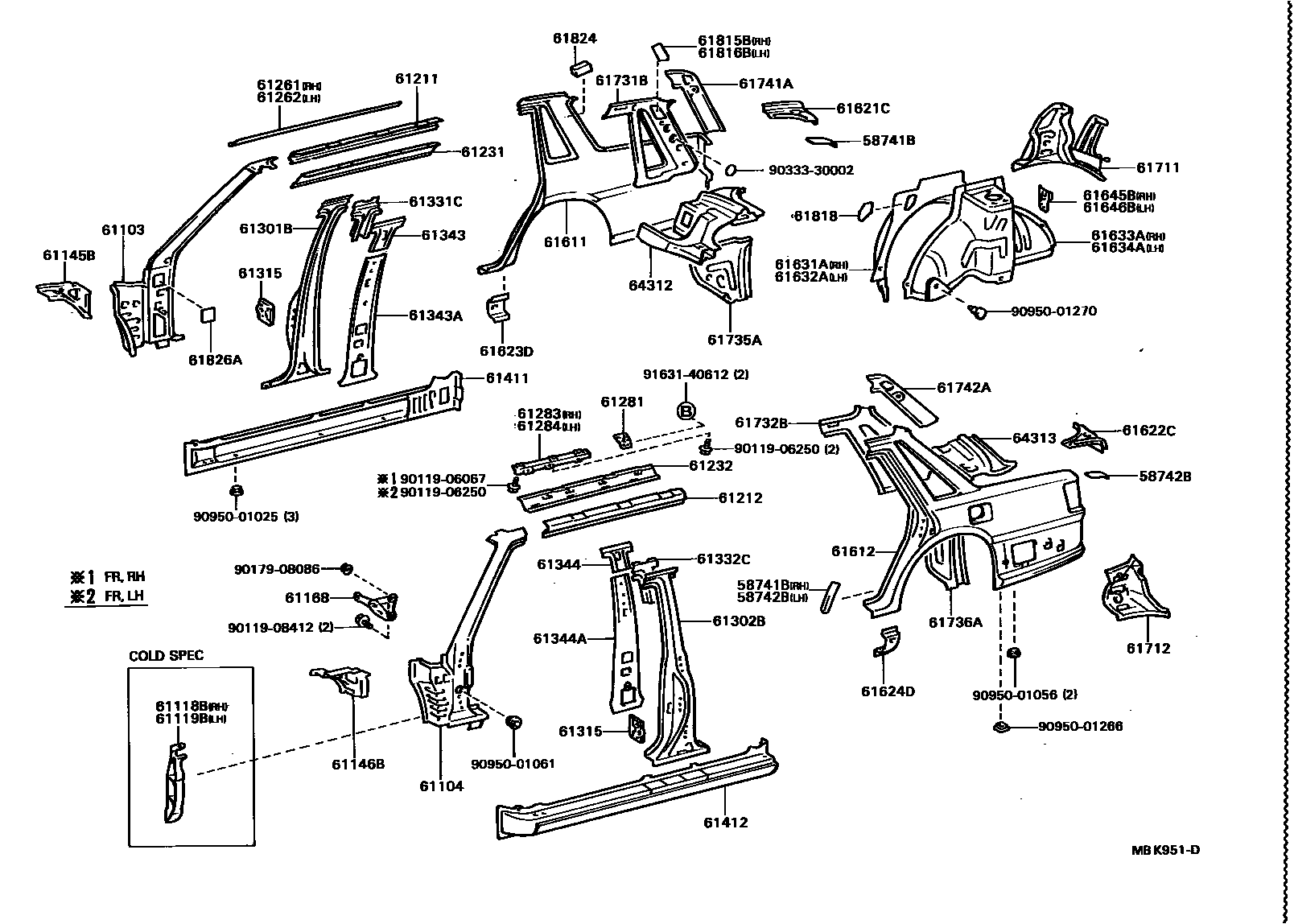

Toyota CAMRY EPC diagram 6101, 侧梁, with 2 images and 64 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58741B | Right side enclosure protection panel | 58741-12060 · 58741-32010 |
| 58742B | Left side enclosure protection panel | 58741-12060 · 58742-32010 |
| 61103 | Right body front pillar sub-assembly | 61021-32250 · 61021-32260 · 61021-32350 · 61021-32360 |
| 61104 | Left body front pillar sub-assembly | 61022-32300 · 61022-32370 |
| 61118B | Seal from body front pillar to right front fender | 61118-32020 |
| 61119B | Seal from body front pillar to left front fender | 61119-32020 |
| 61145B | Right body front pillar lower corner panel | 61145-32010 |
| 61146B | Left body front pillar lower corner panel | 61146-32010 |
| 61168 | Dashboard to left front wall side bracket | 61166-32010 |
| 61211 | Roof right outer longitudinal beam | 61211-32030 · 61211-32050 |
| 61212 | Roof left outer longitudinal beam | 61212-32030 · 61212-32050 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-32140 · 61231-32210 |
| 61232 | Roof left inner longitudinal beam | 61232-32140 · 61232-32210 |
| 61261 | Drainage channel on the right side of the roof | 61261-32030 · 61261-32050 |
| 61262 | Drainage channel on the left side of the roof | 61262-32030 · 61262-32050 |
| 61281 | Sliding skylight frame No. 1 mounting bracket | 61281-32030 |
| 61283 | Sliding sunroof frame No. 3 right mounting bracket | 61283-32030 |
| 61284 | Sliding sunroof frame No. 3 left mounting bracket | 61284-32030 |
| 61301B | Right body outer center pillar | 61301-32900 · 61301-32901 · 61301-32902 |
| 61302B | Left body outer center pillar | 61302-32900 · 61302-32901 · 61302-32902 |
| 61315 | Door latch plate fixing parts | 61315-22020 |
| 61331C | Right outer center pillar reinforcement | 61331-32010 · 61331-32020 |
| 61332C | Reinforcement member on the left outer center pillar | 61332-32010 · 61332-32020 |
| 61343 | Right inner middle pillar | 61341-32040 · 61341-32050 |
| 61343A | Right body inner center pillar | 61343-32902 · 61343-32903 · 61343-32904 |
| 61344 | Left side inner center pillar | 61342-32040 · 61342-32050 |
| 61344A | Left body inner center pillar | 61344-32902 · 61344-32903 · 61344-32904 |
| 61411 | Right door outer sill panel | 61401-32040 |
| 61412 | Left door outer sill panel | 61402-32040 |
| 61611 | Right side hoarding | 61601-32906 · 61601-32907 · 61601-32914 · 61601-32915 |
| 61612 | left side panel | 61602-32907 · 61602-32908 · 61602-32922 · 61602-32924 |
| 61613A | Right rear side panel extension | 61625-32010 |
| 61614A | Left rear side panel extension | 61626-32010 |
| 61621C | Luggage right opening slot | 61621-32030 |
| 61622C | Luggage trunk left opening slot | 61622-32030 |
| 61623D | Right front side panel extension | 61623-32020 |
| 61624D | Left front side panel extension | 61624-32020 |
| 61631A | Right wheel cover outer panel | 61631-32030 · 61631-32060 · 61631-32900 · 61631-32902 |
| 61632A | Left side wheel cover outer panel | 61632-32030 · 61632-32060 · 61632-32900 · 61632-32902 |
| 61633A | Right wheel housing lining panel | 61603-32902 · 61603-32903 · 61603-32908 |
| 61634A | Left side wheel housing lining panel | 61604-32902 · 61604-32903 · 61604-32908 |
| 61645B | Right rear side wheel housing corner panel | 61645-32030 · 61645-32040 |
| 61646B | Left rear side wheel housing corner panel | 61646-32020 · 61646-32030 |
| 61711 | Roof right side outer panel | 61711-32900 · 61711-32902 |
| 61712 | Roof left outer panel | 61712-32050 · 61712-32900 |
| 61731B | Roof right inner panel | 61731-32030 · 61731-32040 · 61731-32090 |
| 61732B | Roof left inner panel | 61732-32030 · 61732-32040 · 61732-32090 |
| 61735A | Right rear roof inner panel | 61071-32010 · 61071-32020 · 61735-32901 |
| 61736A | Left rear roof inner panel | 61072-32010 · 61072-32020 · 61736-32901 |
| 61741A | Rear door opening upper right reinforcement | 61741-32030 · 61741-32050 · 61741-32900 |
| 61742A | Rear door opening upper left reinforcement | 61742-32020 · 61742-32040 · 61742-32900 |
| 61747B | Right rear roof inner reinforcement | 61747-32030 |
| 61748B | Left rear roof inner reinforcement | 61748-32030 |
| 61815B | Right inner upper cover of the roof | 61815-32010 · 61815-32020 |
| 61816B | Roof left inner upper cover | 61815-32010 · 61815-32020 |
| 61818 | Inner roof cover | 61817-32010 · 61817-32020 · 61818-32010 |
| 61824 | Noise Control Panel No. 1 | 61824-12010 · 61824-32020 |
| 61826A | Noise Control Panel No. 3 | 61826-32010 · 62939-23010 |
| 62939A | Side ventilation silencers | 62939-22040 · 62939-23010 |
| 64163A | Rear corner inner cover | 64163-32010 · 64164-32010 |
| 64312 | Glove box right bracket | 64312-32030 · 64312-32900 |
| 64313 | Glove box left bracket | 64313-32030 · 64313-32900 |
| 64314A | Glove box bracket right reinforcement | 64314-32900 |
| 64315A | Glove box bracket left reinforcement | 64315-32900 |
