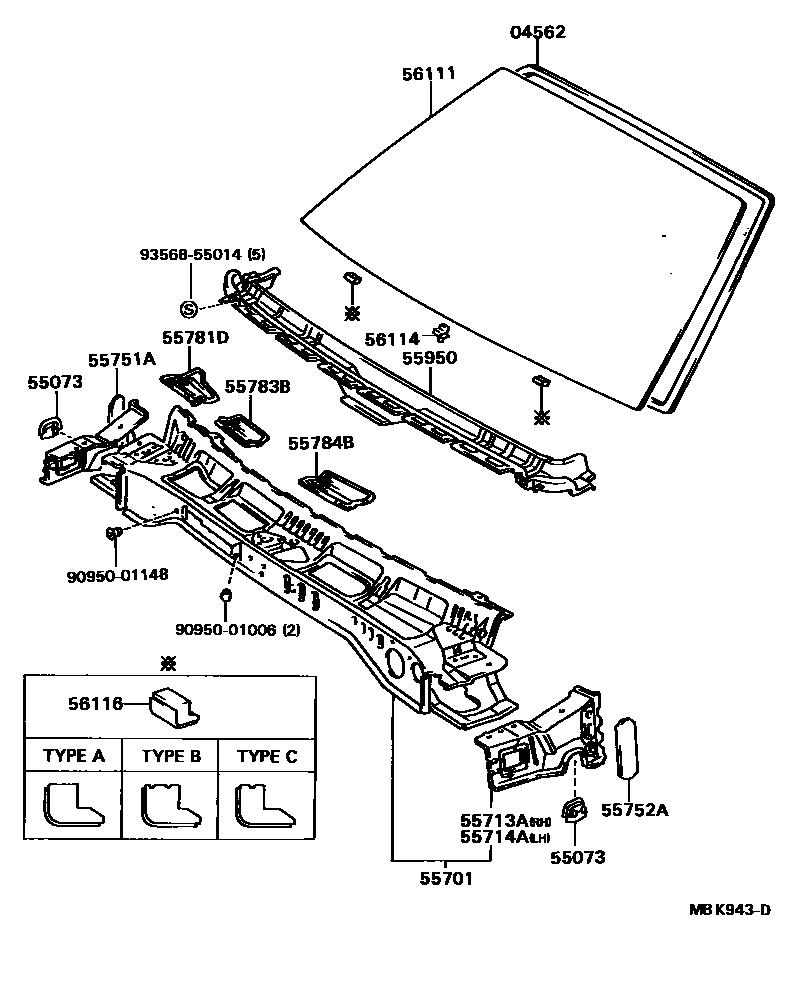

Toyota CAMRY 前围板和挡风玻璃 — Figure 5503
Toyota CAMRY EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04562 | Windshield sealing strip assembly | 04562-30040 |
| 55073 | Front wall water pumping nozzle sub-assembly | 55073-20020 · 55073-32020 |
| 55701 | Front apron sub-assembly | 55700-32190 · 55700-32200 · 55700-32210 · 55700-32220 · 55700-32221 |
| 55713A | Right front wall upper side panel | 55713-32020 |
| 55714A | Left front wall upper side panel | 55714-32020 |
| 55751A | Right front ventilator splash guard | 55751-32010 |
| 55752A | Left front ventilator splash guard | 55751-32010 |
| 55781D | Ventilation grille on right front apron | 55781-32030 · 55781-32040 |
| 55783B | Ventilation grille on center cowl No. 1 | 55783-32030 · 55783-32040 |
| 55784B | Ventilation grille on center cowl No. 2 | 55784-32030 · 55784-32040 |
| 55950 | Defroster nozzle assembly | 55950-32030 |
| 56111 | windshield | 56111-32120 · 56111-32130 · 56111-32160 · 56111-32170 · 56111-32180 · 56111-32190 · 56111-32240 |
| 56114 | windshield stopper | 56114-32010 |
| 56116 | windshield spacer | 56116-32040 · 56116-32050 · 56116-32060 |
