Toyota CAMRY radiator grille — Figure 5301

Toyota CAMRY EPC diagram 5301, radiator grille, with 3 images and 5 PNC and OE references.

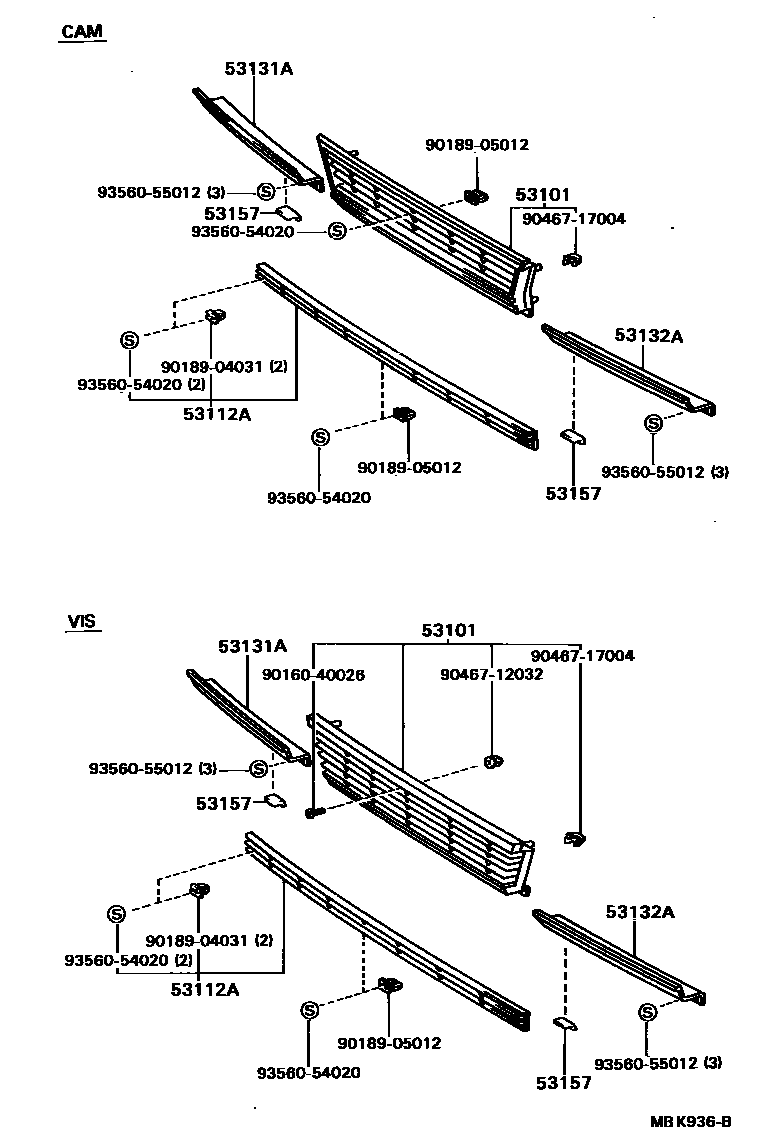

Toyota CAMRY radiator grille EPC diagram — MBK936B
radiator grille — MBK936B (198608 – 999999)

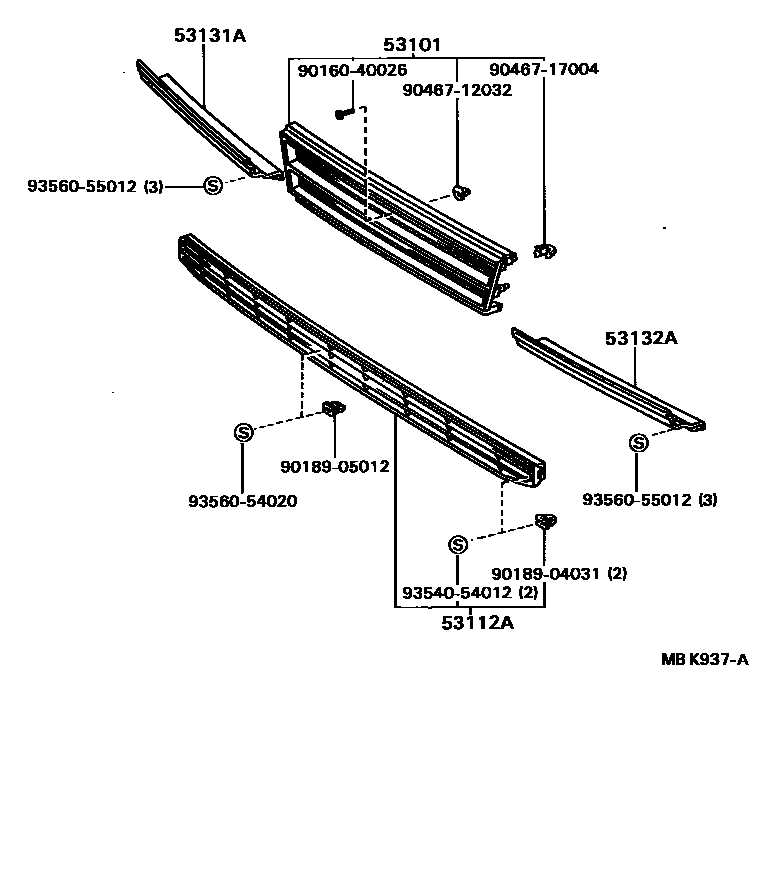

Toyota CAMRY radiator grille EPC diagram — MBK937A
radiator grille — MBK937A (198608 – 999999)

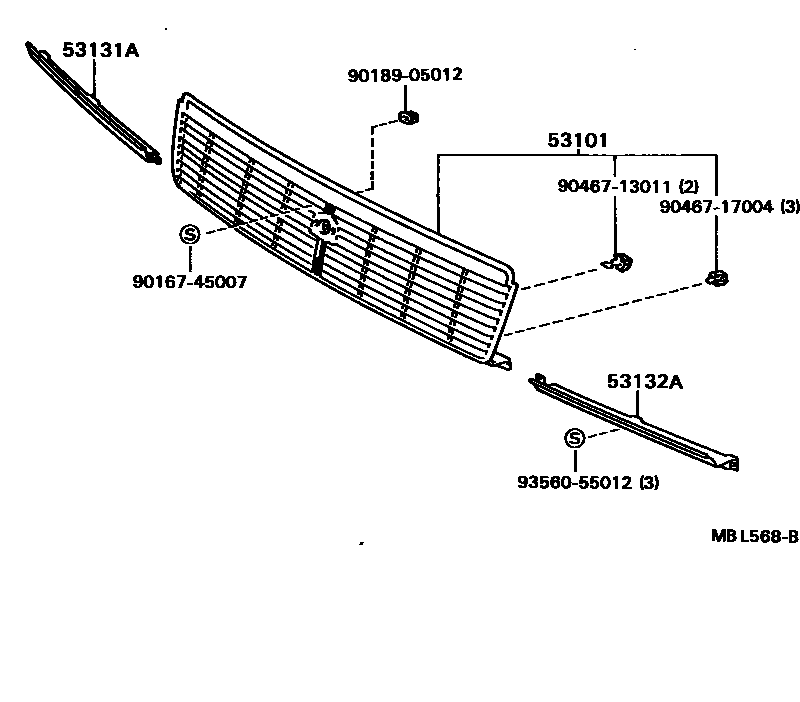

Toyota CAMRY radiator grille EPC diagram — MBL568B
radiator grille — MBL568B (198704 – 999999)

PNC and OE references

PNCPart nameOE numbers
53101Radiator grille sub-assembly53101-32090 · 53101-32100 · 53101-32120 · 53101-32130
53112ALower radiator grille53112-32010 · 53112-32020 · 53112-32060
53131ARight headlight lampshade53131-32080 · 53131-32090 · 53131-32100
53132ALeft headlight lampshade53132-32080 · 53132-32090 · 53132-32100
53157Headlight housing seal53157-32010
