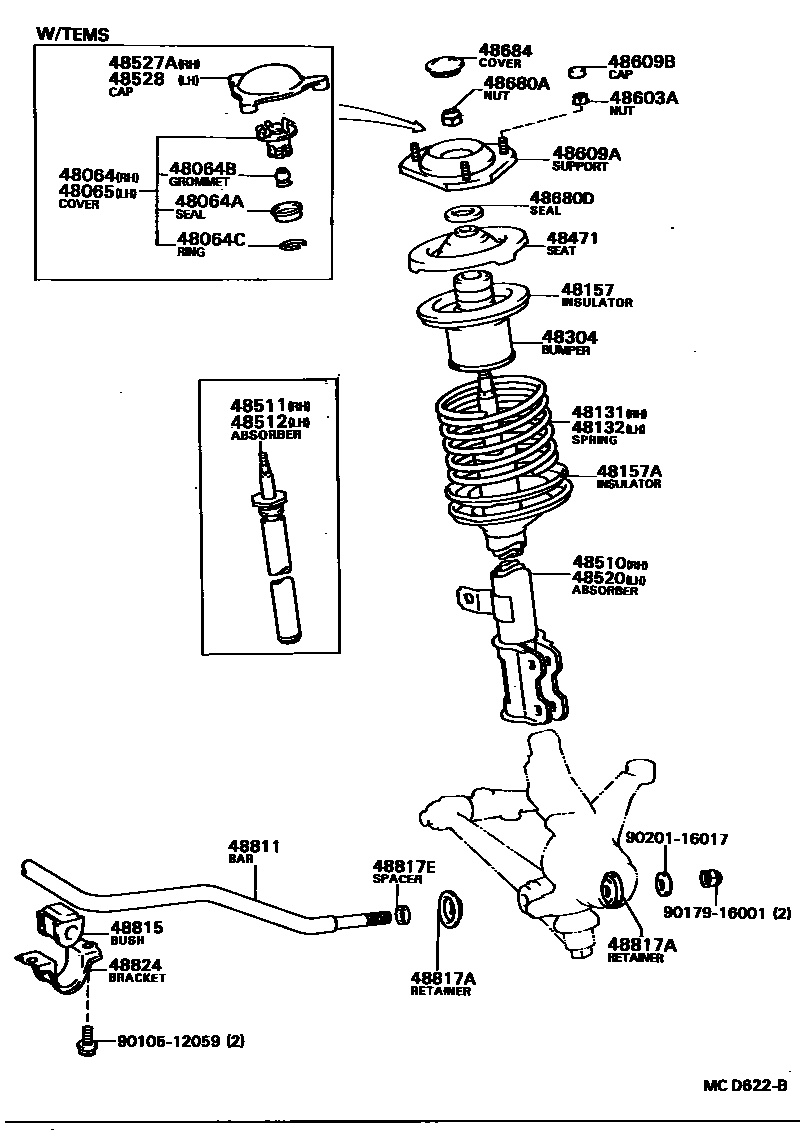

Toyota CAMRY Front Spring & Shock Absorber — Figure 4803
Toyota CAMRY EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48064 | Right front suspension support cover sub-assembly | 48064-16010 |
| 48064A | Dust seal (for front suspension mount cover) | 90304-26001 |
| 48064B | Seal (for front suspension mount cover) | 90480-13019 |
| 48064C | Retaining ring (for front suspension mount cover) | 90522-24001 |
| 48065 | Left front suspension support cover sub-assembly | 48065-16010 |
| 48131 | Right front coil spring | 48131-32380 · 48131-32440 · 48131-32470 · 48131-32490 · 48131-32510 · 48131-32530 · 48131-32550 · 48131-32590 · 48131-32610 · 48131-32620 · 48131-32640 · 48131-32680 · 48131-32760 |
| 48132 | Left front coil spring | 48131-32380 · 48131-32440 · 48131-32470 · 48131-32490 · 48131-32510 · 48131-32530 · 48131-32550 · 48131-32590 · 48131-32610 · 48131-32620 · 48131-32640 · 48131-32680 · 48131-32760 |
| 48157 | Front coil spring upper vibration isolation pad | 48157-32020 |
| 48157A | Front coil spring lower vibration isolation pad | 48158-32020 |
| 48304 | No. 1 front spring buffer block sub-assembly | 48304-32030 |
| 48471 | Front spring seat | 48044-32020 |
| 48510 | Right front shock absorber assembly | 48510-32080 · 48510-32081 · 48510-32090 · 48510-32091 · 48510-32100 · 48510-32101 · 48510-32120 · 48510-32121 · 48510-32130 · 48510-32131 |
| 48511 | Right front shock absorber (for adhesive cartridge type) | 48511-32030 · 48511-32040 · 48511-32050 · 48511-32060 |
| 48512 | Left front shock absorber (for adhesive cartridge type) | 48511-32030 · 48511-32040 · 48511-32050 · 48511-32060 |
| 48520 | Left front shock absorber assembly | 48520-32080 · 48520-32081 · 48520-32090 · 48520-32091 · 48520-32100 · 48520-32101 · 48520-32120 · 48520-32121 · 48520-32130 · 48520-32131 |
| 48527A | Right front shock absorber cover | 48527-32010 |
| 48528 | Left front shock absorber cover | 48528-32010 |
| 48603A | Nut (for front suspension mount) | 90179-10095 |
| 48609A | Front suspension support sub-assembly | 48609-32030 · 48609-32050 |
| 48609B | Cover (for front suspension mounts) | 90339-15002 |
| 48680A | Nut (for front mount to front shock absorber) | 90179-14029 · 94182-11400 |
| 48680D | Dust seal (for front suspension mount) | 90303-22049 |
| 48684 | Bearing dust cover | 48684-32010 |
| 48811 | front stabilizer bar | 48811-32080 · 48811-32090 · 48811-32120 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-32040 · 48815-32060 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-02102 · 90948-02106 · 90948-02117 · 90948-02118 |
| 48817E | Spacer (for stabilizer bar) | 90560-16005 |
| 48824 | front stabilizer bar bracket | 48824-32030 |
