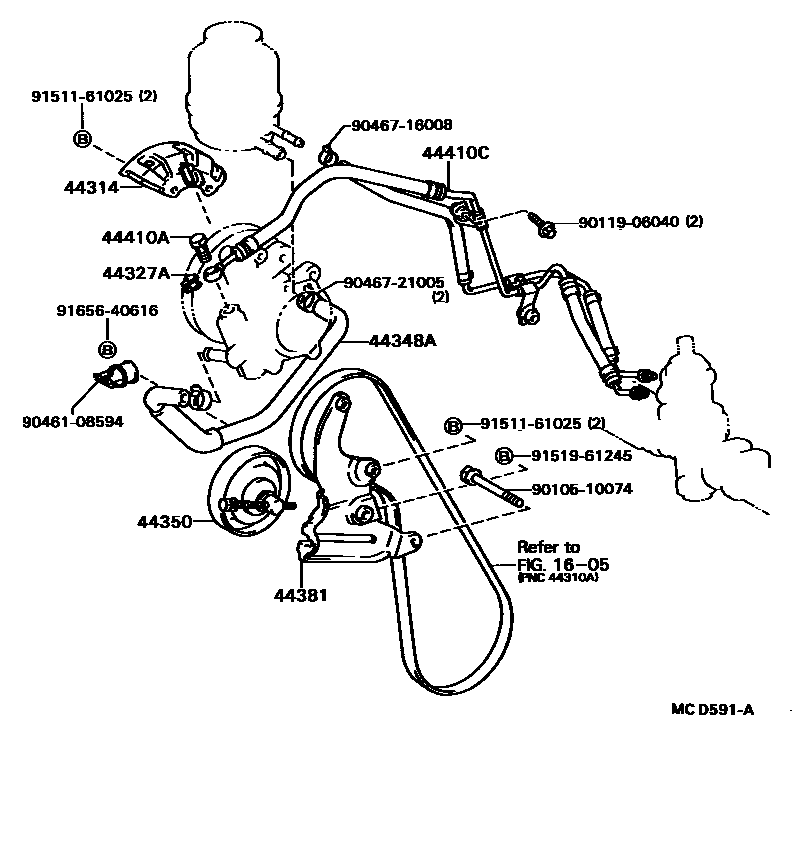

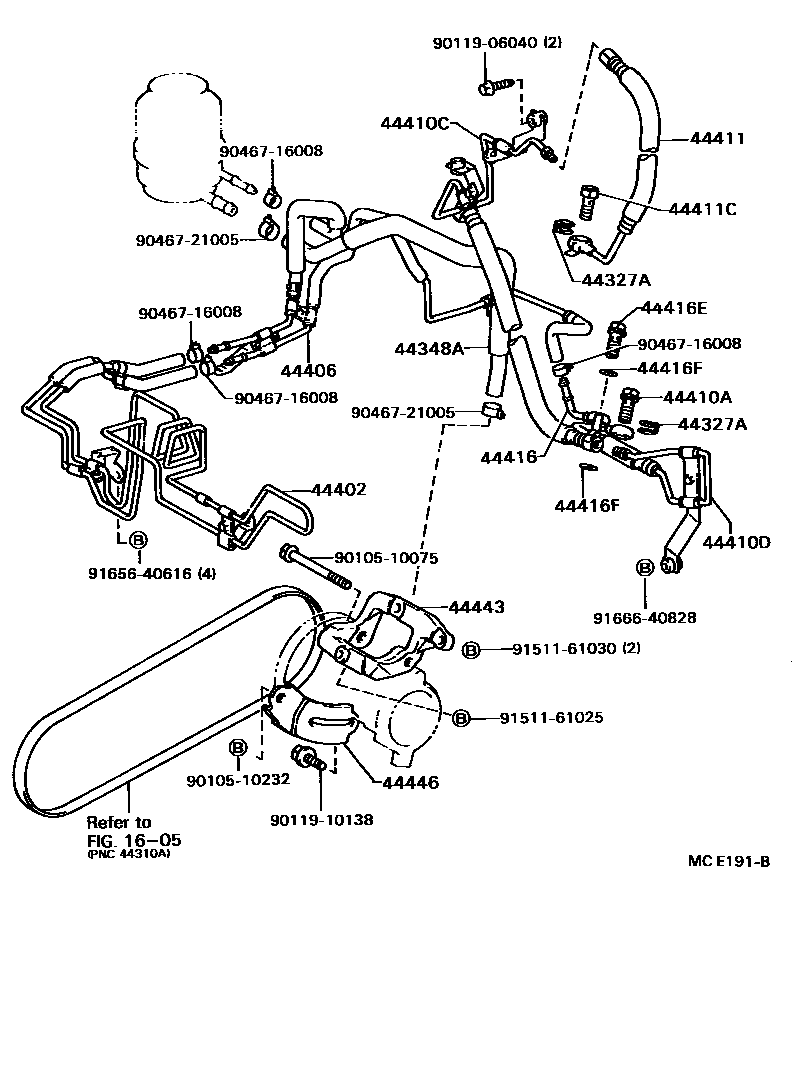

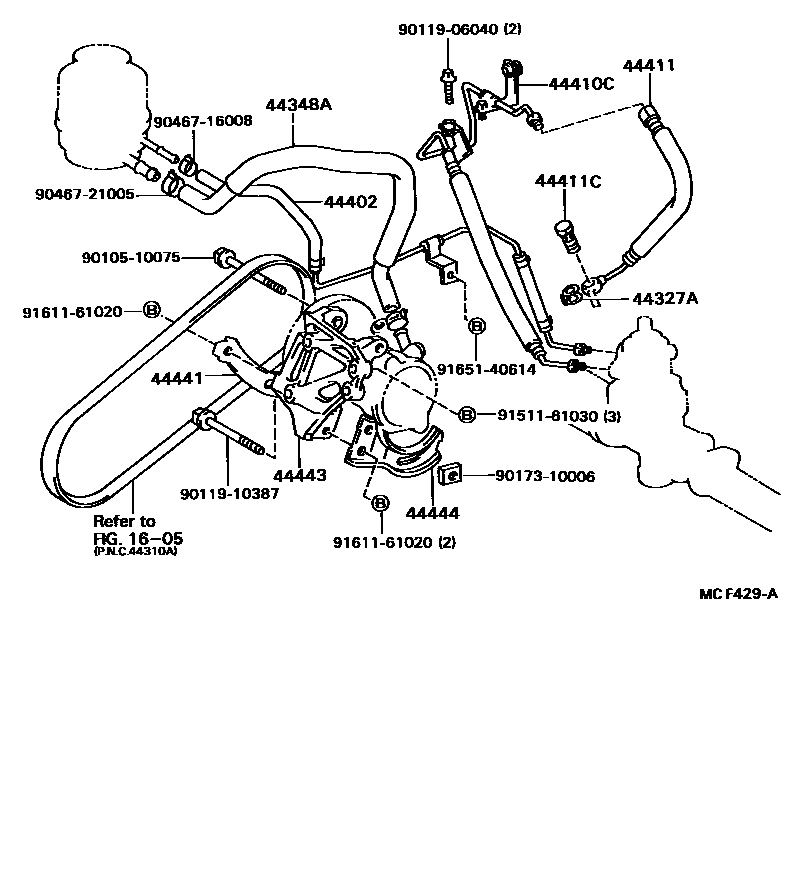

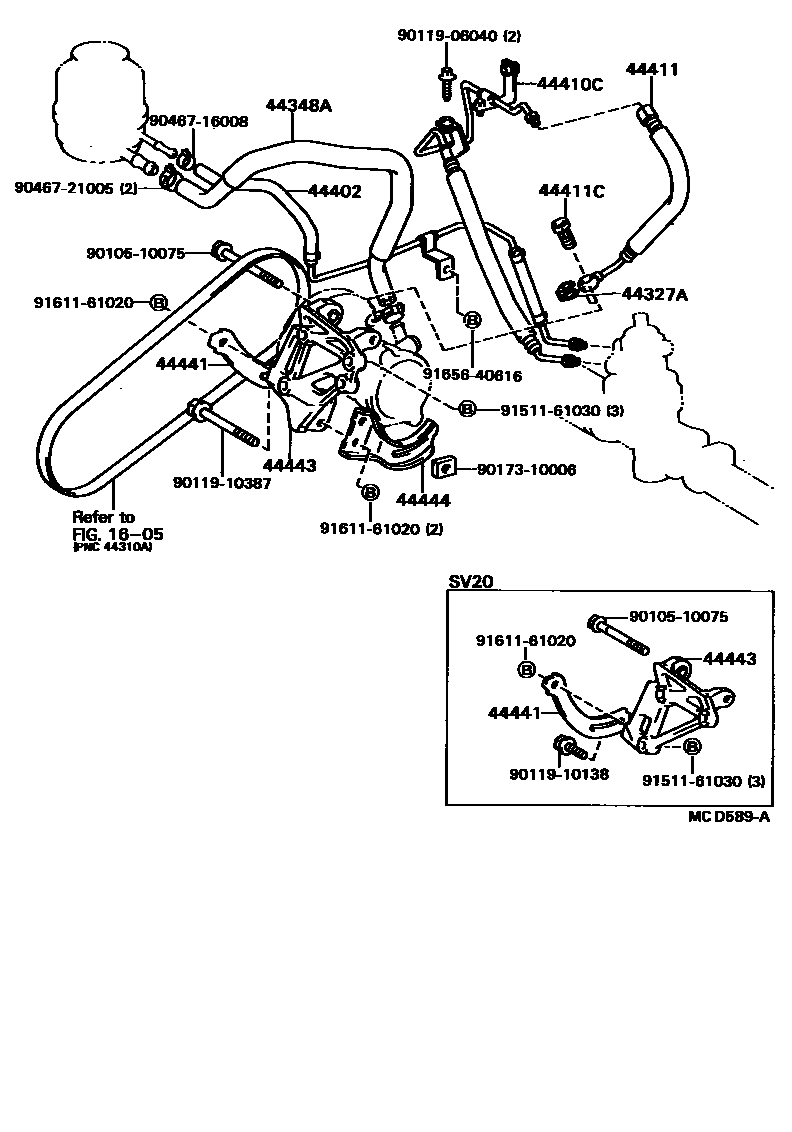

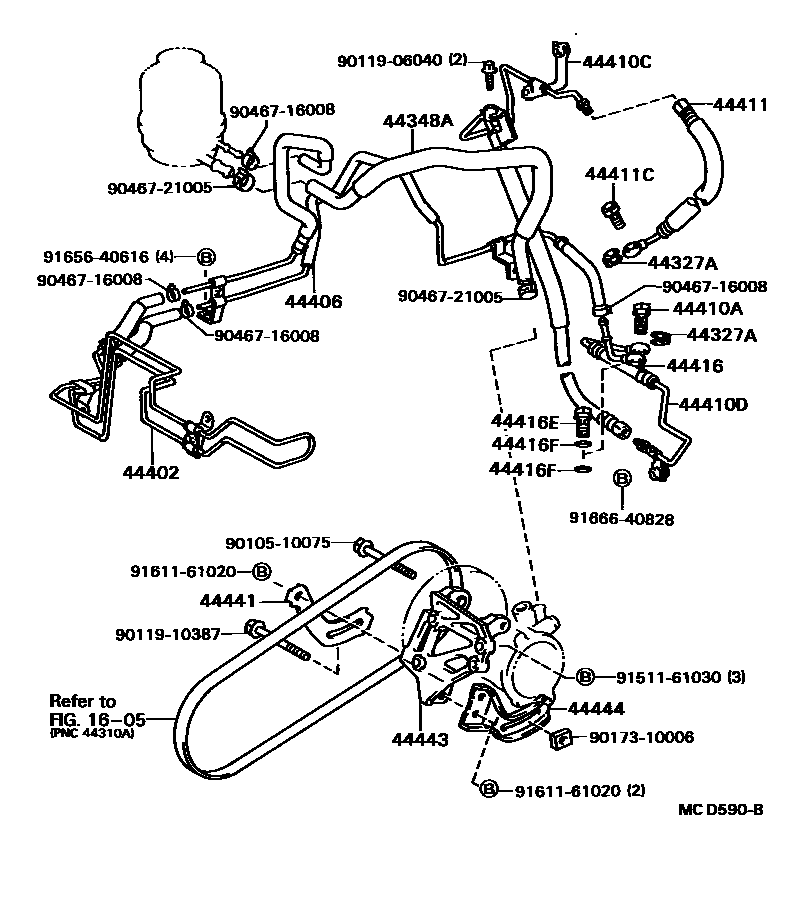

Toyota CAMRY 动力转向配管 — Figure 4503
Toyota CAMRY EPC diagram 4503, 动力转向配管, with 5 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44314 | pulley cover | 44314-12010 |
| 44327A | No. 1 pressure hole gasket | 44327-12010 · 44327-12020 |
| 44348A | No. 1 hose (tank to pump) | 44348-32050 · 44348-32060 · 44348-32070 · 44348-32080 |
| 44350 | Power steering idler assembly | 44350-12050 |
| 44381 | Power steering idler bracket | 44381-12020 |
| 44402 | No. 1 power steering oil cooler sub-assembly | 44402-32010 · 44402-32021 · 44402-32070 · 44402-32080 · 44402-32130 |
| 44406 | Oil return pipe sub-assembly | 44406-32011 · 44406-32050 · 44406-32060 |
| 44410A | Connector bolt (for pressure supply pipe) | 90401-16008 · 90401-17002 |
| 44410C | No. 1 pressure supply pipe assembly | 44410-32110 · 44410-32120 · 44410-32131 · 44410-32190 |
| 44410D | No. 2 pressure supply pipe assembly | 44410-32171 · 44410-32200 |
| 44411 | pressure supply hose | 44411-32030 · 44411-32060 |
| 44411C | Connector bolt (for pressure supply hose) | 90401-16008 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-32010 |
| 44416E | Joint bolt (for oil return pipe) | 90401-16013 |
| 44416F | Gasket (for oil return pipe) | 90430-17005 |
| 44441 | Pump front bracket | 44441-32010 |
| 44443 | pump bracket | 44443-20050 · 44443-20060 · 44443-32040 |
| 44444 | Pump back stay | 44444-20030 |
| 44446 | Adjust the stand | 44446-32010 |
