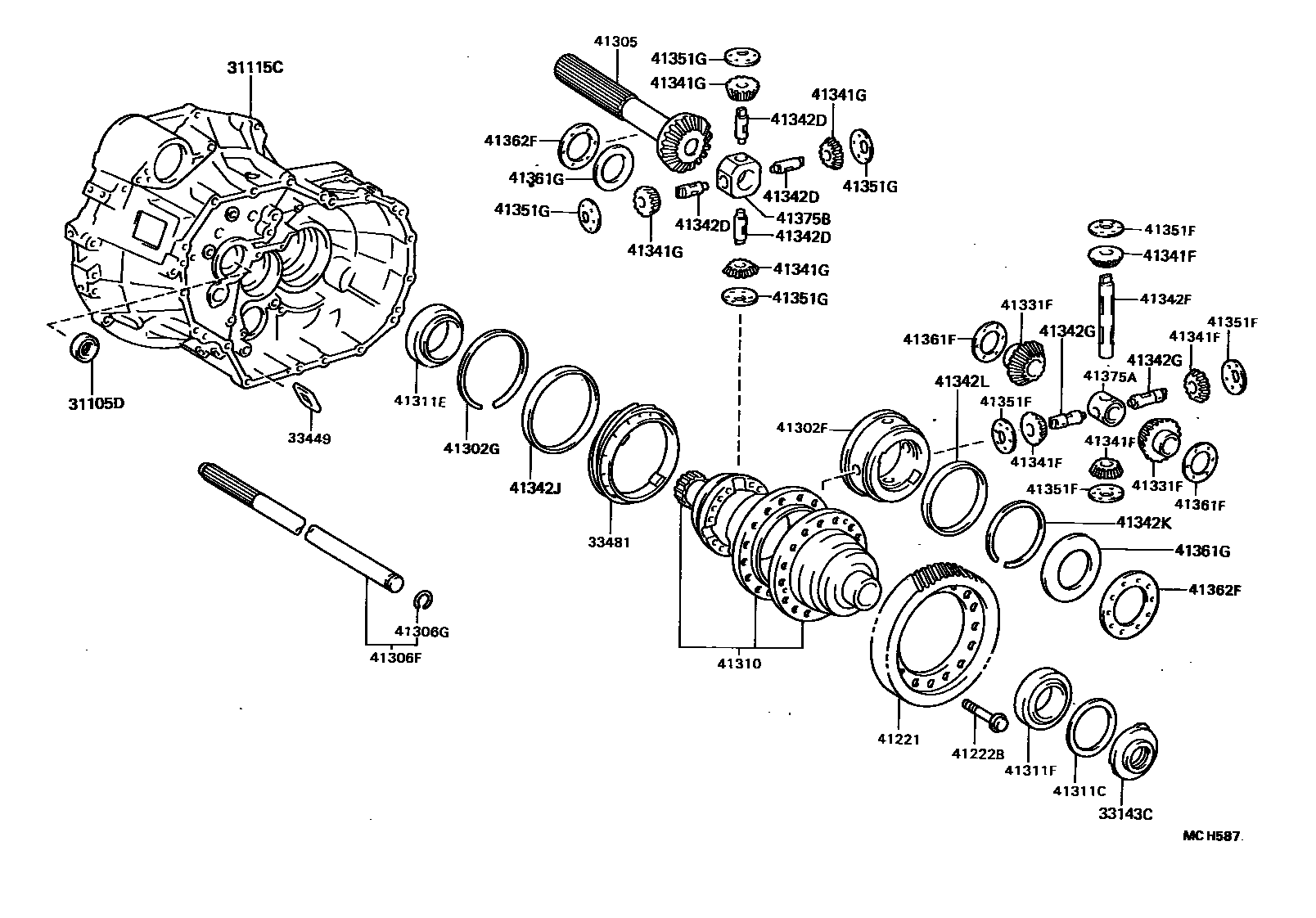

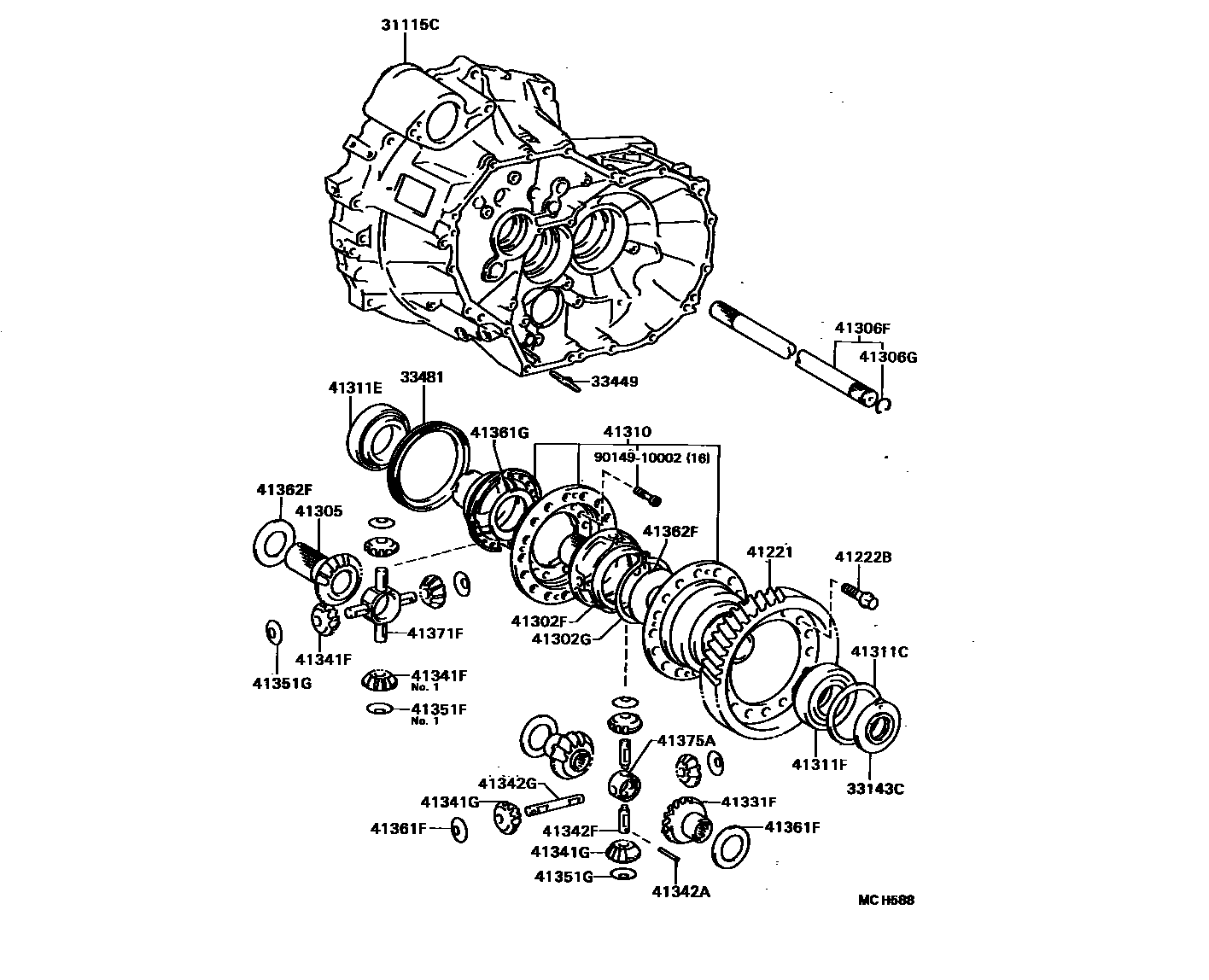

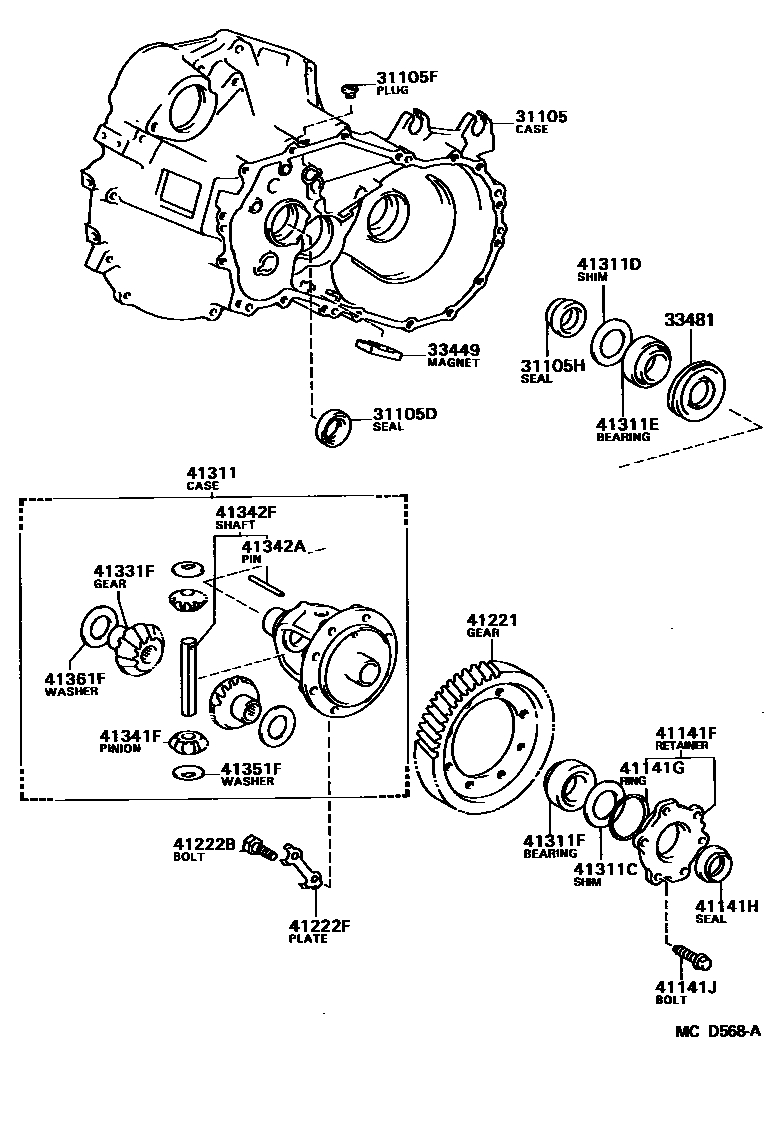

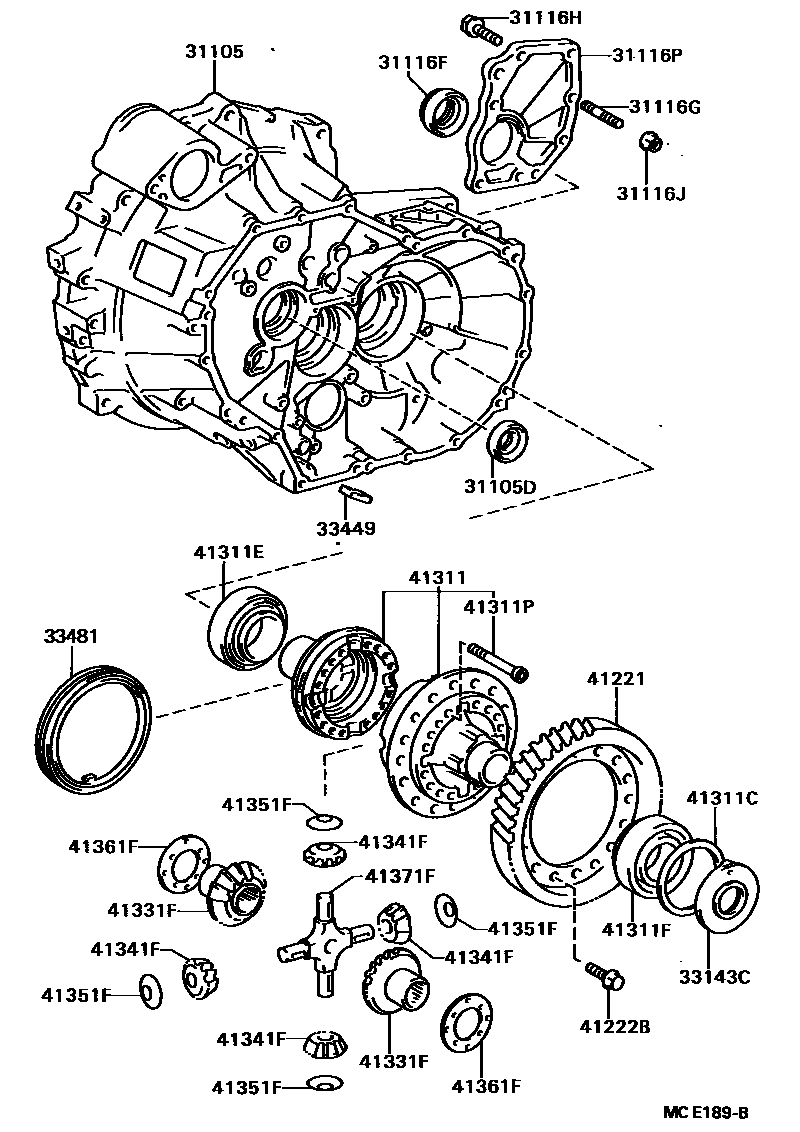

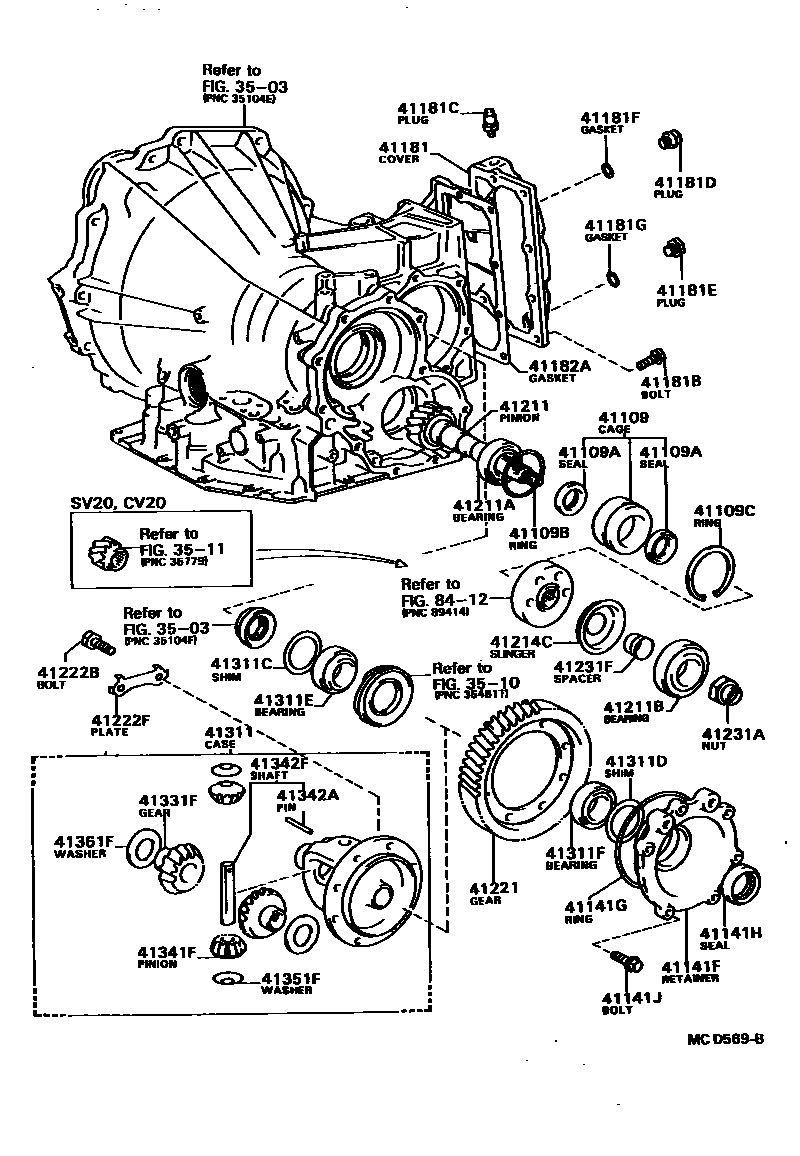

Toyota CAMRY 前桥壳和差速器 — Figure 4301
Toyota CAMRY EPC diagram 4301, 前桥壳和差速器, with 5 images and 68 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105 | Transmission axle housing sub-assembly (MTM) | 31105-32014 · 31105-32020 · 31115-20012 · 31115-20013 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-30002 · 90311-30006 |
| 31105F | Screw plug (for transaxle housing) | 90341-10065 |
| 31105H | No. 2 oil seal (for transmission axle housing) | 90311-35014 |
| 31115C | Front transmission axle housing (MTM) | 31115-20012 · 31115-20013 |
| 31116F | Oil seal (for front transmission axle housing cover) | 90311-40004 |
| 31116G | Stud bolts (for front transaxle housing cover) | 90116-12019 |
| 31116H | Bolts (for front transaxle housing cover) | 90105-12135 |
| 31116J | Nut (for transaxle housing cover) | 90179-12068 |
| 31116P | Transmission axle housing cover | 31116-17010 |
| 33143C | Front differential oil baffle | 33143-12010 · 33143-20040 |
| 33449 | derailleur magnet | 33449-20010 · 33449-32010 |
| 33481 | Speedometer driving gear (MTM) | 33481-17010 · 33481-20120 · 33481-32010 · 33481-32020 · 33481-32030 |
| 41109 | Differential driving pinion bearing cover sub-assembly | 41109-20010 |
| 41109A | Oil seal (for differential drive pinion bearing housing) | 90310-34005 |
| 41109B | O-ring (for differential drive pinion bearing housing) | 90301-65003 |
| 41109C | Hole snap ring (for differential drive pinion bearing housing) | 90521-76002 |
| 41141F | Front differential side bearing retainer | 41101-32010 · 41141-32020 · 41141-32040 · 41141-32041 |
| 41141G | O-ring (for front differential side bearing retainer) | 90301-63004 · 90301-99018 |
| 41141H | Oil seal (for differential side bearing retainer) | 90311-35010 · 90311-35014 · 90311-35019 |
| 41141J | Bolt (for front differential side bearing retainer) | 90105-08061 · 91611-60825 |
| 41181 | front differential case cover | 41181-32011 |
| 41181B | Bolts (for securing front differential case cover) | 90105-08062 |
| 41181C | Breather plug (for front differential case cover) | 90930-03031 |
| 41181D | Plug (for front differential oil fill port) | 90341-18002 |
| 41181E | Screw plug (for front differential drain port) | 90341-18021 |
| 41181F | Gasket (for front differential oil plug) | 90430-18008 |
| 41181G | Gasket (for front differential drain plug) | 90430-18008 |
| 41182A | Differential case cover gasket | 41182-32010 |
| 41211 | Differential drive pinion | 41211-32020 · 41211-32030 · 41211-32040 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90366-35050 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-40010 |
| 41214C | Front differential drive pinion oil retaining ring | 41214-32010 |
| 41221 | Front differential ring gear | 41221-12260 · 41221-20220 · 41221-20240 · 41221-32030 · 41221-32040 |
| 41222B | Bolt (for front differential ring gear assembly) | 90101-11003 · 90105-12133 · 90105-12150 · 90105-12154 |
| 41222F | Front differential ring gear fixing bolt locking plate | 41222-32010 |
| 41231A | Drive pinion lock nut | 90179-20004 |
| 41231F | Front differential drive pinion bearing spacer | 41231-32010 |
| 41302F | Front differential housing sub-assembly | 41302-12020 · 41302-20020 |
| 41302G | Snap ring (for front differential case) | 90520-86002 · 90520-99002 |
| 41305 | Differential side gear sub-assembly | 41305-20020 · 41305-32010 |
| 41306F | Differential side gear countershaft sub-assembly | 41306-20020 · 41306-32010 |
| 41306G | Hole snap ring (for differential side gear countershaft) | 90521-26004 |
| 41310 | Differential case assembly | 41310-20220 · 41310-32010 |
| 41311 | front differential case | 41301-32010 · 41301-32020 · 41301-32021 · 41302-17012 |
| 41311C | Rear gasket (for front differential case) | 90564-45001 · 90564-45002 · 90564-45003 · 90564-45004 · 90564-45005 · 90564-45006 · 90564-45007 · 90564-45008 · 90564-45009 · 90564-45010 · 90564-45011 · 90564-45012 · 90564-45013 · 90564-45014 · 90564-45015 · 90564-45016 · 90564-45017 · 90564-45018 · 90564-45019 · 90564-76001 · 90564-76002 · 90564-76003 · 90564-76004 · 90564-76005 · 90564-76006 · 90564-76007 · 90564-76008 · 90564-76009 · 90564-76010 · 90564-76011 · 90564-76012 · 90564-76013 · 90564-76014 · 90564-76015 · 90564-76016 · 90564-76017 · 90564-76018 |
| 41311D | Front gasket (for front differential case) | 90564-45001 · 90564-45002 · 90564-45003 · 90564-45004 · 90564-45005 · 90564-45006 · 90564-45007 · 90564-45008 · 90564-45009 · 90564-45010 · 90564-45011 · 90564-45012 · 90564-45013 · 90564-45014 · 90564-45015 · 90564-45016 · 90564-45017 · 90564-45018 · 90564-45019 · 90564-49001 · 90564-49002 · 90564-49003 · 90564-49004 · 90564-49005 · 90564-49006 · 90564-49007 · 90564-49008 · 90564-49009 · 90564-49010 · 90564-49011 · 90564-49012 · 90564-49013 · 90564-49014 · 90564-49015 · 90564-49016 · 90564-49017 · 90564-49018 · 90564-49019 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90366-40016 · 90366-57001 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-40023 · 90366-44001 · 90366-50014 |
| 41311P | Bolt (for front differential case) | 90149-10003 |
| 41331F | Front differential side gear | 41331-12030 · 41331-17010 · 41331-20020 · 41331-32010 |
| 41341F | Front differential planetary gear | 41341-20011 · 41341-20020 · 41341-20030 · 41341-30011 |
| 41341G | Center differential planetary gear | 41341-20020 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-05028 · 90250-06058 |
| 41342D | Center differential planetary gear shaft | 41342-12030 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-12040 · 41342-20040 · 41342-39025 |
| 41342G | No. 2 front differential planetary gear shaft | 41342-12050 · 41342-20030 |
| 41342J | Spacer (for center differential planetary gear shaft) | 90560-99001 |
| 41342K | Shaft snap ring (for front differential planetary gear shaft) | 90520-94001 |
| 41342L | Spacer (for differential planetary gear shaft) | 90560-97001 |
| 41351F | Front differential planetary gear thrust washer | 41351-12010 · 41351-20010 · 41351-20020 · 41351-32010 |
| 41351G | Center differential planetary gear thrust washer | 41351-20010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-12330 · 41361-12340 · 41361-12350 · 41361-12360 · 41361-12370 · 41361-12380 · 41361-12390 · 41361-12400 · 41361-12410 · 41361-12420 · 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 · 41362-17010 · 41362-17020 · 41362-17030 · 41362-17040 · 41362-17050 · 41362-17060 · 41362-17070 |
| 41361G | Conical spring washer (for center differential side gears) | 90208-36001 · 90208-41001 · 90208-48001 |
| 41362F | No. 2 front differential side gear thrust washer | 41362-20020 · 41362-20030 · 41362-20040 · 41362-20050 · 41362-20060 · 41362-20070 · 41362-20080 · 41362-20090 · 41362-20100 · 41362-20110 · 41362-20120 · 41362-20130 · 41362-20140 · 41362-20150 · 41362-20160 · 41362-20170 · 41362-20180 · 41362-20190 · 41362-20200 · 41362-20210 · 41362-20220 · 41362-20230 · 41362-20240 · 41362-20250 · 41362-20260 · 41362-20270 · 41362-20280 · 41362-20290 · 41362-20300 · 41362-20310 · 41362-20320 · 41362-20330 · 41362-20340 · 41362-20350 · 41362-20360 · 41362-20370 · 41362-20380 · 41362-20390 · 41362-20400 |
| 41371F | Front differential cross shaft | 41371-17010 · 41371-20020 |
| 41375A | Front differential planetary gear shaft support | 41375-12020 · 41375-20020 |
| 41375B | Center differential planetary gear shaft support | 41375-12010 |
