Toyota CAMRY 车轮和车轮盖 — Figure 4103
Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

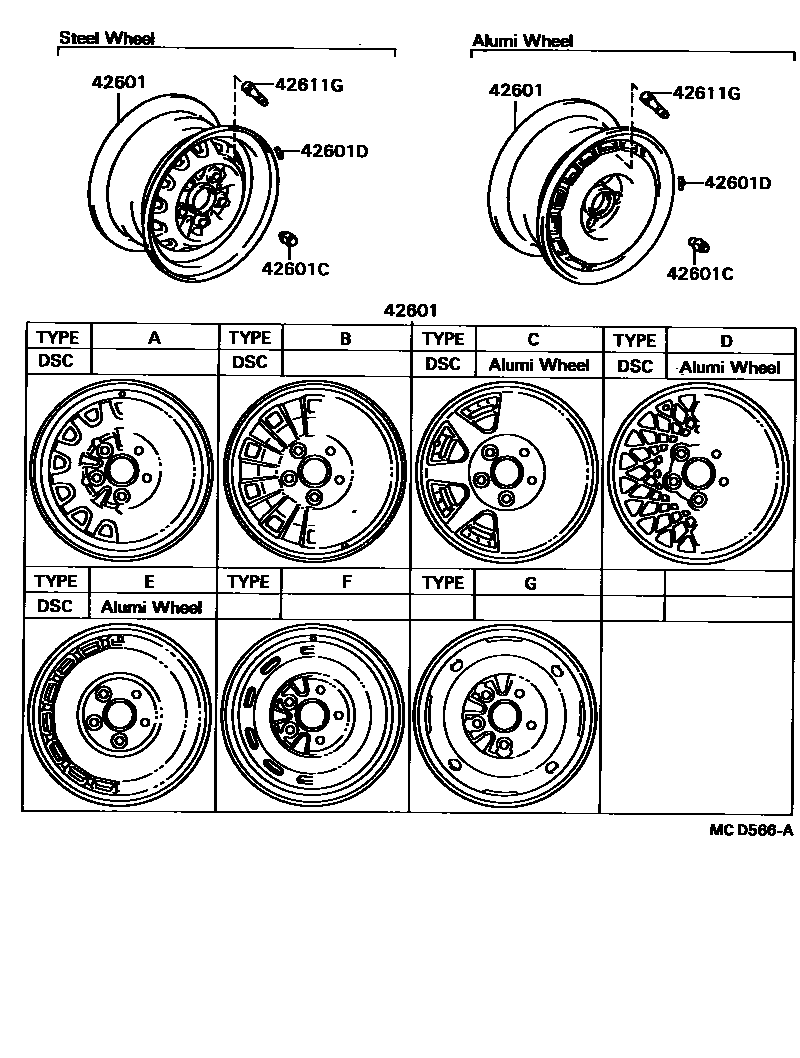

| 42601 | spoke wheel | 42611-32030 · 42611-32080 · 42611-32100 · 42611-32110 · 42611-32120 · 42611-32130 · 42611-32140 · 42611-32190 |
| 42601C | Hub nut (for axle) | 90942-01021 · 90942-01033 · 90942-01058 |
| 42601D | Balance weight (for spoked wheels) | 90942-03017 · 90942-03020 · 90942-03022 · 90942-03025 · 90942-03027 · 90942-03029 · 90942-03031 · 90942-03041 · 90942-03098 · 90942-03099 · 90942-03100 · 90942-03101 · 90942-03102 · 90942-03108 · 90942-03109 · 90942-03146 · 90942-03147 · 90942-03148 · 90942-03149 · 90942-03150 · 90942-03151 · 90942-03152 · 90942-03153 · 90942-03154 · 90942-03155 · 90942-03156 · 90942-03157 · 90942-03158 · 90942-03159 · 90942-03160 · 90942-03161 · 90942-03167 · 90942-03208 · 90942-03209 · 90942-03210 · 90942-03211 · 90942-03212 · 90942-03213 · 90942-03214 |

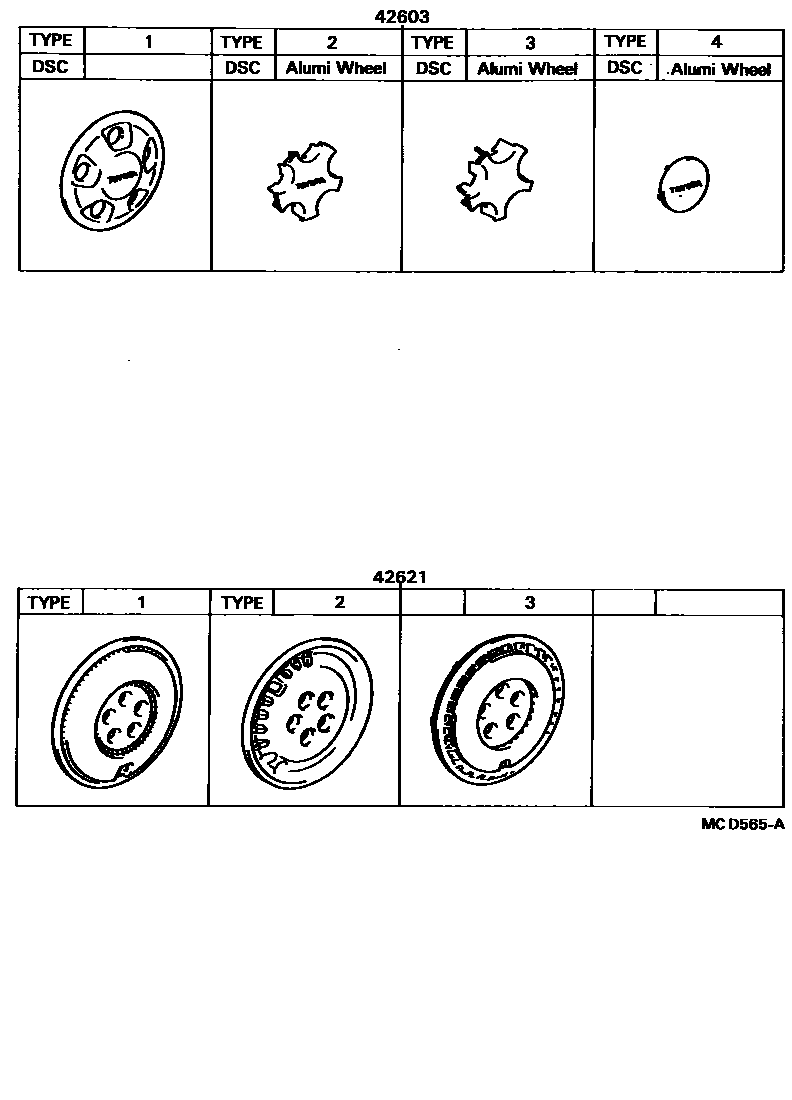

| 42603 | Wheel hub decorative parts sub-assembly | 42603-32040 · 42603-32060 · 42603-32070 · 42603-32080 · 42603-32120 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42621 | wheel cover | 42621-32020 · 42621-32040 · 42621-32050 |
