Toyota CAMRY 分动器真空管 — Figure 3616

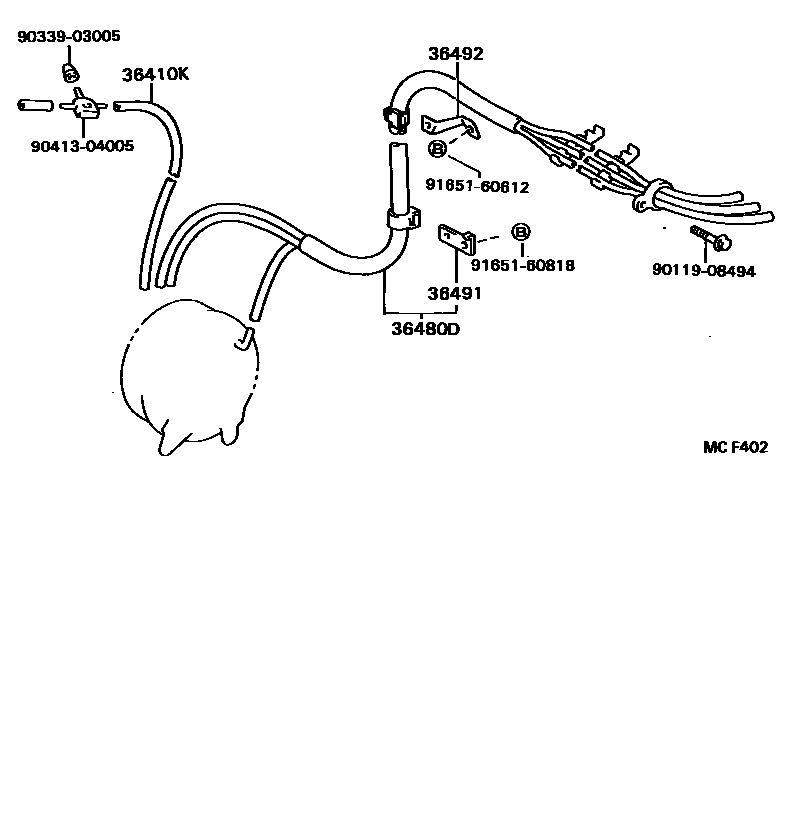

Toyota CAMRY EPC diagram 3616, 分动器真空管, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 36410K | Vacuum hose (for transfer case) | 90999-92003 |
| 36480D | Transfer case vacuum tube assembly | 36480-32021 |
| 36491 | No. 1 transfer case vacuum tube clamp | 36491-32010 |
| 36492 | No. 2 transfer case vacuum tube clamp | 36492-32010 |
