Toyota CAMRY 变速器油冷却器和配管(ATM) — Figure 3514

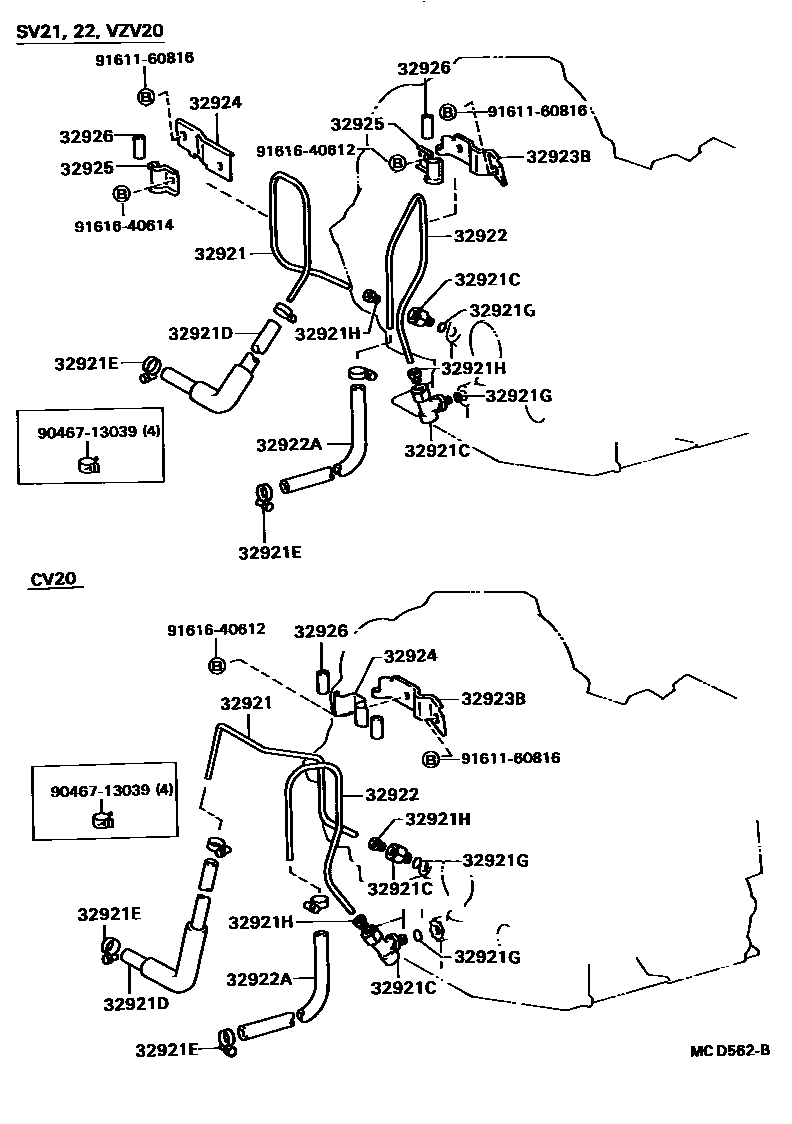

Toyota CAMRY EPC diagram 3514, 变速器油冷却器和配管(ATM), with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-32030 · 32921-32040 · 32921-32050 · 32921-32051 |
| 32921C | Fitting (for transmission oil cooler tube) | 32901-32010 · 90404-14007 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 32941-32030 · 32941-32051 · 90445-15032 · 90445-16021 |
| 32921E | Hose clamp (for transmission oil cooler) | 90460-18002 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 |
| 32921H | Oil pipe nut (for transmission oil cooler pipe) | 90402-14004 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-32030 · 32922-32040 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 90445-15032 · 90445-16021 · 90445-16026 |
| 32923B | No. 1 automatic transmission oil cooler pipe clamp | 32923-20090 |
| 32924 | No. 2 transmission oil cooler pipe clamp | 32923-32020 · 32923-32021 · 90462-12085 |
| 32925 | No. 3 transmission oil cooler pipe clamp | 90462-10082 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-30011 |
