Toyota CAMRY 速度表从动齿轮(ATM) — Figure 3505

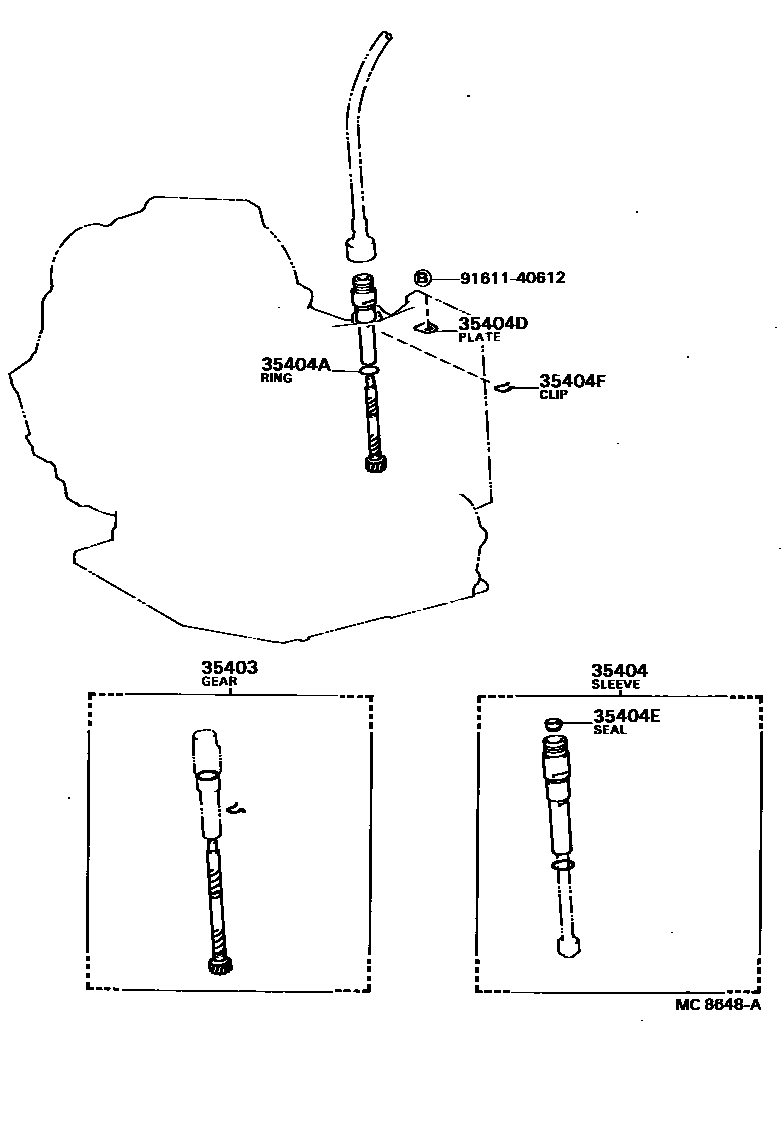

Toyota CAMRY EPC diagram 3505, 速度表从动齿轮(ATM), with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35403 | Speedometer driven gear sub-assembly (ATM) | 33403-39096 · 33403-39155 · 33403-39156 |
| 35404 | Speedometer shaft sleeve sub-assembly (ATM) | 33404-32010 · 33404-32020 |
| 35404A | O-ring (for automatic transmission speedometer shaft sleeve) | 96711-24018 |
| 35404D | Speedometer sleeve locking plate (ATM) | 33485-14010 · 33485-32010 |
| 35404E | Oil seal (for automatic transmission speedometer shaft sleeve) | 90310-09001 |
| 35404F | Clamp (for automatic transmission speedometer shaft sleeve) | 90468-12005 |
