Toyota CAMRY 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501

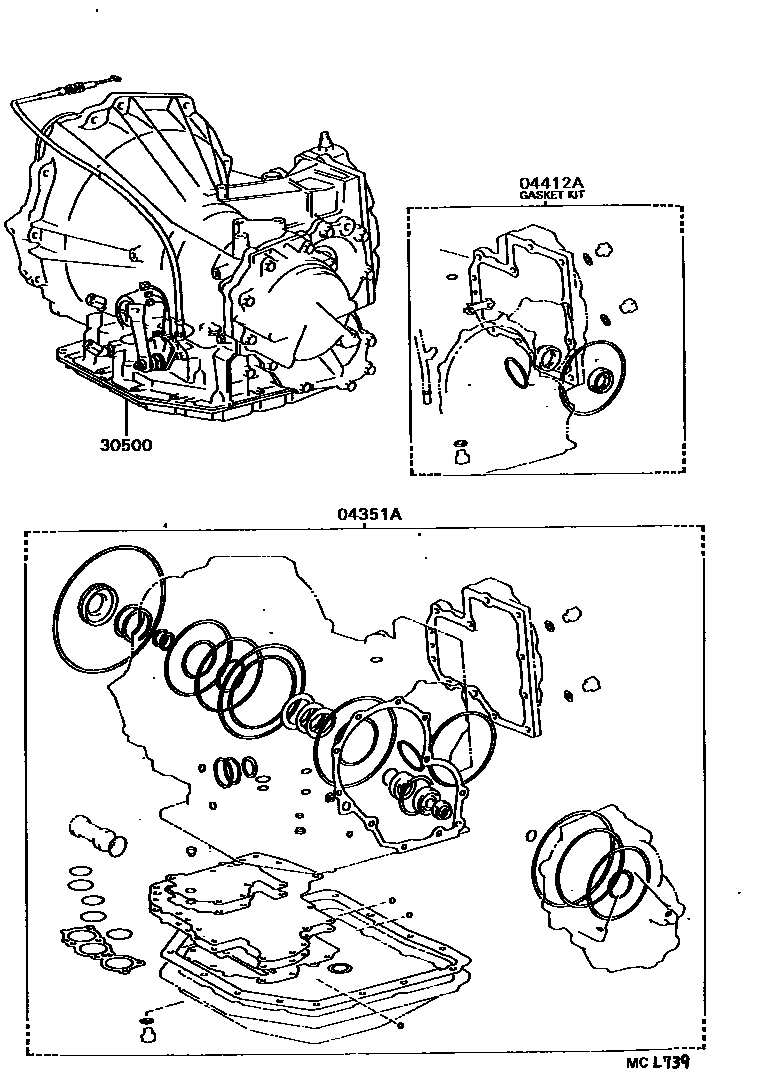

Toyota CAMRY EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351A | Transaxle overhaul gasket assembly (ATM) | 04351-20080 · 04351-20090 |
| 04412A | Differential case gasket assembly (ATM) | 04412-16020 |
| 30500 | Automatic transmission axle assembly | 30500-32150 · 30500-32151 · 30500-32200 · 30500-32201 · 30500-32220 · 30500-32250 · 30500-32251 · 30500-32260 · 30500-32261 · 30500-32320 |
