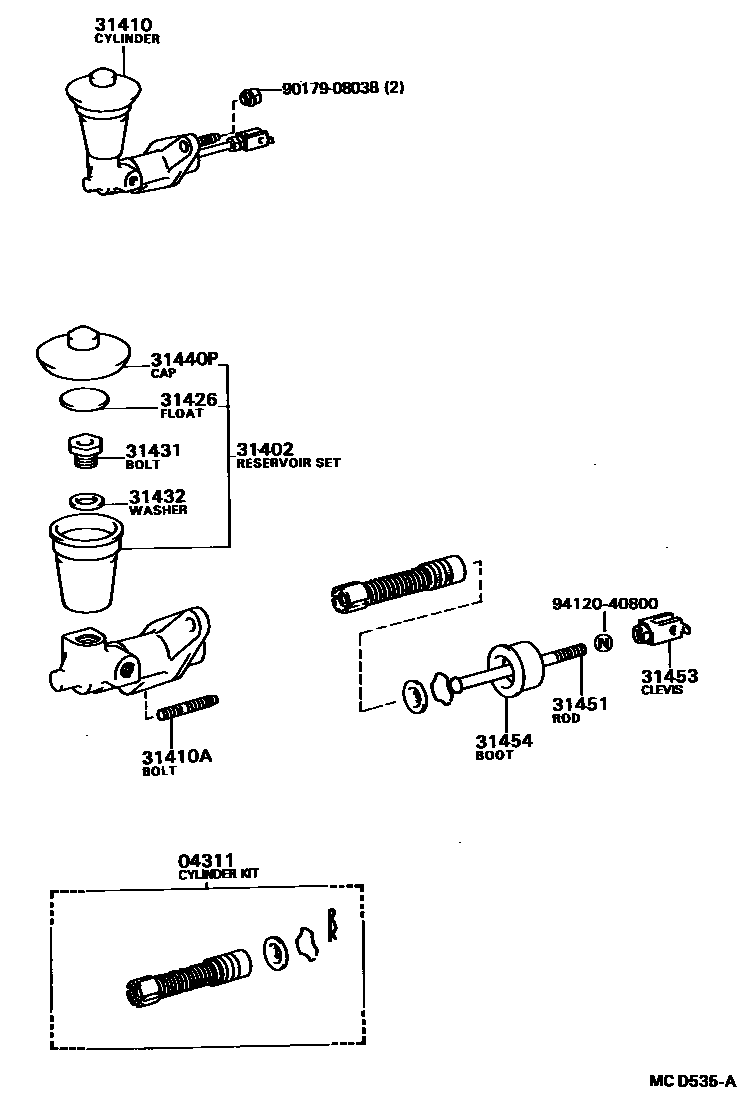

Toyota CAMRY 离合器总泵 — Figure 3103
Toyota CAMRY EPC diagram 3103, 离合器总泵, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04311 | Clutch master cylinder assembly | 04311-14030 · 04311-14031 · 04311-17030 · 04311-30080 · 04311-32030 |
| 31402 | Clutch master cylinder fluid reservoir sub-assembly | 31402-30060 |
| 31410 | Clutch master cylinder assembly | 31410-32060 · 31410-32061 · 31410-32062 · 31410-32070 · 31410-32071 · 31410-32072 |
| 31410A | Bolt (for securing clutch master cylinder) | 90116-08146 |
| 31426 | Clutch master cylinder reservoir float | 31426-30011 |
| 31431 | Clutch master cylinder reservoir fixing bolt | 47231-30010 |
| 31432 | Clutch reservoir retaining bolt washer | 47232-30010 |
| 31440P | Clutch master cylinder fluid reservoir filler cap assembly | 47230-20040 |
| 31451 | Clutch master cylinder push rod | 31451-14010 · 31451-32020 · 31451-32030 · 31451-32040 · 31451-32050 · 31451-32051 |
| 31453 | Clutch master cylinder push rod U-shaped clamp | 31404-28011 · 31453-22010 · 31453-35010 |
| 31454 | Clutch master cylinder dust boot | 31454-24010 |
