Toyota CAMRY 燃油喷射系统 — Figure 2211

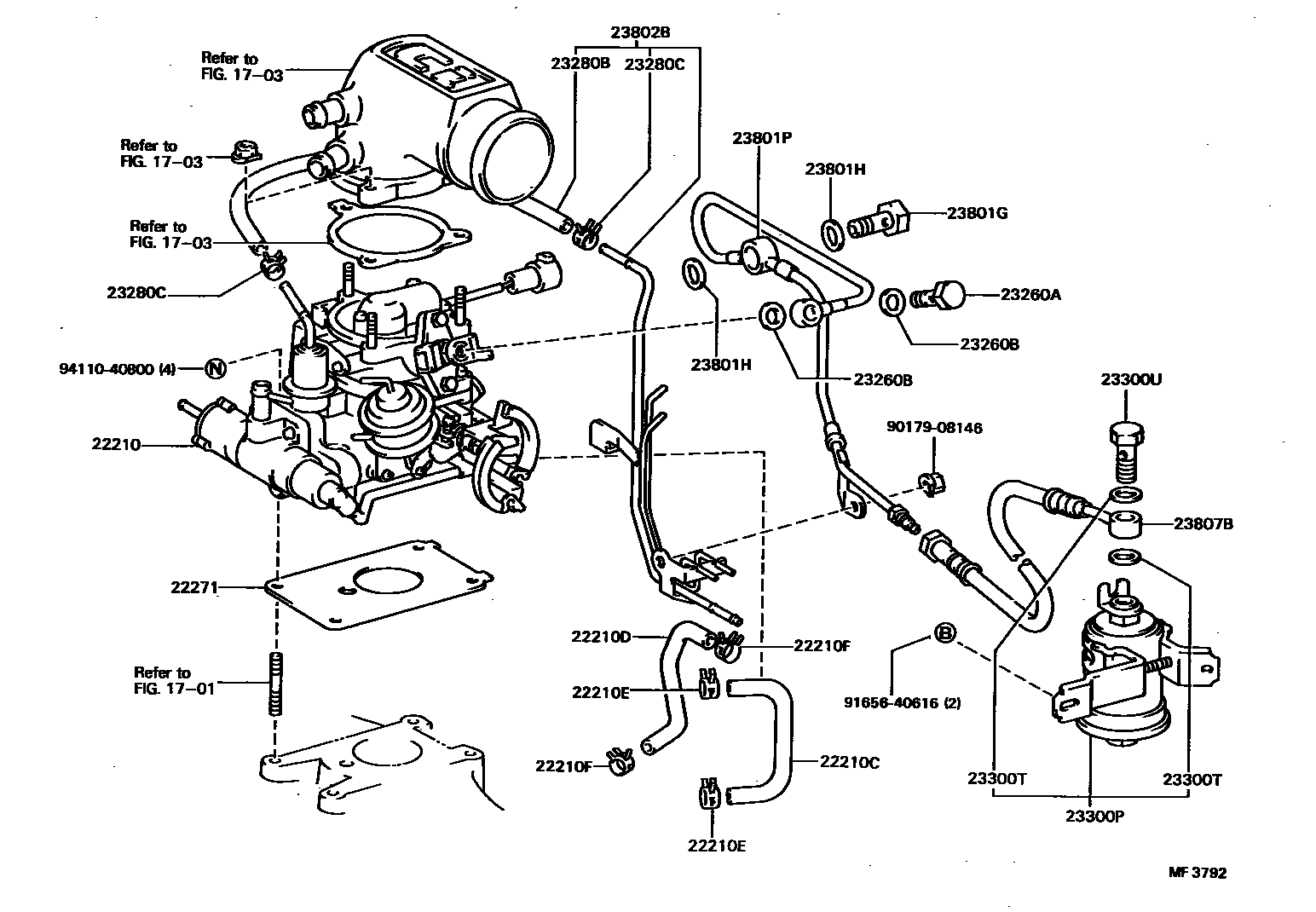

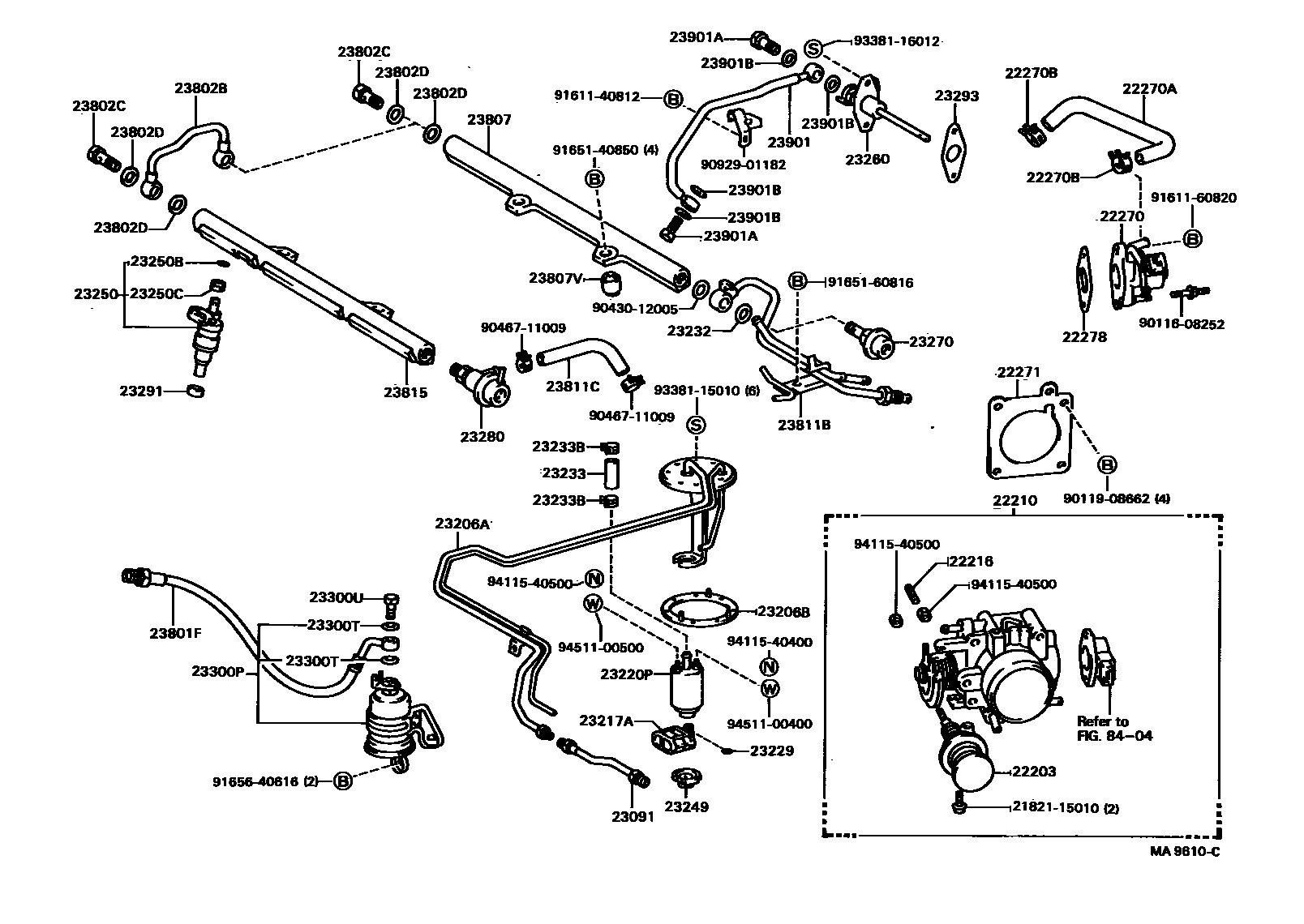

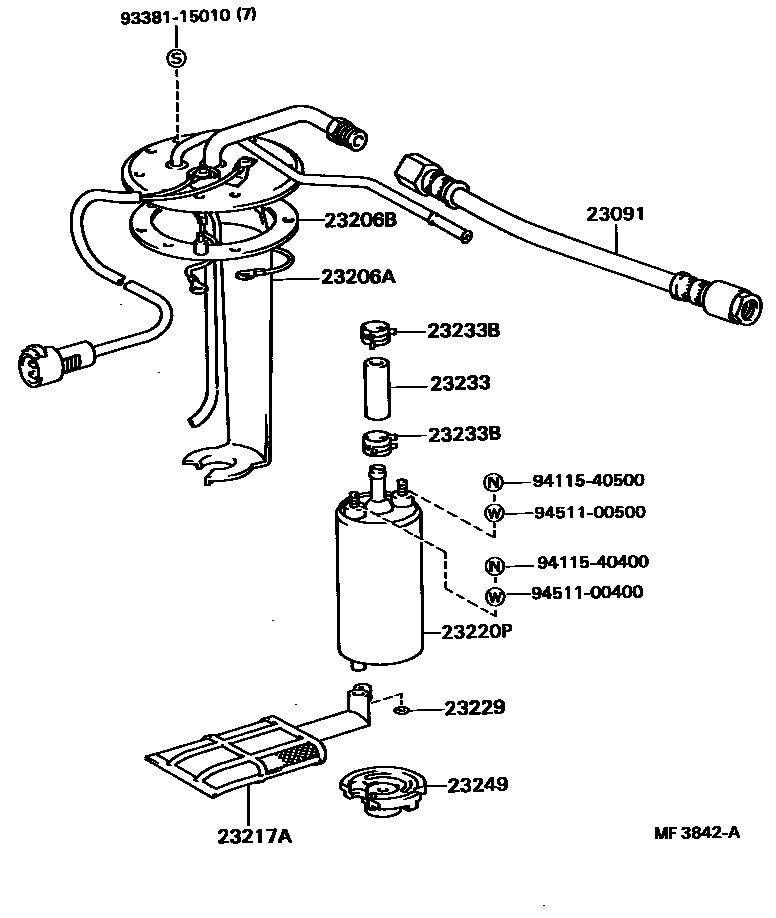

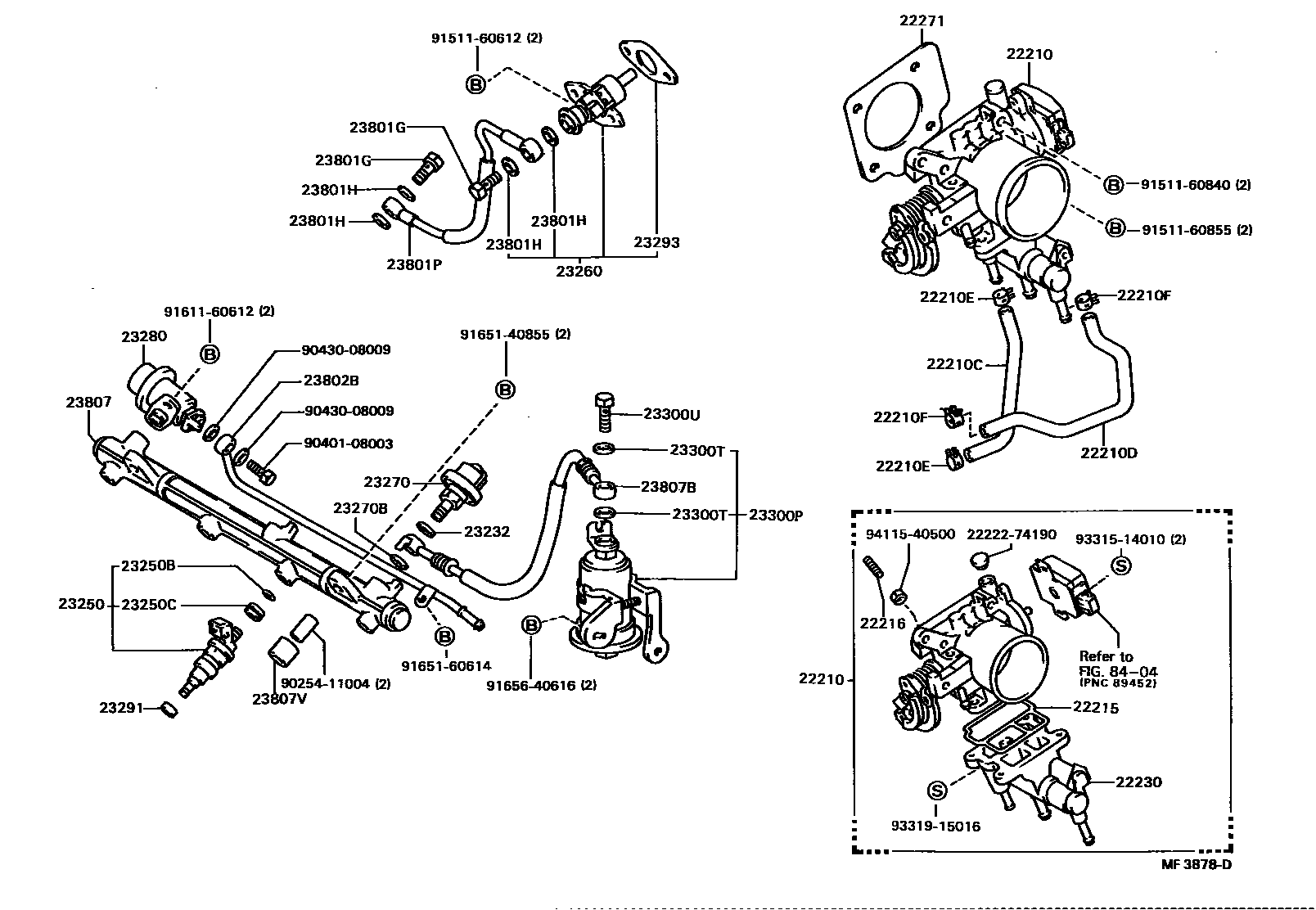

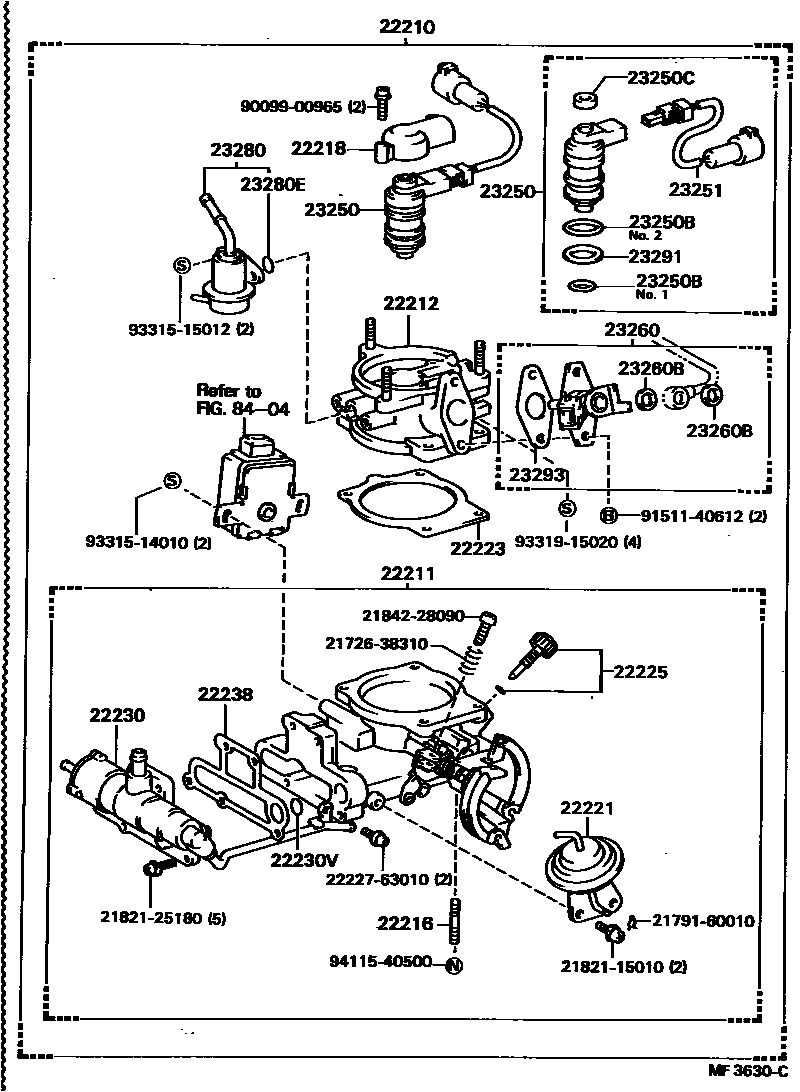

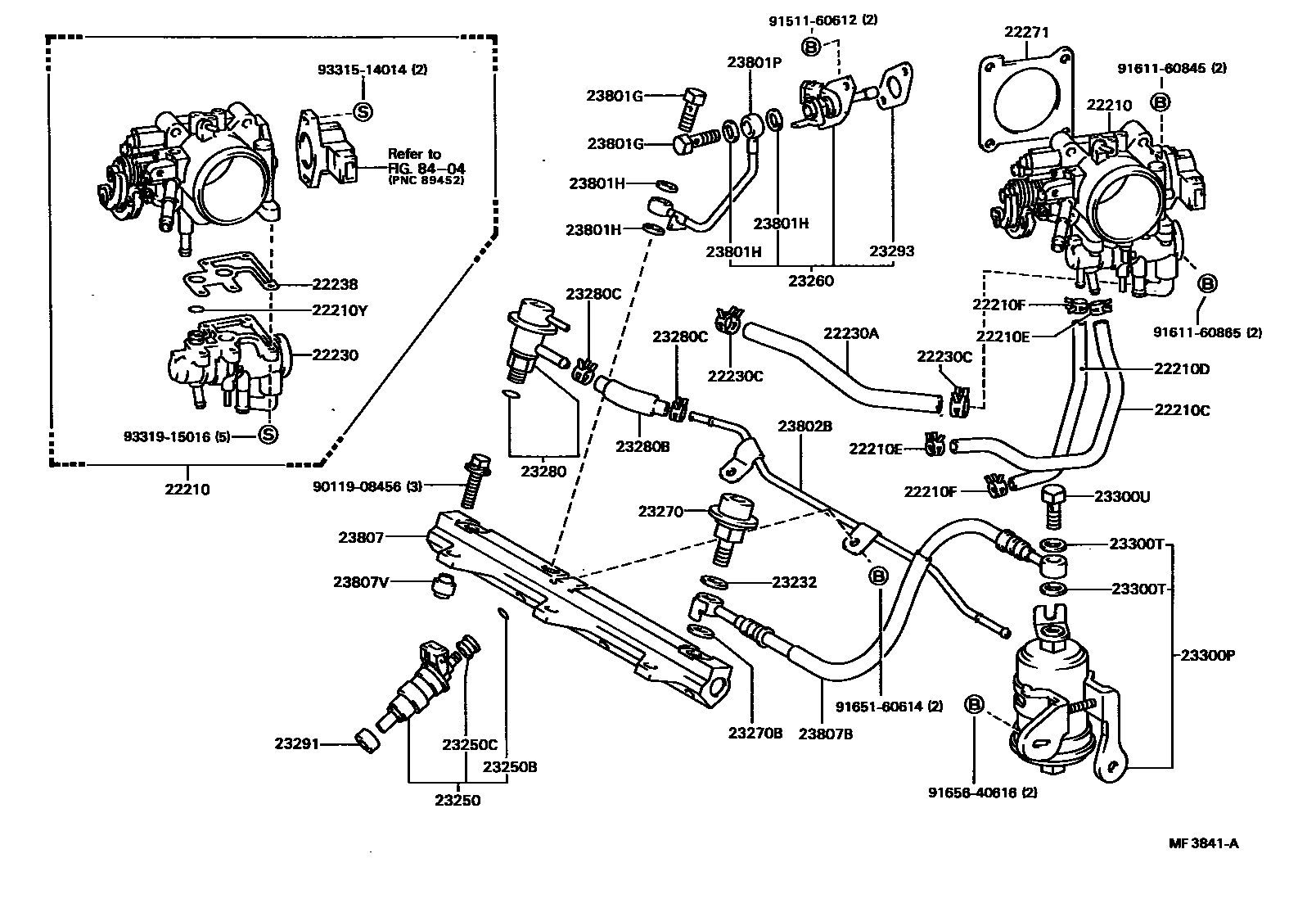

Toyota CAMRY EPC diagram 2211, 燃油喷射系统, with 6 images and 69 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22203 | Deceleration buffer sub-assembly (for throttle body) | 22202-62010 |
| 22210 | Throttle body assembly | 22200-63070 · 22200-63071 · 22210-62010 · 22210-74110 · 22210-74190 · 22210-74201 |
| 22210C | HOSE, WATER BY-PASS, NO.1 | 16264-63030 · 16264-88360 · 16282-74030 · 99556-10280 |
| 22210D | HOSE, WATER BY-PASS, NO.2 | 16267-63020 · 16267-88360 · 16282-74020 · 99556-10230 |
| 22210E | Hose clamp or clip (for water bypass hose No. 1) | 90467-13001 |
| 22210F | Hose clamp or clip (for No. 2 water bypass hose) | 90467-13001 |
| 22210Y | O-ring (for air pipe) | 96711-19009 |
| 22211 | throttle body | 22211-63070 · 22211-63071 |
| 22212 | Upper valve body (for throttle body) | 22212-63012 |
| 22215 | Throttle body cover gasket | 22215-74190 |
| 22216 | Deceleration buffer adjustment screw | 22216-74010 |
| 22218 | Cover (for throttle body) | 22218-63011 |
| 22221 | Positioner (for throttle body) | 22221-63020 |
| 22223 | Upper body gasket (for throttle body) | 22223-63010 |
| 22225 | Idle speed adjustment screw (for throttle body) | 22225-63020 |
| 22230 | Auxiliary air valve assembly | 22213-63010 · 22230-74030 · 22230-74050 · 22230-74051 |
| 22230A | No. 1 auxiliary air valve hose | 22233-88360 · 22233-88361 · 22233-88362 |
| 22230C | No. 1 auxiliary air valve hose clip | 90467-20134 |
| 22230V | O-ring (for auxiliary air valve) | 96711-19009 |
| 22238 | Auxiliary air valve gasket | 22224-63010 · 22238-74010 |
| 22270 | Idle speed control valve assembly (for throttle body) | 22270-62010 |
| 22270A | Air hose No. 1 (for idle speed control valve) | 17341-62010 |
| 22270B | Clip (for air hose) | 90467-23003 |
| 22271 | Throttle body gasket | 22271-62010 · 22271-62020 · 22271-63010 · 22271-74020 · 22271-88360 |
| 22278 | Idle speed control valve gasket | 22278-62010 · 22278-62020 |
| 23091 | Fuel pump pipe sub-assembly | 23091-74060 · 23091-74090 |
| 23206A | fuel pump bracket | 23206-74160 · 23206-74220 |
| 23206B | fuel pump bracket gasket | 77169-14010 |
| 23217A | fuel pump filter | 23217-16030 · 23217-16043 |
| 23220P | fuel pump assembly | 23220-16084 · 23220-16190 · 23220-43070 |
| 23229 | Clip (for fuel pump filter) | 23229-16010 |
| 23232 | Gasket (for fuel pump hose) | 23232-28010 |
| 23233 | fuel pump hose | 23239-16010 |
| 23233B | Clamp (for fuel pump hose) | 90467-13001 |
| 23249 | Rubber gasket (for fuel pump) | 23249-74150 |
| 23250 | Fuel injector assembly | 23209-62010 · 23209-63011 · 23209-74020 · 23209-74030 · 23209-74060 |
| 23250B | O-ring (for fuel injector) | 90099-14082 · 90099-14083 · 90301-07001 |
| 23250C | Gasket (for injector) | 90099-32124 · 90480-13005 |
| 23251 | Lead wire (for injector) | 23251-63010 |
| 23260 | Cold start injector assembly | 23260-69015 · 23260-79055 · 23260-79065 · 23260-79105 |
| 23260A | Joint bolts | 90401-08003 · 90401-08004 |
| 23260B | padding | 90430-08009 |
| 23270 | Fuel pressure pulsation damper assembly | 23207-74010 · 23270-28030 · 23270-62010 |
| 23270B | Gasket (for pulsation damper hose) | 90430-12005 |
| 23280 | Fuel pressure regulator assembly | 23280-62010 · 23280-62020 · 23280-63010 · 23280-74020 · 23280-74030 · 23280-74031 |
| 23280B | Fuel pressure regulator return hose | 90447-12051 · 95333-06030 |
| 23280C | Clip or clip (for fuel pressure regulator return hose) | 90467-11009 · 90467-11049 |
| 23280E | O-ring (for fuel pressure regulator) | 90301-07001 |
| 23291 | Injector vibration isolation pad | 23291-41010 · 90099-02215 |
| 23293 | Cold start injector gasket | 23293-62010 · 23293-62020 · 23293-74010 |
| 23300P | Fuel filter (for EFI) | 23030-79025 |
| 23300T | Gasket (for fuel filter) | 90430-12005 |
| 23300U | Connector bolt (for fuel filter) | 90401-12097 |
| 23801F | No. 1 fuel hose | 90923-01344 |
| 23801G | Connector bolt (for fuel pipe) | 90401-08003 · 90401-08004 · 90401-12018 · 90401-12097 |
| 23801H | Gasket (for fuel lines) | 90430-08005 · 90430-08009 · 90430-12005 · 90430-12013 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-74021 · 23801-88360 · 23811-63011 |
| 23802B | No. 2 fuel pipe sub-assembly | 23802-62010 · 23802-63012 · 23802-74020 · 23802-74021 · 23802-88361 · 23812-62010 |
| 23802C | Connector bolt (for No. 2 fuel pipe) | 90401-12015 |
| 23802D | Gasket (for No. 2 fuel line) | 90430-12005 |
| 23807 | Oil pipe sub-assembly | 23807-74030 · 23814-62010 · 23814-62020 · 23814-88360 · 23814-88361 |
| 23807B | Fuel line hose | 23271-63022 · 23271-63023 · 23271-74090 · 90923-01311 · 90923-01330 · 90923-01356 |
| 23807V | No. 1 spacer (for oil pipe) | 90560-11020 · 90561-08012 · 90561-08020 · 90561-08024 |
| 23811B | No. 1 fuel pipe | 23811-62010 |
| 23811C | Fuel hose (for fuel line to pressure regulator) | 95333-06020 |
| 23815 | No. 2 oil pipeline | 23815-62010 · 23815-62020 |
| 23901 | Fuel pipe sub-assembly | 23901-62010 |
| 23901A | Connector bolt (for fuel pipe) | 90401-08003 |
| 23901B | Gasket (for fuel lines) | 90430-08005 |
