Toyota CAMRY 分电器 — Figure 1902

Toyota CAMRY EPC diagram 1902, 分电器, with 4 images and 14 PNC and OE references.

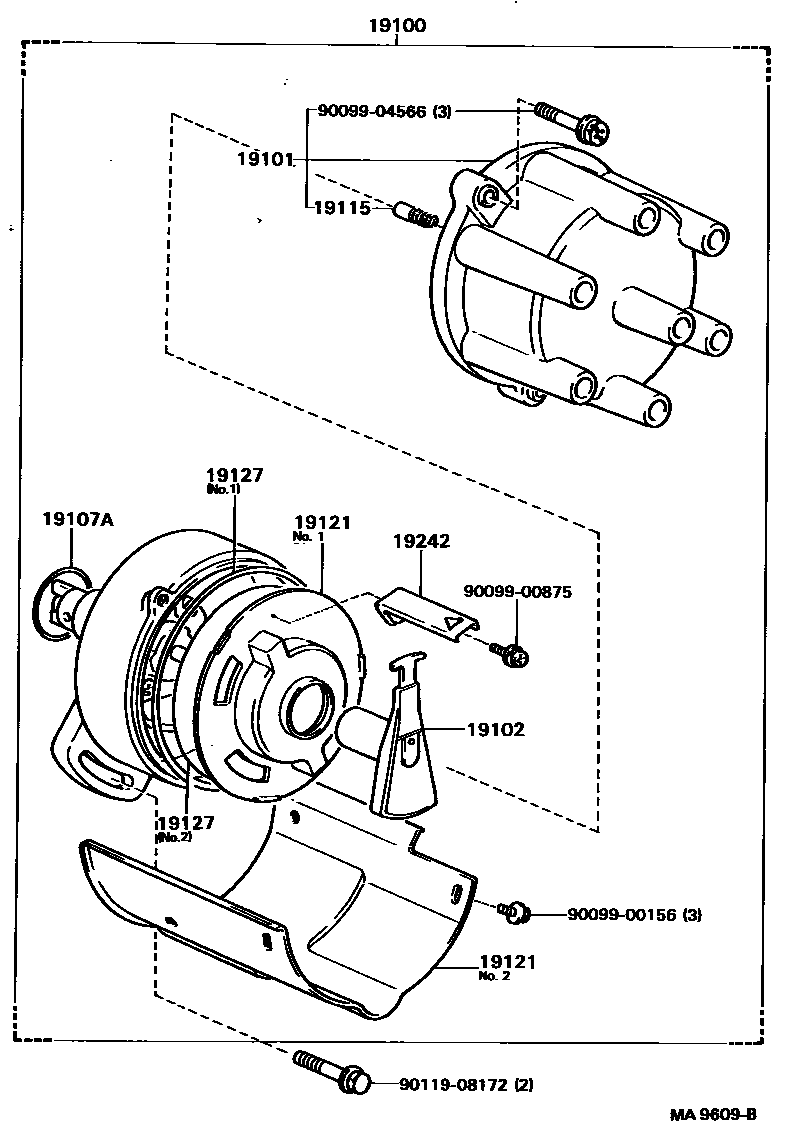

Toyota CAMRY 分电器 EPC diagram — MA9609B
分电器 — MA9609B (198704 – 999999)

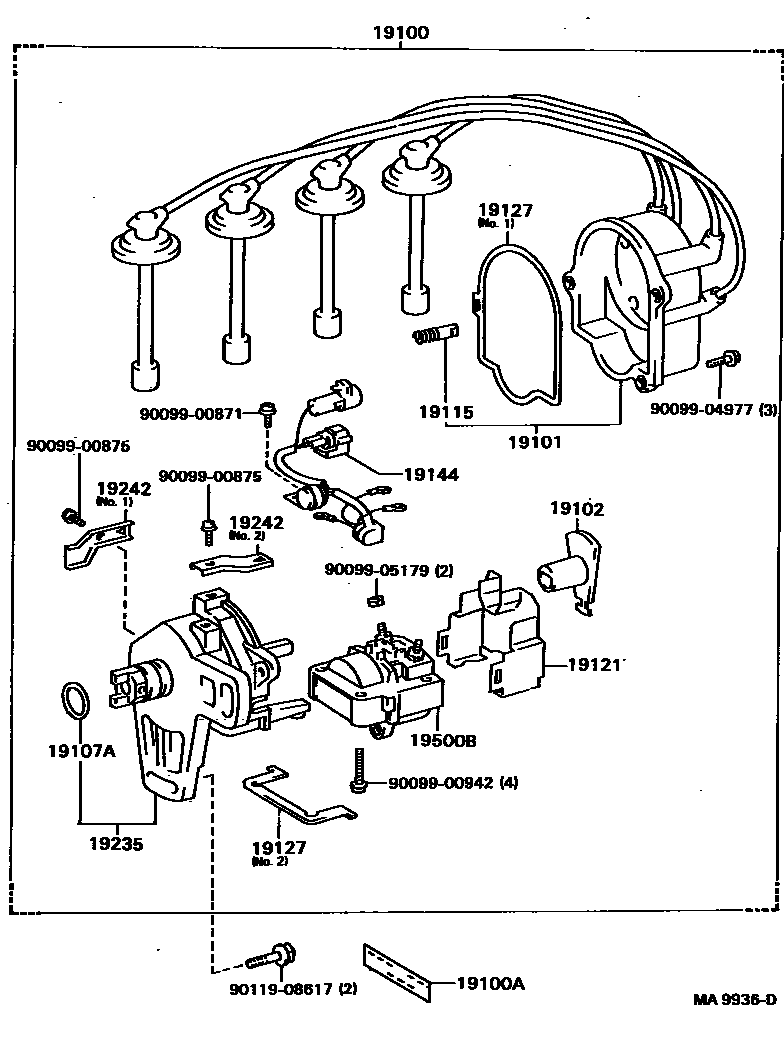

Toyota CAMRY 分电器 EPC diagram — MA9936D
分电器 — MA9936D (198608 – 999999)

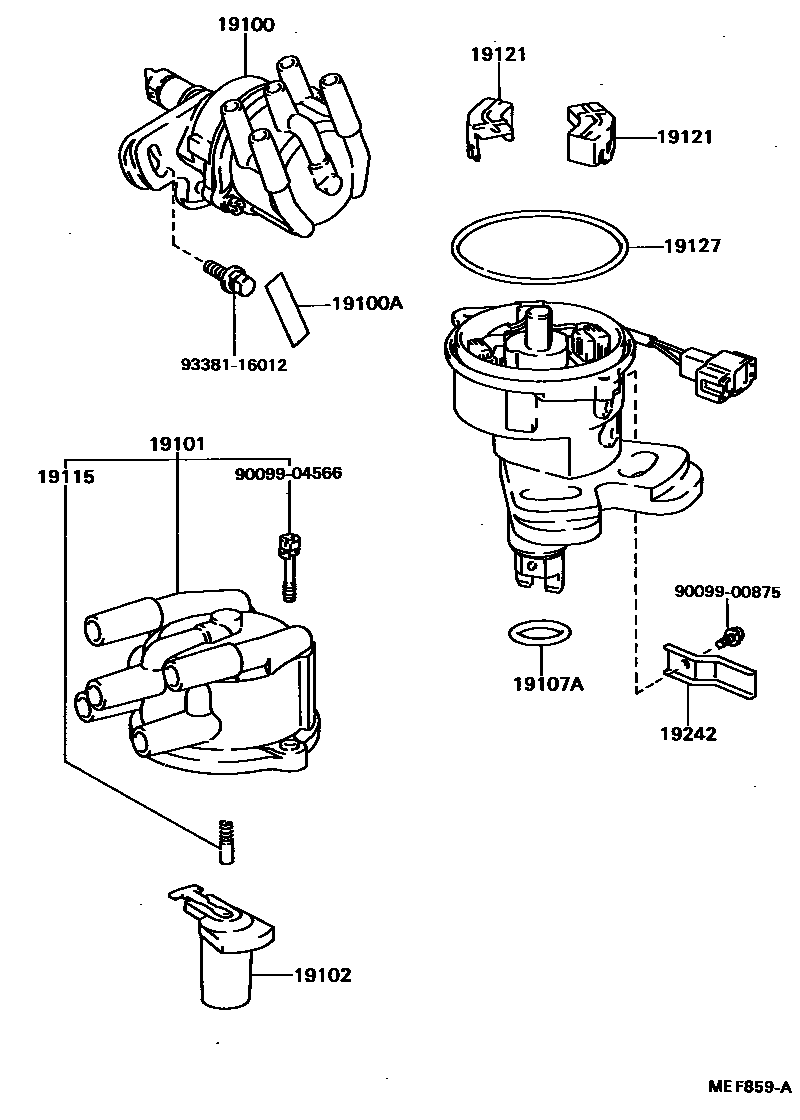

Toyota CAMRY 分电器 EPC diagram — MEF859A
分电器 — MEF859A (198608 – 999999)

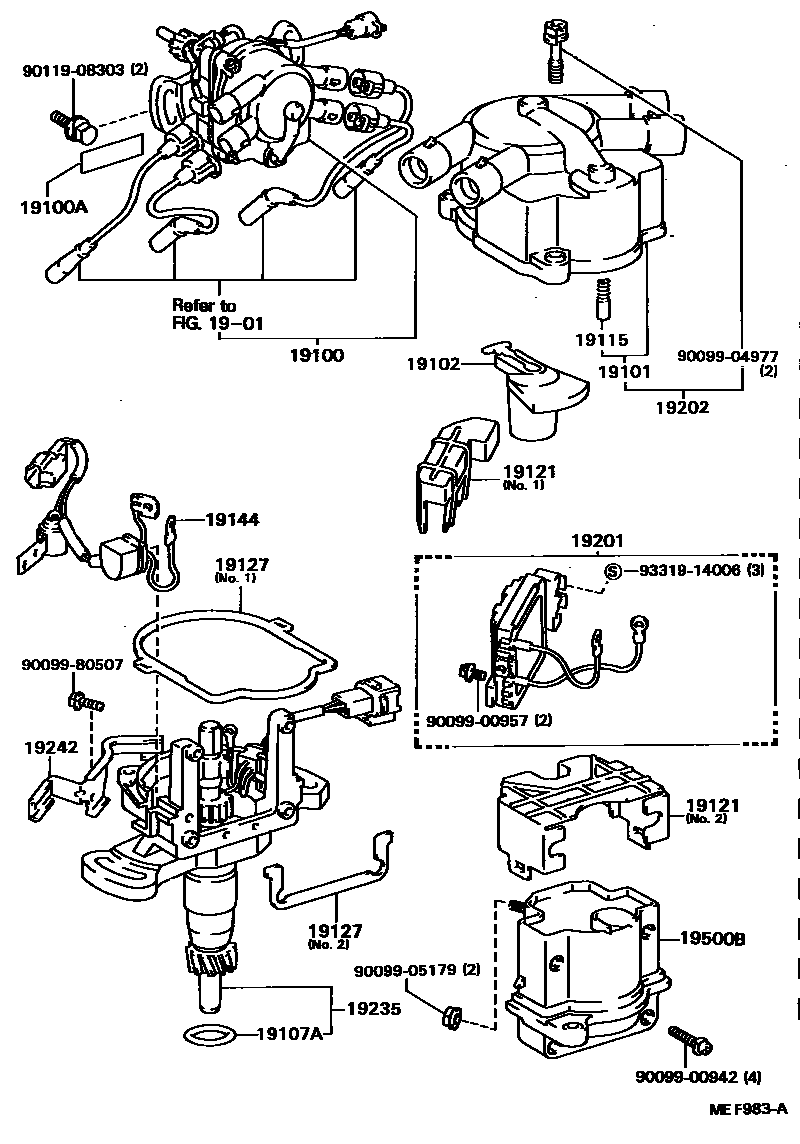

Toyota CAMRY 分电器 EPC diagram — MEF983A
分电器 — MEF983A (198608 – 999999)

PNC and OE references

PNCPart nameOE numbers
19100Distributor assembly19030-63100 · 19040-74020 · 19040-74021 · 19100-62010 · 19100-88361
19100Asealing tape90919-24004
19101Distributor cover sub-assembly19101-62010 · 19101-63011 · 19101-74010 · 19101-88360
19102Distributor flame head sub-assembly19102-11031 · 19102-16040 · 19102-62010 · 19102-63010
19107ADistributor housing O-ring90099-14020 · 90099-14089 · 96711-35030
19115Distributor cover center piece19115-50010 · 19115-63010 · 19115-71010
19121dust cover19121-16040 · 19121-62010 · 19121-62011 · 19121-63040 · 19121-63090
19127Dust seal19127-15021 · 19127-52020 · 19127-62010 · 19127-63010 · 19127-63020
19144Distributor breaker lead19144-63100 · 19144-74020
19201igniter89620-20250
19202Cover assembly (for distributor)19202-63010
19235Distributor housing19235-63100 · 19235-74020 · 19235-74040
19242Cable clip19242-62010 · 19242-74010 · 19242-74020 · 19242-74030 · 19242-88361
19500BIgnition coil assembly90919-02135
