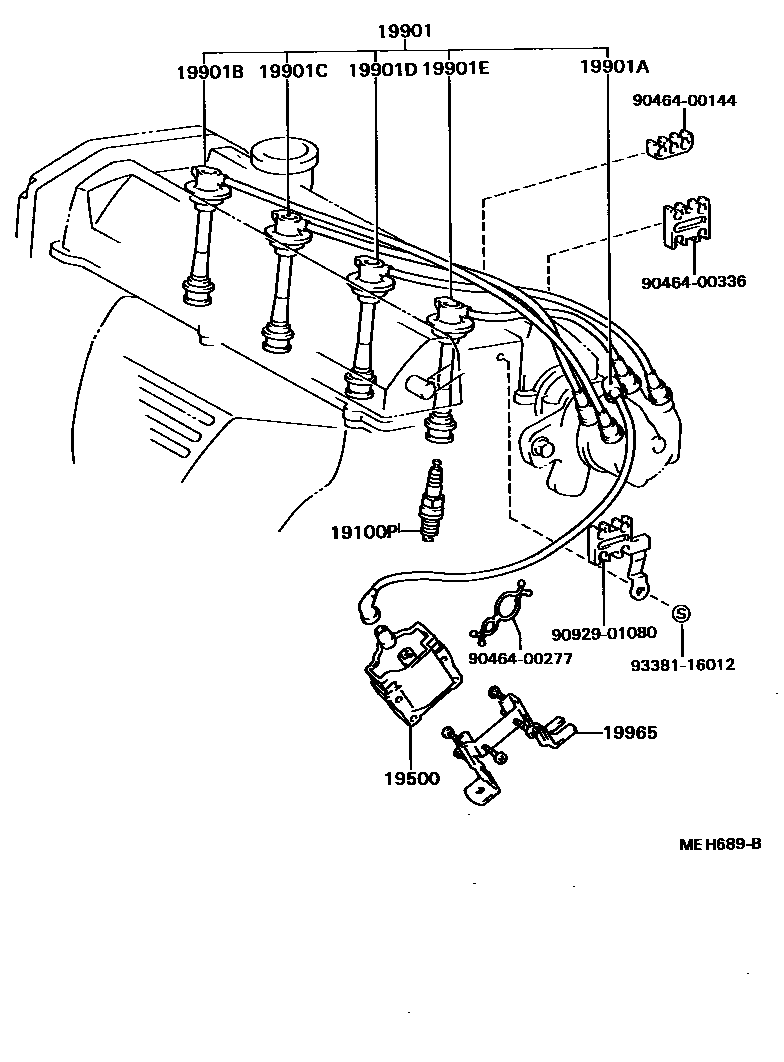

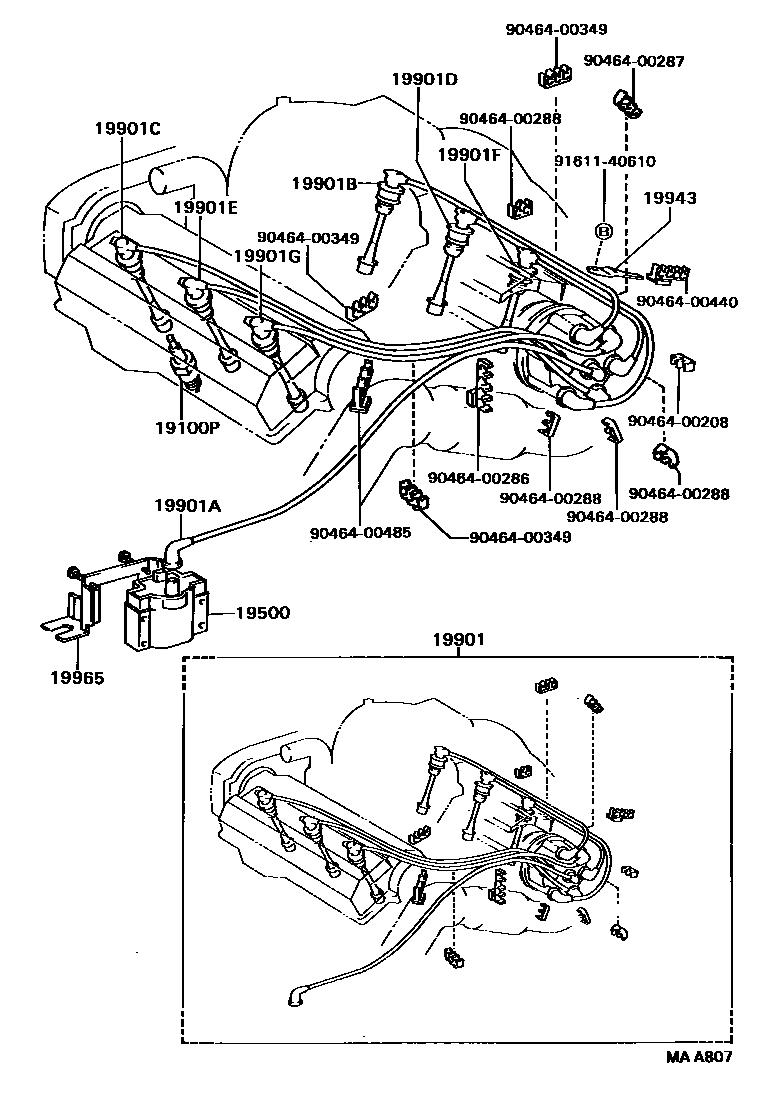

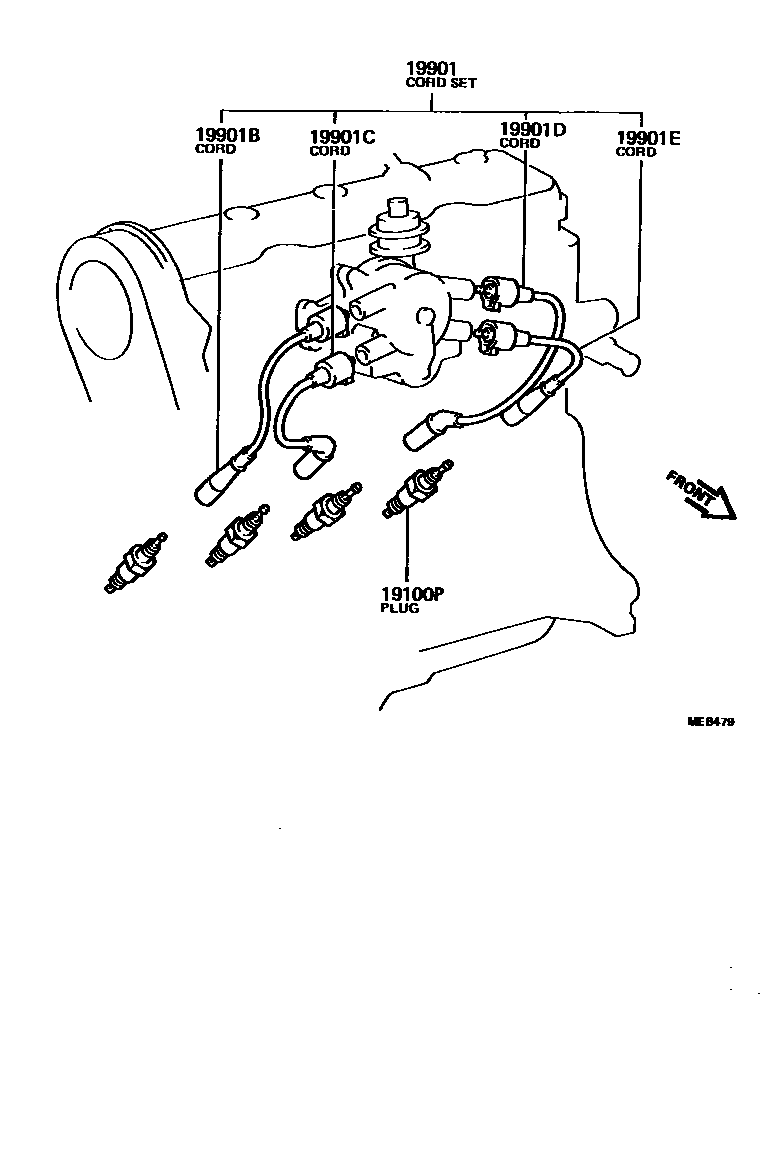

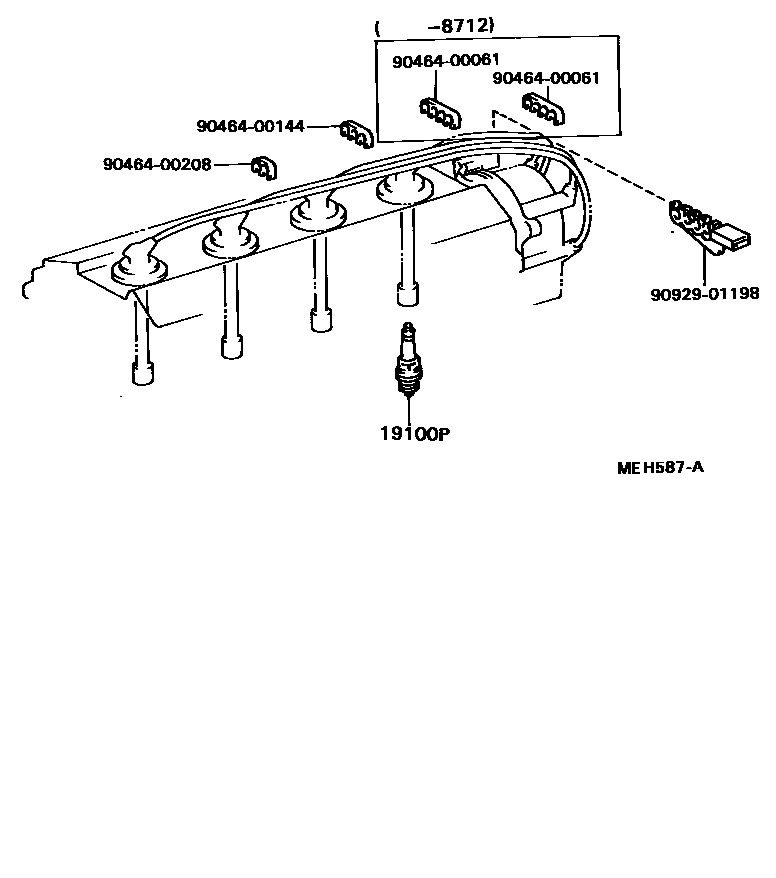

Toyota CAMRY 点火线圈和火花塞 — Figure 1901
Toyota CAMRY EPC diagram 1901, 点火线圈和火花塞, with 5 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01113 · 90919-01114 · 90919-01121 · 90919-01122 · 90919-01127 · 90919-01128 · 90919-01129 |
| 19500 | Ignition coil assembly | 90919-02175 |
| 19850 | Glow plug assembly | 19850-64010 |
| 19850B | Screw seal (for glow plug) | 90189-04024 |
| 19871 | Glow plug connector No. 1 | 19871-64021 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-21387 · 90919-21394 · 90919-22113 |
| 19901A | coil damping line | 90919-13262 · 90919-13279 |
| 19901B | No. 1 spark plug damper wire | 90919-12394 · 90919-12546 · 90919-12727 |
| 19901C | No. 2 spark plug damper wire | 90919-12392 · 90919-12547 · 90919-12728 |
| 19901D | No. 3 spark plug damper wire | 90919-12392 · 90919-12548 · 90919-12729 |
| 19901E | No. 4 spark plug damper wire | 90919-12394 · 90919-12549 · 90919-12730 |
| 19901F | No. 5 spark plug damper wire | 90919-12731 |
| 19901G | No. 6 spark plug damper wire | 90919-12732 |
| 19943 | No. 1 damping wire clip support plate | 19943-62010 |
| 19965 | No. 1 ignition coil band | 90919-03105 · 90919-03108 |
