Toyota CAMRY vacuum tube — Figure 1708

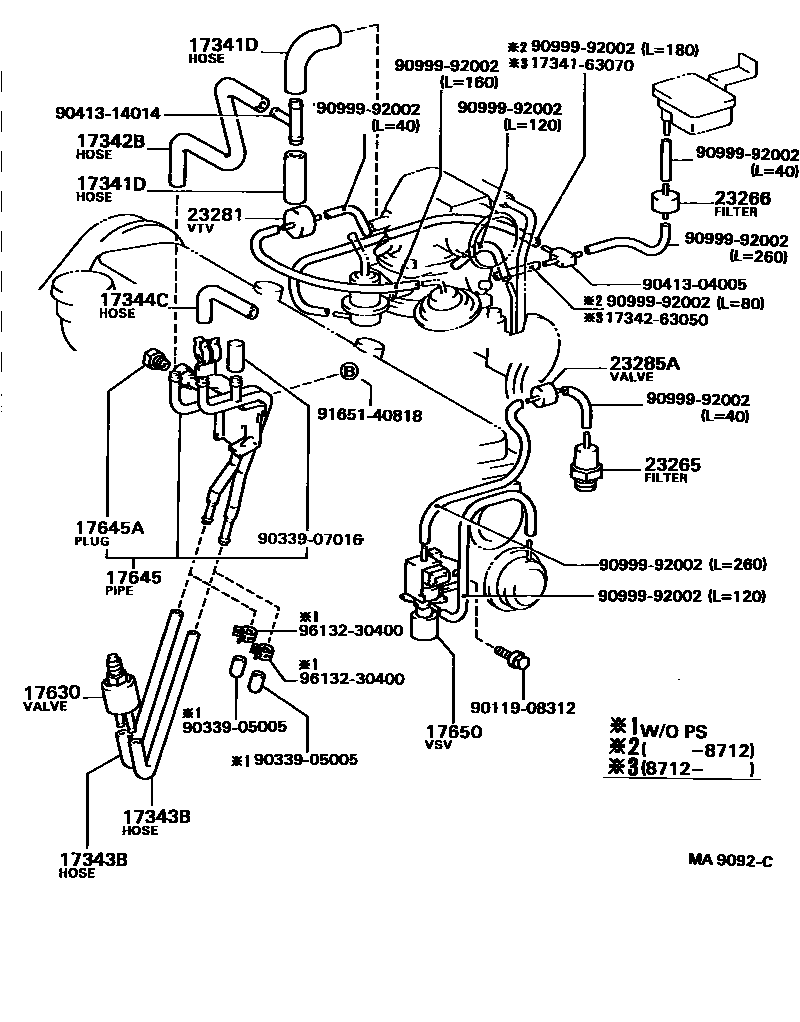

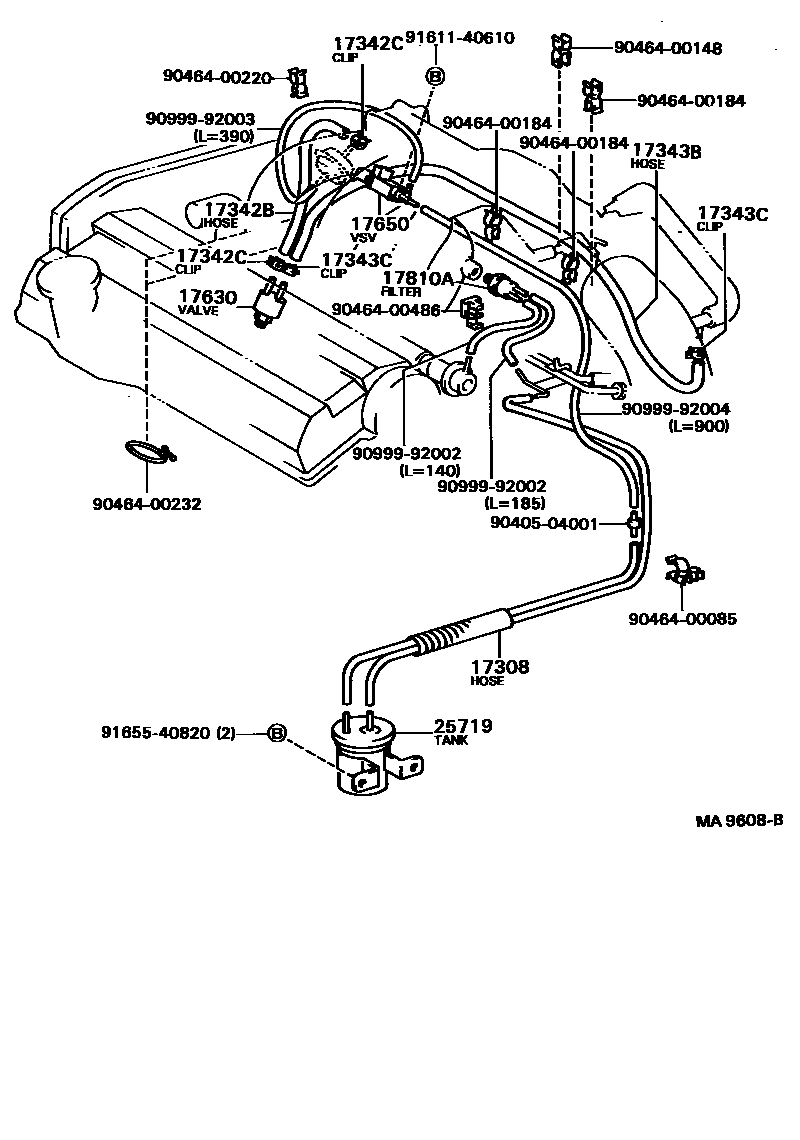

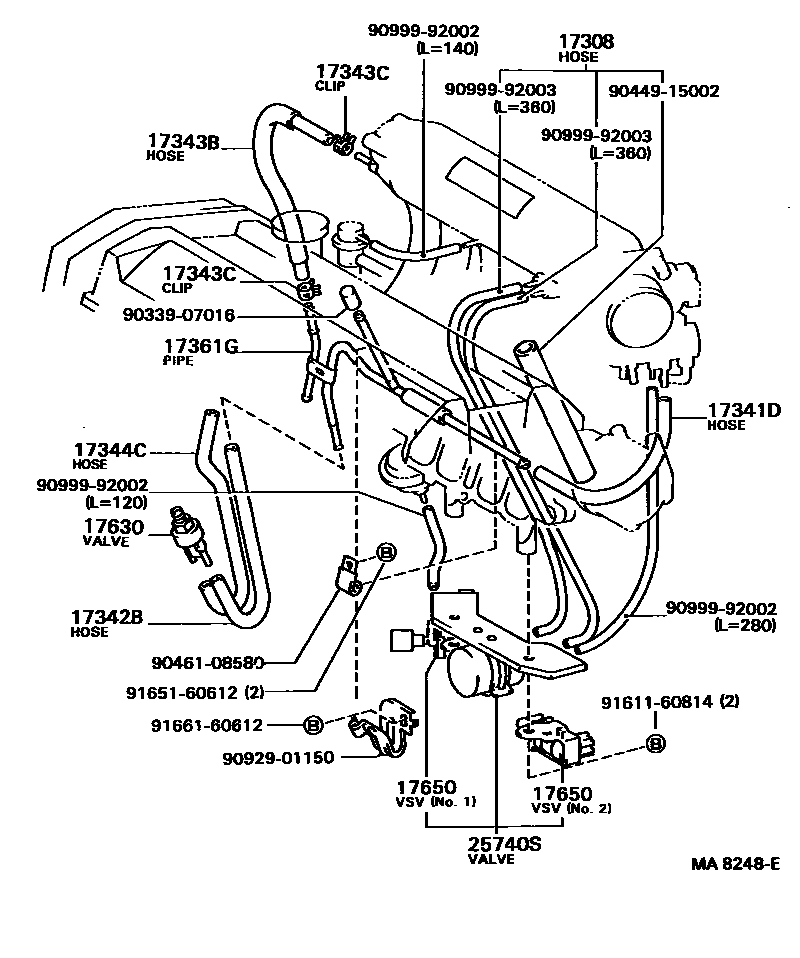

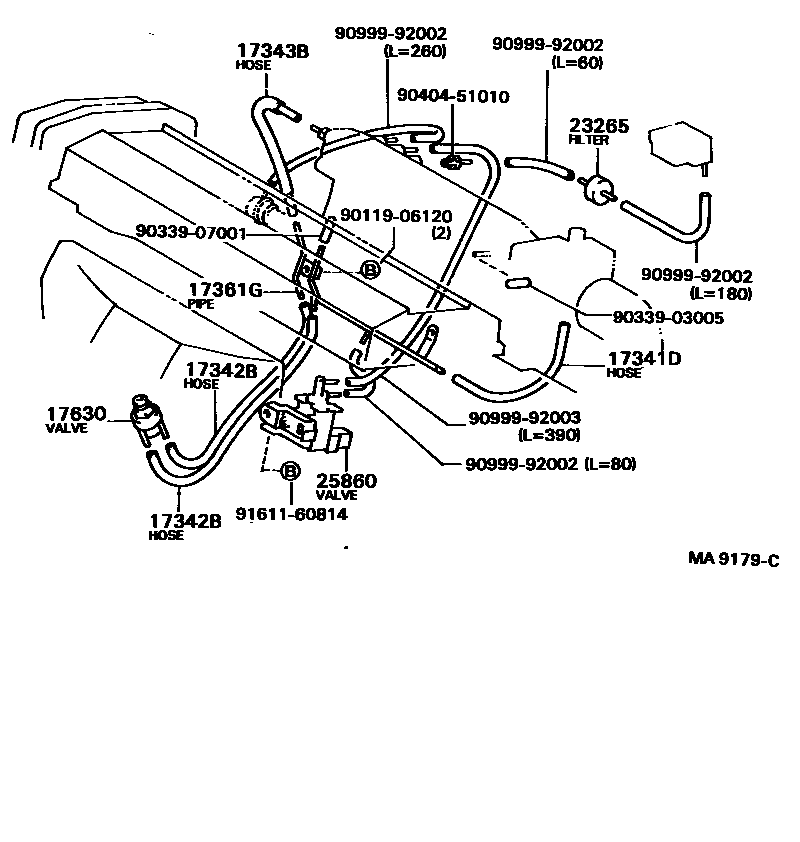

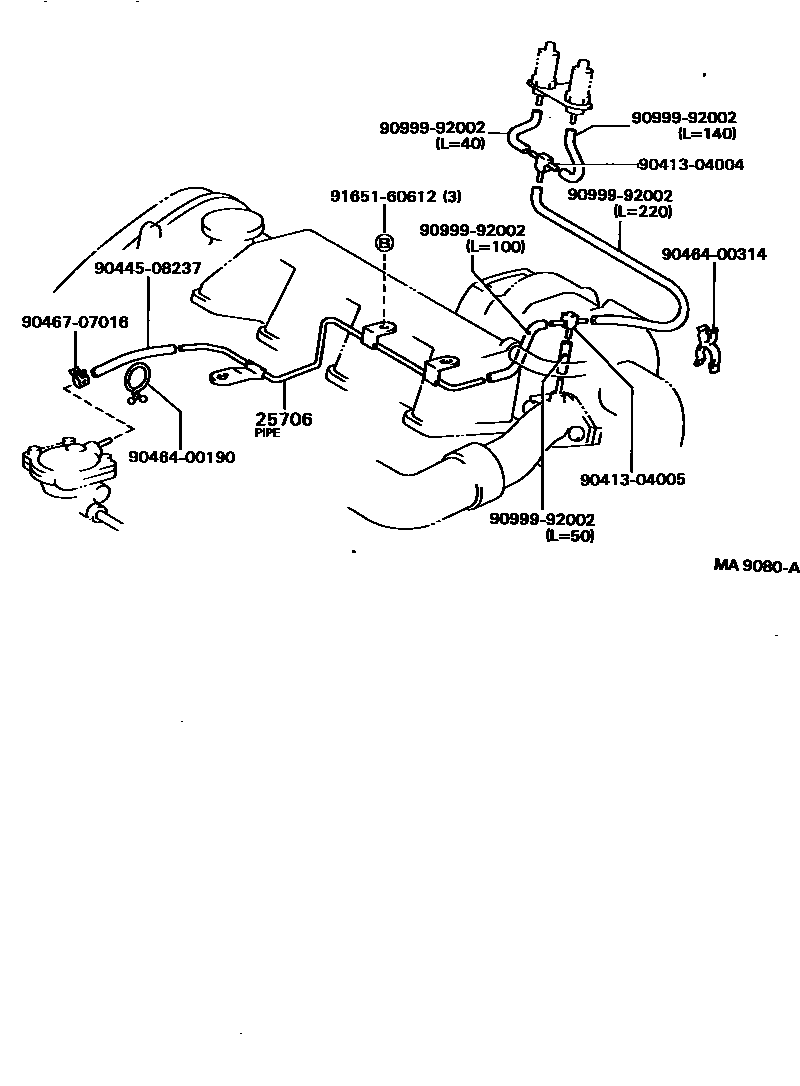

Toyota CAMRY EPC diagram 1708, vacuum tube, with 6 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17308 | Vacuum hose sub-assembly (for idle boost) | 17308-62010 · 17308-74010 |
| 17341D | No. 1 hose (for idle boost) | 17341-63030 · 17341-74040 · 17341-88360 · 17341-88361 · 90445-19002 |
| 17342B | No. 2 hose (for idle boost) | 17342-62010 · 17342-88360 · 17343-74010 · 17343-74011 · 90445-13006 |
| 17342C | Clamp No. 2 (for idle lift hose) | 96132-30400 |
| 17343B | No. 3 hose (for idle speed boost) | 17343-62010 · 17343-74010 · 17343-74011 · 17343-74040 · 17343-88361 |
| 17343C | Clamp No. 3 (for idle lifting hose) | 96132-30400 |
| 17344C | No. 4 hose (for idle speed boost) | 17344-88360 · 17345-63010 |
| 17361G | Air pipe (for idle boost) | 17361-74020 · 17361-88361 |
| 17630 | Air control valve assembly | 17630-63020 · 17630-70020 · 17630-74010 |
| 17645 | idle riser | 17645-63020 · 17645-63021 |
| 17645A | Screw plug (for idle riser) | 90345-51006 |
| 17650 | Vacuum switch valve assembly | 89570-88360 · 89570-88365 · 90910-12011 · 90910-12018 |
| 17810A | air filter assembly | 90917-11029 |
| 23265 | No. 1 gas filter | 90917-11021 · 90917-11022 |
| 23266 | No. 2 gas filter | 90917-11021 |
| 23281 | Vacuum Transfer Valve No. 1 | 90925-01041 |
| 23285A | No. 1 one-way valve | 90917-10049 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-64020 |
| 25719 | Vacuum pressure tank | 25719-62010 |
| 25740S | Air control valve assembly (for idle speed control) | 25740-88360 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-74010 |
