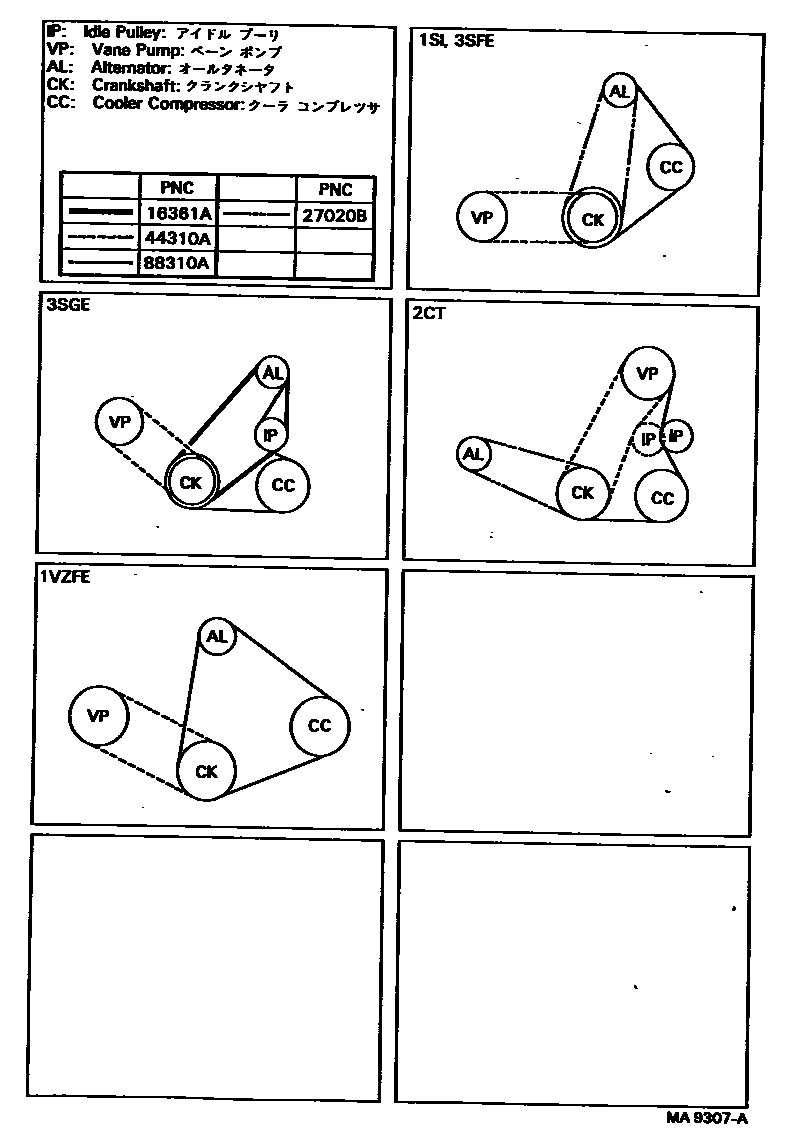

Toyota CAMRY V-Belt — Figure 1605
Toyota CAMRY EPC diagram 1605, V-Belt, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16361A | V-belts (for fans and generators) | 99365-01000 |
| 27020B | V-belt (for generator) | 90916-02140 · 90916-02155 · 90916-02182 · 90916-02216 · 90916-02219 · 99365-01000 |
| 44310A | V-belt (for vane pump) | 90916-02177 · 90916-02207 · 99363-50760 · 99365-51120 |
| 88310A | No. 1 V-belt (cooler compressor to crankshaft pulley) | 90916-02116 · 90916-02197 · 99365-51110 · 99365-51210 · 99366-01050 |
